Features

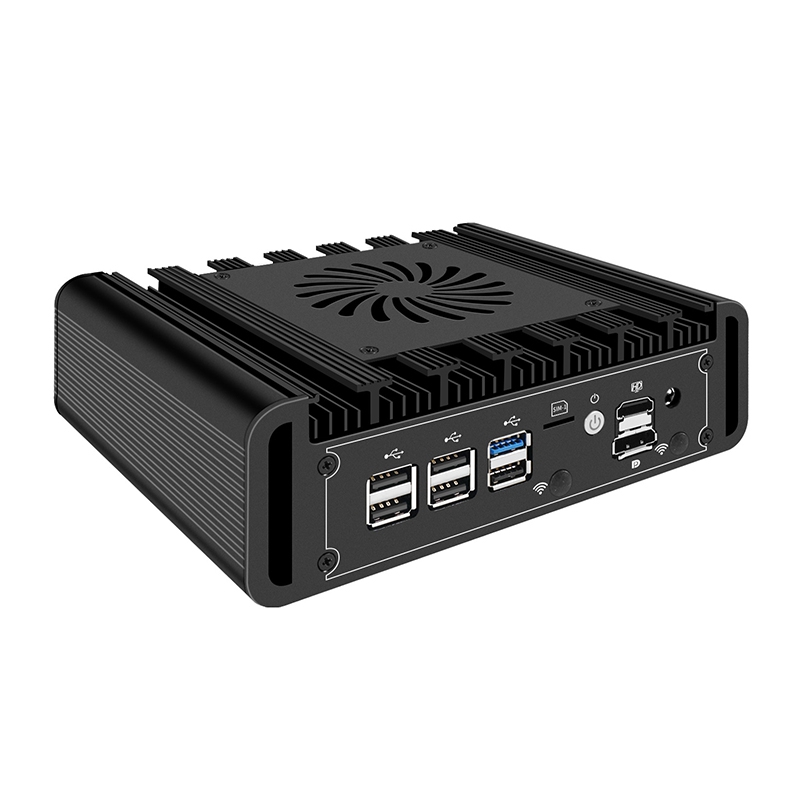

This 3 Lan N150 2.5G firewall with fan is sized 177×125×54 mm, powered by Intel Celeron N150 quad-core quad-thread processor. It supports single-channel DDR5 4800MHz memory up to 32GB, with desktop and wall-mount installation.
It features 3×Intel I225/I226 2.5GbE LAN ports, DP + HDMI dual display outputs supporting 4K@60Hz. Rich I/O includes 5×USB2.0, 1×USB3.0 and SIM slot. The Mini-PCIe slot supports WiFi and 5G expansion.
Storage supports M.2 Key-M 2280 SSD interface. Powered by DC12V_10A, it supports power resume, timed power on, WOL, PXE boot and hardware watchdog.
Product Description
Model No.: SII-H31F-N150_3L2S
Chassis
Structure: All materials is made of aluminum, fan cooling structure
Dimension: 177 x 125 x 54mm (L*W*H)
Color: Black

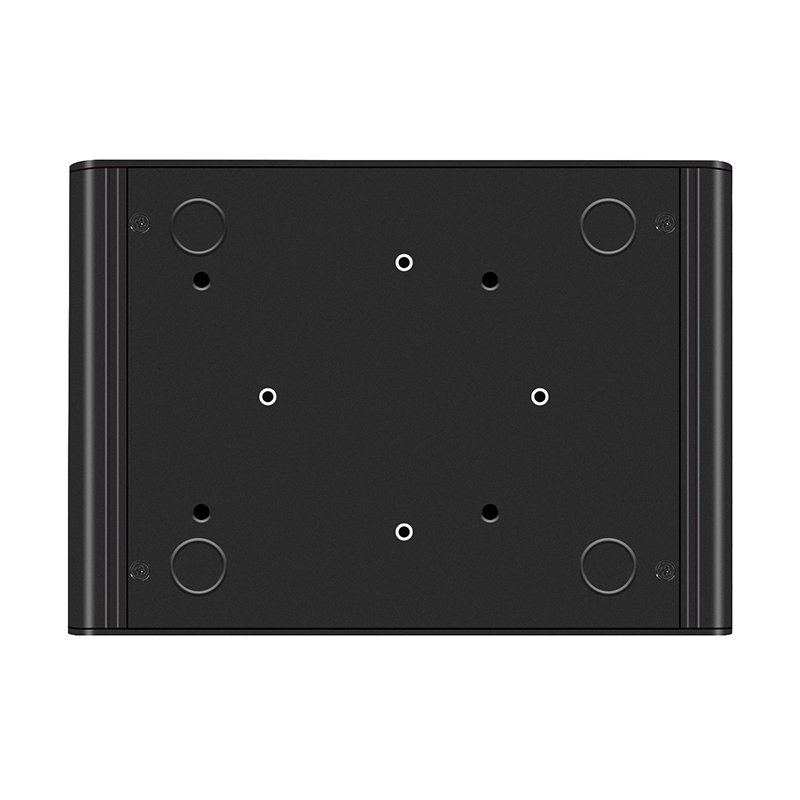

Installation: Support Desktop / Wall-mounted
Motherboard
Processor: Integrated Intel ® N150/3.6GHZ 4-core 4-threads processor;
Chipest: Integrated Intel HD Graphics
Memory :1x SO-DIMM slot, support DDR5 Memory, up to 32GB
Front I/O
Power: 1x power input DC_12V

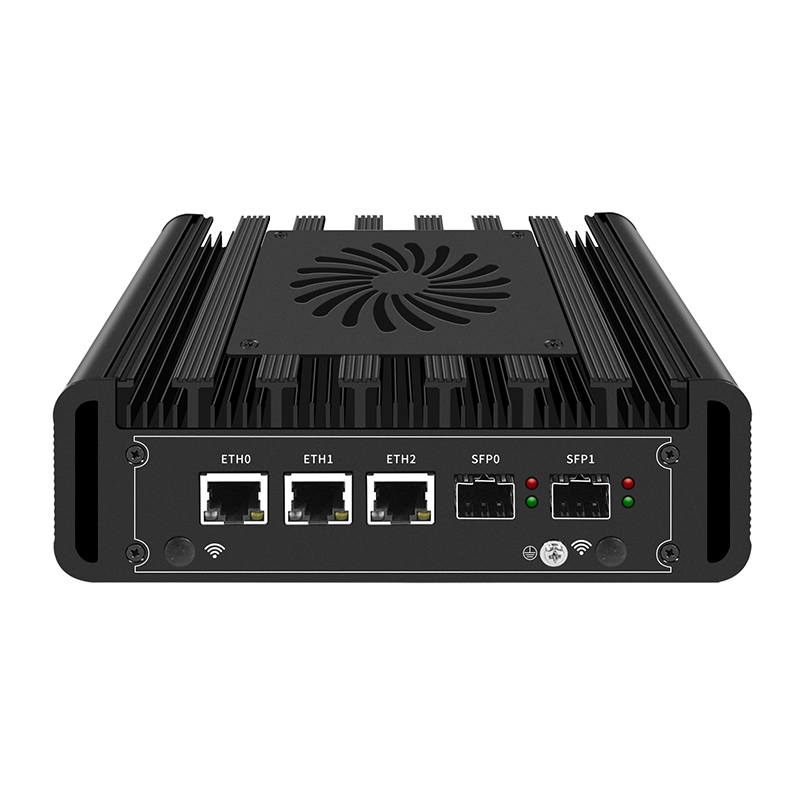

Ethernet :3x I226 2.5GbE Ethernet ports; 2x Intel 82599 SFP (10G) ports

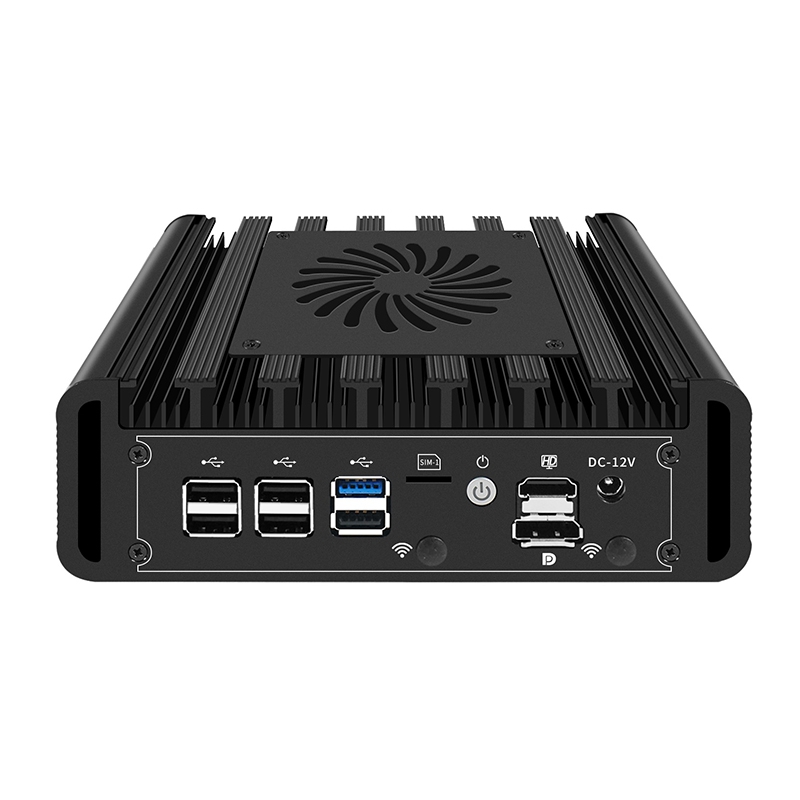

Rear I/O
Switch: 1x Power Button
Power interface: 1x DC 12V power interface
USB: 1x USB3.0, 5x USB2.0
Display: 1x DP + 1x HDMI dual-display interface
SIM: 1x SIM slot
Storage
M.2: 1x M.2 2280/2242 NVME SSD
Expansion
PCIE: 1x MINI PCIE slot, Support 4G/WIFI&BT
O/S
Windows: Yes
Linux: Yes
Watch Dog: Support hard ware reset function (level 256, 0~255 seconds)
Power Supply
Power supply: External power adapter
Voltage input: DC_12V 10A(5.5*2.5)
Reliability
Working Temp.: 0℃~50℃
Storage Temp.: -20℃~50℃
Relative Humidity: 5%-90% relative humidity, non-condensing
