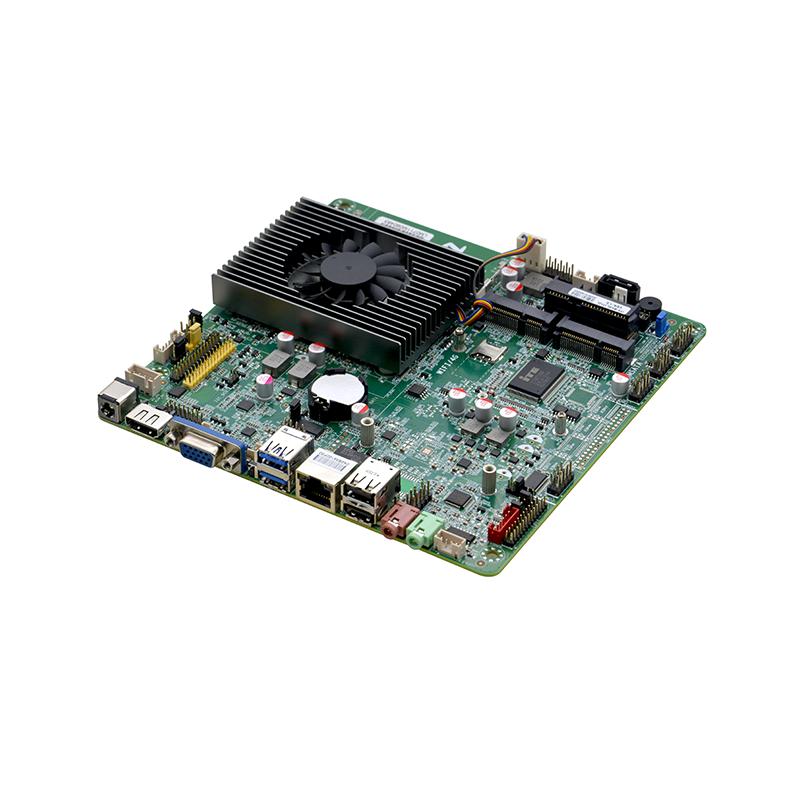

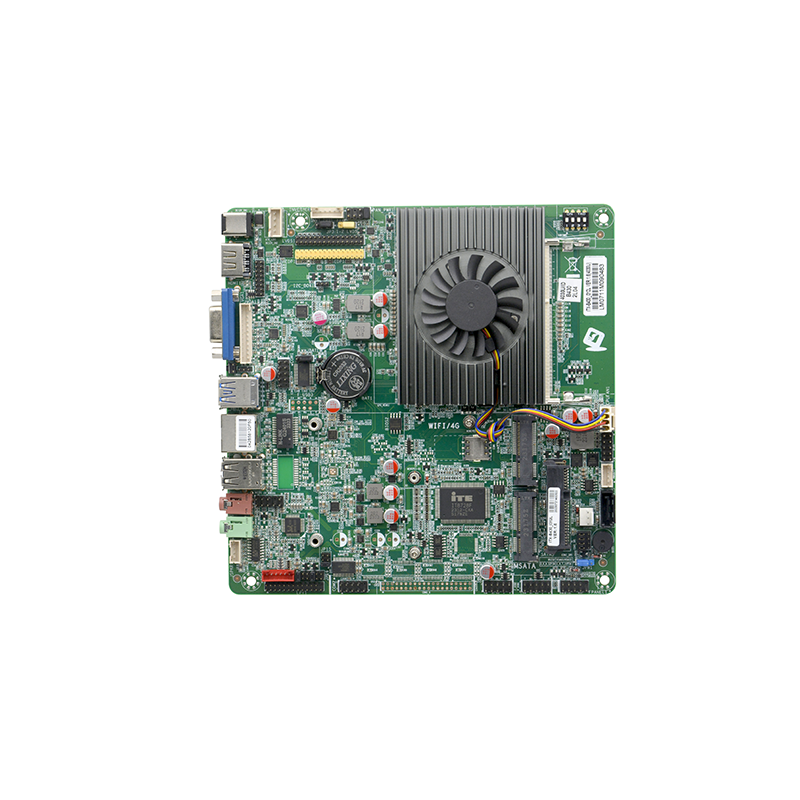

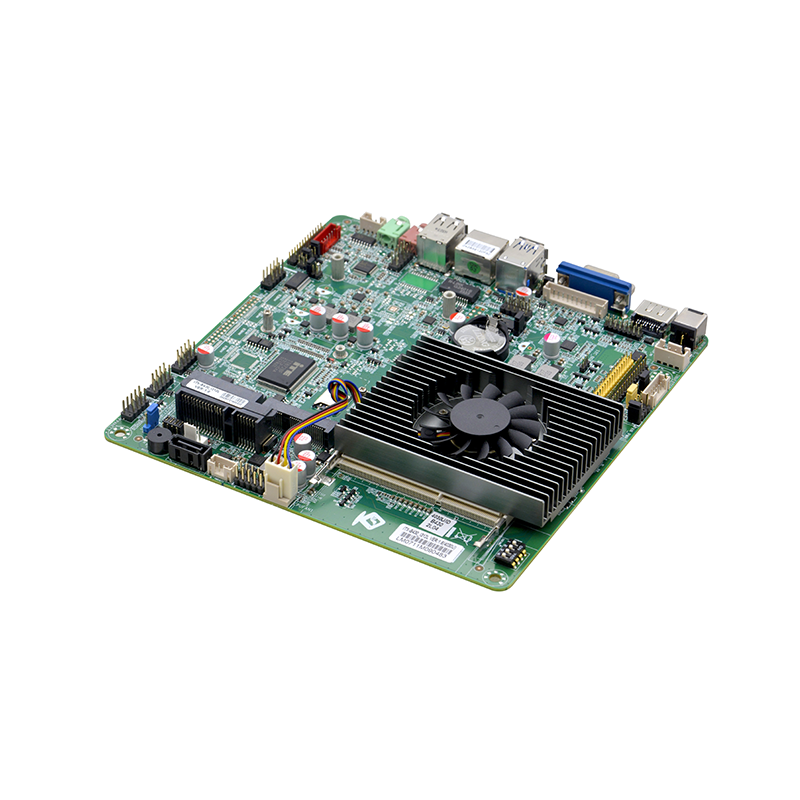

This legacy-compatible Thin ITX motherboard features Intel‘s 4th Gen Core™ i3-4030U processor (2C/4T, 1.9GHz) in a compact Thin ITX form factor (170×170mm), offering traditional interface support for industrial equipment upgrades.
Key Features:
✔ Basic Processing: Intel i3-4030U with HD Graphics 4400
✔ Multi-Display: VGA + HDMI + LVDS/eDP (triple output)
✔ Memory: Single DDR3L 1600MHz (max 8GB)
✔ Industrial I/O:
1×GbE (Realtek 8111H) + 8×USB
2×COM + LPT + PS/2 + SIM slot
✔ Storage & Expansion:
2×SATA3.0 + 1×mSATA
1×mini-PCIe (WiFi/3G)
✔ Rugged Design:
GPIO + Watchdog + 2Ω/5W audio
✔ Dual Power: 12V DC or ATX 4-pin
Applications: Equipment Retrofit | Legacy Systems | Basic HMI
Product Description
Model No.: ITX-B430_I312L VER:1.6(4030U)
Processor: Integrated Intel®Haswell-U I3-4030U/1.9GHz dual-core quad-thread processor, TDP 15W
Compatible with Intel Celeoron,Pentium,Core®I3/I5/I7 Haswell/Broadwell-U processor
Chipset: Based on Intel®Haswell-U/Broadwell-U SOC platform
Memory: 1x SODIMM slot, support 1600/1333MHz DDR3L/1.35V memory, up to 8GB
Graphics:
Intel® HD Graphics 4400
1x VGA, 1x HDMI, 1x LVDS interface (supports dual-channel 24BIT), 1x EDP, and LVDS can be selected by jumper
Support single display, dual display mode, and extended mode
Network: 1x RTL8111H Gigabit network card, support network wake-up, PXE function
Storage:
1x SATA3.0 2.5-inch laptop hard drive slot
1x 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps
Audio:
Onboard ALC262 6 channel high-fidelity audio controller, supports MIC/Line-out. amplifier
Power amplifier 2Ω 5W speaker
Expansion slots:
1x Mini PCIE slot,support WIFI 、3G module
1x MSATA slot, supports Intel protocol SSD solid state drive, transmission speed up to 6Gbps
Note: If MINIPE1 needs to support 3G module, it needs to adjust the relevant hardware settings, and F_USB2 will only support 1 USB

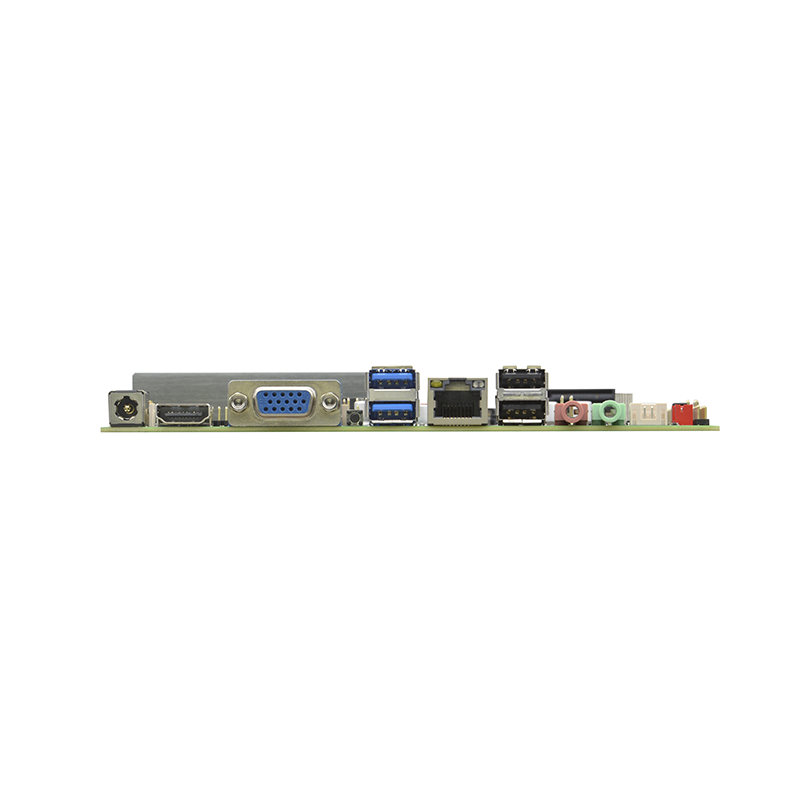

Rear I/O interface:
1x 12V DC JACK power input interface
1x HDMI
1x VGA
1x Gigabit network interface
2x USB3.0
2x USB2.0
1x Line out (Green)
1x MIC (red)
Built in I/O interface:
1x JVGA, 1*12Pin (same signal as DB15)
1x J_HDMI interface 2*8pin (same signal as back panel IO interface HDMI)
1x Support dual-channel 24bit (dual 8) LVDS interface 2*15pin
1x LVDS backlight power supply interface 1*6pin
1x EDP interface 2*15pin (yellow), select one from LVDS through jumper, default LVDS
1x Screen brightness adjustment interface 1*4pin
1x Front audio interface 2*5pin
1x Preamplifier interface 1*4Pin
1x LVDS backlight power supply interface 1*6pin
4x USB 2.0, 2*5Pin
2x RS232 serial interface 2*5pin COM1/COM2 supports 9th pin power function, COM2 supports RS485/422
1x LPT, 2*13pin
1x PS/2 keyboard and mouse interface 1*6Pin
1x Hard disk power supply interface 1*4pin
1x SIM card set
1x Front panel switch button and indicator light interface 2*5Pin
1x DC power interface 1*4pin, supports 12V power input and output
Fan interface: 1*4pin CPU smart fan interface, 1*3pin system fan interface
Power input: DC 12V
BIOS: AMI 64Mb Flash ROM
GPIO: Supports 4 input and 4 output GPIO interfaces
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
OS: Windows 7/Windows 10/Linux
Working Temp.: -10℃～60℃
Storage Temp.:-20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)
Dimension: 170mm x 170mm
