Overview
This advanced firewall motherboard leverages the Intel Gemini Lake SOC platform, powered by the Intel Celeron J4125 Quad-Core processor (2.0GHz, burst up to 2.7GHz) with Intel UHD Graphics 600, delivering exceptional performance for enterprise network security applications.
Key Firewall Features:
●High-density networking: 4× Intel WGI210AT Gigabit Ethernet ports (industrial-grade controllers)
●Expansion-ready design: 120-pin express slot supporting:
Additional SATA storage
Mini-PCIe for WiFi/4G modules
2× TTL interfaces
Extra USB ports
●Memory capacity: 1× DDR4 2400MHz SO-DIMM (up to 8GB)
●High-speed storage: 1× mSATA 3.0 SSD
●Modern connectivity: 4× USB3.0 ports
●Dual power inputs: 12V DC jack + ATX 4-pin connector
●Security assurance:
Watchdog Timer
GPIO control
Optimized for:
Next-Generation Firewalls (NGFW)
Network Traffic Analysis appliances
Enterprise VPN gateways
Industrial cybersecurity solutions
Product Description

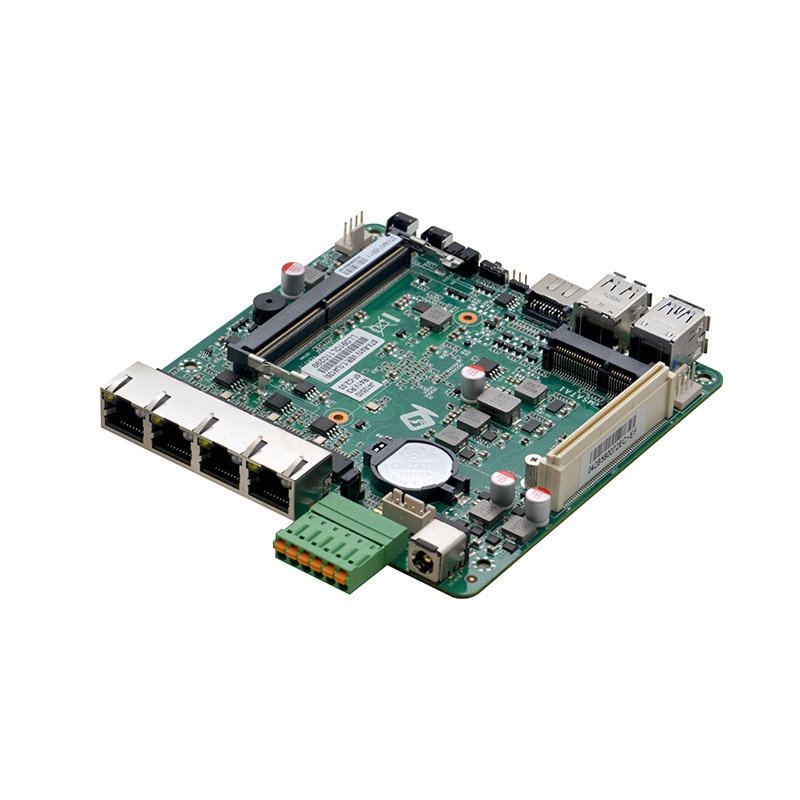

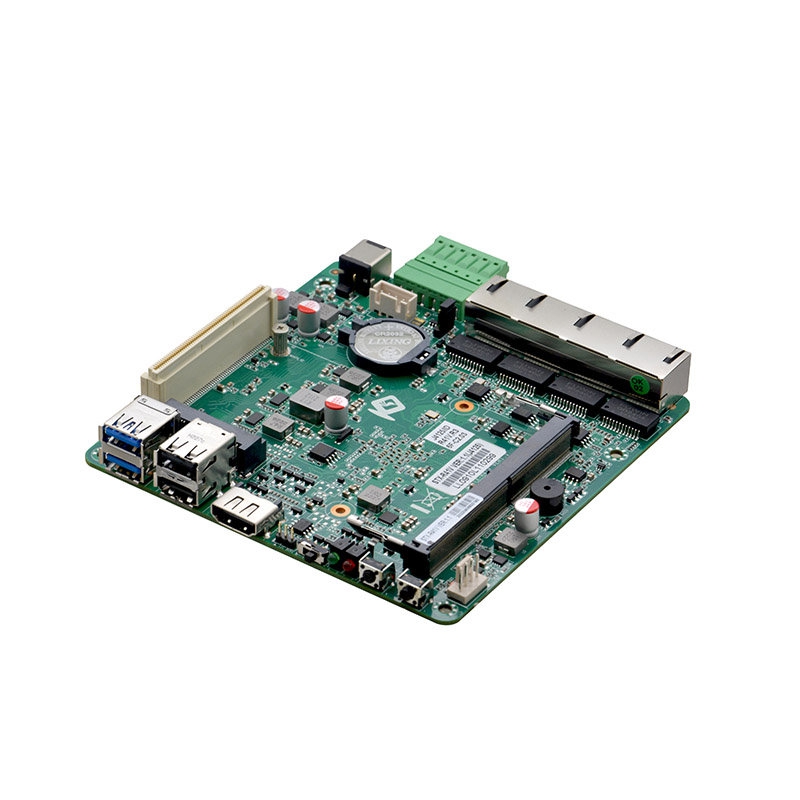

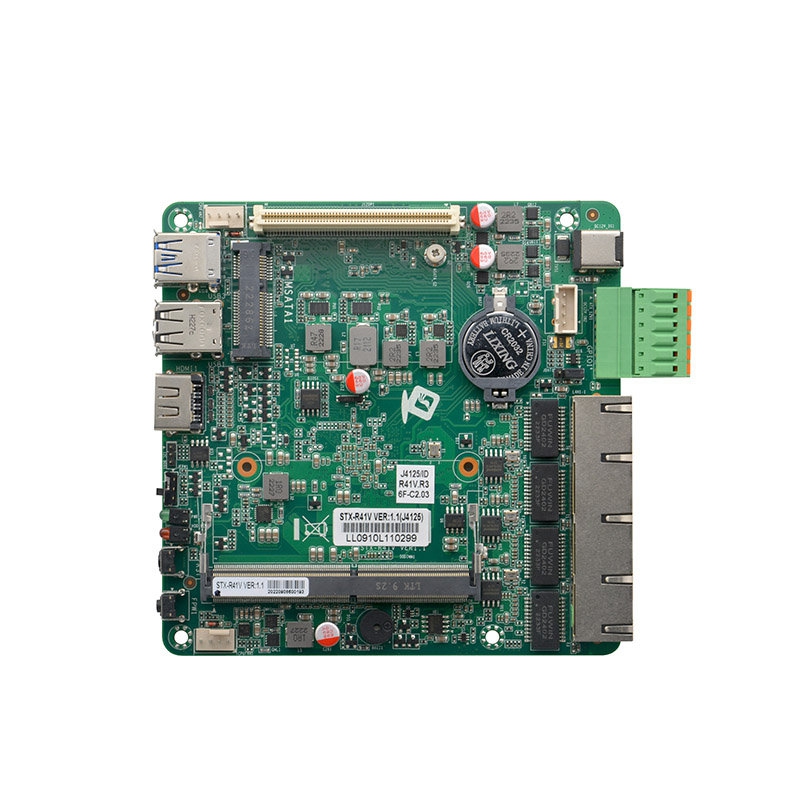

Model No.: STX-R41V VER:1.1(J4125)
Processor: Integrated Intel®Celeron J4125 2.00GHz Quad core Quad thread processor ,TDP 10W
Compatible with Intel® Gemini Lake all series CPU
Chipset: SOC
Memory: 1x SODIMM slot, supports single channel 2400MHz DDR4 slot, is up to 8GB
Display: Integrated Intel® UHD Graphics 600
1x HDMI,the maximum resolution supported is：4096X2160@30Hz
Ethernet: 4x Intel I225V 2.5G Gigabit Ethernet ,supports Wake on LAN/PXE function
Storage: 1x MSATA slot, supports Intel protocol SSD, the transfer rate is up to 6Gbps
Audio: N/A
Expansion Slot: 1x 120pin high speed terminal，including 2x COM, 3x USB2.0, 1x DDI, 2x PCIE, 1x SATA signal

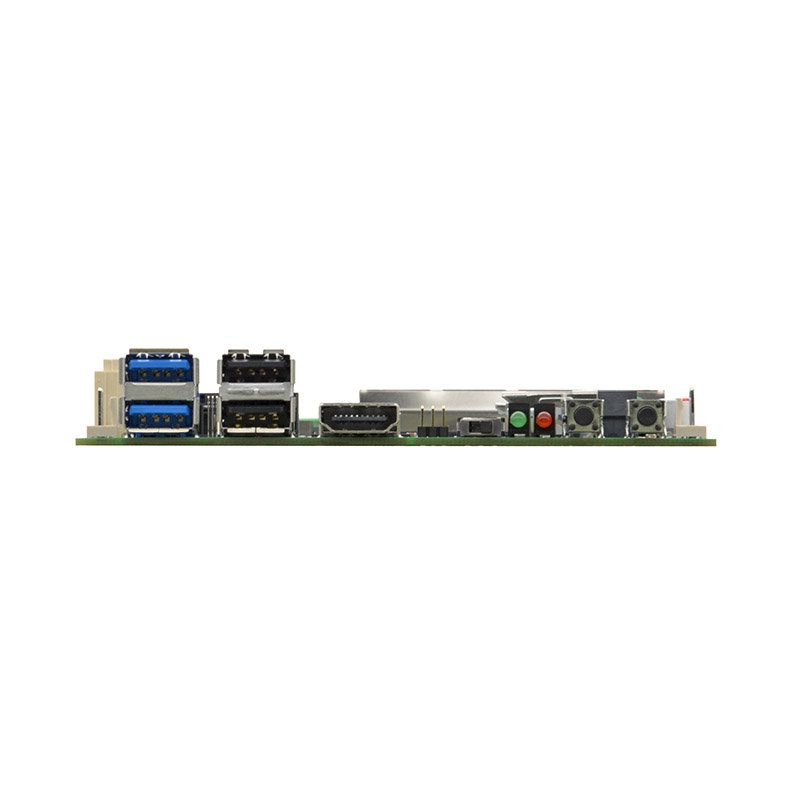

Front panel I/O interface:
2x USB 3.0, 2x USB2.0
1x HDMI
1x Power-on control switch
1x Power indicator
1x HDD indicator
1x Reset switch
1x POWER switch

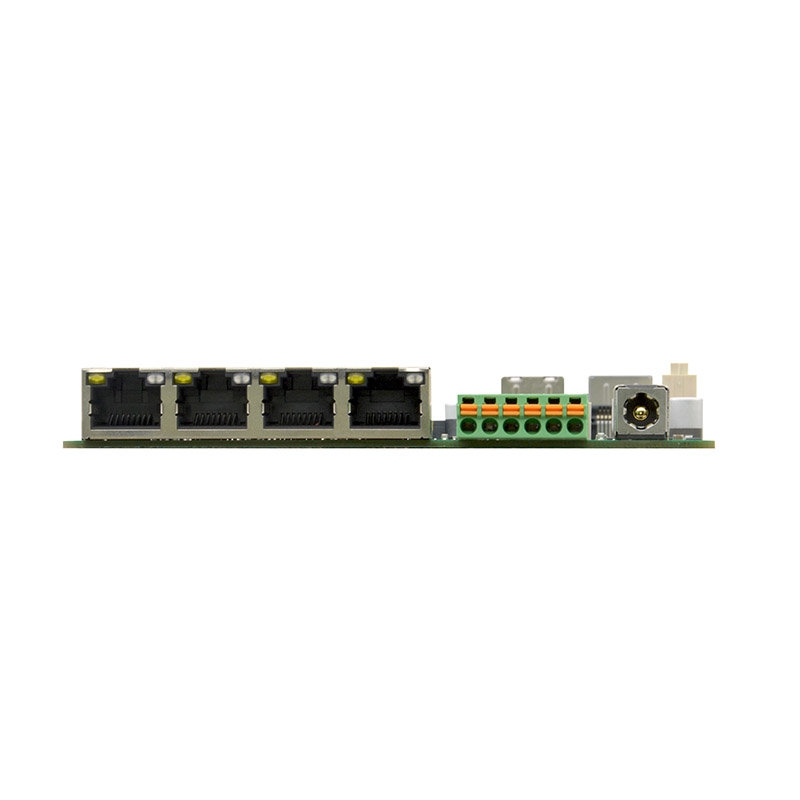

Backplane I/O interface:
4x RJ-45 Gigabit Network Interface
1x 6pin slot,（supports 2 input 2 output GPIO, 1pin VCC, 6pin GND）
1x 12V DC power input interface
Built in I/O interface:1x 4pin DC power interface, (Can be used as 12V input and output power interface)
Fan Connector: 2x 4pin CPU smart fan connector
GPIO: Support 4-way input output GPIO function
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows 10 / Linux
Power Type: DC 12V
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)
Dimension: 120mm x 120mm
