This high-performance firewall motherboard is engineered with the Intel Q570 Express chipset and LGA1200 socket, supporting 10th/11th Gen Intel® Core™ processors (up to i9), delivering unparalleled processing power for mission-critical network security deployments.
Key Firewall Features:
●Enterprise networking backbone:
6× Intel WGI210AT Gigabit Ethernet ports
1× Intel KTI226LM Gigabit Ethernet (with vPro remote management)
●Extreme processing capacity:
4× DDR4 3200MHz UDIMM (up to 128GB)
Supports Intel® Core i9-11900K processors
●Professional security expansion:
2× PCIe x8 slots for hardware accelerators
3× M.2 (SSD/4G/5G/WiFi 6)
●High-availability storage:
4× SATA3.0
●Military-grade security:
TPM 2.0 module
SIM card slot for cellular failover
●Management interfaces:
4× USB2.0
2× RS232
FPC connector
●ATX power delivery with Watchdog protection
Optimized for:
Data center firewalls
Zero Trust Architecture (ZTA) gateways
400Gbps+ threat inspection systems
Military-grade encrypted communications

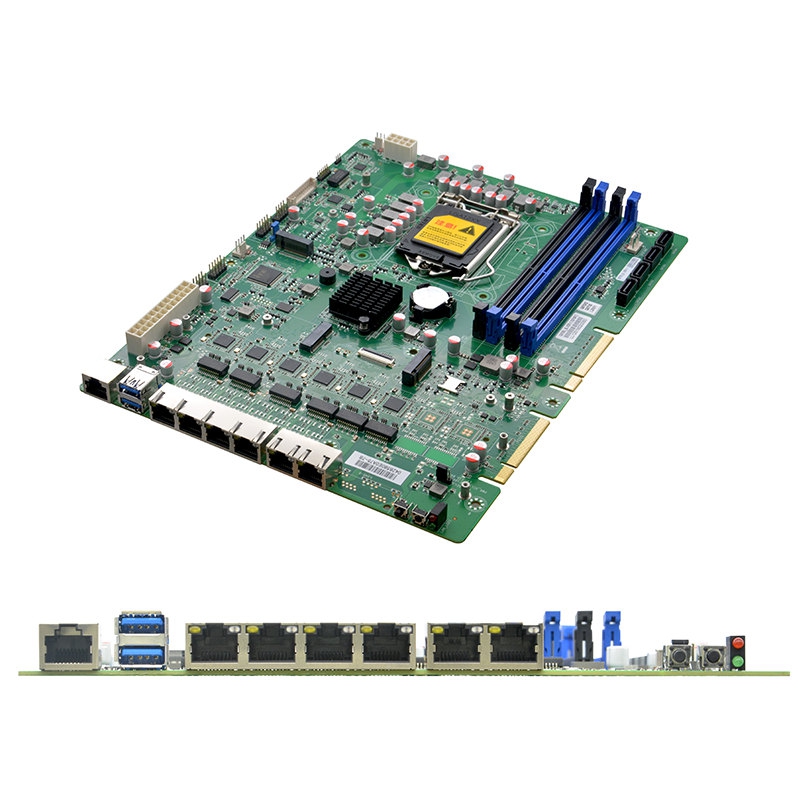

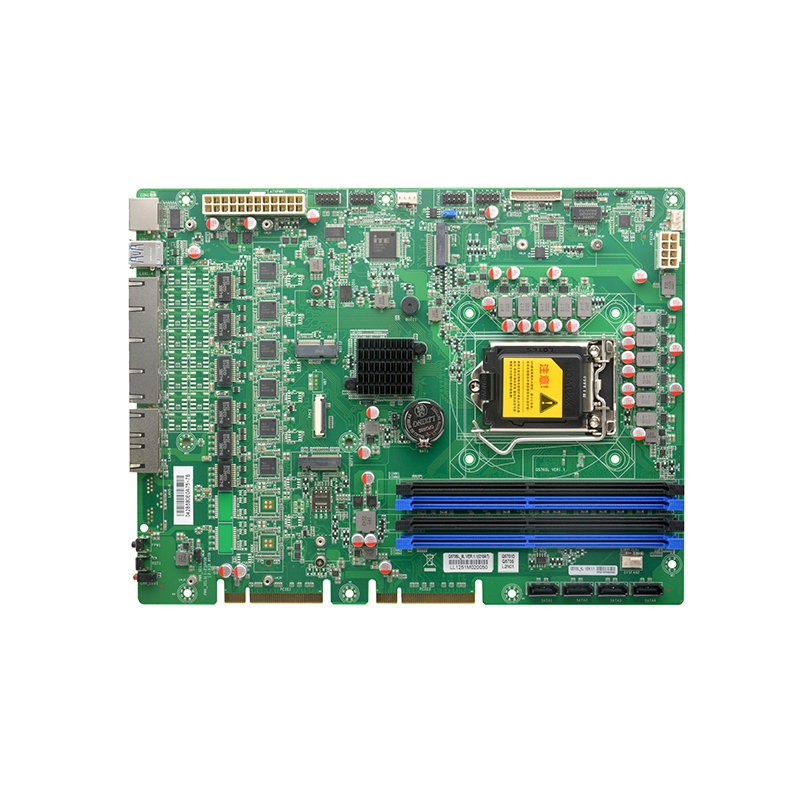

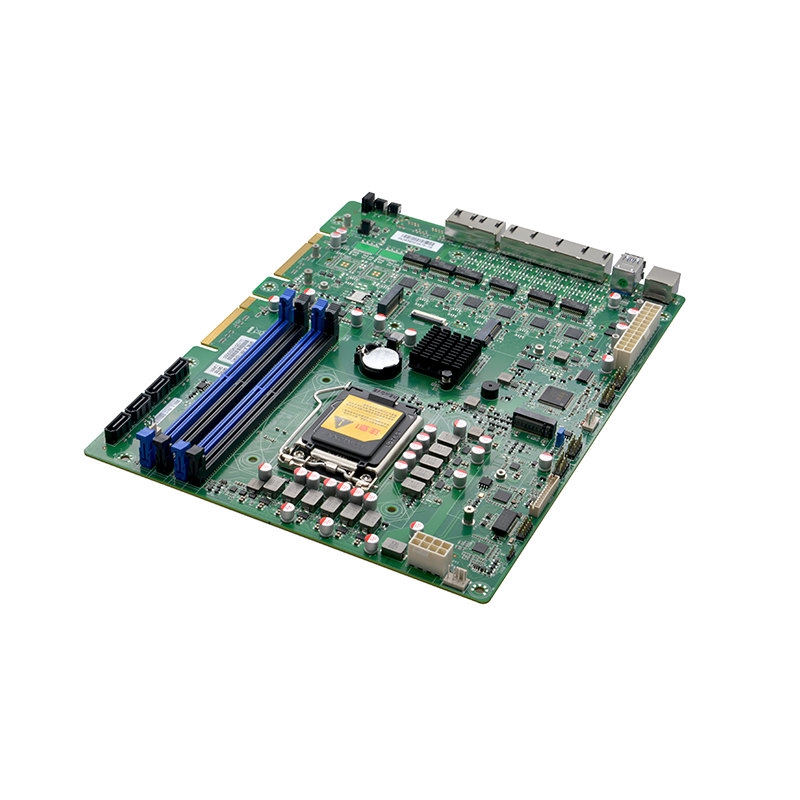

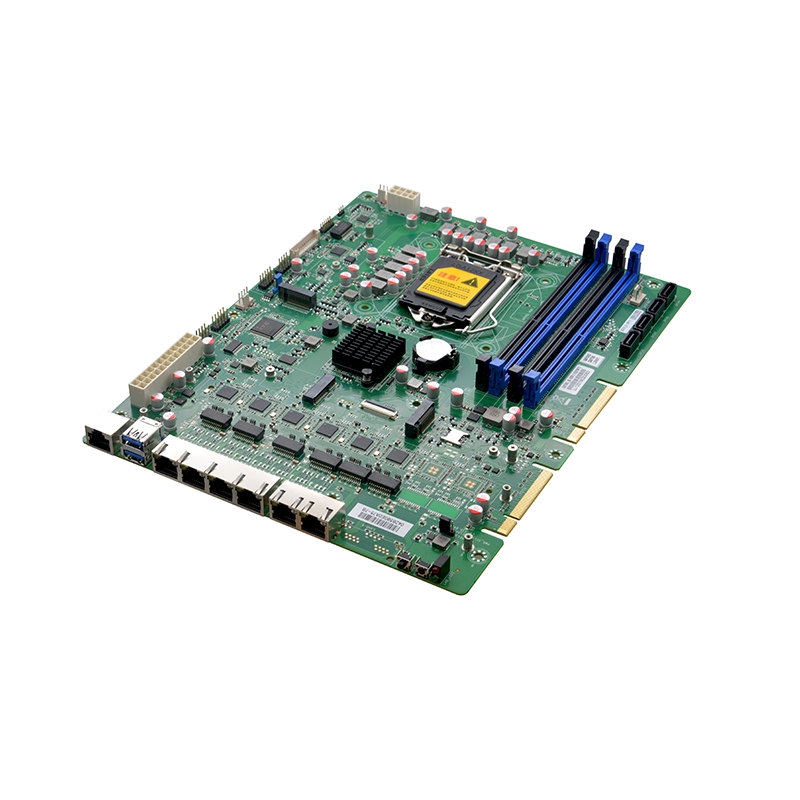

Detail Display
Product Description
Model No.: Q570SL_6L VER:1.1
Processor: Support LGA1200 10th/11th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processor
Note:support 10/11 gen 125W CPU
Chipset: Using Intel Q570 high-speed chipset,
Memory: 4x DDR4 UDIMM memory slot ,Supports up to 3200MHz DDR4 memory, up to 128GB,
Display: Integrated Intel® HD Graphics graphics controller, supports DirectX12, OpenGL4.4, and 4K display
1x VGA interface, supports the highest resolution 1920X1200@60Hz
Network: 6x Intel® WGI210AT Gigabit network card, supports network wake-up and PXE functions,
1x Intel® KTI226LM Gigabit network card, supports network wake-up, PXE /Vpro function
Storage: 4x SATA 3.0 hard disk interface, SATA interface transmission speed up to 6Gbps
1x M.2 slot, supports M.2 Key M 2280 PCIE x4/SATA adaptive standard SSD
Audio: N/A
Expansion slots:
1x M.2 slot, supports M.2 Key B 2242/2252 4G/5G module
1x M.2 slot, supports M.2 Key E 2230 WIFI module
2x PCIE X8 gold fingers,

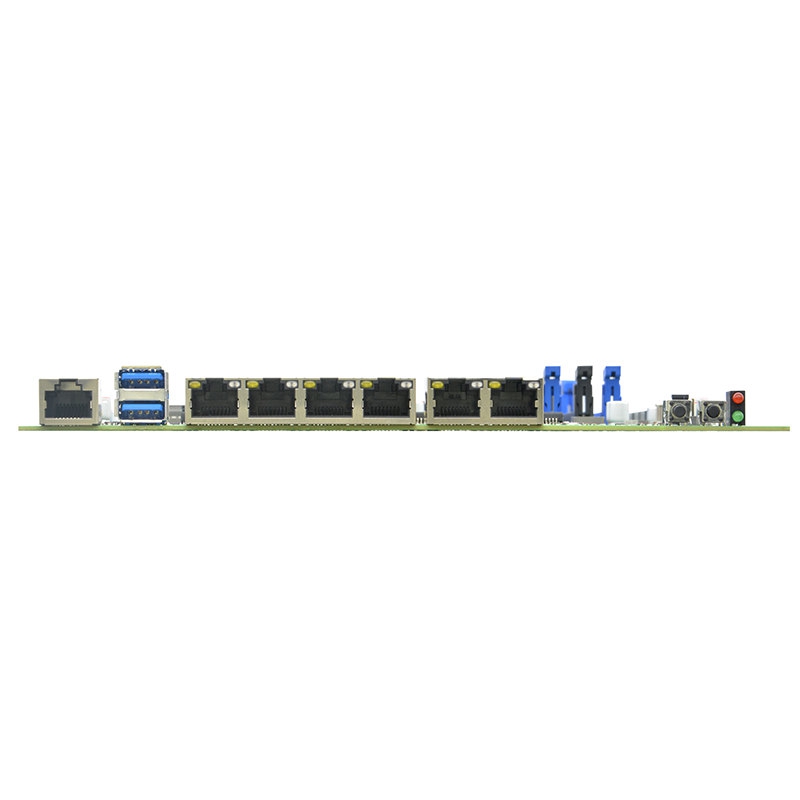

Rear I/O interface:
1x RJ45 serial port
2x USB3.0 interface
6x RJ45 Gigabit network interface
1x power switch, 1x reset switch
1x power indicator light, 1x hard disk indicator light
Built in I/O interface:
1x JVGA interface 1x 12pin
1x RS232 serial port，2x 5pin
2x USB 2.0interface 2x 5Pin
1x TPM interface ，2x 6pin (reserved, optional)
1x Front panel function button and indicator light interface 2x 5pin
1x FPC interface, 30pin, including 1 PCIE, 1 PLC/ESPI bus, HD bus
1x SIM card slot
1x Network pin interface 2x 6pin
1x 24pin ATX power input interface
1x 8pin ATX power input interface
Fan connector: 1x 4pin CPU smart fan interface，2x 4pin system smart fan interface
BIOS: 64Mb Flash ROM
OS: Windows 10/Windows 11/Linux
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Power type: ATX power input
Working Temp.: 0℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)

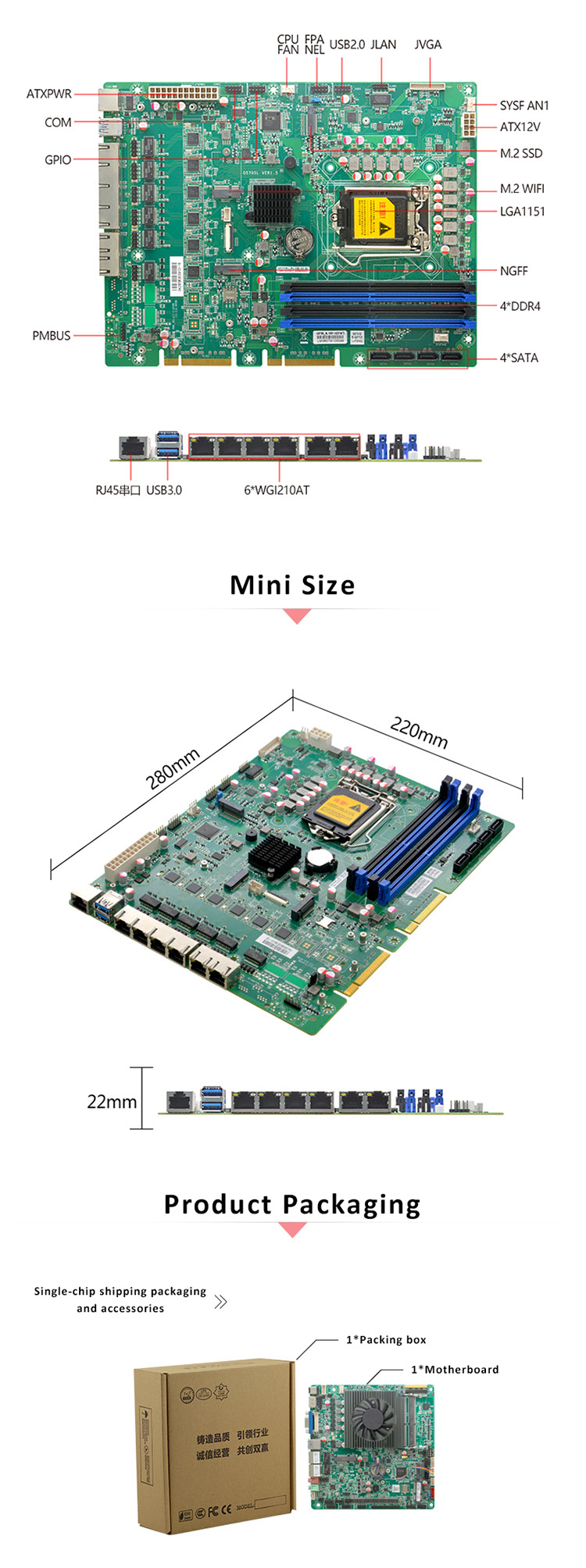

Dimension: 220mm x 280mm
