This cost-effective firewall motherboard is built on the Intel® 8201HBM Express Chipset, featuring the Intel Atom D525 Dual-Core processor (1.8GHz) with Intel® G3150 Graphics, designed for entry-level network security applications.
Key Firewall Features:
●High-density networking: 4× Intel 82583V Gigabit Ethernet ports
●Legacy expansion: 1× PCI slot for security acceleration cards
●Memory support: 1× DDR3 SO-DIMM (up to 2GB at 1066/800MHz)
●Storage flexibility:
2× SATA2.0
1× mSATA SSD
1× mini-PCIe (for WiFi/3G/4G) + SIM slot
●Industrial connectivity:
6× USB2.0
2× RS232 serial ports
PS/2 interface
●Dual power inputs: 12V DC jack + ATX 4-pin connector
●Security monitoring:
Watchdog Timer
GPIO control
Ideal for:
SMB firewall appliances
VPN gateways
Network monitoring systems
Legacy security upgrades

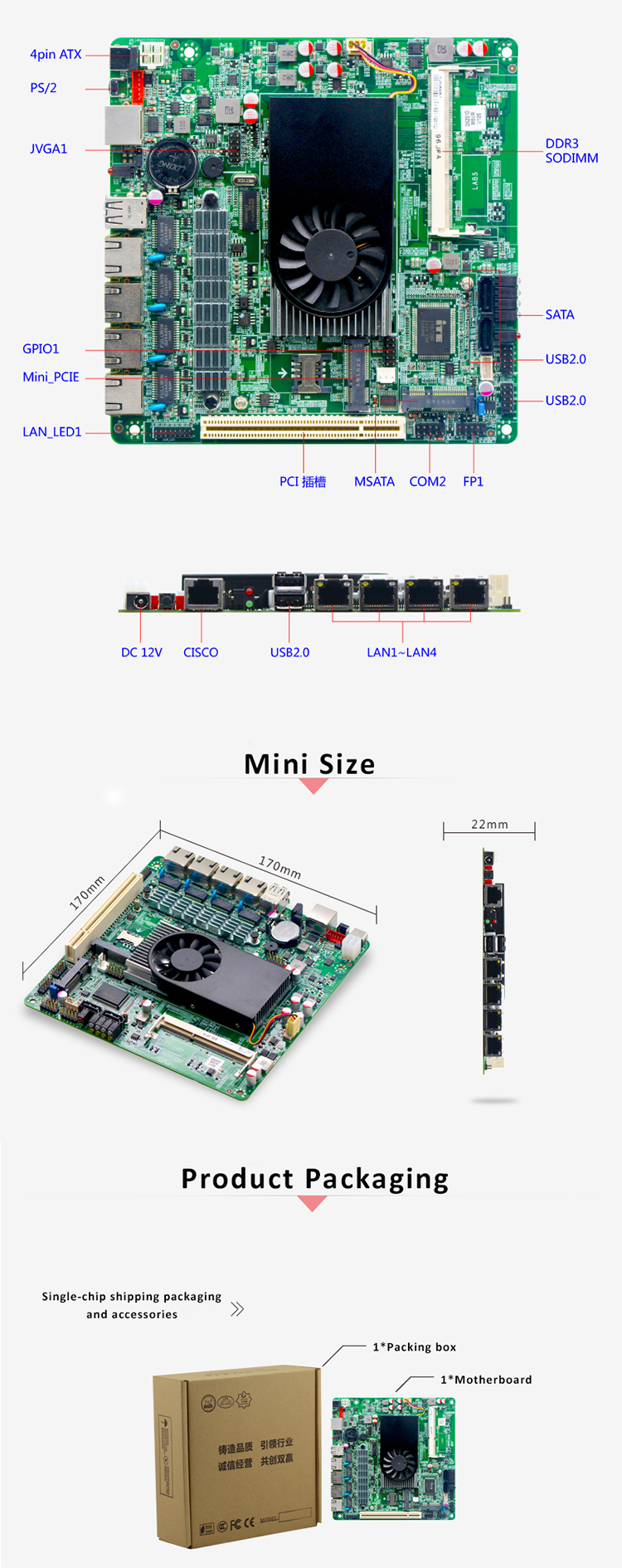

Detail Display
Product Description
Model No.: ITX-M5V VER:1.3
Processor: Integrated Intel® Atom D525 1.8GHz Dual core processor, TDP 13W
Chipset: Intel® 82801HBM High speed chipset
Memory: 1x DDR3 SODIMM memory slot, supports1066/800MHz memory,is up to 2GB
Display: Integrated Intel® GMA315, supports VGA display output
Ethernet: 4x Intel® 82583V Gigabit Ethernet
Storage: 2x SATA 2.0, the transfer rate is up to 3Gbps
1x MSATA slot, supports USB WIFI, Intel protocol SSD, the transfer rate is up to 3Gbps
Expansion Slot:
1x Mini-PCIE , supports WIFI and 3G module
1x PCI

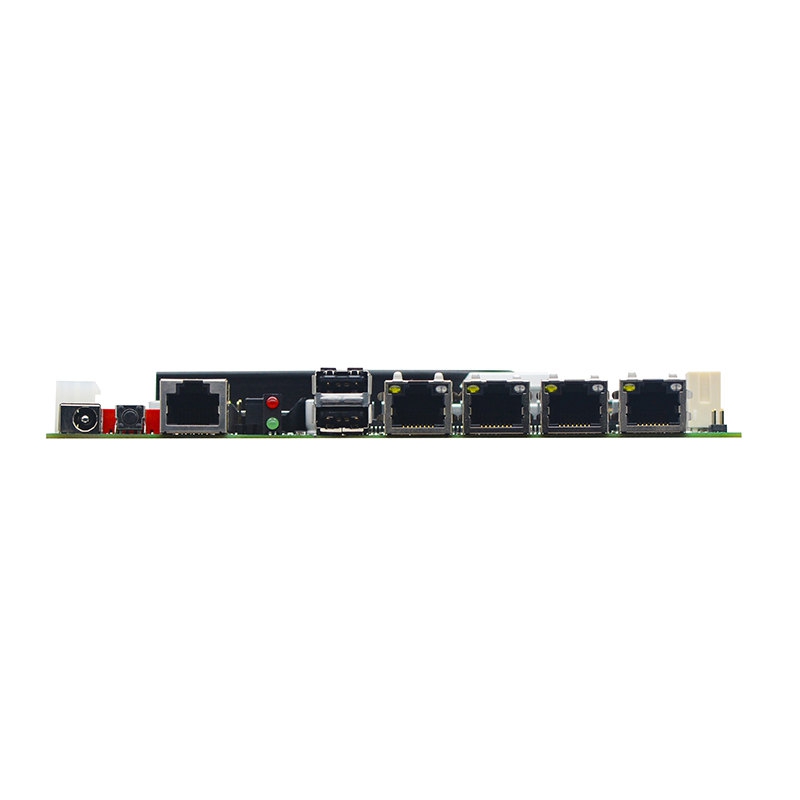

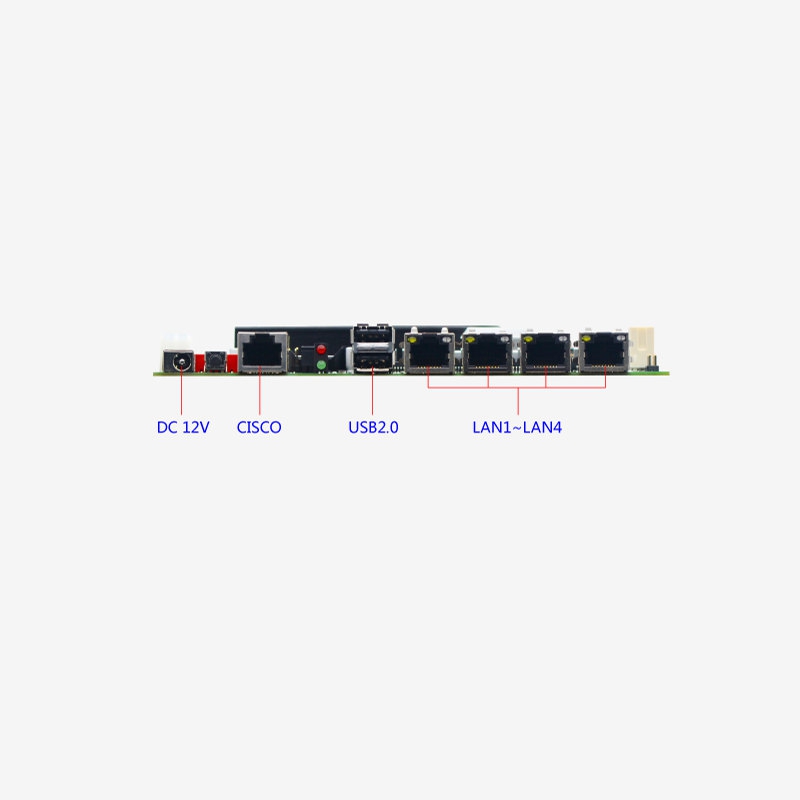

Rear I/O interface:
1x COM CISCO standard interface
2x USB 2.0
4x RJ-45 Gigabit Ethernet interface
1x Power switch
2x Power/HDD Indicator
1x 12V DC_JACK
4x Network Indicator (Optional)

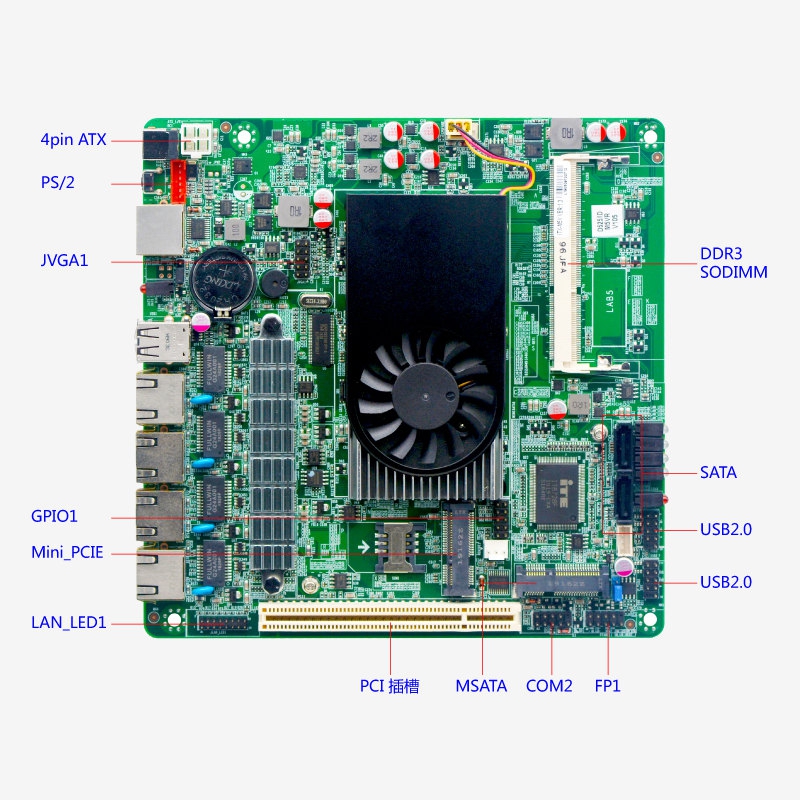

Built in I/O interface:
1x VGA, 2x 5pin
1x Network Indicator interface, 2x 8pin
1x RS232, 2x 5pin
4x USB 2.0, 2x 5pin
1x Front panel function button and indicator light interface, 2x 5pin
1x PS/2 keyboard and mouse interface, 1x 6pin
1x 4pin ATX power interface (Can be used as 12V input and output power interface)
1x HDD power supply voltage interface, 1x 4pin
1x SIM card slot
Fan Connector: 1x 4pin CPU smart fan connector, 1x 3pin system fan connector
GPIO: Support 4-way input output GPIO function
BIOS: 8Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: DC 12V single power supply
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

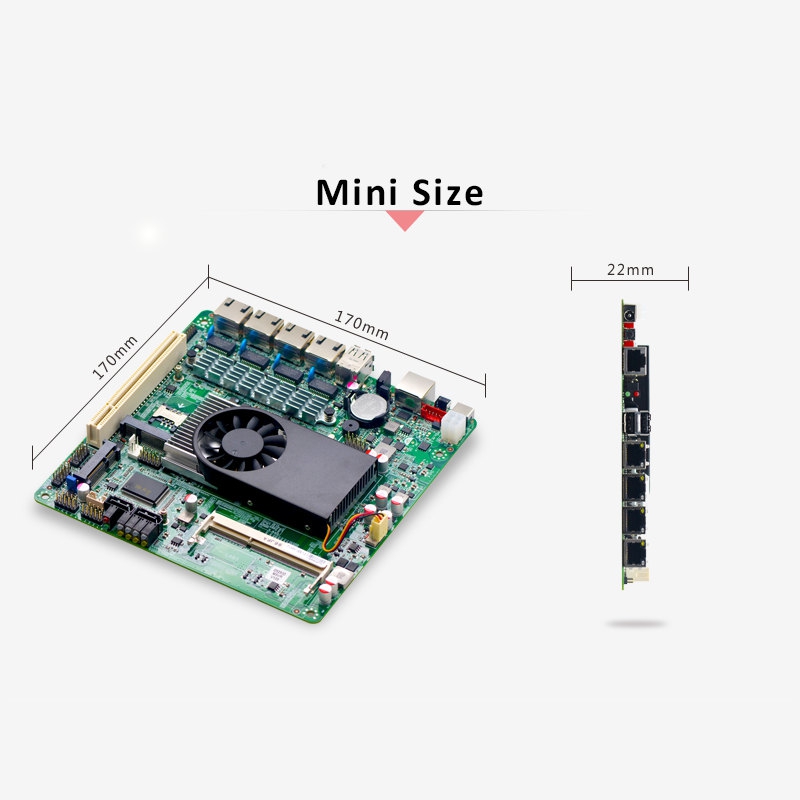

Dimension: 170mm x 170mm
