Key Firewall Features:
●Enterprise-grade networking: 6× Intel I210AT Gigabit Ethernet ports (Bypass optional)
●Cisco-compatible management: Standard RJ45 RS232 console port
●Memory support: 1× DDR3L SO-DIMM (up to 8GB at 1600/1333MHz)
●Dual wireless expansion: 2× mini-PCIe (for WiFi/3G/4G) + SIM slot
●Storage options:
2× SATA2.0
1× mSATA 2.0 SSD
●Industrial connectivity:
6× USB2.0
PS/2 interface
●Dual power inputs: 12V DC jack + ATX 4-pin connector
●Fanless operation with Watchdog Timer
Optimized for:
Network intrusion prevention systems
VPN concentrators
Critical infrastructure protection

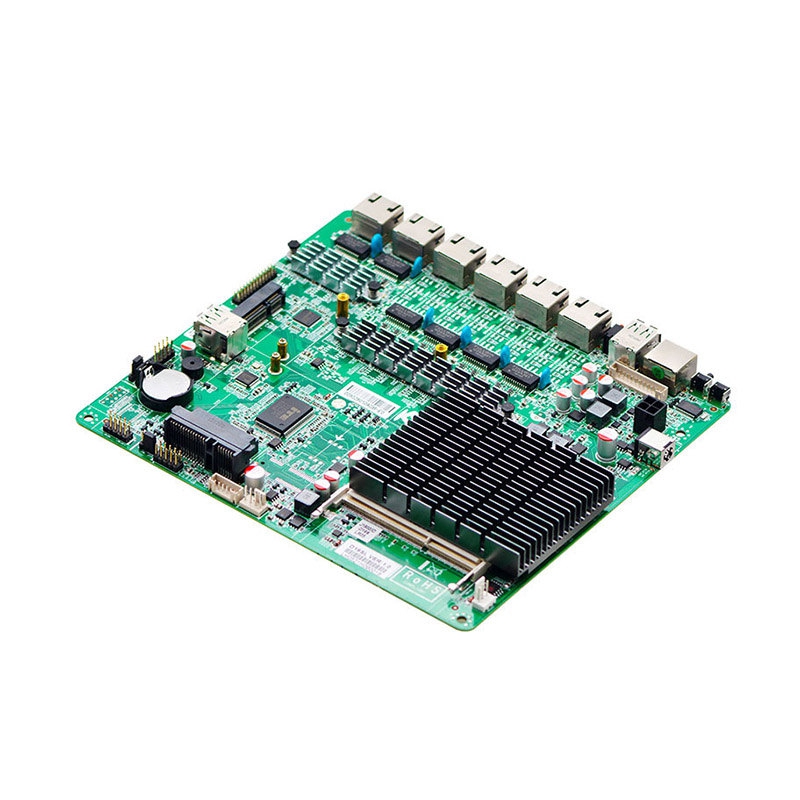

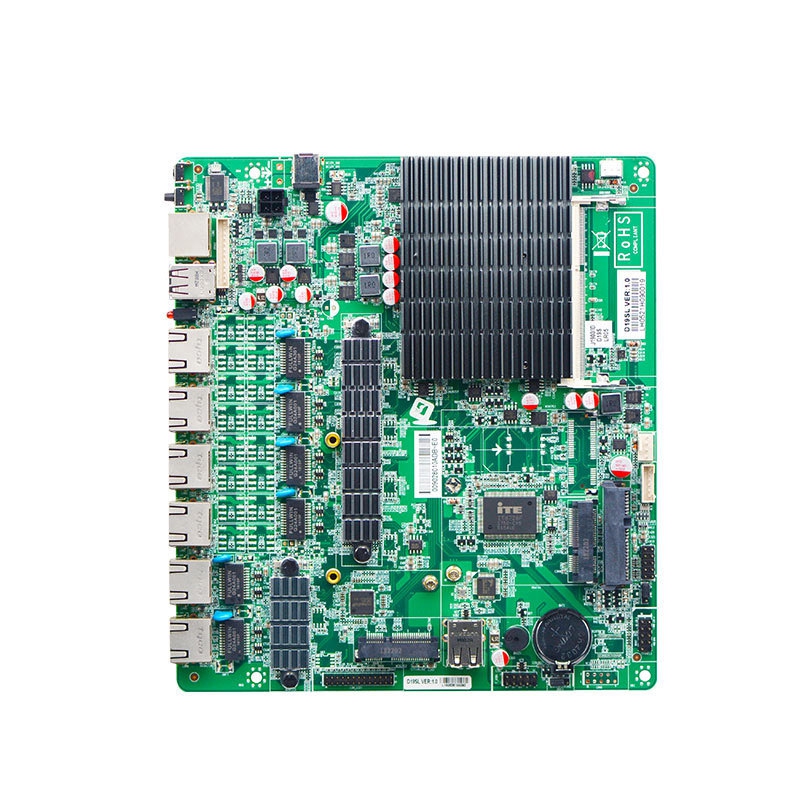

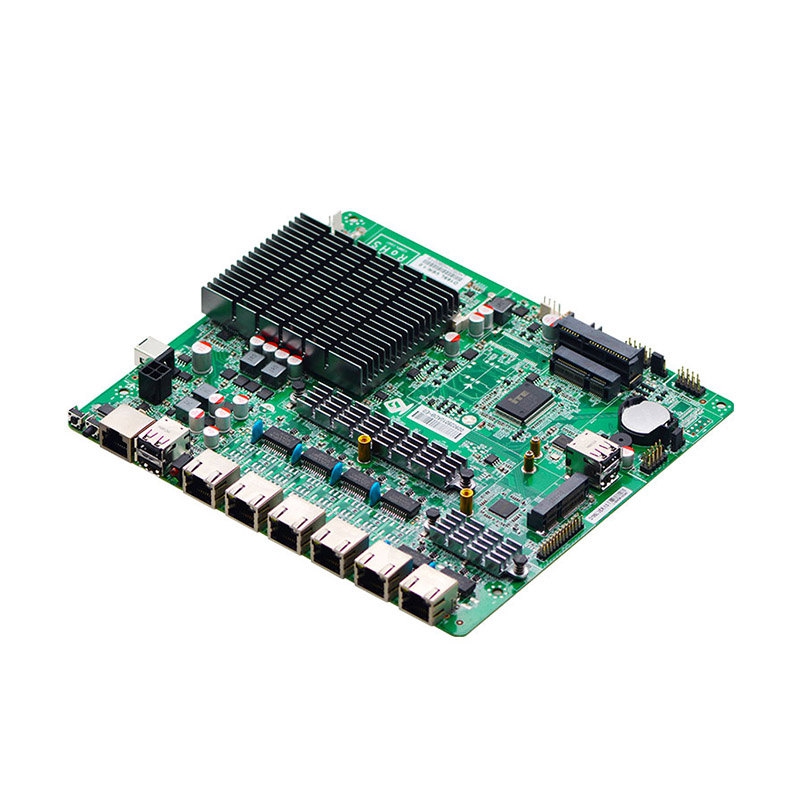

Detail Display
Product Description
Model No.: D19SL VER:1.0
Processor: Integrated Intel® Celeron®J1900 2.0GHz quad core processor,TDP10W
Chipset: Intel® Bay trail SOC
Memory: 1x SODIMM memory slot, support single channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB
Display: Integrated Intel® HD Graphics, provide 1x VGA display output
Network: 6x Intel WGI211AT Gigabit Ethernet, support Wake On LAN、PXE
Storage:
1x SATA2.0 2.5 inch laptop HDD slot, can install HDD directly
1x MSATA slot, support Intel protocol SSD, transmission rate up to 3Gbps
Expansion Slot:
2x Mini-PCIE slot, support WIFI、3G/4G module.
MINIPE2 support WIFI, MINIPE1 support 3G/4G

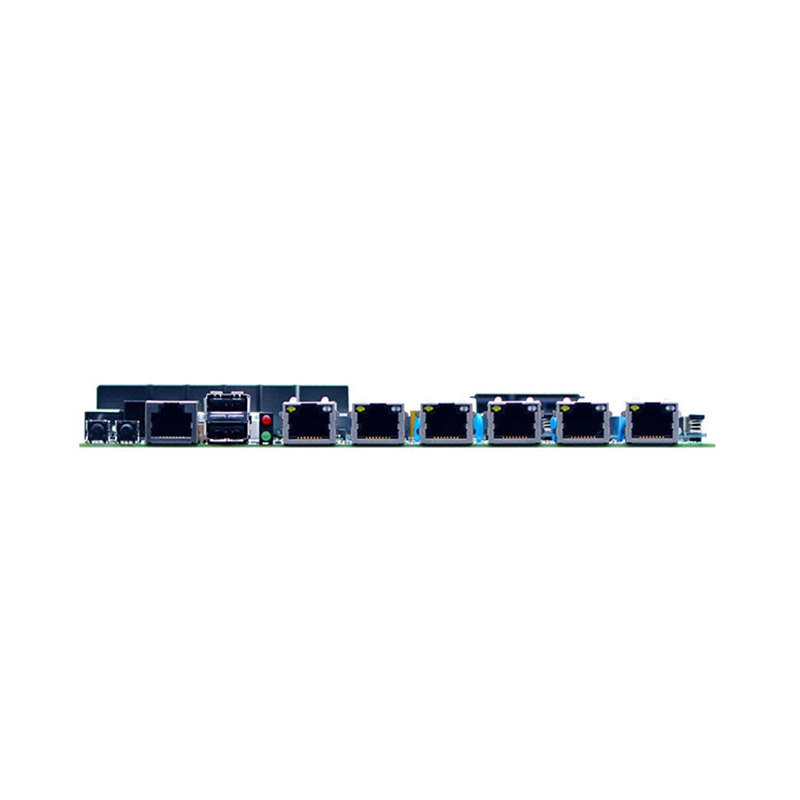

Rear I/O:
1x CISCO standard RS232 COM port
2x USB 2.0
6x RJ-45 Gigabit LAN port
1x Power switch, 1x Reset switch
1x Power LED（green）/ HDD LED（red）

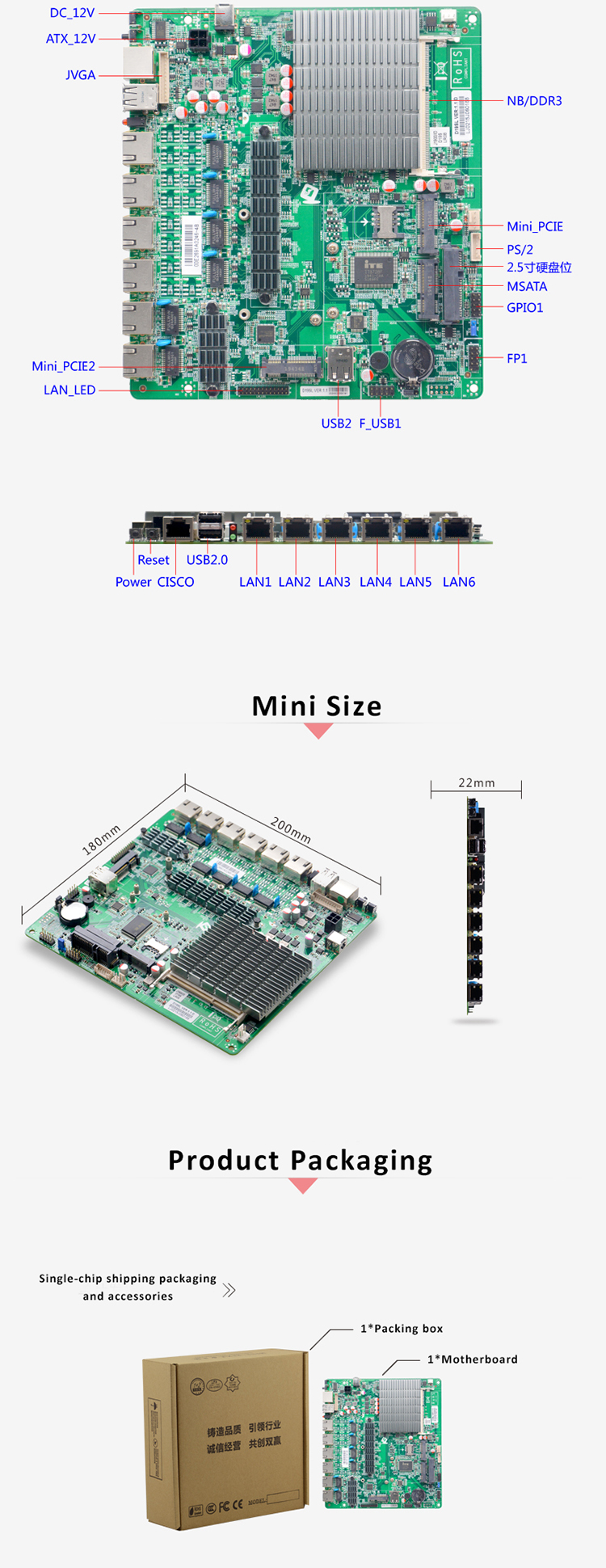

Internal I/O:
1x JVGA 1x 12pin
1x LAN LED 2x 13pin
2x USB2.0, 2x 5pin
2x Standard USB2.0
1x RS232 COM port 2x 5pin
1x Front panel function button and LED indicator port 2x 5pin
1x PS/2 KB/MS port 1x 6pin
1x SIM socket
1x 12V DC_In Jack
1x 4pinATX power input port, support 12V power input output
1x 2pin blue power socket, support 12V power input output
Fan Connector: 1* 4pin CPU smart fan connector, 1* 3pin system fan connector
GPIO: Support 4 way input output GPIO
BIOS: 64Mb Flash ROM
Watch dog: Support hardware reset function (L256, 0~255 seconds)
Power Type: Adopt DC 12V power supply
Working Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95% relative humidity, non-condensing
Dimension: 200mm x 180mm
