Overview
The SII-NET-ATL-4LV-Z is a 1U rackmount network appliance built for Firewalls and Network Security. It features 4 Intel i226V 2.5G RJ45 ports with optional PoE or BYPASS customization to ensure inline reliability. Rear I/O includes 1 VGA, 2 USB 3.0, 1 RJ45 COM console, and dual 4G/5G SIM slots for cellular failover — keeping your security operations always online.
This appliance is ideal for Firewalls and Network Security deployments such as NGFW, UTM, VPN gateways, IDS/IPS, and SD-WAN. Powered by Intel 12th Gen Alder Lake-N processors with up to 48GB DDR5, it suits enterprise branches, data centers, telecom sites, and industrial edge security. TPM 2.0, GPIO, and watchdog timer ensure reliable operation in rugged environments like factory floors and remote cabinets.
Product Description
Model No.: SII-NET-ATL-4LV-Z
Chassis:
Structure: Industrial-grade 1U galvanized steel, rust-proof and wear-resistant
Dimension: 440 x 180 x 45 mm (L*W*H)
Color: Black
Installation: Rackmount pc
Motherboard:
Processor: Intel 12th Gen Alder Lake-N N97/ N150 Processors
Memory: 1* SO-DIMM DDR5 4800MHz MAX 48G
BIOS: AMI UEFI BIOS

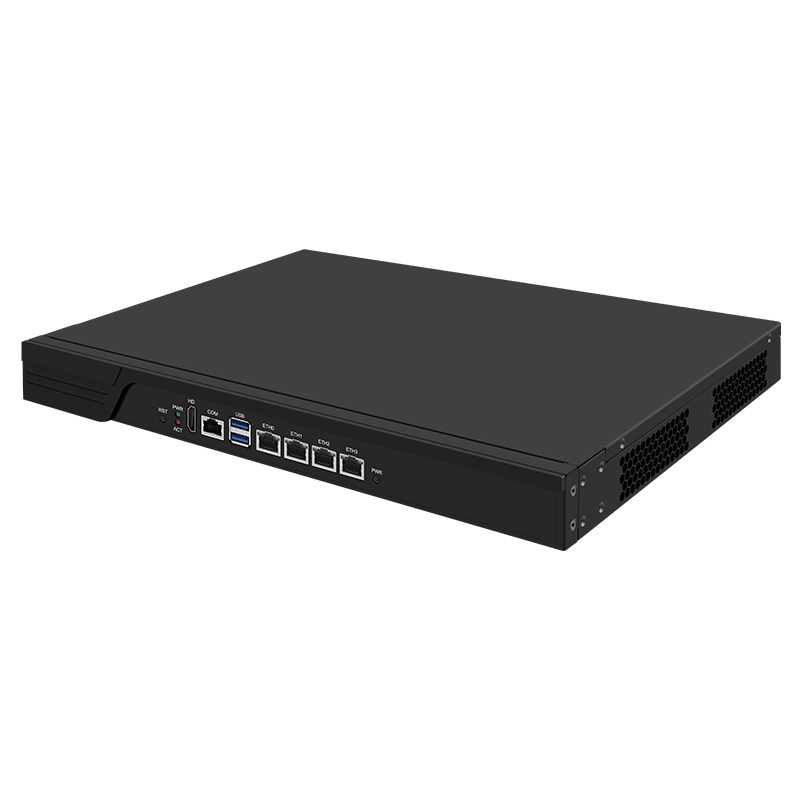

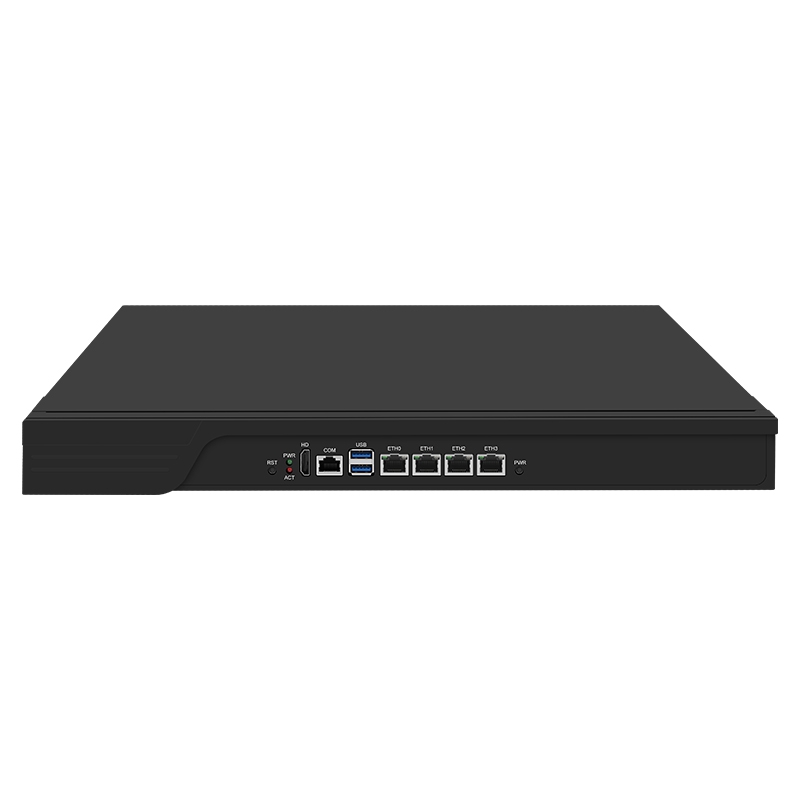

Front I/O:
Display: 1* HDMI
Switch: 1* Power Switch; 1*RST
LED: 1* HDD LED; 1*Running LED
LAN: 4* Intel i226V 2.5G RJ45 (i210 is optional); support customized PoE/BYPASS function
Expansion: N/A
USB: 2* USB3.0
CONSOLE: 1* RJ45 COM

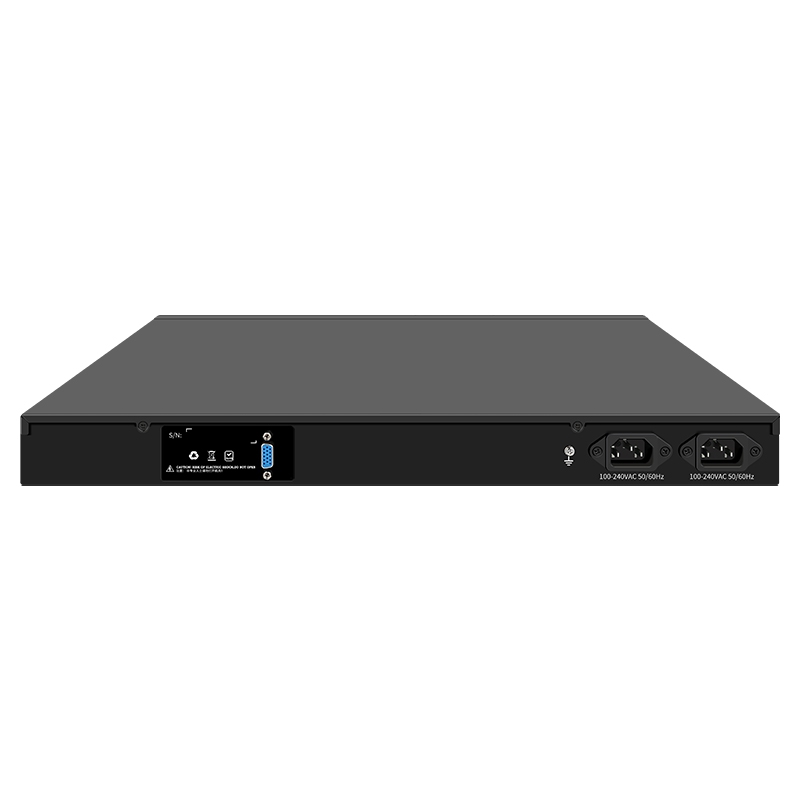

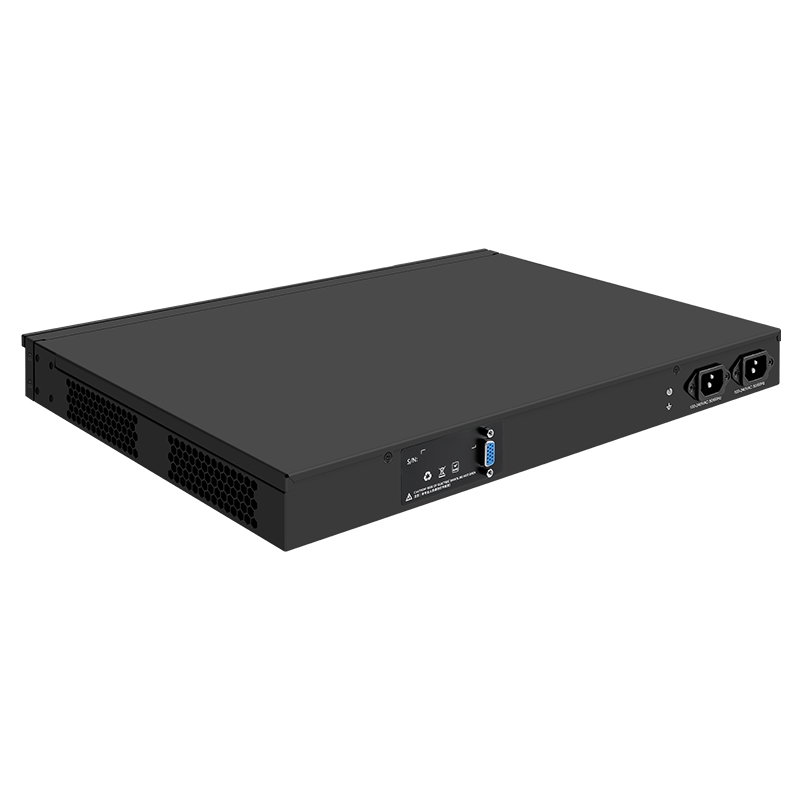

Rear l/O:
Display: 1* VGA
SIM: 1* 4G SIM slot; 1* 5G SIM slot
Switch: 1* Power switch
Power Socket: 1* AC Power Socket
Storage:
SATA: 1* SATA3.0, transfer rate up to 6Gbps
M.2: 1* M.2 2280 slot (support NVME/ NGFF)
Wireless:
WIFI: 1* MINI-PCIE slot (support WIFI&BT module)
4G/5G: 1* M.2 B Key slot (support 4G/5G module)
O/S:
Windows: Support
Linux: Support
WatchDog: Support hardware reset function (level 256, 0-255 seconds)
Hardware control:
BYPASS:
Supports customization to include bypass functionality (PoE is optional).
By default, bypass functionality is not included.
POE:
Supports customization to include POE functionality (bypass is optional).
By default, POE functionality is not included.
GPIO: Support 4-in 4-out GPIO
TPM: Supports TPM 2.0 hardware encryption
Temperature:
Working Temp.: 0°C~60°C
Storage Temp.: 20°C-70°C
Power Supply:
Power supply: 1* Power Supply (1U standard chassis version can choose built-in dual power supply)
Voltage input: AC_100V~240V
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
.jpg)
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
