Overview
This firewall appliance motherboard adopts Intel B75 chipset, supports LGA1155 Intel multi-series processors, with 2*DDR3 SODIMM slots (max 32GB) and HDMI+VGA dual display for smooth data processing and easy visual management.
The firewall appliance motherboard is equipped with 6*Intel I226V Gigabit Ethernet ports, rich expansion interfaces (mSATA3.0/M.2/PCIE X8) and multiple peripheral ports (USB/COM/SIM). It supports Watchdog function and ATX power input, ensuring stable 24/7 operation.
Applicable Scope
This firewall appliance motherboard is a reliable core component for firewall appliances, enterprise network security gateways, industrial edge security devices and SMB network protection hardware.

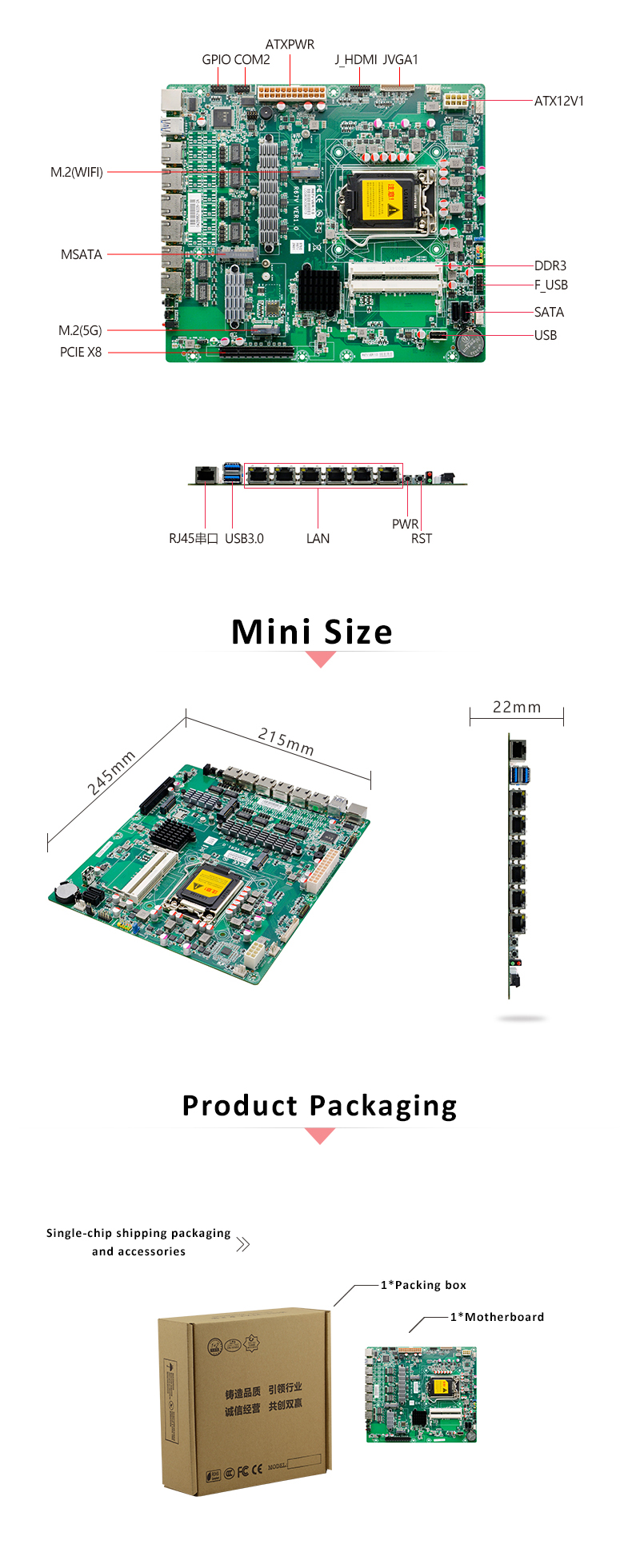

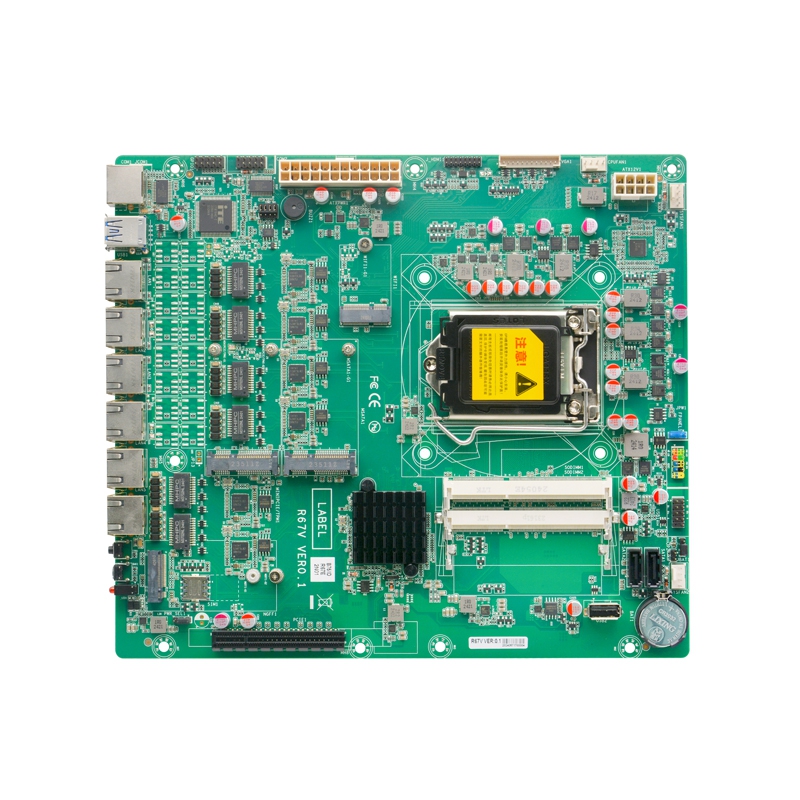

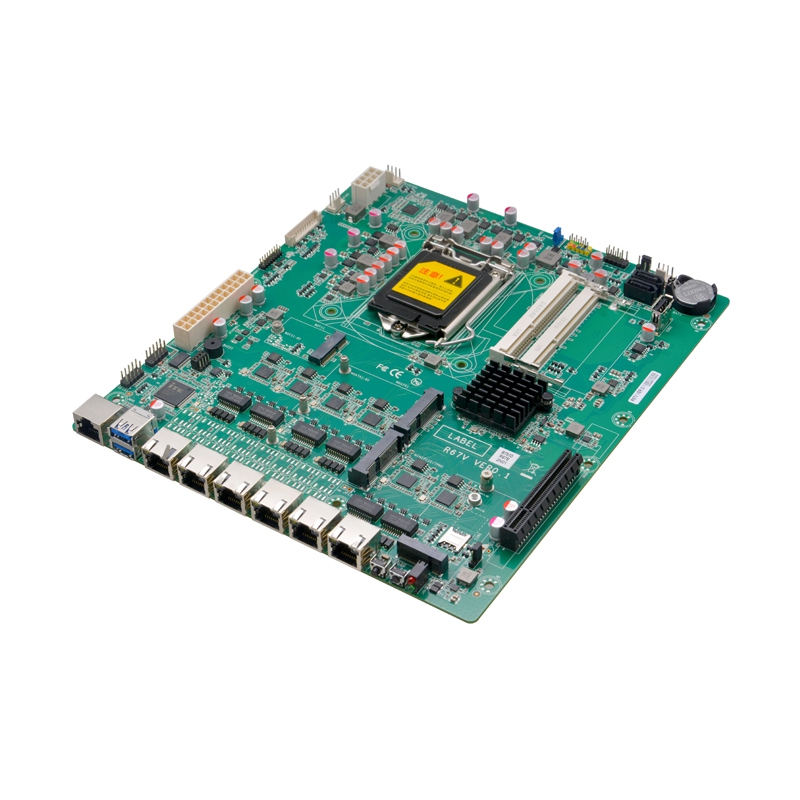

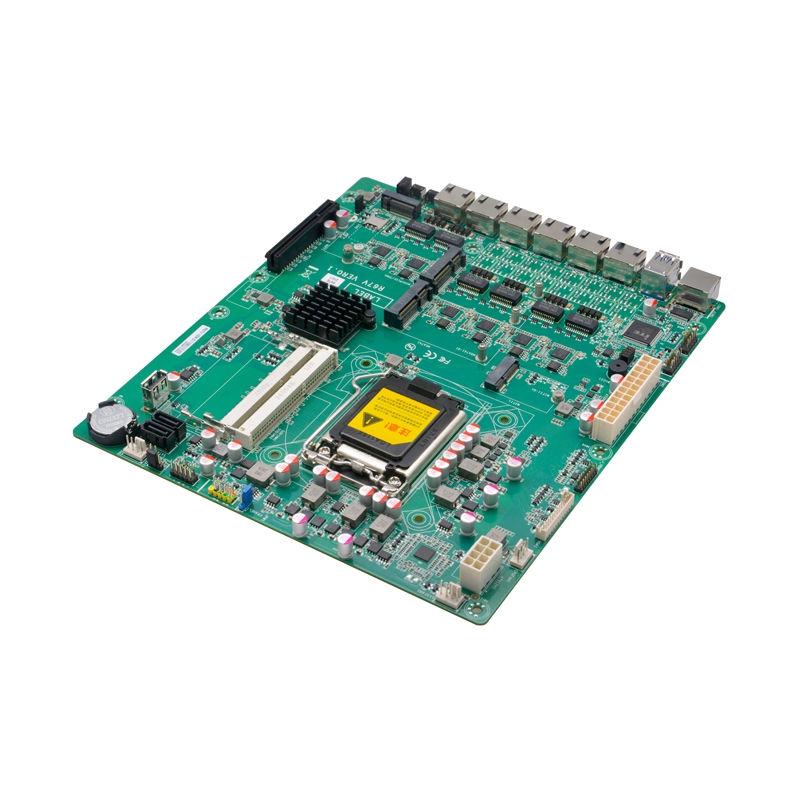

Detail Display
Product Description
Model No.: R67V VER:1.0
Processor: Support LGA1155 architectural 2th/3th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor
Chipset: Adopt Intel B75 high-speed chipset
Memory: 2* DDR3 SODIMM memory slot,support dual channel 1600/1333/1066MHz memory, up to 32GB
Display:
Integrated Intel®HD Graphics
1* HDMI, 1* VGA
Network: 6* Intel I226V Gigabit network, support wake-up / PXE function
Storage:
2* SATA2.0, supports speeds up to 3Gbps
1* MSATA3.0, support Intel protocol SSD, The transmission speed can reach 6Gbps
Audio: N/A
Expansion slots:
1* M.2, support M.2 Key B 3042/3052 5G module
1* M.2, support M.2 Key E 2230 WIFI module
1* PCIE X8

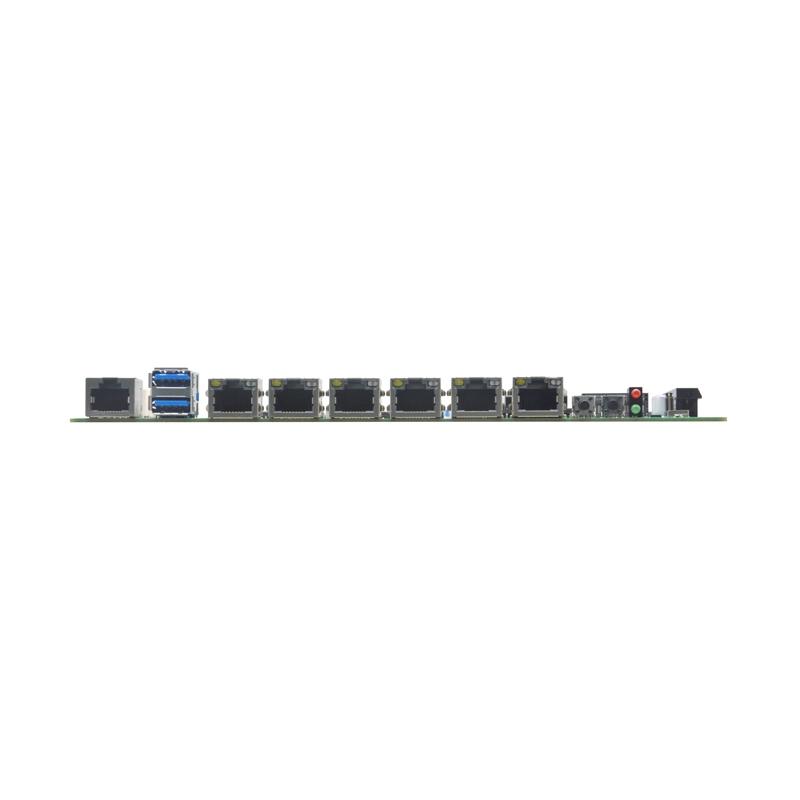

Rear I/O interface:
1* RJ45 serial port (shared with built-in serial header)
2* USB3.0
6* RJ45 Gigabit network interface
1* Power switch, 1* One-key recovery
1* Dual-layer LED indicator (red on top, green on the bottom; upper layer for hard drive, lower layer for power)
Built in I/O interface:
1* JVGA1; 1*12pin
1* JHDMI; 2*8pin
2* USB2.0; 2*5pin
1* Vertical USB 2.0 interface
1* RS232 serial port (2* 5 pins, supports RS485)
1* GPIO header (4 inputs, 4 outputs)
1* Front panel power button and indicator light interface (2* 5 pins)
1* 24pin ATX power interface
1* 2*4pin ATX power interface
1* SIM card slot
Fan connector: 1*4pin CPU smart fan connector, 2* 4pin system fan connector
GPIO: Support 4-way input and output GPIO
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Power type: ATX power supply
OS: Windows 10 ,/Linux
Working Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95% (relative humidity; non-condensing)
Dimension: 245mm x 215mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
