Overview

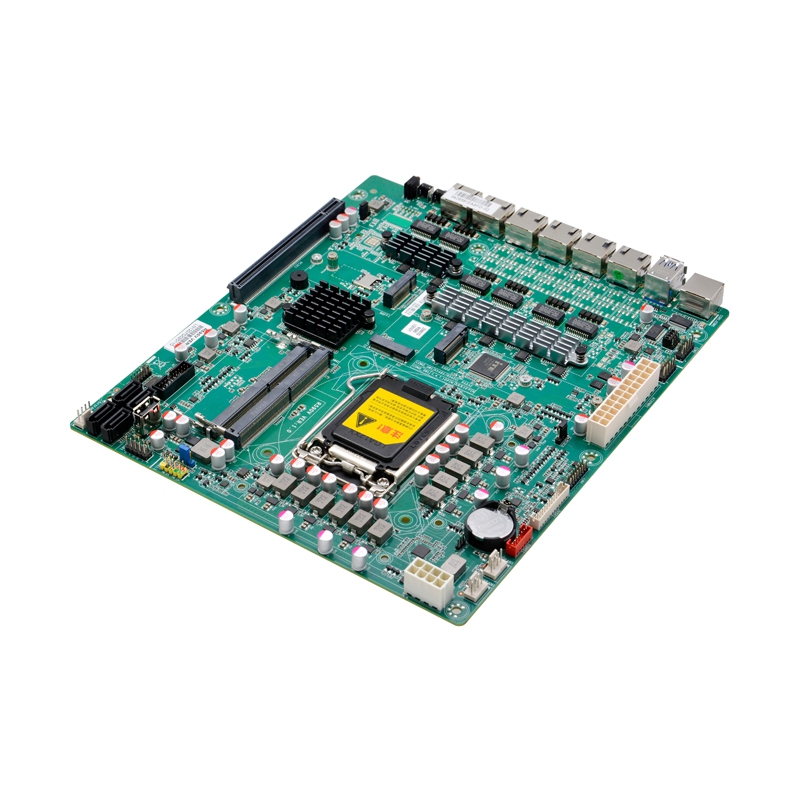

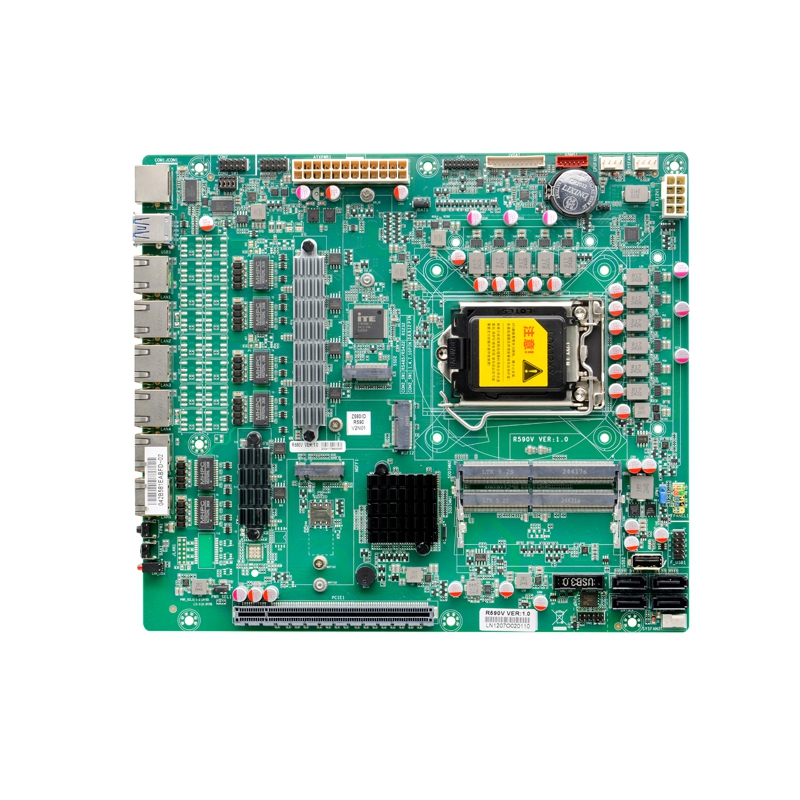

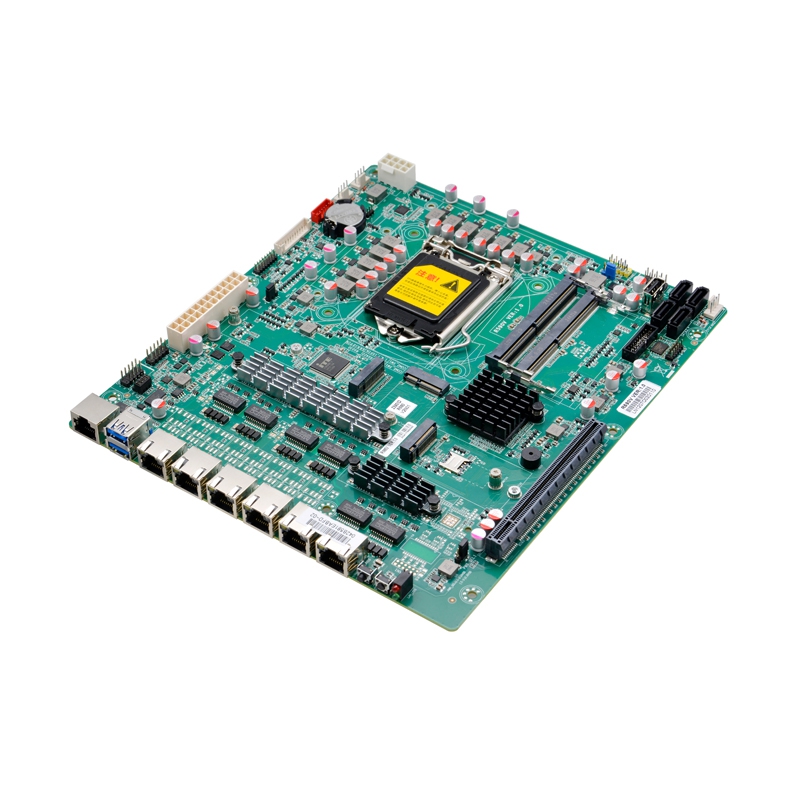

The R590V VER:1.0 is a high-performance professional firewall motherboard, adopting Intel® Z590 high-speed chipset and supporting LGA1200 socket Intel Celeron/Pentium/Core i3/i5/i7/i9 processors, ensuring powerful computing for firewall security tasks.
This firewall motherboard is equipped with 2*DDR4 SODIMM 3200MHz sockets (max 64GB memory), 6*Intel® I226V Gigabit Ethernet ports, and rich expansion interfaces (4*SATA3.0, M.2 slots, PCIe x16, etc.), meeting diverse firewall application needs.
With abundant peripheral interfaces (USB3.0/2.0, COM, TPM, SIM slot), Watchdog function and ATX power input, the firewall motherboard ensures stable and reliable operation, making it an ideal choice for enterprise-level network security.
Detail Display
Product Description
Model No.:R590V VER:1.0
Processor:Support LGA1200 10th/11th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processor
Chipset:Adopt Intel®Z590 high speed chipset
Memory:2* SODIMM memory slot, support 3200MHz DDR4 memory, up to 64GB
Graphics:
Integrated Intel®HD Graphics
1* HDMI, 1* VGA
Network:
6* Intel I226V Gigabit network, support wake-up、PXE function
Storage:
4* SATA3.0, the transmission speed can reach 6Gbps, support RAID 0,1,5,10
1* M.2, support M.2 Key M 2242/2280 PCIE x4/SATA adaptive standards SSD
Audio:N/A
Expansion slots:
1* M.2, support M.2 Key B 3042/3052 5G module
1* PCIe x16 slot, supports splitting into 2 x8 slots
1* M.2, support M.2 Key E 2230 WIFI module

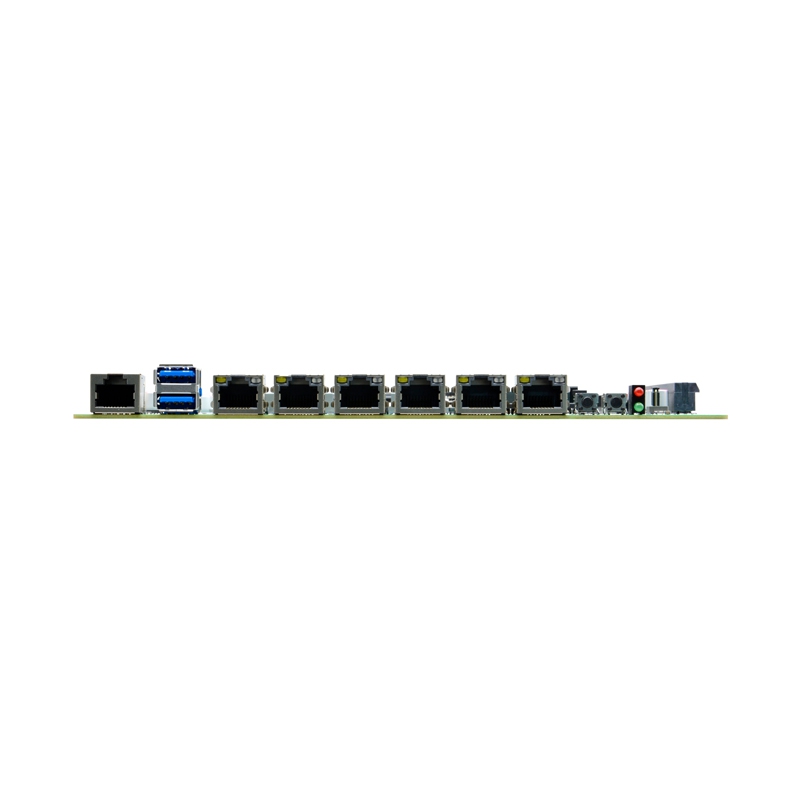

Rear I/O interface:
1* RJ45 serial port (shared with 2*5pin serial port header)
2* USB3.0 (5Gbps）
6* RJ45 Gigabit network interface
1* Power switch, 1* One-key restore
1* Double-layer LED lights (red on top, green on the bottom; upper layer is for hard drive indicator, lower layer is for power indicator)

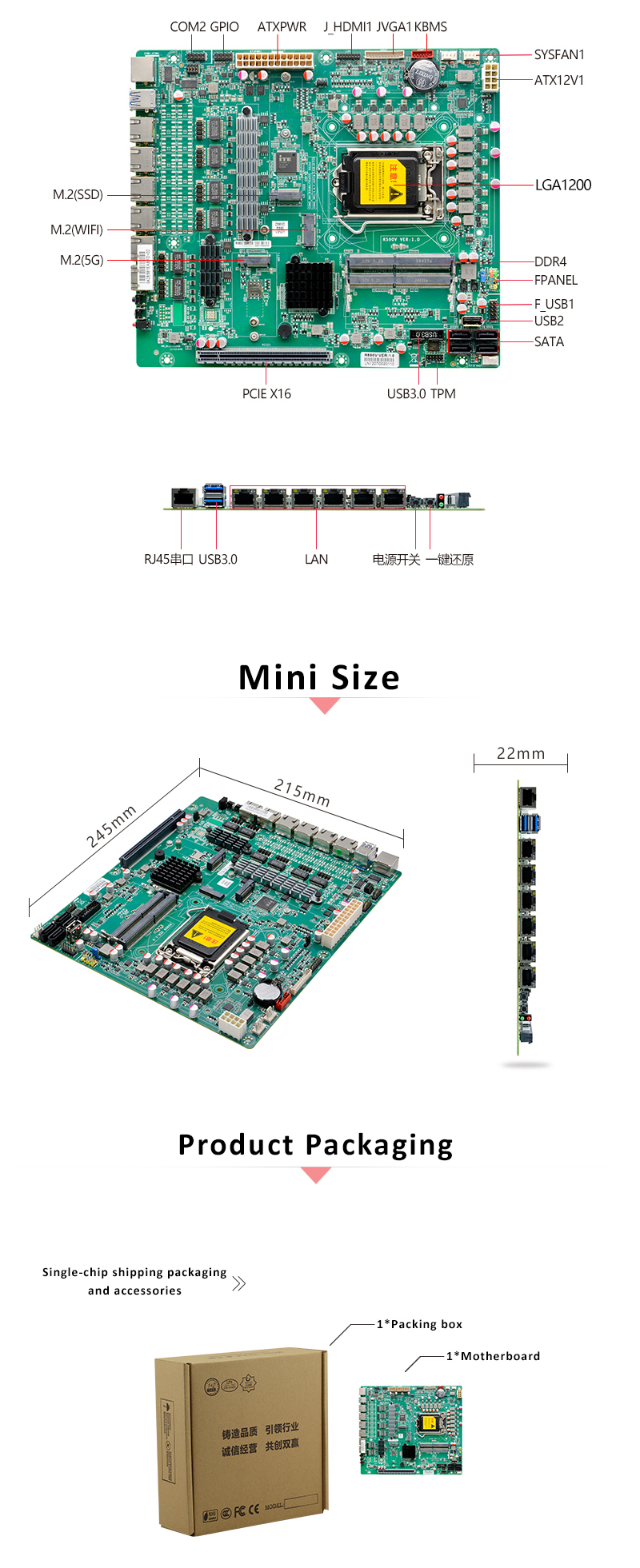

Built in I/O interface:
1* JVGA1, 1*12pin
1* JHDMI, 2*8pin
2*USB2.0, 2*5pin
2* USB3.0, 2*10pin
1* single layer USB2.0
1* RS232 serial interface 2*5pin, support RS485
1* PS/2 keyboard and mouse interface, 1*6pin (red)
1* GPIO header (four inputs and four outputs)
1* Front panel switch button and indicator light interface, 2*5Pin
1* 24pin ATX power interface
1* 2*4pin ATX power interface
1* SIM card slot
1* TPM, 2*6pin
Fan connector: 1*4pin CPU smart fan connector, 2* 4pin system fan connectors
GPIO: Support 4-way input and output GPIO
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Power type: ATX
OS: Windows 10 ,/Linux
Working Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)
Dimension: 245mm x 215mm
