Key Features:
✔ Professional firewall platform - 1U rackmount with industrial steel construction
✔ High-efficiency processing - Intel® J4125 quad-core CPU (10W TDP)
✔ Abundant interfaces - 6×GbE ports for complex network topologies
✔ Flexible expansion - Dual MINI-PCIE slots (WiFi/4G supported)
✔ Enterprise management - RJ45 console port for remote maintenance
✔ Dual storage options - 2.5" SATA + mSATA configuration
✔ Global power support - 1U ATX PSU (AC 110-240V) compatible
Typical Applications:
◼ Enterprise firewall/NGFW solutions
◼ VPN security gateway
◼ Network traffic analysis & control
◼ Edge computing security node
◼ Industrial IoT security protection
Product Description

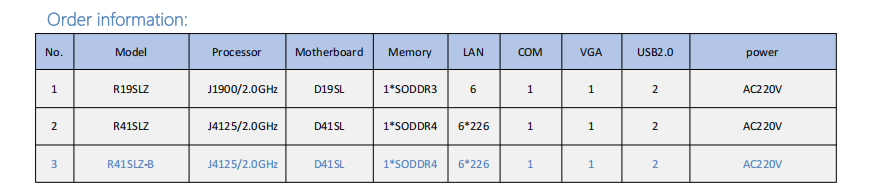

Model NO.: R41SLZ-B V1.0(J4125)

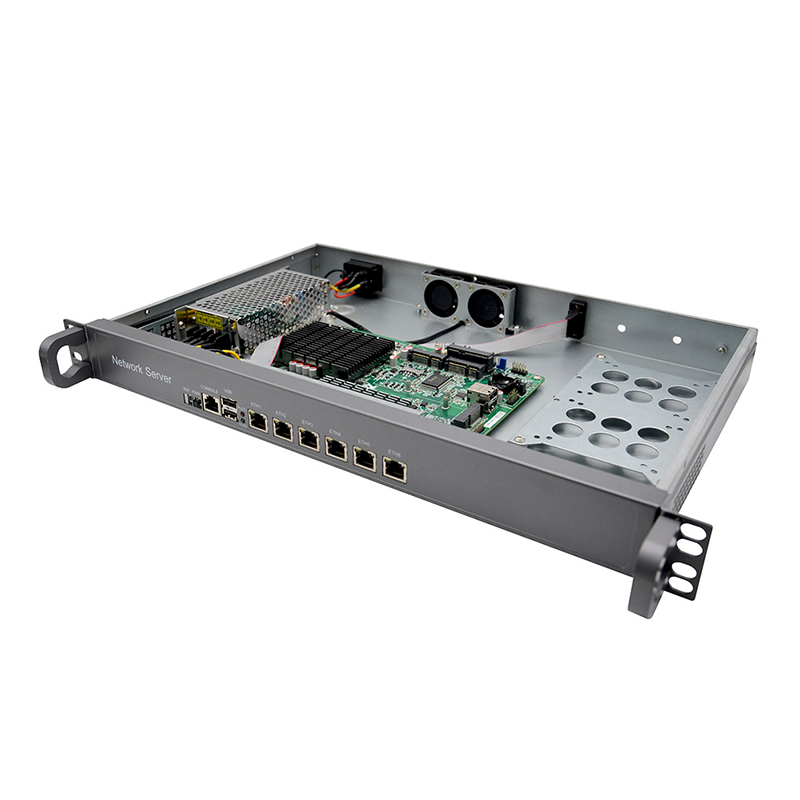

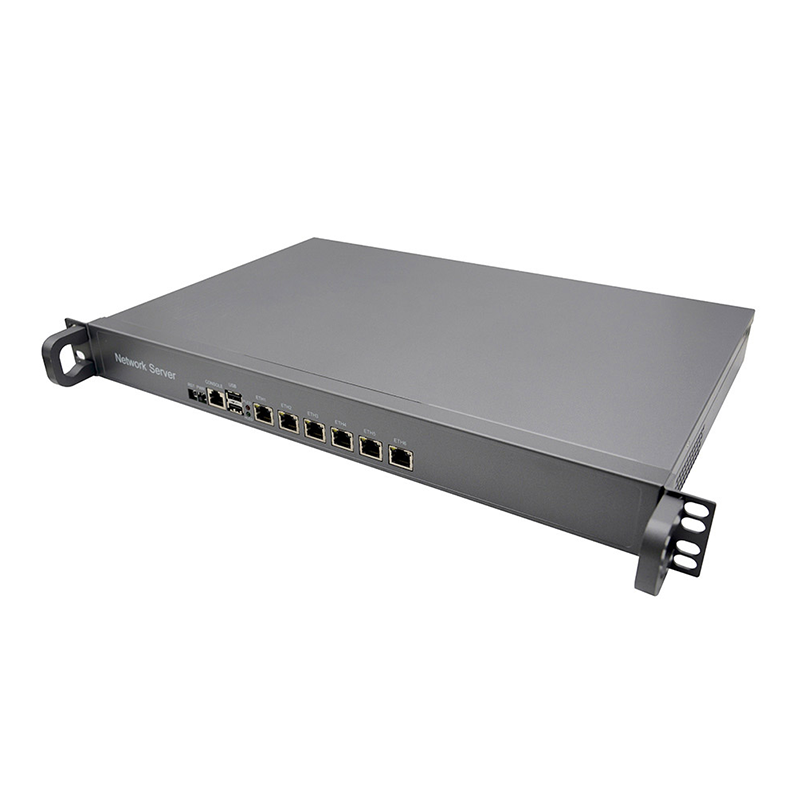

Chassis:
Structure: 1U standard chassis, high-quality galvanized steel plate
Color: Sub silver black

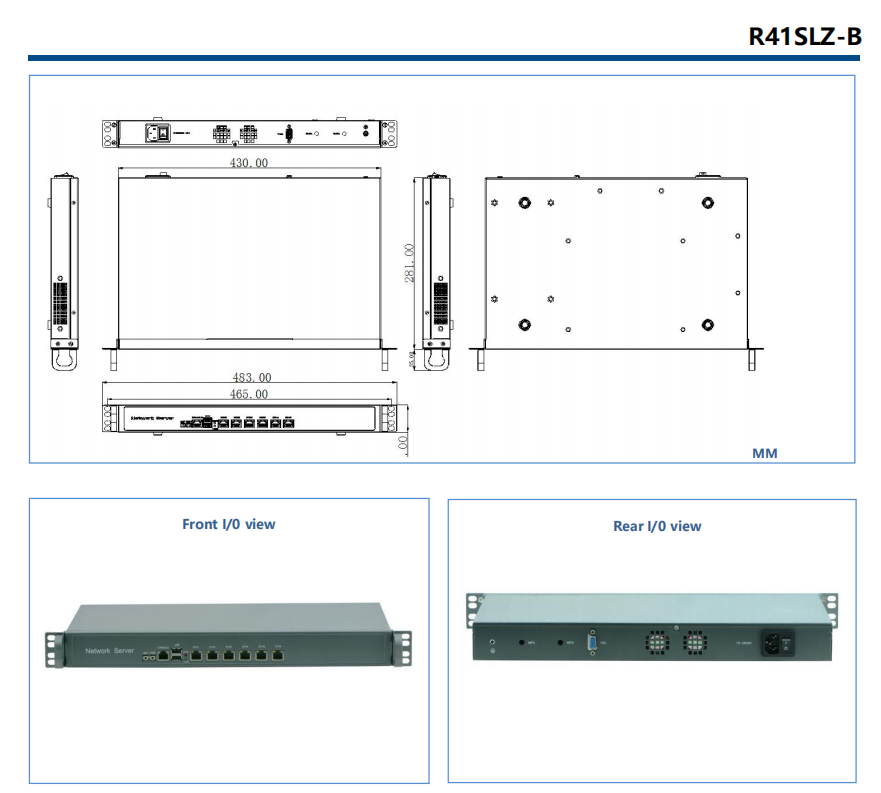

Dimension: 430mm x 281mm x 45mm
Installation: 1U standard rack
Motherboard:
CPU: Integrated Intel®Celeron J4125/2.00GHz quad-core quad-thread processor ,TDP 10W
Display: Integrated Intel® HD Graphics
Memory: 1x SODIMM slot , support single channel 2400MHz DDR4 ram, is up to 8GB

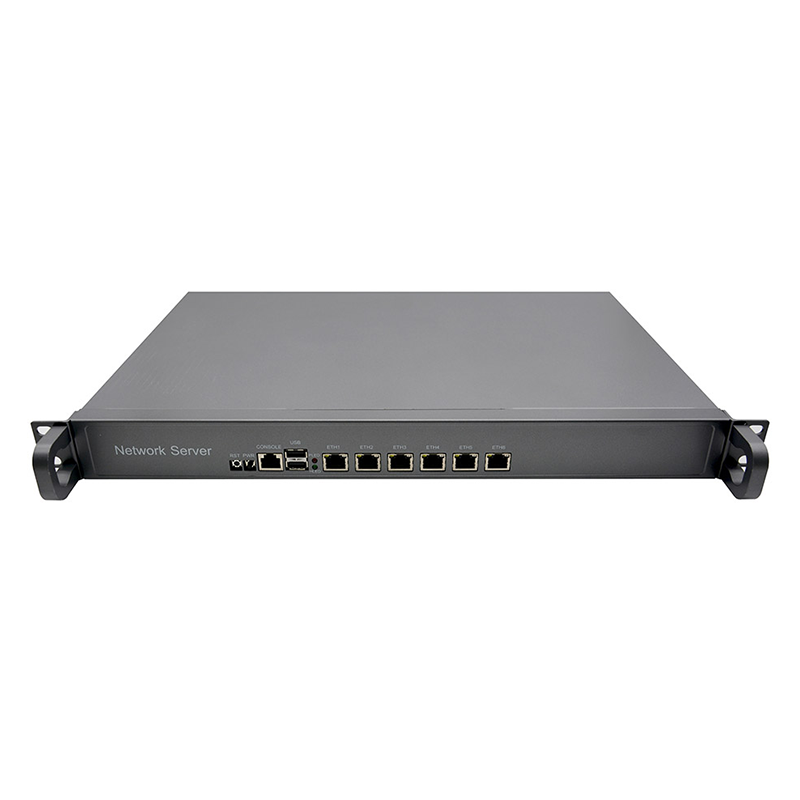

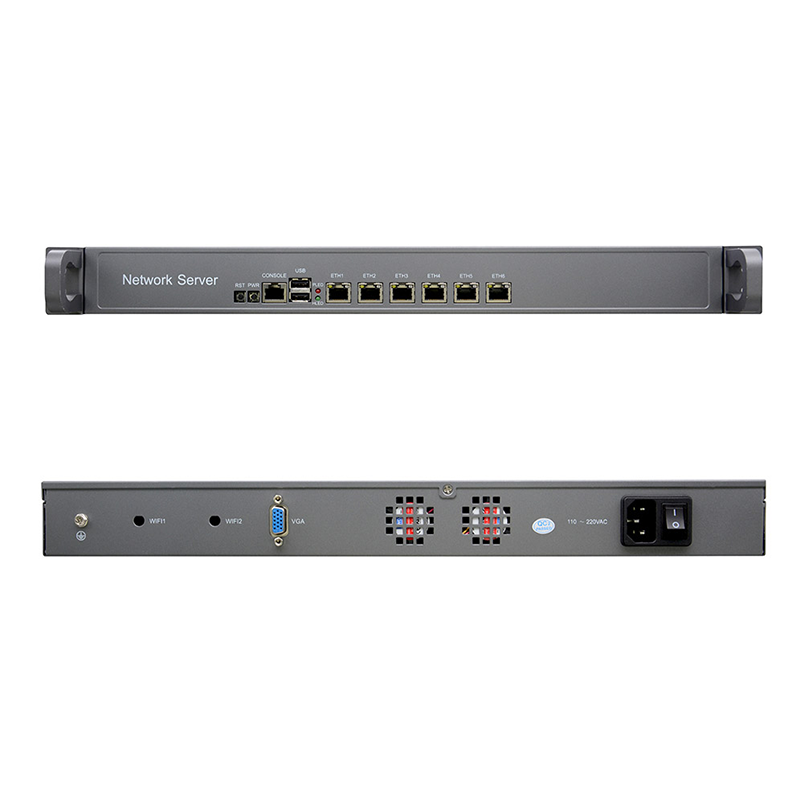

Front I/O:
POWER: 1x power switch, 1*reset switch
LAN: 6x Intel I226 Gigabit network card(with 2 groups of BYPASS), supports wake-on-LAN/PXE function
COM: 1x RJ45
USB: 2x USB2.0， Built-in 2x USB2.0
LED: 1x PWR LED, 1*HDD LED
Rear I/O:
POWER: 1x AC power input connector
Display: 1x VGA
Storage:
SATA: 1x 2.5 inch HDD port or 1x 3.5 inch HDD port(The 7pin SATA signal is the same as the 7+15p SATA signal, the default is 7+15P)
MSATA: 1x MSATA,transmission speed up to 6Gbps
Extension:
Mini PCIE: 1x Mini PCIE slot, supports WIFI (WiFi and LAN6 are optional, the default is LAN6)
1x Mini-PCIE slot, support 4G module
OS support:
Windows: Yes
Linux: Yes
Watch Dog: Support hardware reset function (L256, 0~255 seconds)
Power:
Power Type: External power adaptor
Voltage Input: AC 110~220V
Power output: AC TO DC，60W
Environment:
Working Temp.: -10℃～50℃
Storage Temp.: -20℃～70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
