Features
This
hardware firewall appliance
is powered by the Intel Celeron J1900 quad-core processor and features six Intel i211-AT/i226-V LAN ports with Gigabit/2.5G auto-adaptation. It supports up to 8GB DDR3 memory, SATA and mSATA storage, and one miniPCIe slot for 4G/WiFi expansion. Built-in 8-channel GPIO, 255-level watchdog, Wake-on-LAN, PXE, and Console port ensure easy management. Supports 100-240V wide-range power input and is available in Desktop/1U/2U form factors with 0°C~60°C operating temperature.
This hardware firewall appliance is ideal for SMB perimeter security, branch office access, and campus gateway deployments. The six ports support UTM, NGFW, VPN, and load balancing. With three form factors and miniPCIe wireless expansion, it also suits temporary offices, retail stores, and remote monitoring. Compatible with Windows and Linux, it integrates easily with open-source firewall platforms like OPNsense and pfSense.
Product Description
Main:
CPU: Intel® j1900
Code Name: Bay Trail
Memory: 1* SO-DIMM DDR3 1333 / 1600MHz MAX 8GB
LAN:
IC: Intel® Ethernet Controller i211-AT / i226-V
Speed: 100/1000Mbps/2.5G adapting
Interface: 6* 1G/2.5Gbps Ethernet Controller, RJ45
Support NetWork WakeUp / PXE
Storage: 1* SATA / 1* mSATA
Display: 1* VGA
BIOS: AMI UEFI BIOS Legacy
USB: 1* USB2.0 / 1 * USB3.0; 2* USB2.0(Array pin)
Power Supply:
Voltage: 100-240V~50/60Hz
Mainboard: ATX 4Pin 12V / DC-12V 55mm*25mm
GPIO: 8* programmable GPIO
Watchdog: 255 Levels, 0-255 Seconds
COM: 1* RJ45 Console / 1* COM (Array pin)
4G/WiFi: 1* miniPCle
Dimension:
Desktop: 210mm*201mm*45mm

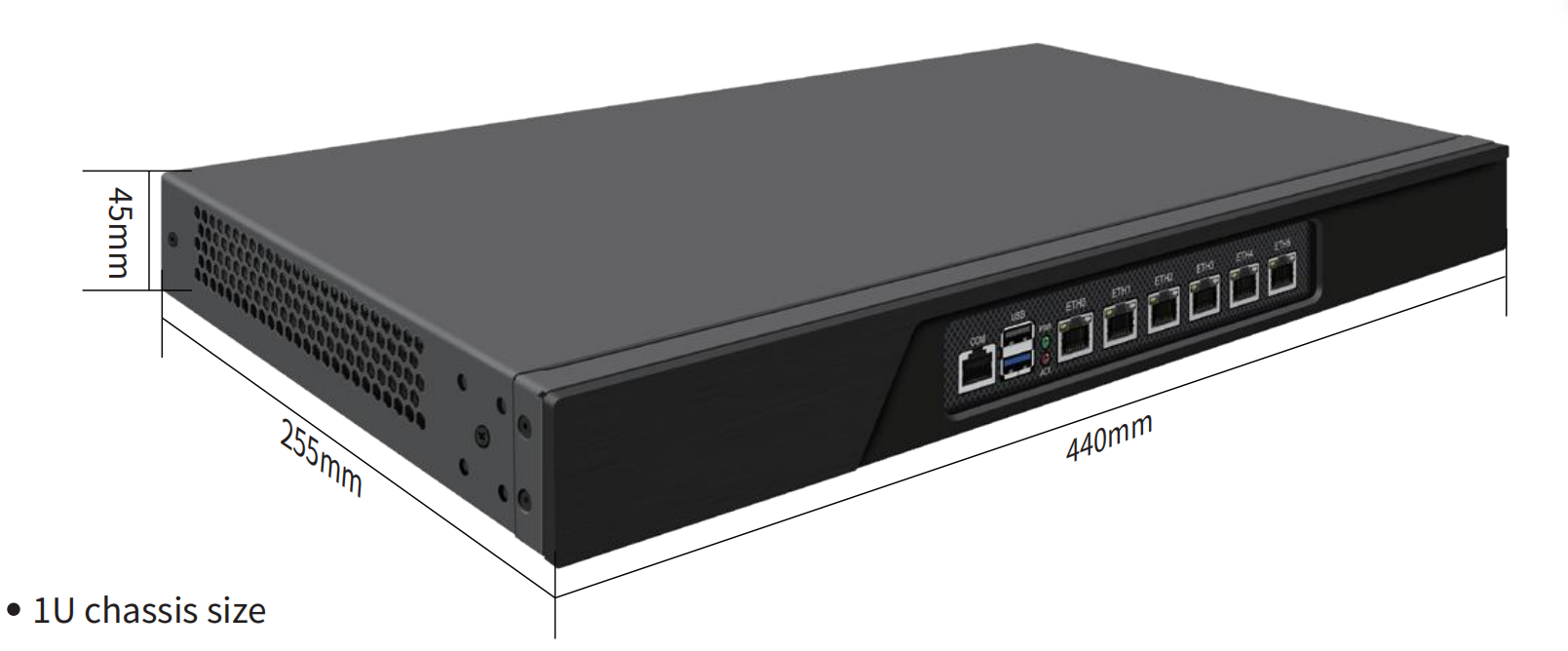

1U: 440mm*255mm*45mm
2U: 435mm*405mm*90mm
PCB: 200mm(W) * 180mm(L)
Working Temperature: 0℃~60℃
Storage Temperature: -10℃~70℃
Working Humidity: 10%~90%
Storage Humidity: 5%~95%, non-condensing
OS: Windows10 / 11,Windows Server, Linux
Customization:
Ethernet: 6; Intel 82574L / Intel i210-AT / Intel i225-V
POWER SOURCE: 2; Redundant power source
.png)
.png)
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
.jpg)
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
