Features
The SII-ADLN-6LV is a high-performance desktop/1U/2U rackmount network security appliance powered by Intel® Alder Lake-N processors (N95/N97/N100/N200/i3-N305), supporting up to 48GB DDR5 4800MHz memory. It features 6 x Intel® i226-V 2.5G RJ45 ports (with Bypass function on LAN3-6) delivering ultra-fast throughput for firewall and network protection applications, along with 1 x SATA3.0, 1 x mSATA, 1 x VGA, 1 x HDMI header, 2 x USB3.0 (plus 2 USB2.0 pin headers), 1 x RJ45 COM console, 1 x JCOM header, and 8 x programmable GPIO. Expansion options include 1 x PCI-E x4 slot (Gen3 x1), 1 x M.2 E-Key for WiFi, and 1 x M.2 B-Key for 4G/5G (with signal sharing selectable). It also supports Wake-On-LAN, PXE boot, and a 255-level watchdog timer, with AC 100-240V or DC 12V power input.
This appliance is purpose-built for next-generation firewall (NGFW) deployments, VPN security gateways, unified threat management (UTM) systems, intrusion detection and prevention (IDS/IPS), and comprehensive network protection in perimeter security architectures. With its powerful Alder Lake-N platform, 2.5G high-speed ports, rich expansion capabilities (PCI-E, WiFi, 4G/5G), and flexible desktop/1U/2U form factors, the SII-ADLN-6LV delivers an ideal hardware foundation for SMBs, branch offices, and enterprise edge security applications requiring high throughput and robust firewall network protection.
Product Description
Main:
Code Name: Intel® Alder Lake-N
Popular model: N95 / N97 / N100 / N200 / i3-N305
Memory: 1 * SO-DIMM DDR5 4800MHz MAX 48G
LAN:
IC: Intel® i226-V
Speed: 2500Mbps 2.5G adapting
Interface: 6* Intel® Ethernet Contoller 2.5G RJ45
Support NetWork WakeUp / PXE
Storage: 1* SATA3.0 / 1* mSATA
Display: 1* VGA / 1* J_HDMI
BIOS: AMI UEFI BIOS
USB: 2* USB3.0; 2* USB2.0(Array pin)
Power Supply:
Voltage: 100-240V~50 / 60Hz
Mainboard: ATX 4PIN 12V / DC-12V 55mm*25mm
PCI-E: 1* PCI-E x4 Slot Gen3 PCle3.0 x1(Share signal with M.2 E_Key, choose l out of 2)
GPIO: 8* programmable GPIO
Watchdog: 255 Levels, 0-255 Seconds
COM: 1* RJ45 Console / 1* JCOM
4G/5G/WiFi:
1 * M.2 E_Key WiFi (Share signal with PCl-E, choose l out of 2)
1 * M.2 B_Key4G/5G (Share signal with PCl-E, choose 1 out of 2)
Dimension:
Desktop: 210mm*20lmm*45mm

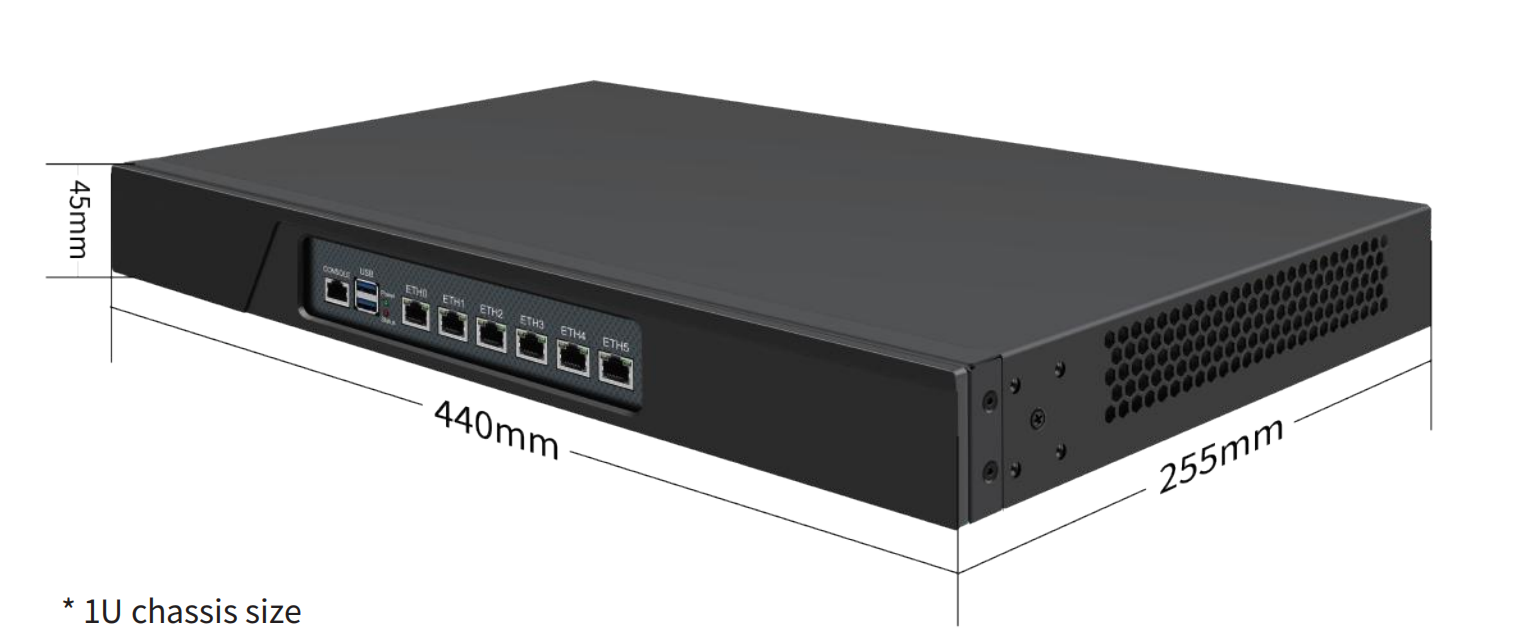

1U: 440mm*255mm*45mm
2U: 435mm*405mm*90mm
Working Temperature: 0℃~60℃
Storage Temperature: -10℃~70℃
Working Humidity: 10%~90%
Storage Humidity: 5%~95%, non-condensing
OS:Windows10 / 11,Windows Server, Linux
Customization:
6*intel® i226-V Lan3-6(Bypass)
6*Intel®i211-AT(Bypass)
6*Intel® i210-AT(Bypass)
