Overview

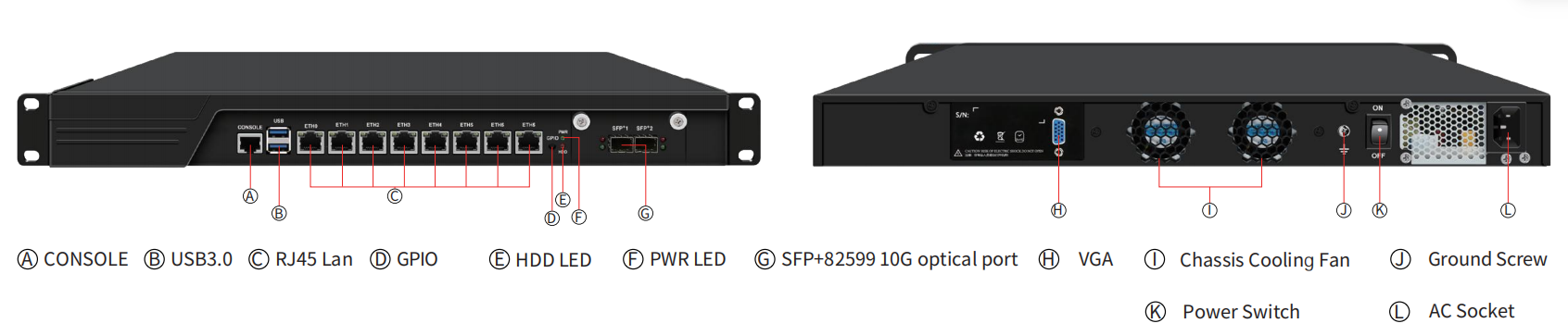

This industrial firewall appliance features Intel® C236 chipset, supporting 6th–9th Gen Core i3/i5/i7/i9 & Xeon E3 v5. It offers 8 x Intel® i226-V 2.5G RJ45 ports, 2 x DDR4 SO-DIMM up to 64GB, 4 x SATA + mSATA storage, VGA, USB3.0/USB2.0, RJ45 Console, COM, 8x GPIO, watchdog, miniPCIe WiFi, optional Bypass/4G/TPM, ATX power, 1U/2U chassis.
This industrial firewall appliance is ideal for NGFW, UTM, VPN, DPI, and SD-WAN. With 8x 2.5G ports and 0℃~60℃ wide-temp support, it suits IIoT perimeter security, smart grid, rail transit, manufacturing defense, and enterprise data centers. Multi-gen CPU support ensures cost-effective critical infrastructure protection.
Product Description
Main:
CPU:
Intel-6th: i3-6100 / i5-6400 / i7-6700
Intel-7th: i3-7100 / i5-7400 / i7-7700
Intel-8th: i3-8100 / i5-8400 / i7-8700
Intel-9th: i3-9100 / i5-9400 / i7-9700 / i9-9900 / E3-1230V5 / E3-1245V5
Code Name: Kaby Lake
Chipset: Intel C236
Memory: 2* SO-DIMM DDR4 2400/2666/3200MHz MAX 64G
LAN:
IC: Intel® i226-V
Speed: 2.5G adapting
Interface: 8* Intel® Ethernet Contoller / 2.5G / RJ45
Support NetWork WakeUp / PXE
Storage: 4* SATA3.0 / 1* mSATA
Display: 1* VGA
BIOS: AMI UEFI BIOS Legacy
USB: 2* USB3.0; 2* USB2.0(Array pin)
Power Supply:
Voltage: 100-240V~50/60Hz
ATX: ATX 24Pin + 4Pin
GPIO: 8* Programmable GPlO
Watchdog: 255 Levels ,0-255 Seconds
COM: 1* RJ45 Console / 1* COM (Array pin)
WiFi: 1* miniPCle
Dimension:
1U: 440mm*322mm*45mm
2U: 435mm*440mm*90mm
Working Temperature: 0℃~60℃
Storage Temperature: -10℃~70℃
Working Humidity: 10%~90%
Storage Humidity: 5%~95%, non-condensing
OS: Windows10/11,Windows Server, Linux
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
.jpg)
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
