Overview

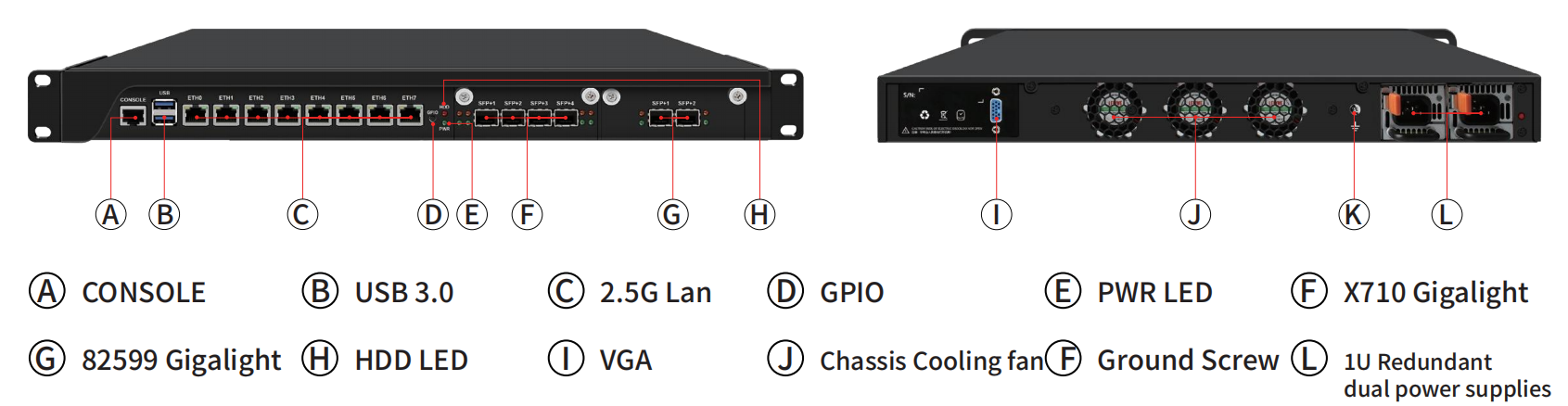

This 1U firewall appliance features Intel® C246 chipset, supporting Coffee Lake Core i3/i5/i7/i9 and Xeon E processors. It offers 8 x Intel® i226-V 2.5G RJ45 ports, optional 10G SFP+ modules, 2 x DDR4 SO-DIMM up to 64GB, M.2 NVMe + 4 SATA + mSATA storage, VGA/eDP/HDMI display, 2x USB3.0 + 4x USB2.0, RJ45 Console, COM, 8x GPIO, watchdog, M.2 4G/5G, miniPCIe WiFi, 2x PCI-E x8, and ATX power in 1U/2U chassis.
This 1U firewall appliance is ideal for NGFW, UTM, VPN, DPI, SD-WAN, and load balancing. With 8x 2.5G ports and optional 10G SFP+ expansion, it suits enterprise perimeter security, data center protection, ISP edge routing, telecom nodes, and IIoT gateways. Xeon E and PCI-E x8 support high-throughput packet processing for mission-critical 10G cybersecurity infrastructure.
Product Description
Main:
CPU: i3-9100 / i5-9400 / i7-9700 / i9-9900 / E-2124G / E-2126G / E-2288G
Code Name: Coffee Lake
Chipset: Intel®C246
Memory: 2* SO-DIMM DDR4 2400 / 2666 / 3200MHz MAX 64G
LAN:
IC: Intel®i226-V
Speed: 2500Mbps 2.5G adapting
Interface: 8* Intel® Ethernet Contoller 2.5G RJ45
Extension: 2LAN * i210/ 211 /226 / 4LAN * i211 / 210 / 1226 2 * 82599SFP+ 4 * X710 SFP+
Storage:
1* M.2 NVMe 2280
4* SATA3.0 6Gbps / 1* mSATA
Display: 1* VGA / 1* EDP/ 1* J_HDMI(Array pin)
BIOS: AMI UEFI BIOS Legacy
USB: 2 * USB3.0; 4* USB2.0(Array pin)
Power Supply:
Voltage: 100-240V~50/60Hz
ATX: ATX 24Pin+8Pin
GPIO: 8* programmable GPIO
Watchdog: 256 Levels, 0-255 Seconds
COM: 1* RJ45 Console / 1* COM (Array pin)
4G/5G: 1* M2 B_key
WiFi: 1* miniPCle
Other: 2* PCI-E x8
Dimension:
1U: 440mm*480mm*45mm
2U: 435mm*535mm*90mm
Working Temperature: 0°c~ 60°c
Storage Temperature: -10°c~70°c
Working Humidity: 10%~90%
Storage Humidity: 5%~95%,Non-Condensing
OS: Windows10 / 11,Windows Server , Linux
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
.jpg)
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
