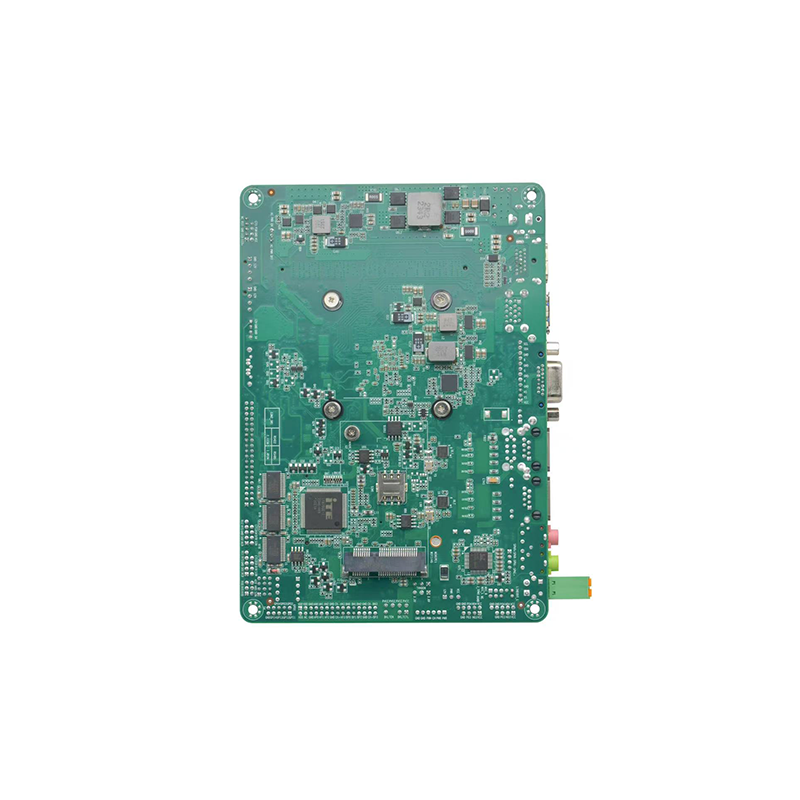

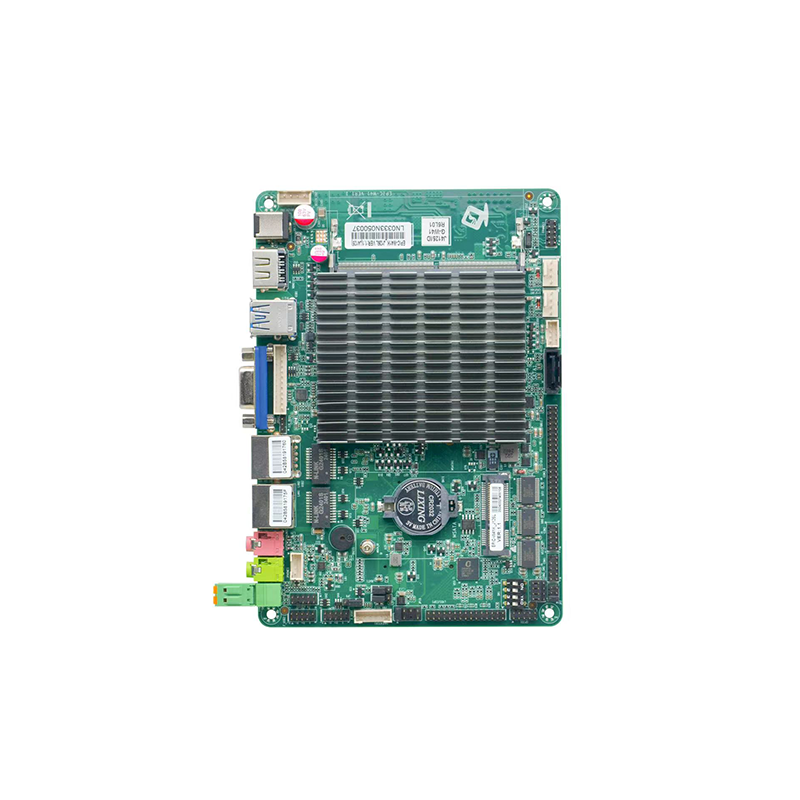

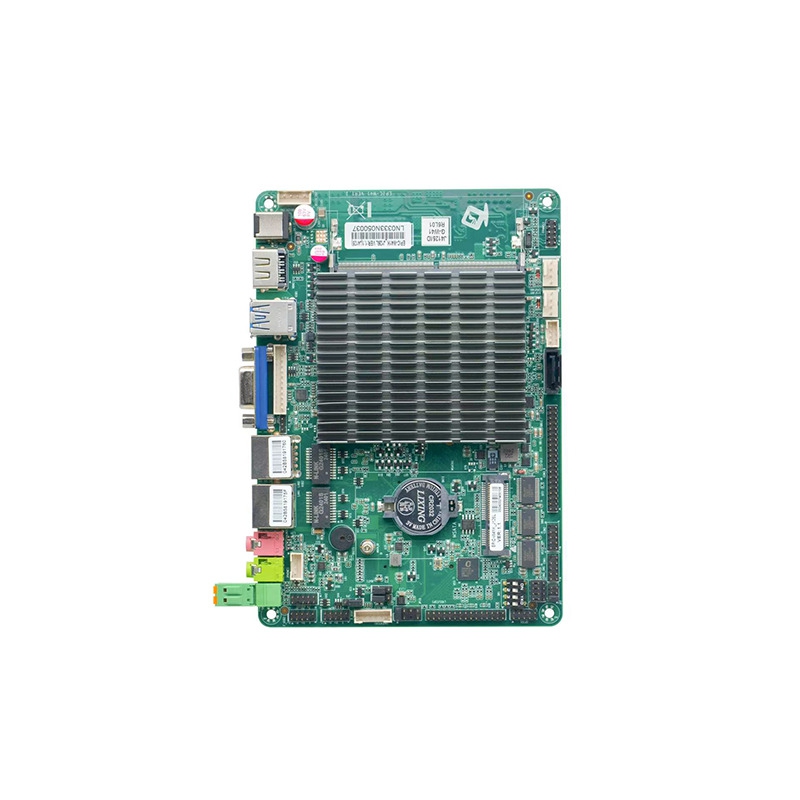

Overview
This 3.5 inch motherboard delivers powerful performance in an ultra-compact form factor, built on the Intel Gemini Lake SOC platform with Intel Celeron J4125 Quad-Core processor (2.0GHz) and Intel UHD Graphics 600, supporting multiple display outputs (VGA+HDMI+LVDS/eDP).
Key Features:
●Rich display connectivity: Supports VGA, HDMI and LVDS/eDP simultaneously
●Dual Gigabit Ethernet ports with industrial-grade communication interfaces (6× COM ports)
●Wide power input range (9V-36V DC) for industrial environments
●Expandable storage: 1× SATA3.0 and 1× mSATA 3.0 slots
●Wireless ready: Mini-PCIe slot supports WiFi/3G/4G modules
●Industrial reliability: Watchdog Timer, GPIO, and 2Ω/3W audio amplifier
Product Description

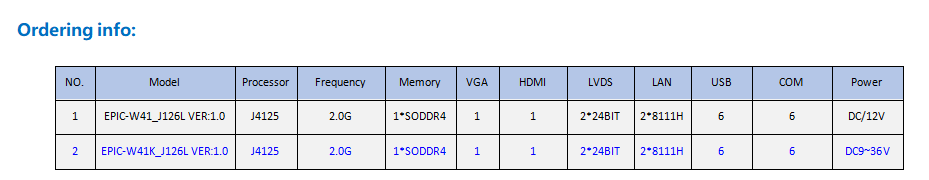

Model No.: EPIC-W41K_J126L VER:1.0
Processor: Integrated Intel® Celeron J4125 2.0GHz quad-core quad-thread processor, TDP 10W
Compatible with Intel® Gemini Lake full range of CPUs, providing customers with flexible choices
Chipset: SOC
Memory: 1* SODIMM slot,support single channel 2400MHz DDR4 memory, up to 8GB
Graphics:
Intel®HD Graphics
1x VGA, 1x HDMI, 1xLVDS, support dual channel 24BIT
1x EDP, shares the same pins with LVDS interface, default is LVDS interface
Network: 2x RTL8111H Gigabit network card, support network wake-up, PXE function
Storage:
1x 7pin SATA3.0; transmission rate up to 6Gbps
1x MSATA; Supports Intel protocol SSD solid state drive, with a transmission speed of up to 6Gbps
Audio:
Onboard ALC892 7.1+2 channel high-fidelity audio controller, supports MIC/Line-out. amplifier
Power amplifier 4Ω 3W speaker
Expansion slots: 1x Mini PCIE slot,support WIFI 、4G module

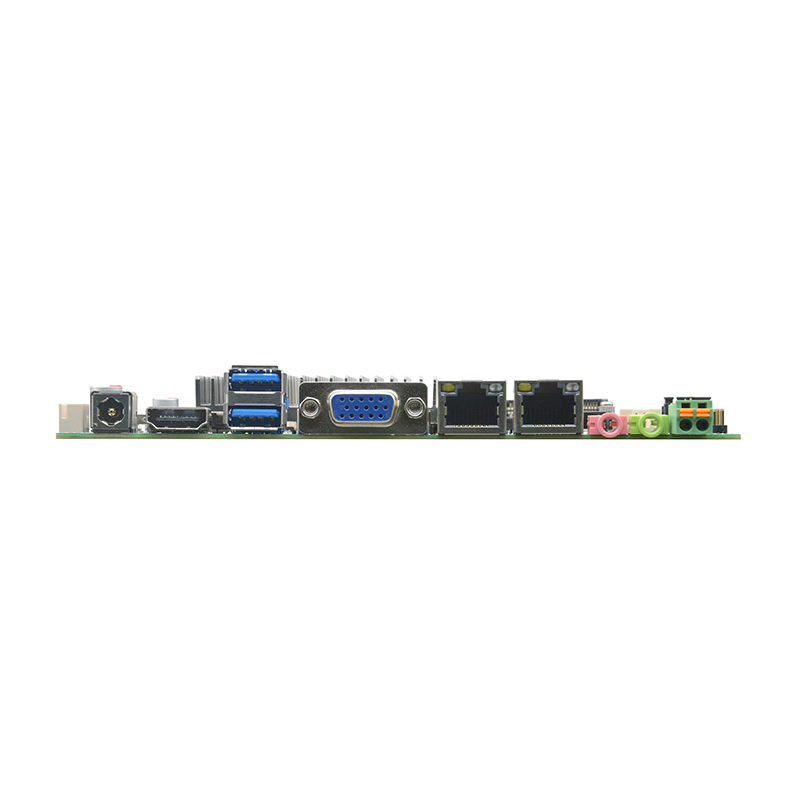

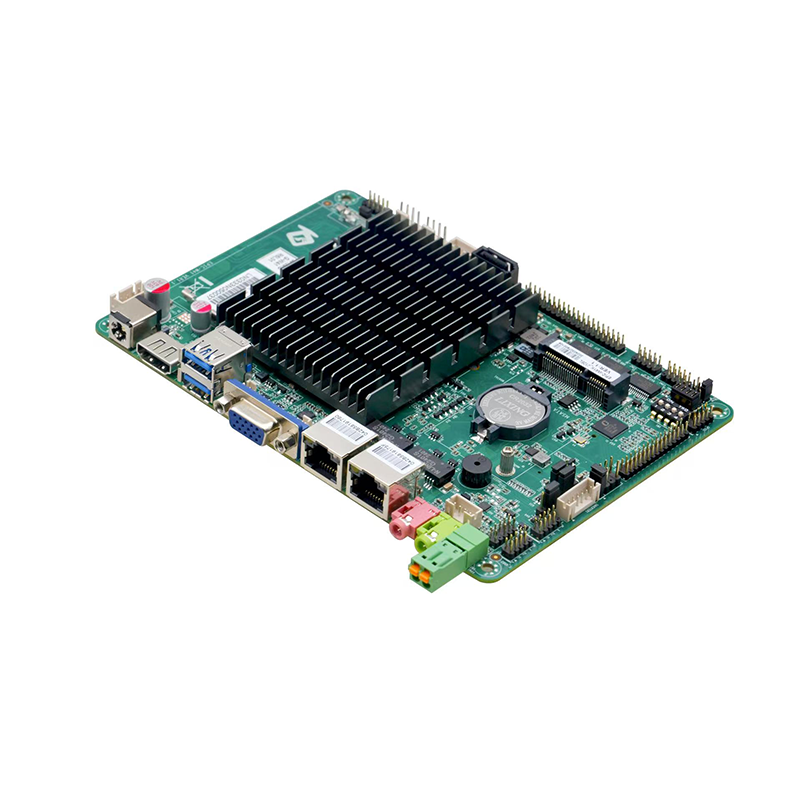

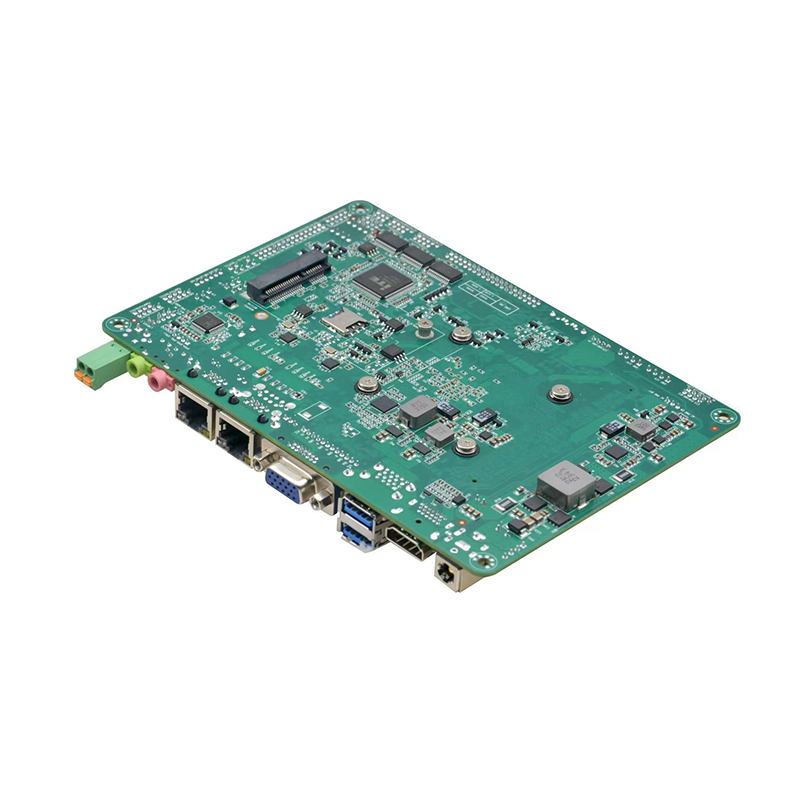

Rear I/O interface:
1x DC power input interface, can support DC9~36V power supply
1x HDMI
1x VGA
2x Gigabit network interface
2x USB3.0
1x Line out (Green)
1x MIC (red)
1x 2pin remote switch

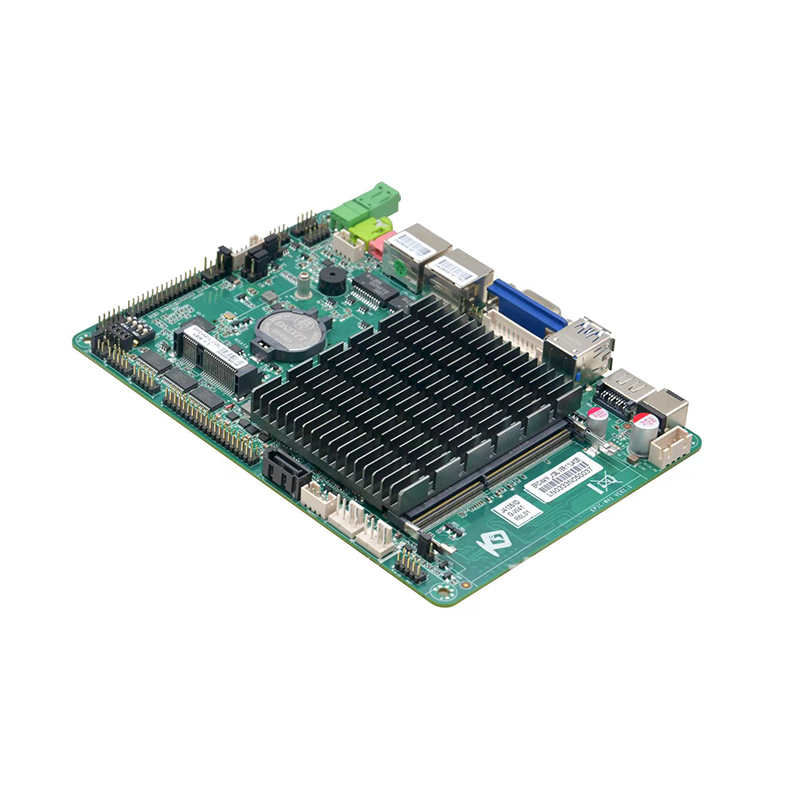

Built in I/O interface:
1x DC power interface 1*4pin
4x USB 2.0, 2*5Pin
1x JVGA, 1*12Pin (same signal as DB15)
6x RS232 serial ports, COM2 supports RS485/RS422 functions
1x Front audio interface 2*5pin
1x Preamplifier interface 1*4Pin
1x LVDS interface 2*15pin, support dual-channel 24BIT, LVDS and EDP share the same pin header, can be used as EDP interface
1x LVDS backlight power supply interface 1*6pin
1x Front panel switch button and indicator light interface 2*5Pin
1x Hard disk power supply interface 1*4pin
1x SIM card set
Fan interface: Support fanless cooling, reserved 1*4pin CPU smart fan interface, 1*4pin system fan interface
Power input: DC 9~36V
BIOS: 64Mb Flash ROM
GPIO: Supports 4 input and 4 output GPIO interfaces
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
OS: Windows 10/Linux
Working Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)
Dimension: 165mm x 115mm
