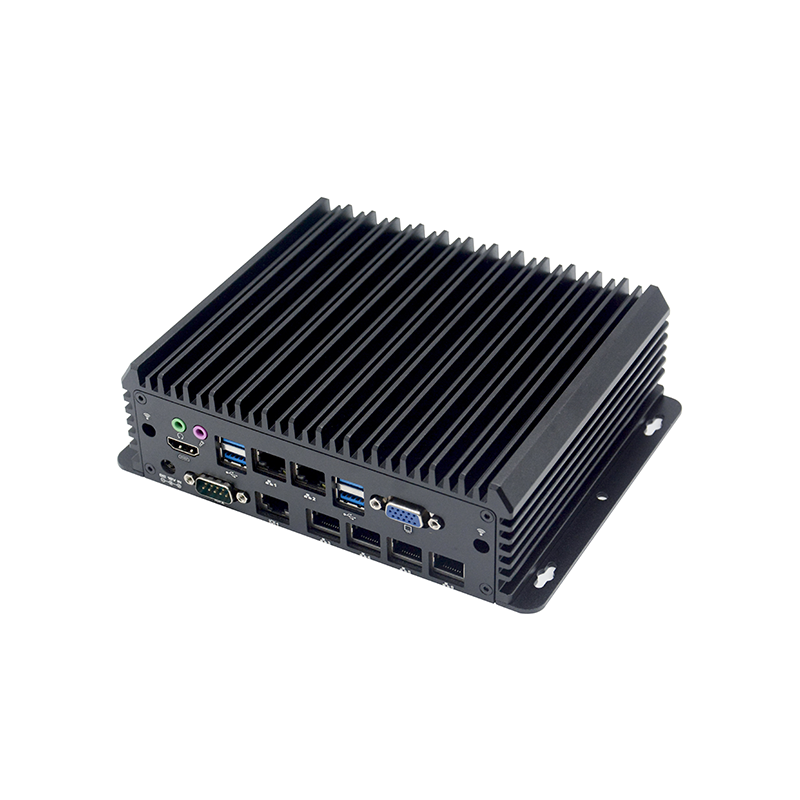

Product Description
Model NO.: C5750Z-L4 V1.0(J6412)

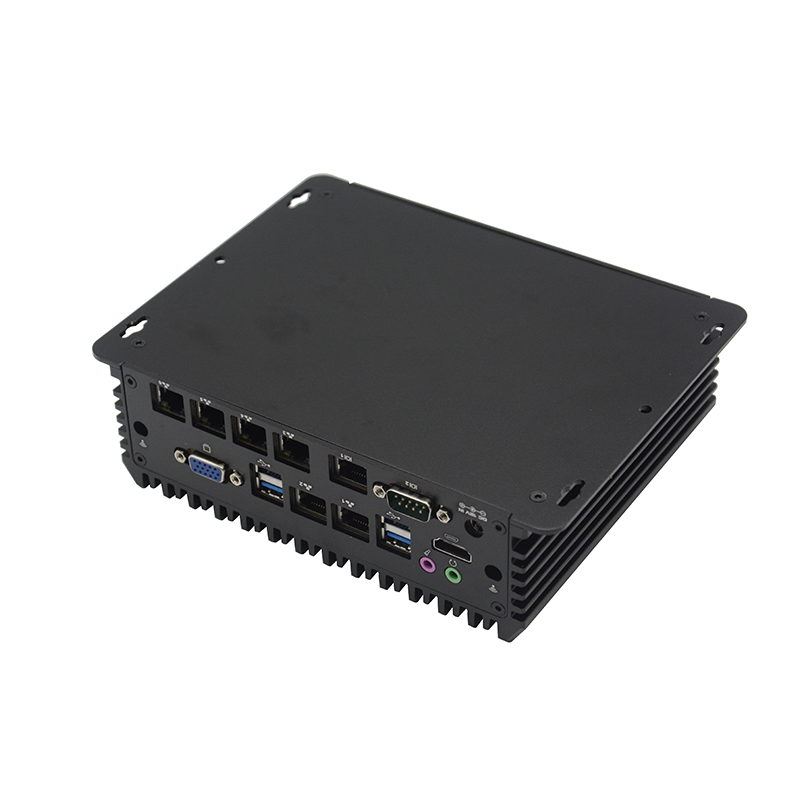

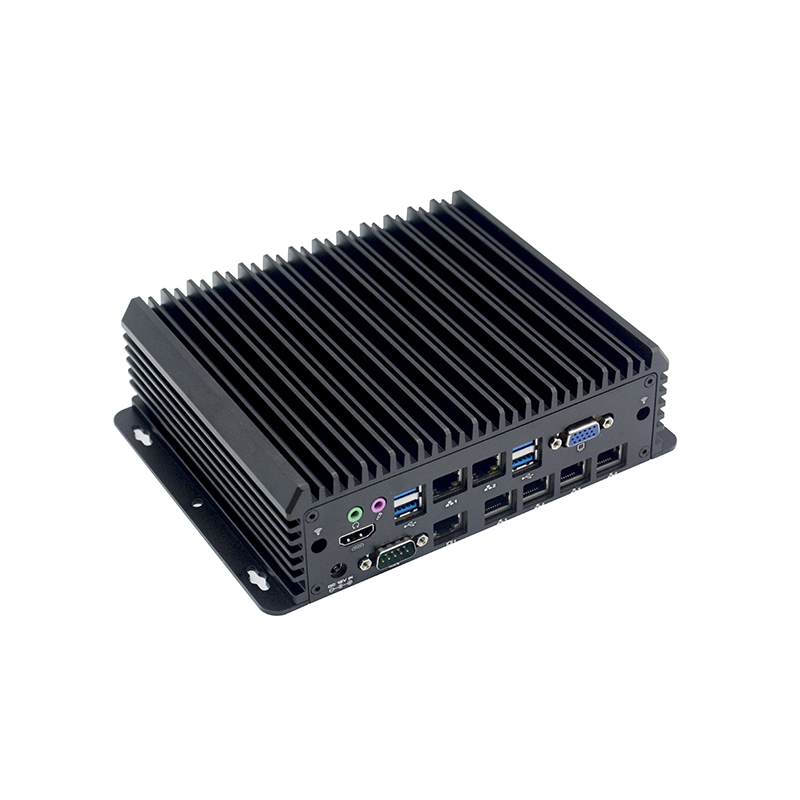

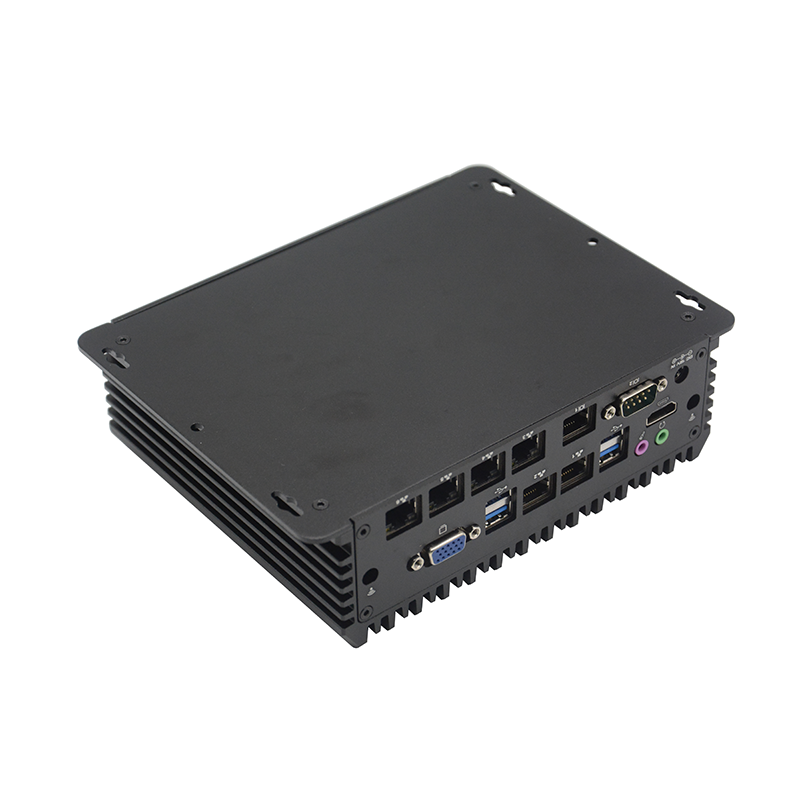

Chassis:
Structure: All aluminum alloy, fanless cooling structure
Color: Iron gray + Silver front and rear panels
Dimension: 174mmx 148mmx 57mm
Weight: 1.35KG
Installation: Desktop/embedded

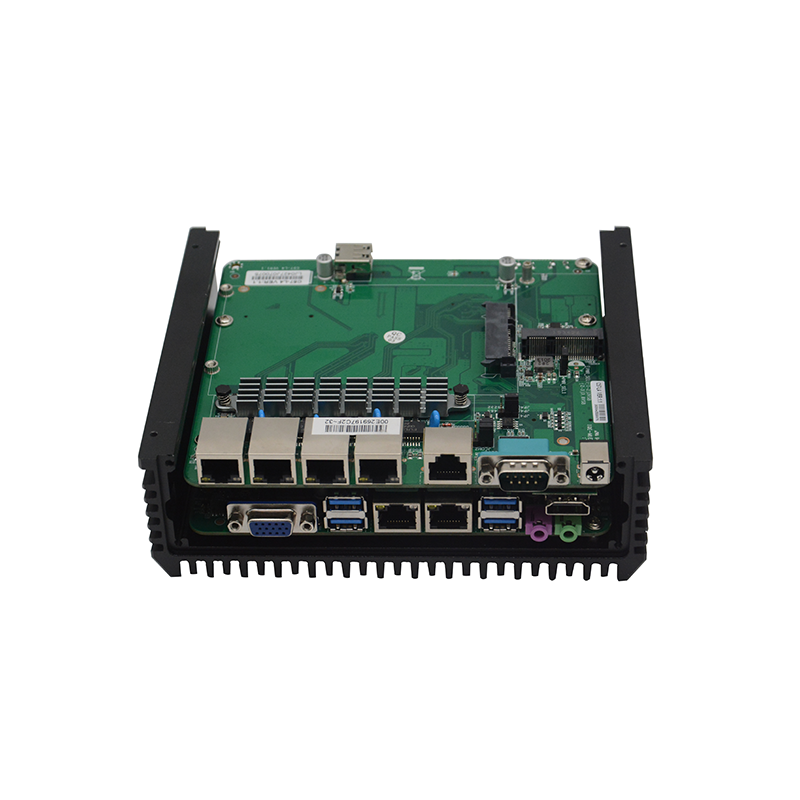

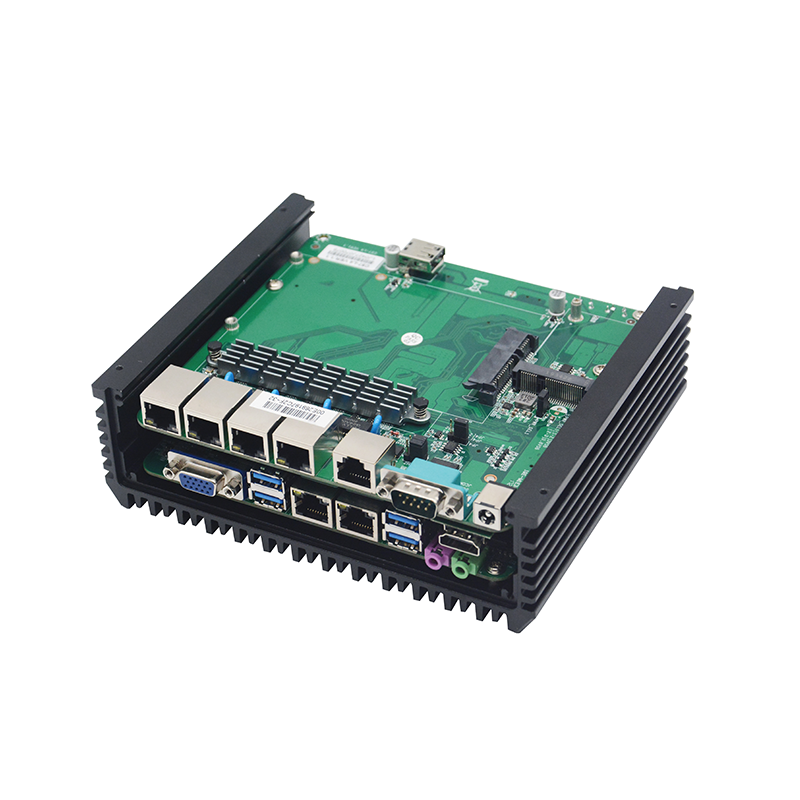

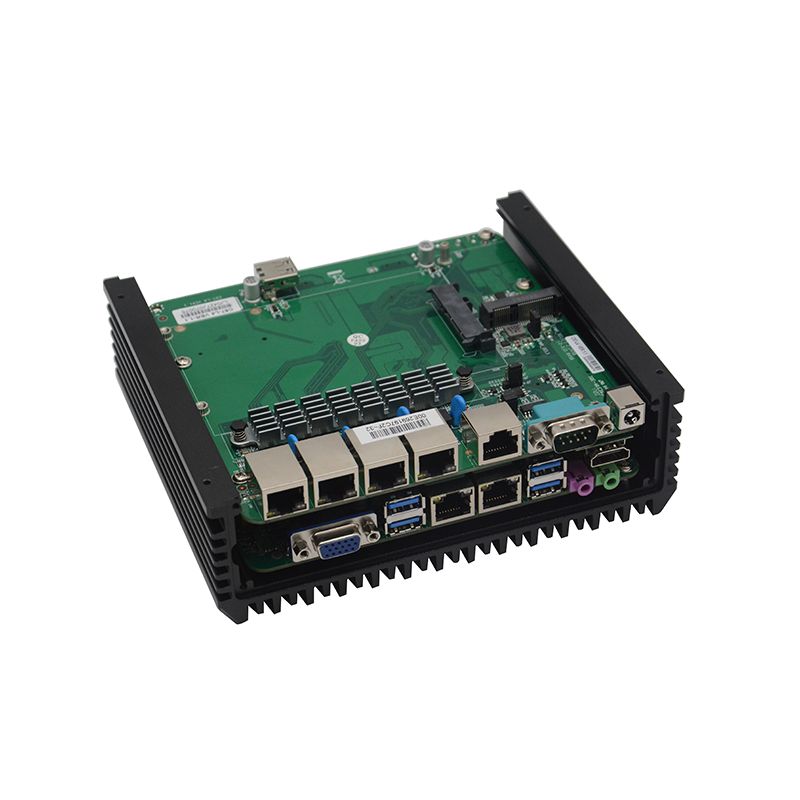

Motherboard:
CPU: Integrated Intel®Celeron J6412/2.00GHz quad-core four-thread processor，TDP 10W
Display: Integrated Intel® UHD Graphics
Memory: 2x DDR4 SODIMM memory slot,support 3200MHz memory,up to 16GB
Front I/O:
POWER: 1x power switch, 1x restart switch, 1x AC LOSS (power on toggle switch)
LED: 1x Power indicator, 1* hard disk indicator
USB: 2x USB2.0
SIM: 1x SIM slot
PHOENIX: 1x 12pin(includes 4-in-4-out GPIO, 1x power switch signal, 1x 5V)

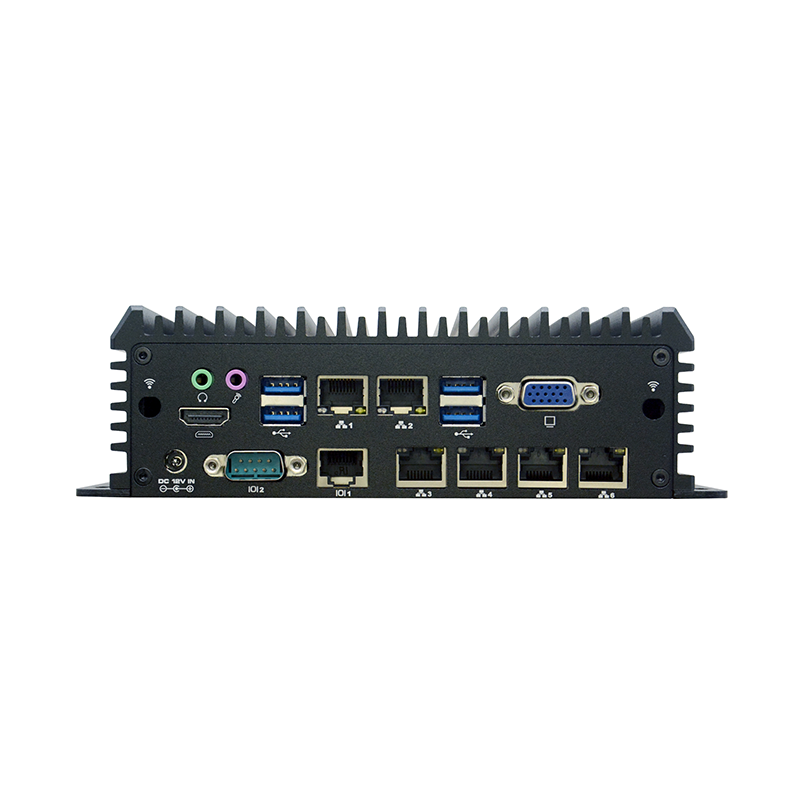

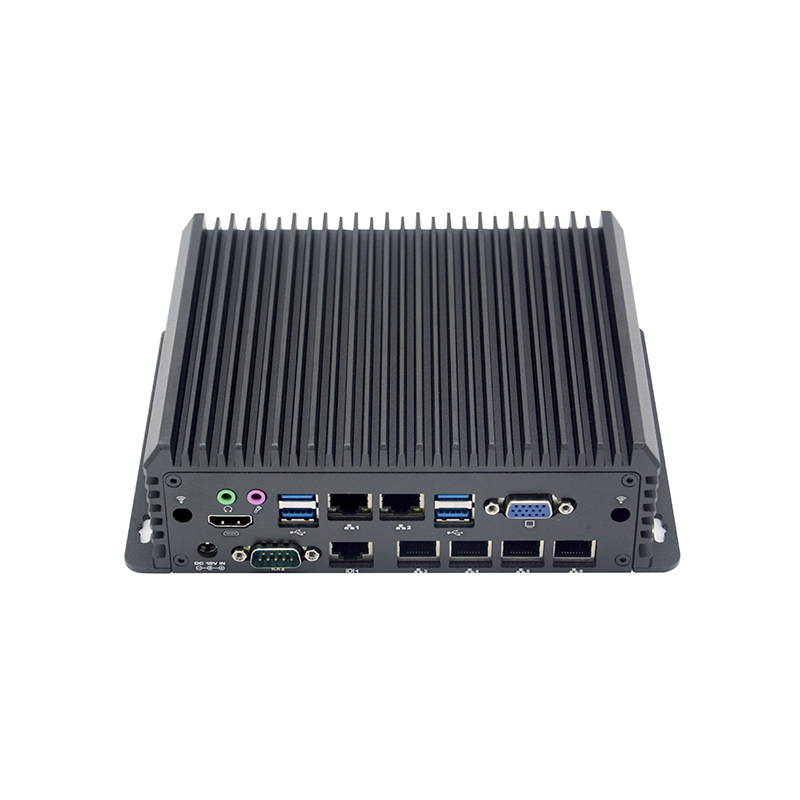

Rear I/O:
Display interface: 1x VGA，1x HDMI1.4
LAN: 6x Intel network card(2x Intel I226 + 4x Intel I210(subject to actual shipment))
USB: 2x USB3.0，2x USB2.0
COM: 1x RS232/485 DB9 serial port, 1*RJ45（console)
Audio: 1x Line out，1*MIC
Power: 1x DC 12V power input
Storage:
SATA: 1x 2.5-inch hard drive bay
MSATA: 1x MSATA
Expansion:
USB: 1x USB2.0 TYPE A horizontal
Mini PCIE: 1x Mini PCIE slot with 4G/WiFi support
Note: Motherboard LAN6 and WIFI are two options, the default is LAN6
OS support:
Windows: Windows 10
Linux: Ubuntu
Watch Dog: Support hardware reset function (L256, 0~255 seconds)
Power Input:
Power Type: External power adaptor
Voltage Input: DC 12V
Power output: AC TO DC、60W(Depending on specific equipment)
Environment:
Working Temp.: -10℃～50℃
Storage Temp.: -20℃～70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
