Product Features
●Fanless & Silent Design – Full aluminum alloy body for efficient heat dissipation, dust-free operation, and reliable 24/7 performance
●Low-Power, High-Efficiency Core – Intel® Celeron J6412 quad-core processor (TDP just 10W), balancing performance and energy savings
●Dual Gigabit Ethernet – 2× Intel I210AT LAN ports, plus SIM slot & Mini PCIe for 4G/WiFi expansion, offering flexible networking options
●Ample Expansion Capacity – Supports up to 32GB RAM + dual storage (SATA & M.2), ready for high-traffic workloads
●Rich I/O Interfaces – 4× USB3.0 + 2× RS232/485 COM ports, compatible with a wide range of industrial peripherals
●Dual Display Outputs – VGA + HDMI2.0 for easy on-site debugging
●Broad OS Compatibility – Supports Windows & Linux
●DC 12V Power Input – Adapts to various deployment environments
Product Details
Product Description

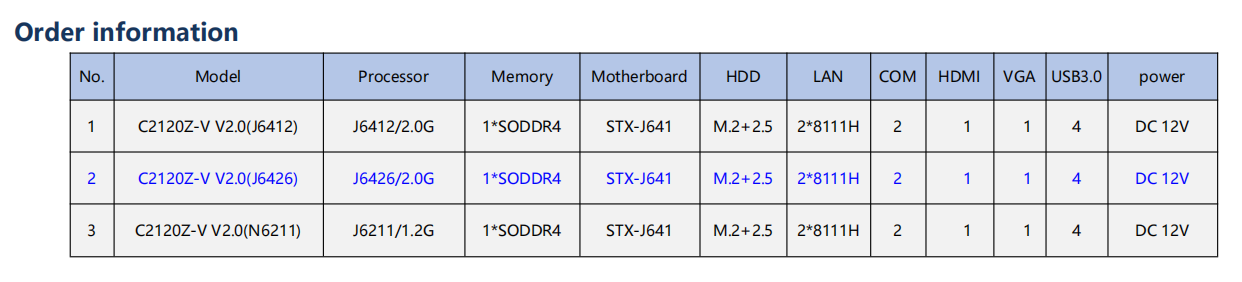

Model NO.: C2120Z-V V1.0(J6412)
Chassis:

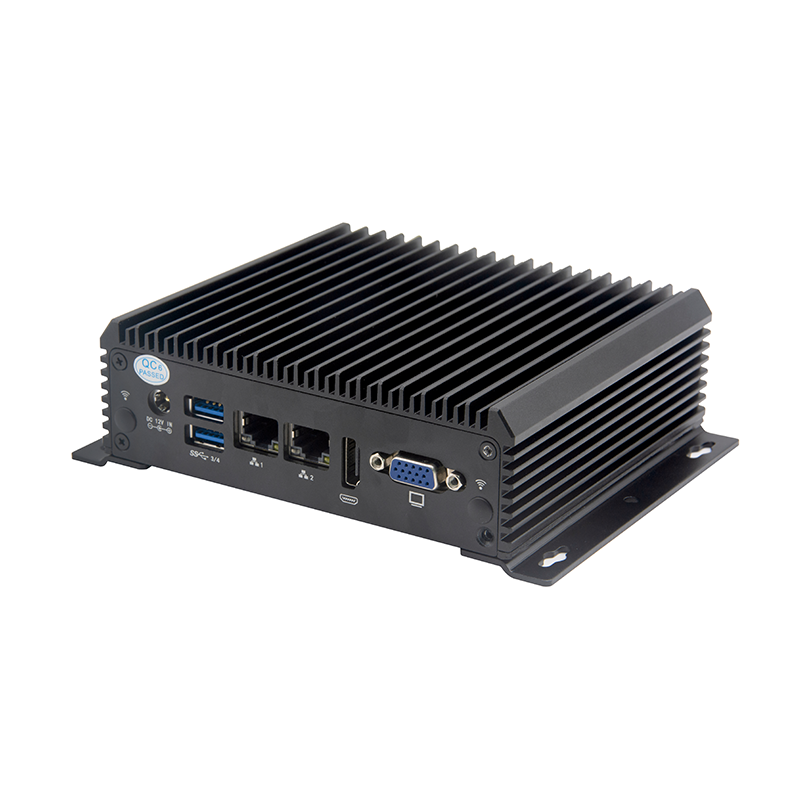

Structure: All aluminum alloy, fanless cooling structure

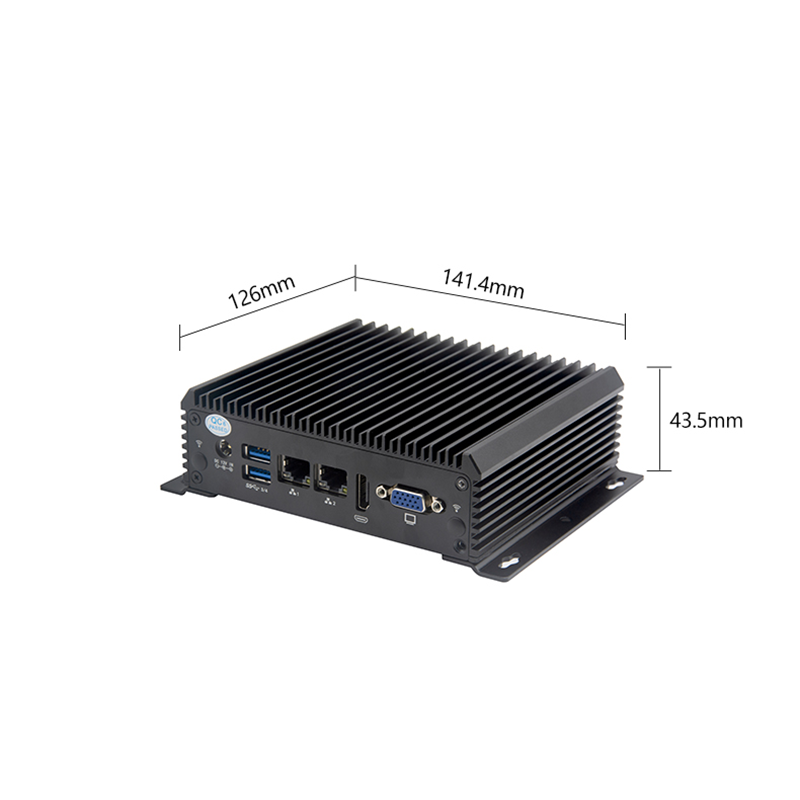

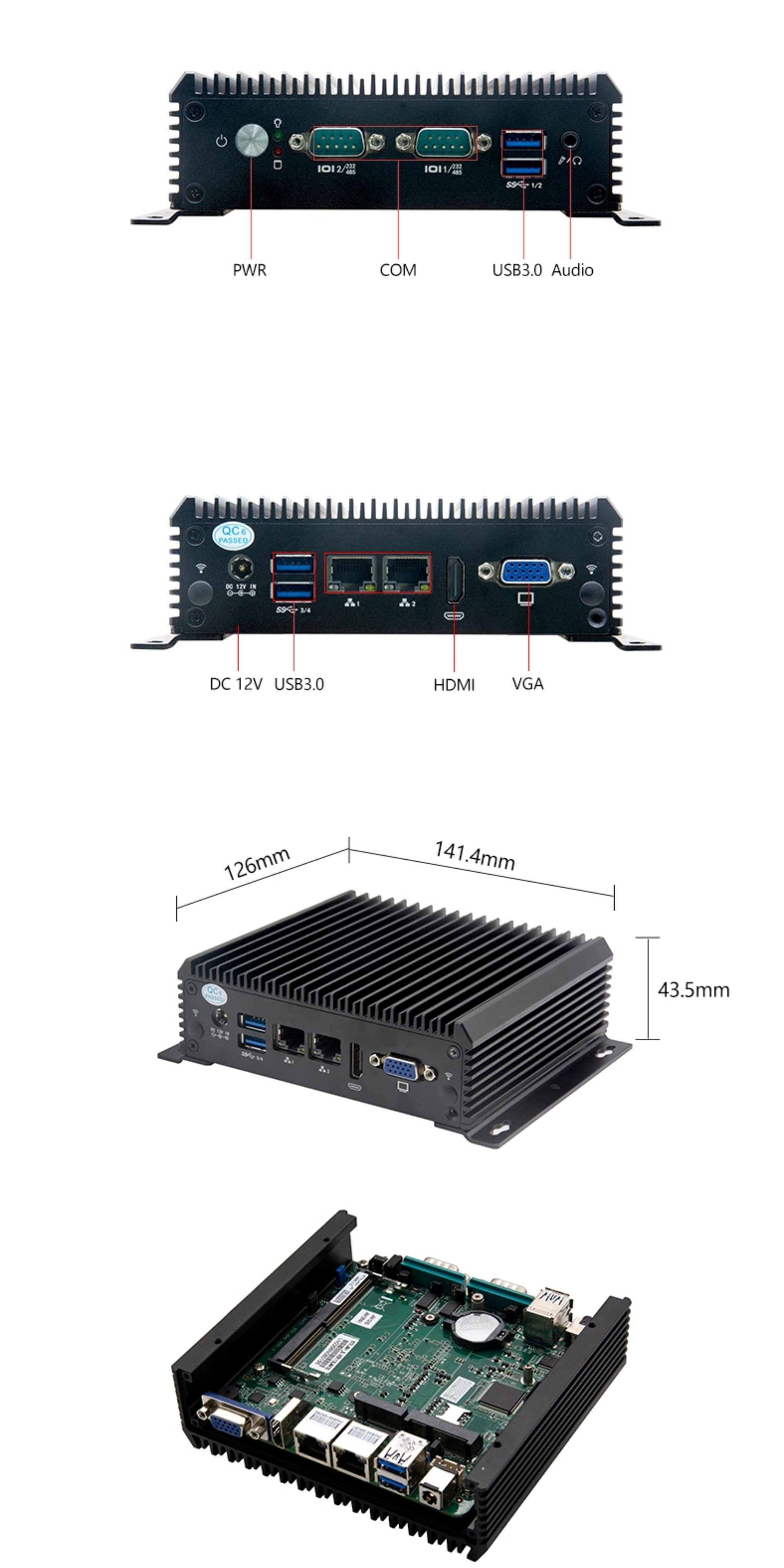

Dimension: 141.4mmx 126mmx 43.5mm
Color: Black

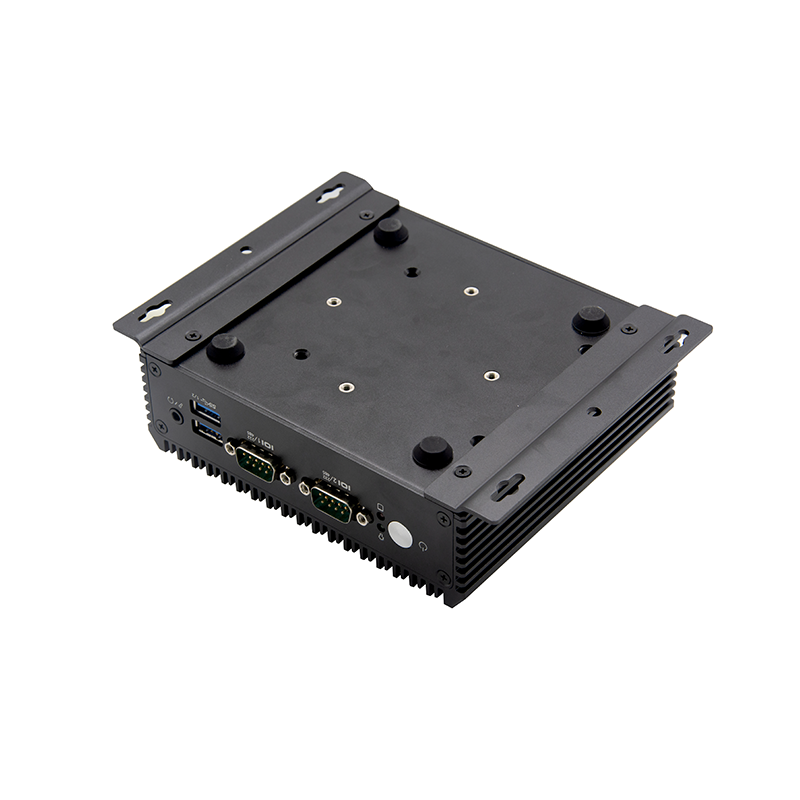

Installation: Support VESA installation/desktop/wall-mounted
Motherboard:
Processor: Integrated Intel® Celeron J6412/2.00GHz quad-core four-thread processor;TDP 10W
Chipset: Intel SoC
Graphics: Integrated Intel UHD Graphics
Memory: 1x SO-DIMM slot,3200MHz DDR4 Memory, up to 32GB

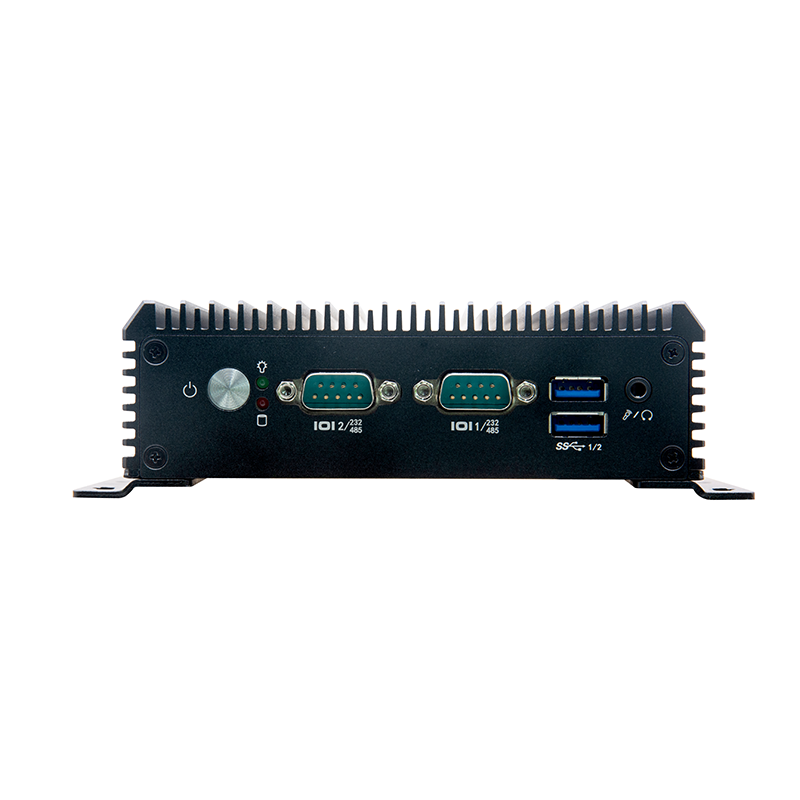

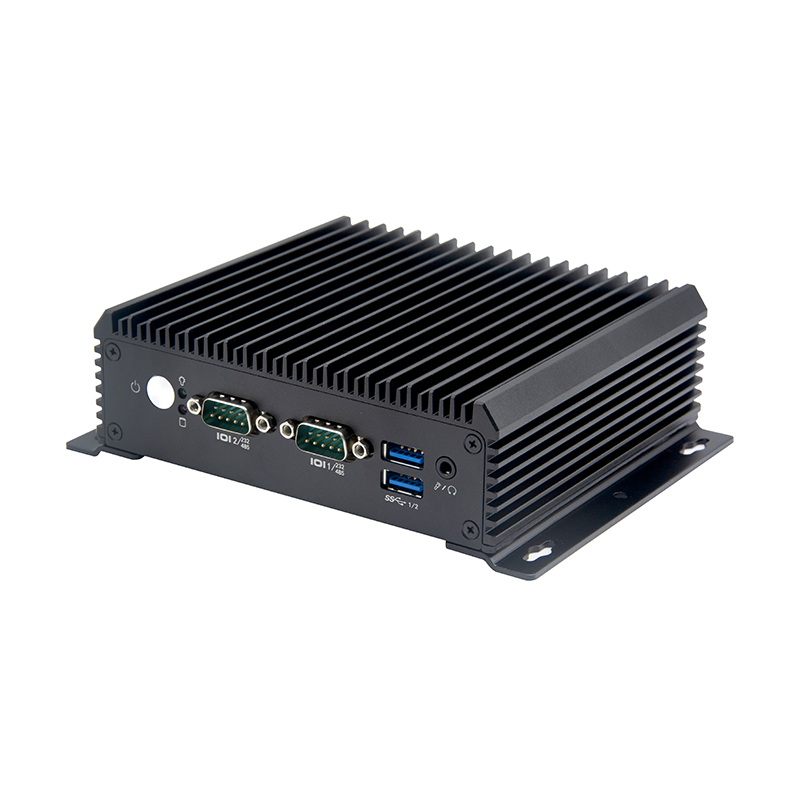

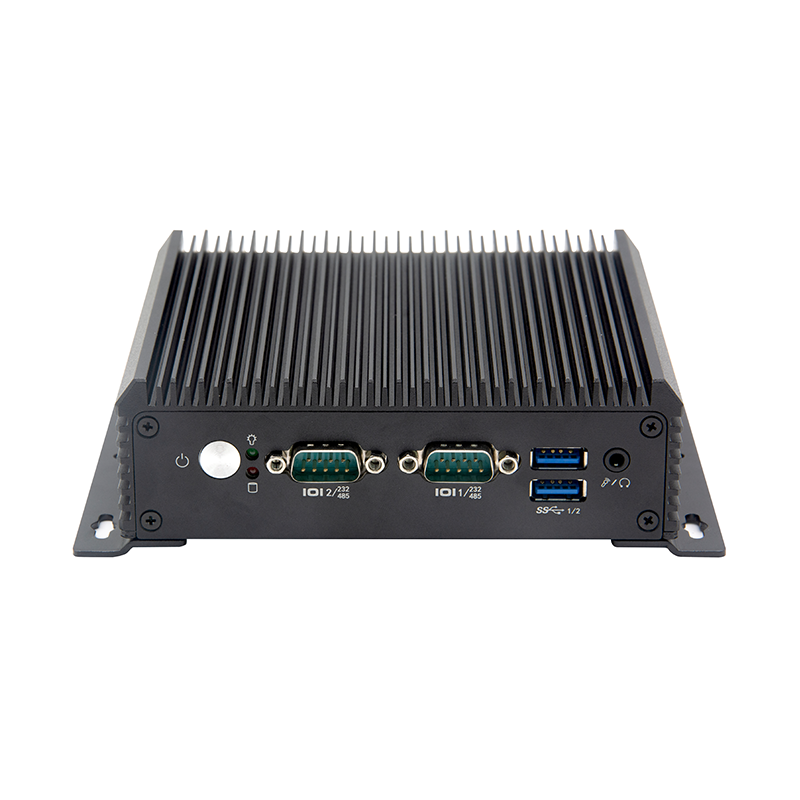

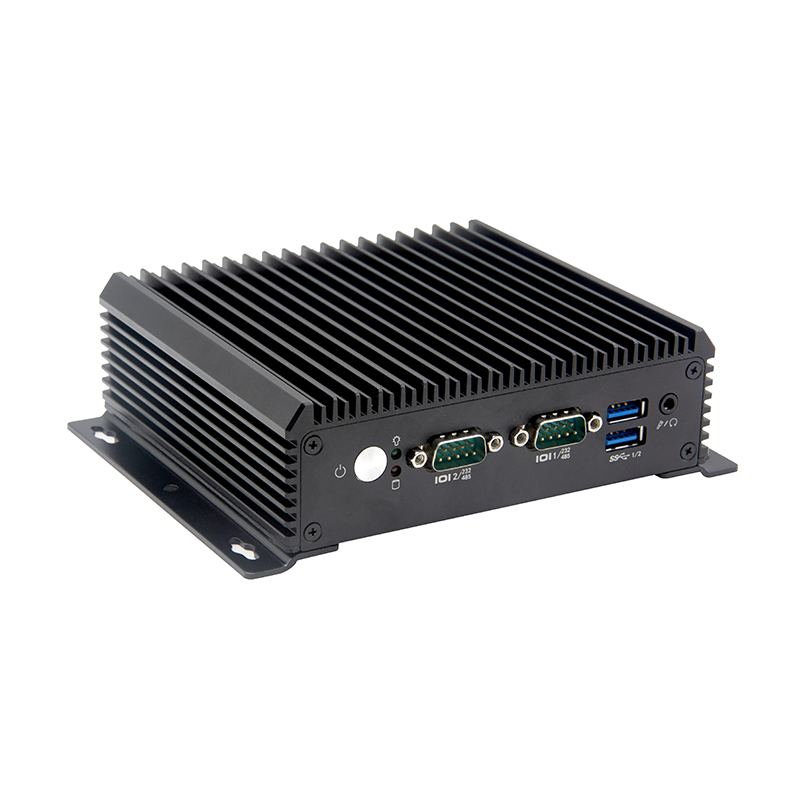

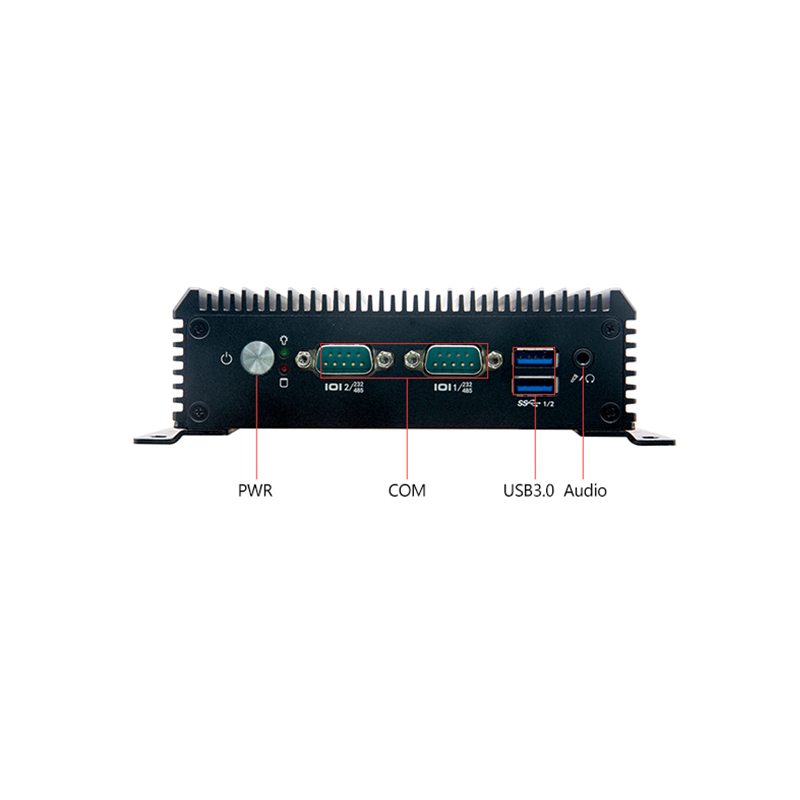

Front Panel:
Switch: 1x Power switch
LED: 1x power indicator light, 1*hard disk indicator light
USB: 2x USB3.0
COM: 2x RS232/485 DB9 serial port
Audio: 1x Audio, Line out and MIC two-in-one

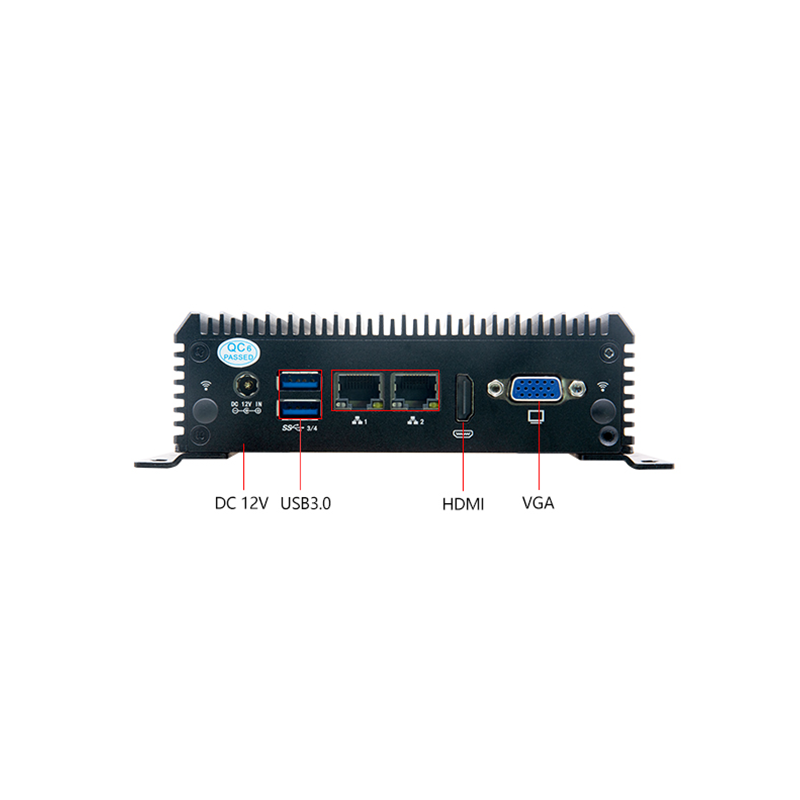

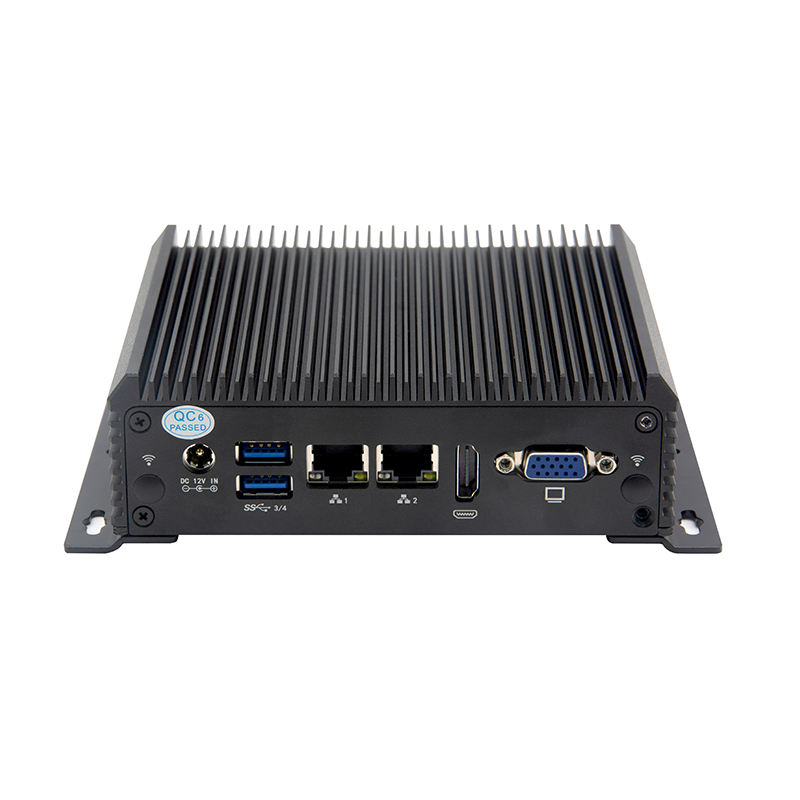

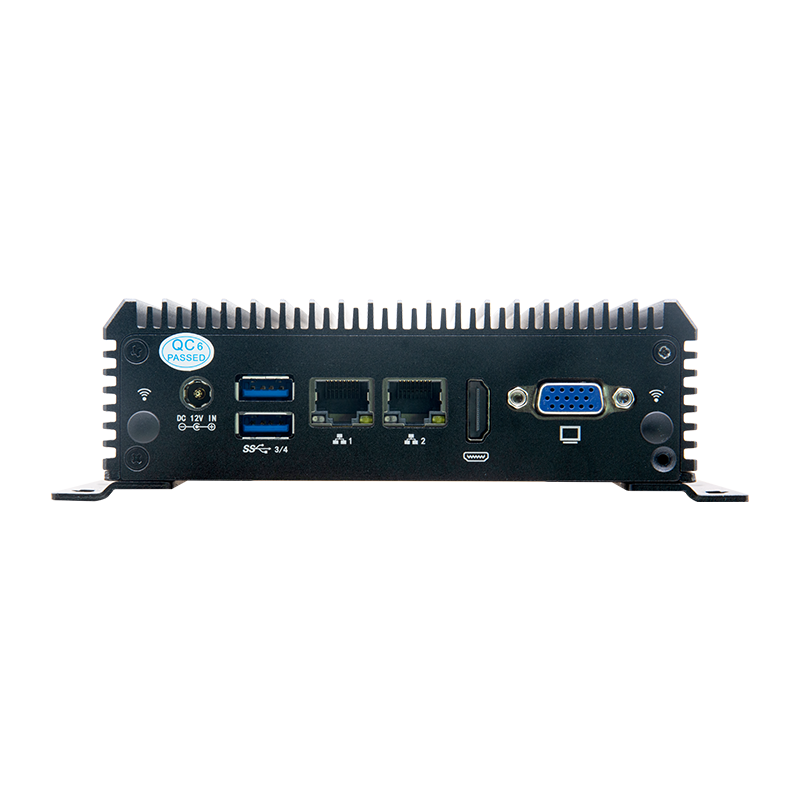

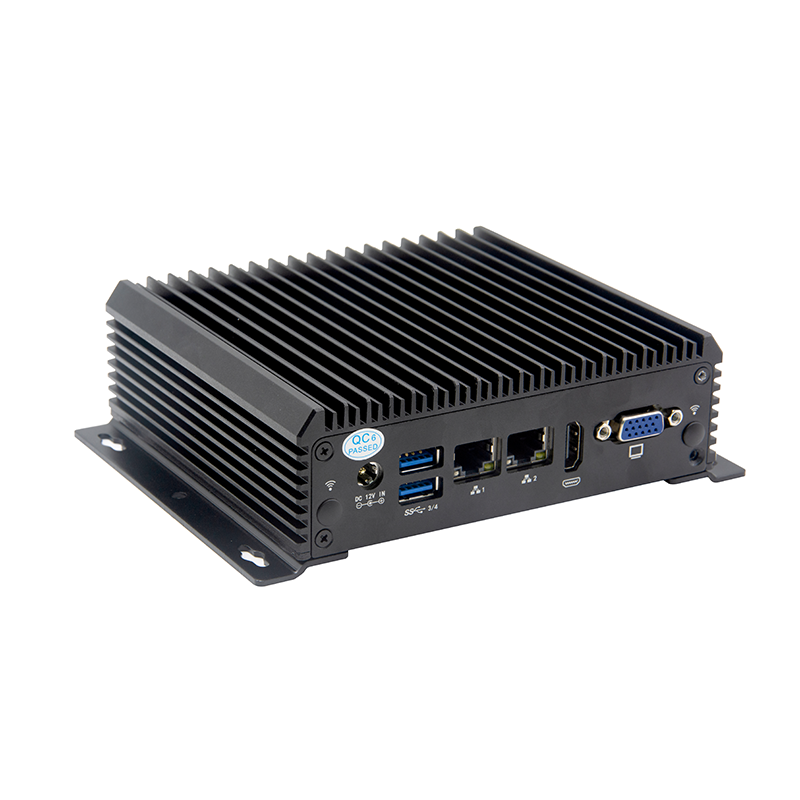

Rear Panel:
LAN: 2x RTL8111H Gigabit electrical port, supports network wake-up and PXE functions
Display interface: 1x VGA，1x HDMI2.0(4096x2160@60Hz)
USB: 2x USB3.0
Power: 1x DC 12V（5.5x 2.5）
Storage:
SATA: 1x 2.5-inch HDD (7mm thickness)
M.2: 1x M.2/SSD，support Key-M，2280，NVME PCIE x2 SSD
Expansion: Mini PCIE: 1x Min-PCIE, supports WIFI/4G module
OS Support:
Windows: Windows 10
Linux: Ubuntu
Watch Dog: Support hardware reset function (level 256, 0~255 seconds)
Power Supply:
Power supply: External power adapter
Voltage input: DC 12V
Power output: AC TO DC、36W
Reliability:
Working Temp.: - 10℃ ~ 50℃
Storage Temp.: -20℃ ~ 70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
