Product Description
Model NO.: C5760Z-H2 V2.0(6300U)

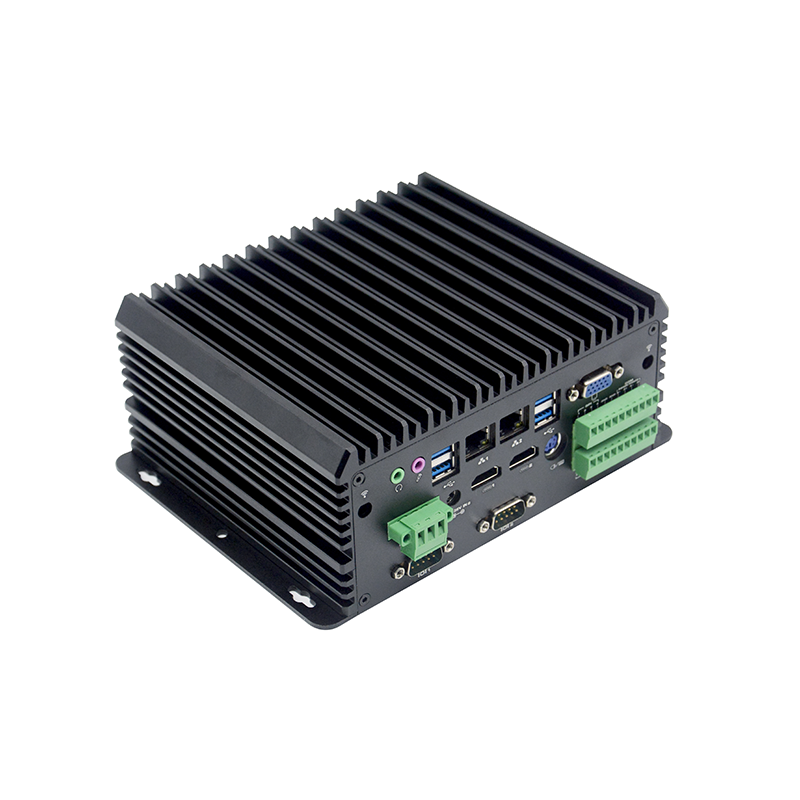

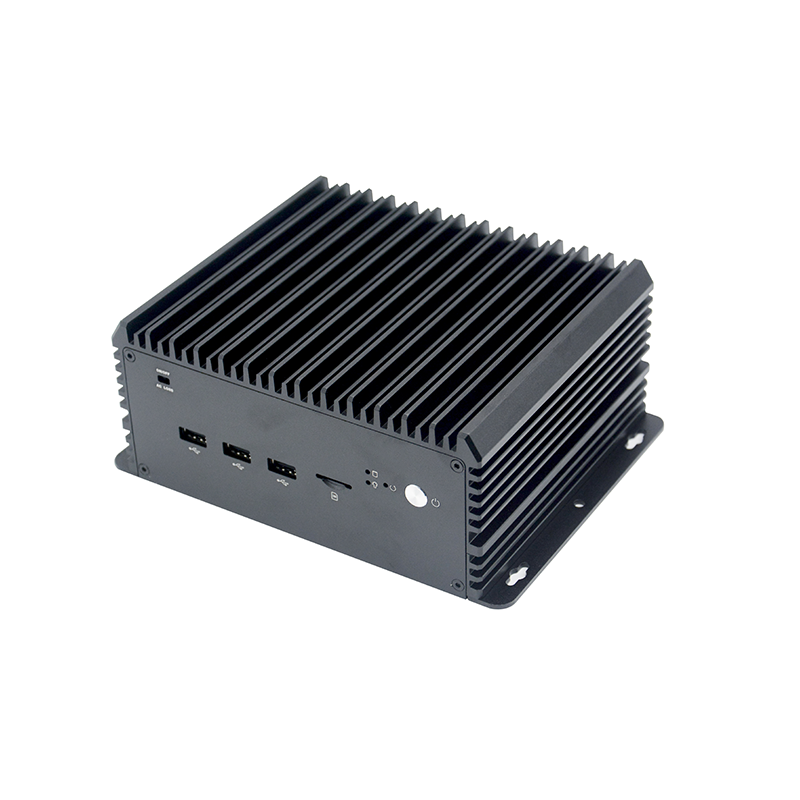

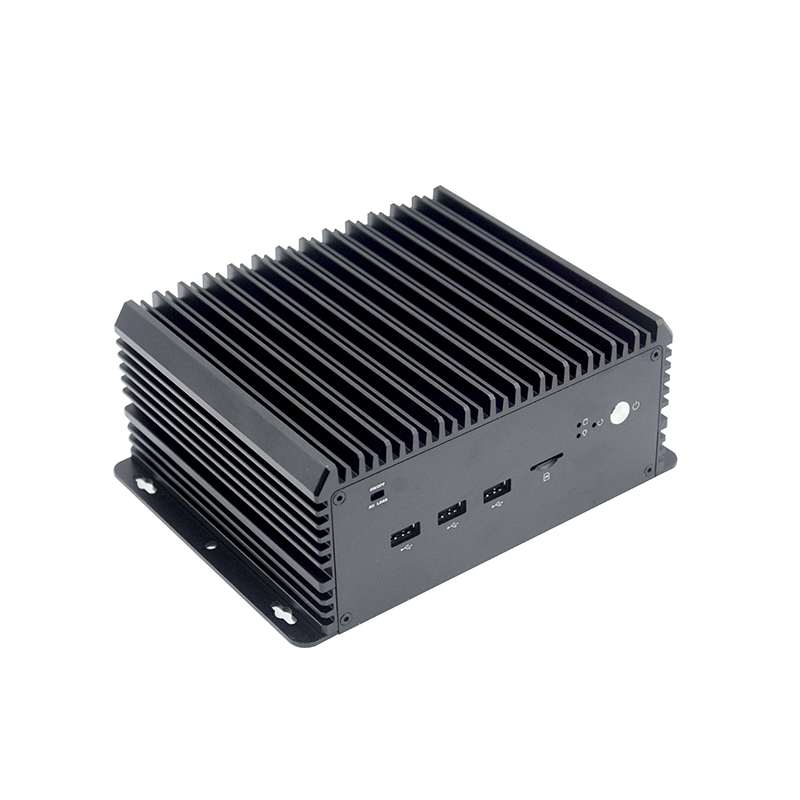

Chassis:
Structure: All aluminum alloy without fan
Color: gloss black
Dimension: 174mmx 148mmx 78mm
Weight: 1.6KG
Installation: Desktop/embedded
Motherboard:
CPU: Integrated Intel®i5-6300U/2.40GHz dual-core quad-thread processor，TDP 15W
Display: Integrated Intel® HD Graphics 520
Memory: 2x SODIMM memory slot,Supports 2133MHz DDR4 memory,up to 32GB

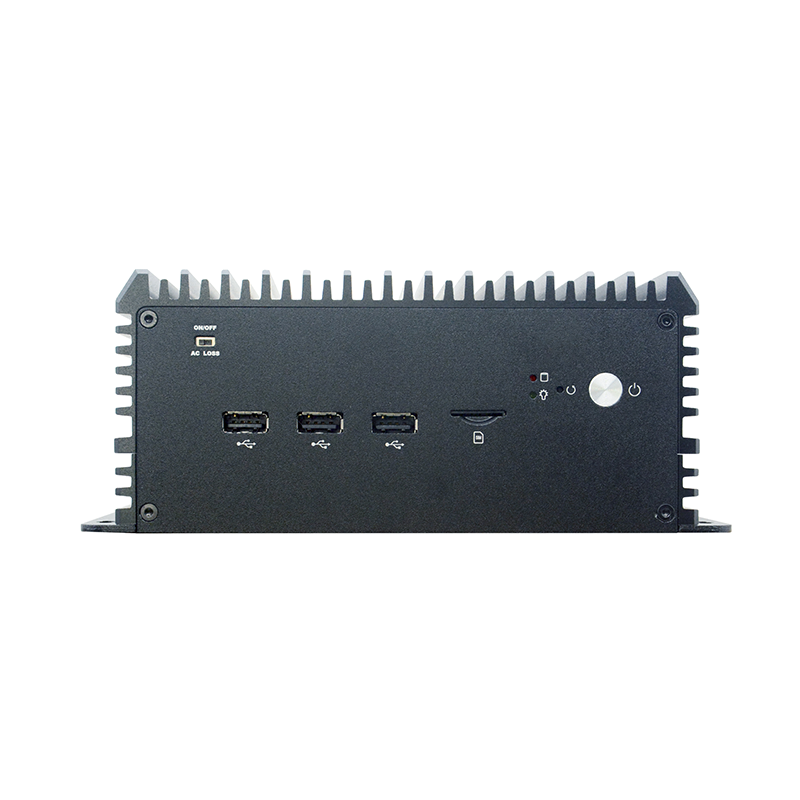

Front I/O:
POWER: 1x power switch, 1*reset switch, 1*AC LOSS (power on toggle switch)
USB: 3x USB3.0, 1x built-in USB2.0
SIM: 1x SIM slot

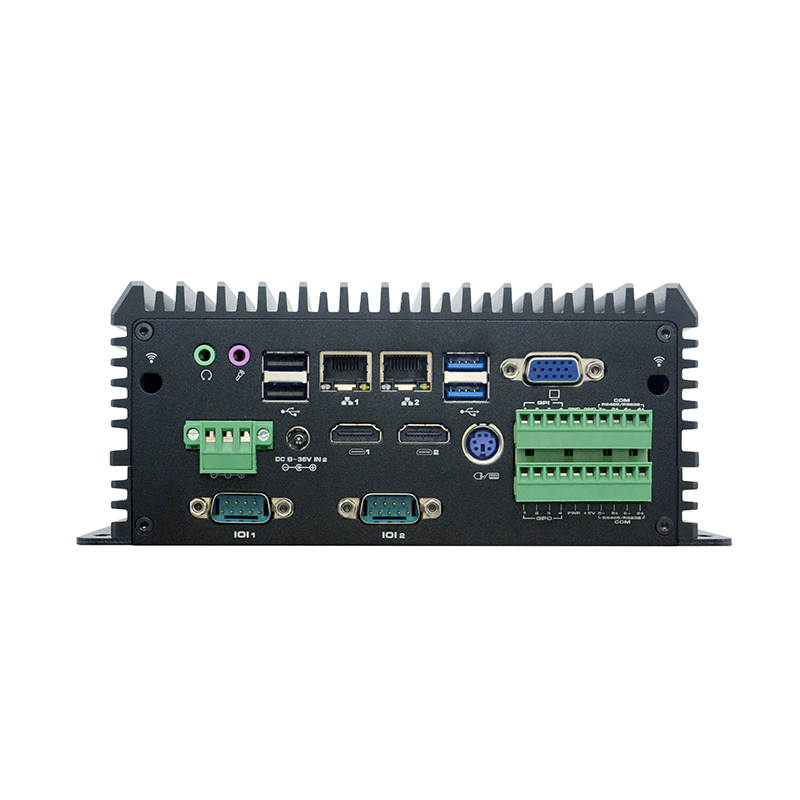

Rear I/O:
Display interface: 1x VGA(2560X1600@60HZ), 2x HDMI1.4, supporting three displays
LAN: 2x Intel I210AT Gigabit network adapter, supporting network wake up and PXE functions
USB: 4x USB3.0
COM: 6x RS232 serial port (COM1 to 2 RS232 DB9 serial ports, supporting CAN(MINIPCIE CAN module is required). 4x RS232/485 on 2*10pin Phoenix terminal)
PHOENIX: 2x 10pin(including four in four out GPIO/4*COM/ switch /5V/GND)
PS2: 1x PS2
Audio: 1x Line out，1x MIC
Power: 1x DC power port or 1x 3pin Phoenix terminal port, support 9~36V wide voltage input
Storage:
SATA: 1x 2.5-inch hard disk
MSATA: 1x MSATA
Expansion:
Mini PCIE: 1x Mini PCIE slot, supporting WIFI/4G module
M.2: 1x M.2/WiFi, supports Key-E, 2230, WiFi module
1x M.2/5G, supports Key-B, 2242/52, 5G modules
OS support:
Windows: Windows 7
Linux: Ubuntu
Watch Dog: Support hardware reset function (L256, 0~255 seconds)
Power Requirement:
power types: External power adapter or open power supply
Voltage input: 9V~36V wide voltage
power output: 36 w ~ 180 w
Environment:
Working Temp.: -10℃～50℃
Storage Temp.: -20℃～70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration:0.5g rms/5-500HZ/random/operating
