Overview
The ITX-LS642_J112L VER:1.0(J6412) is the latest mini ITX motherboard with CPU, based on Intel Elkhart Lake SOC platform. This embedded ITX board features Intel® Celeron J6412 quad-core processor (2.0GHz,15W TDP) with Intel UHD Graphics, supporting multi-display via VGA+HDMI1.4+LVDS+dual EDP. With 1 DDR4-3200 SO-DIMM slot (up to 16GB), 1 Gigabit LAN, 10 USB ports, and expansion options including dual M.2 SSD slots and WiFi/BT module, this compact motherboard is perfect for industrial automation, digital signage and other embedded applications.

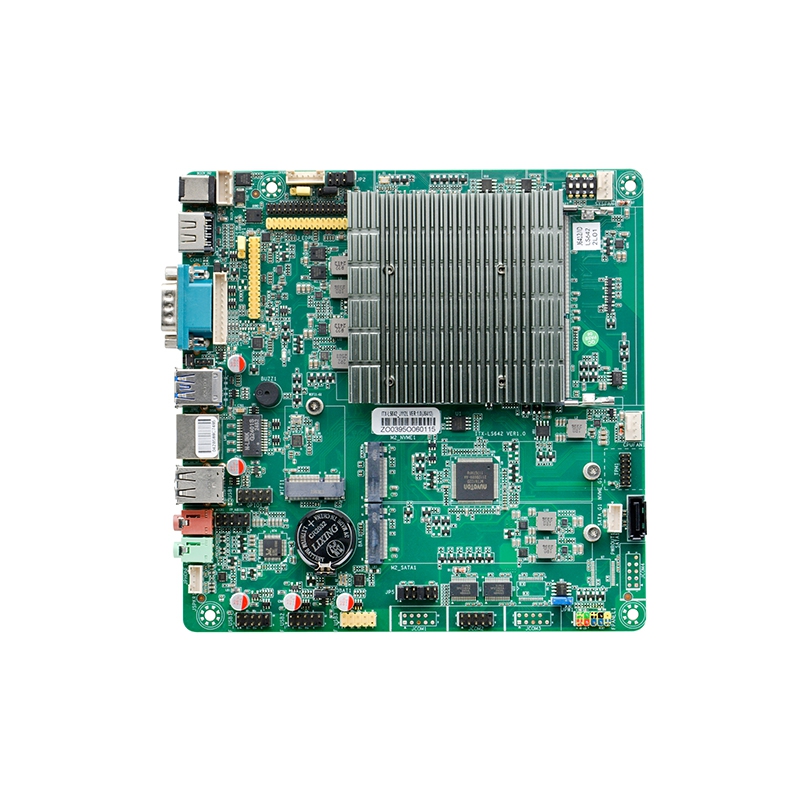

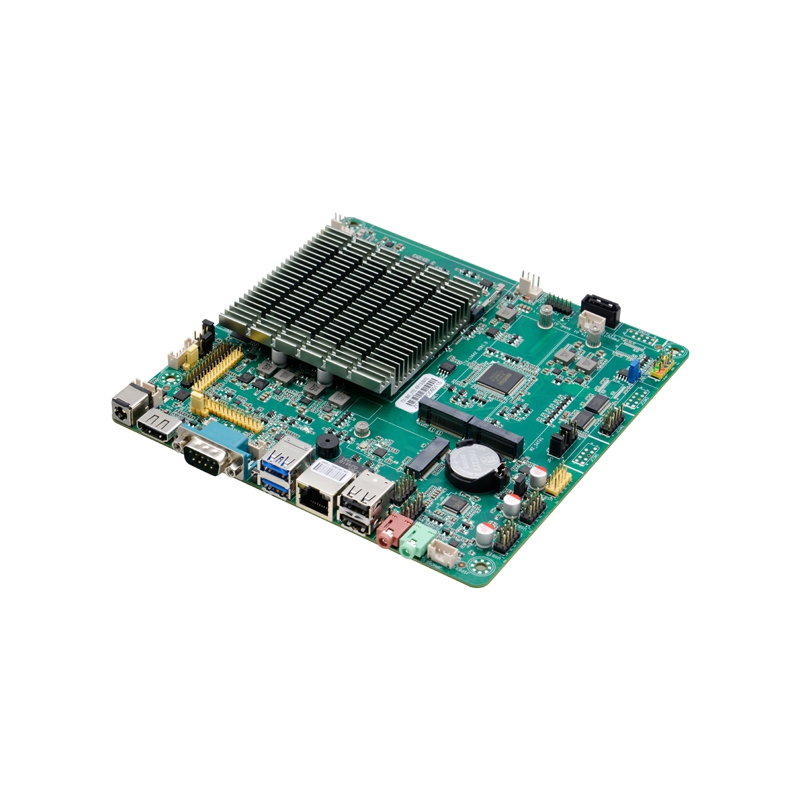

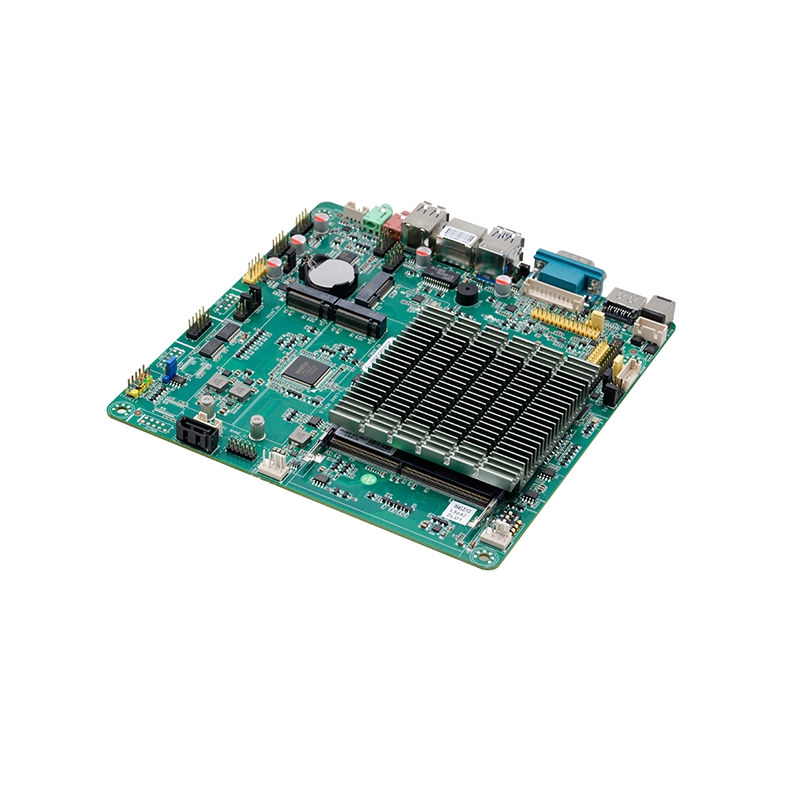

Detail Display
Product Description

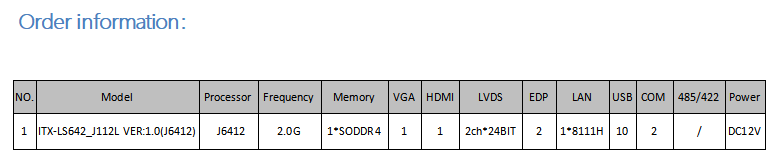

Model No.:ITX-LS642_J112L VER:1.0(J6412)
Processor:Integrated Intel®Celeron J6412 2.0GHz quad-core quad-thread processor, TDP 10W
Compatible with Intel® Elkhart Lake all series CPU
Chipset: SOC
RAM: 1* SODIMM memory slot, support single channel 3200MHz DDR4 memory, up to 16GB
Display:
Integrated Intel® UHD Graphics
1* VGA, 1*HDMI1.4, 1* LVDS (Support dual channels 24BIT), 2* EDP
Note: The LVDS and EDP1 interfaces are selected by wire jumper(LVDS default)
Supports dual EDP display or LVDS+EDP display
Ethernet: 1* RTL8111H Gigabit LAN, support Wake-on-LAN, PXE function
Storage:
1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps
1* M.2 slot, support M.2 Key M 2280 SATA specification SSD
1* M.2 slot, support M.2 Key M 2280 PCIE X2 specification SSD
Audio:
Onboard ALC897 7.1+2 channel Hi-Fi audio controller,support MIC/Line-out.Power amplifier
It is recommended to use a 4Ω3W speaker for the power amplifier
Expand slot: 1* M.2 slot, support M.2 Key E 2230 WIFI&BT module

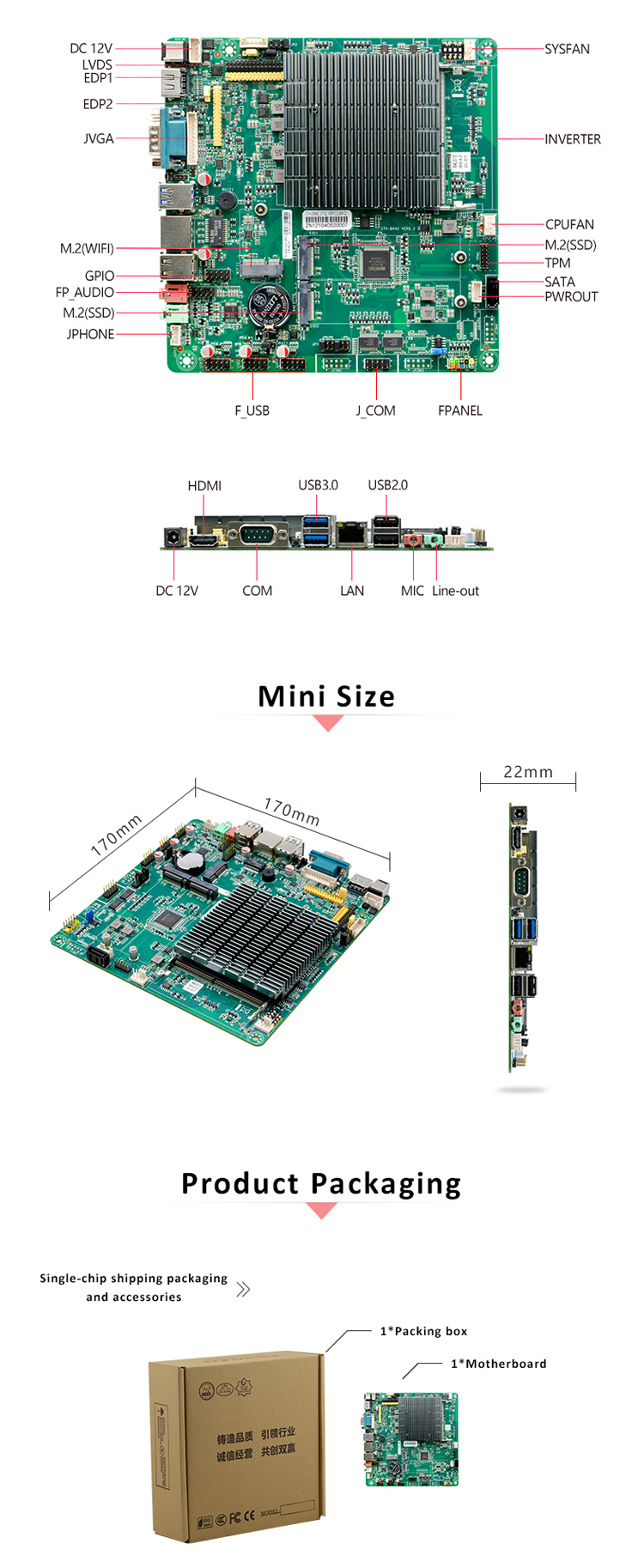

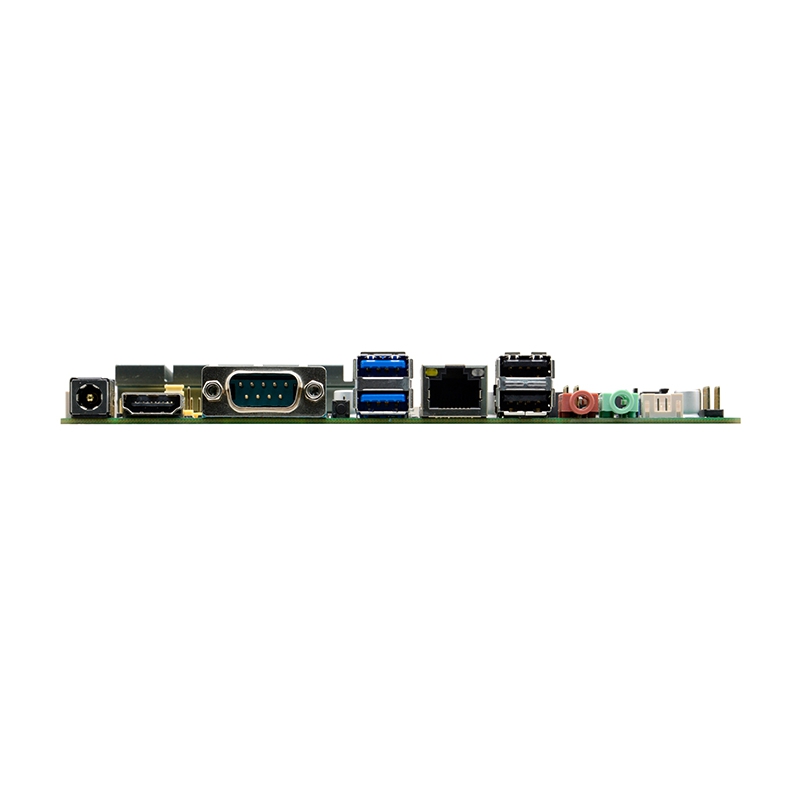

Backplane I/O Interface:
2* USB3.0; 2* USB2.0
1* HDMI
1* DB9 RS232 serial port (DB15 VGA is optional)
1* RJ45 Gigabit network interface
1* Line-out(green), 1*MICK(red)
1* DC 12V power supply input interface
Built-in I/O interface:
1* JVGA, 1*12pin (same signal as DB15), The JVGA and EDP2 interfaces are selected by jumper
1* LVDS, 2*15pin, support dual channels 24BIT
1* Screen backlight power supply interface, 1*6pin
2* EDP, 2*15pin (The LVDS and EDP1 interfaces are selected by jumper)
1* RS232 serial port,COM1/2 Support the 9th pin charging function, COM1 and external DB9 are optional
6* USB2.0, 2*5pin
1* Front panel audio interface, 2*5pin
1* Amplifier interface, 1*4pin
1* Front panel function button and indicator interface, 2*5pin
1* Hard drive power supply interface, 1*4pin
1* DC power supply interface, 1*4pin support 12V power input output
1* TPM, 2*6pin
Fan interface: Reserved 1*4pin CPU smart fan interface, 1*4pin system fan interface
GPIO: Support 4 input and output GPIO
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function(256 levels, 0~255 seconds)
Operating system: Windows 10/Windows 11/Linux
Power Type: Powered by DC 12V power supply
Operating temperature: -20℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, no condensation
Dimension: 170mm x 170mm
