●Supports 6th-9th Gen Intel CPUs
●4×DDR4 (64GB max)
●6-10 COM ports + 4×SATA3
●M.2 NVMe + 4G/5G support
●Wide temp range (-40°C~70°C)

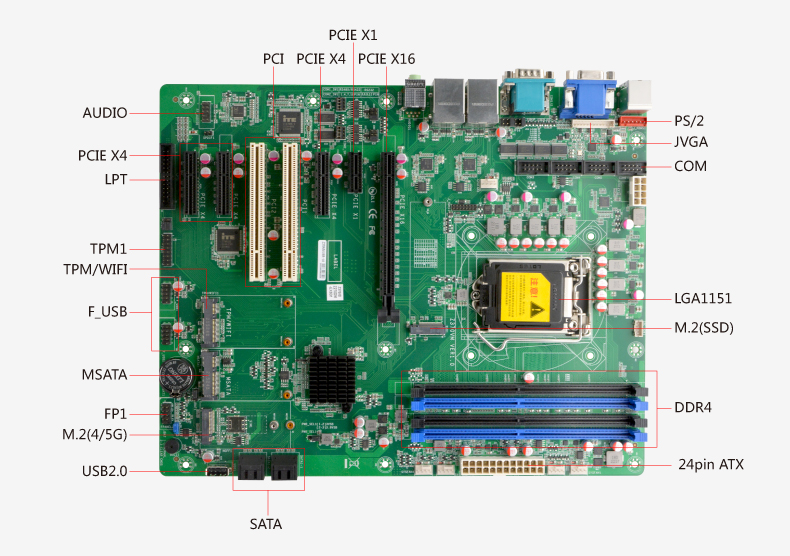

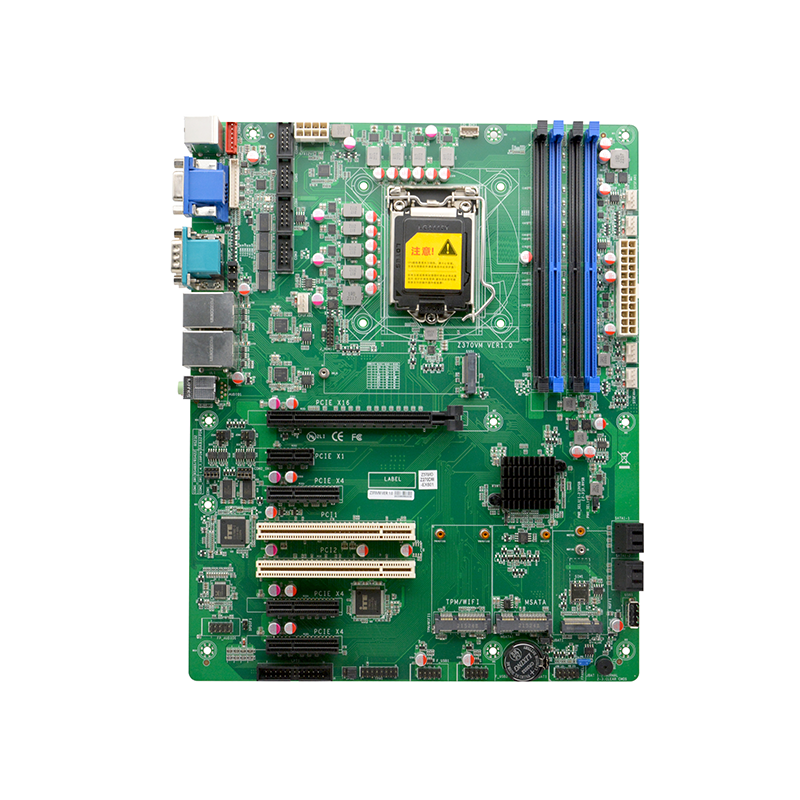

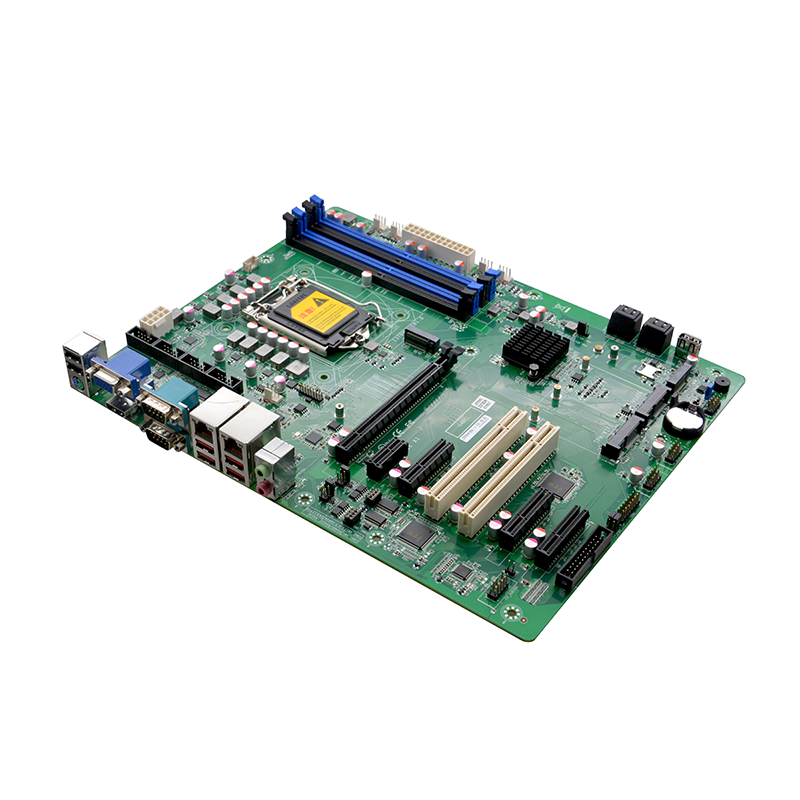

Product Description
Model No.: Z370VM VER:1.0
Processor: Supports LGA1151 6th/7th/8th/9th Celeron/Pentium/Core i3/i5/i7processor
Chipset: Intel Z370 High speed chipset
Memory: 4x DDR4 DIMM memory slot, supports dual channels 2133/2400/2666MHz memory,up to 64GB
Display: Integrated Intel® HD Graphics controller,1*VGA and 2*HDMI1.4
Supports independent display,dual display and extended mode
Ethernet: 2x Intel I225V 2.5G Gigabit network adapter,supporting network wake up and PXE functions
Storage: 4x SATA3.0 hard disk interface,SATA transmission speed up to 6Gbps
1x MSATA interface, support Intel protocol SSD, transmission rate up to 6Gbps
1x M.2 slot,supports M.2 2280 NVME PCIE x1/SATA
Audio: Onboard ALC897 high fidelity audio controller, support Mic and Line out
Expansion Slot:
1x PCIE3.0 x16
3x PCIE3.0 x4
1x PCIE3.0 x1
2x PCI
1x Mini-PCIE， supports WiFi(Optional TPM-4COM can expand 4 serial ports，need to match the corresponding BIOS)
1x M.2 ,2242/2250,supports 4G/5G

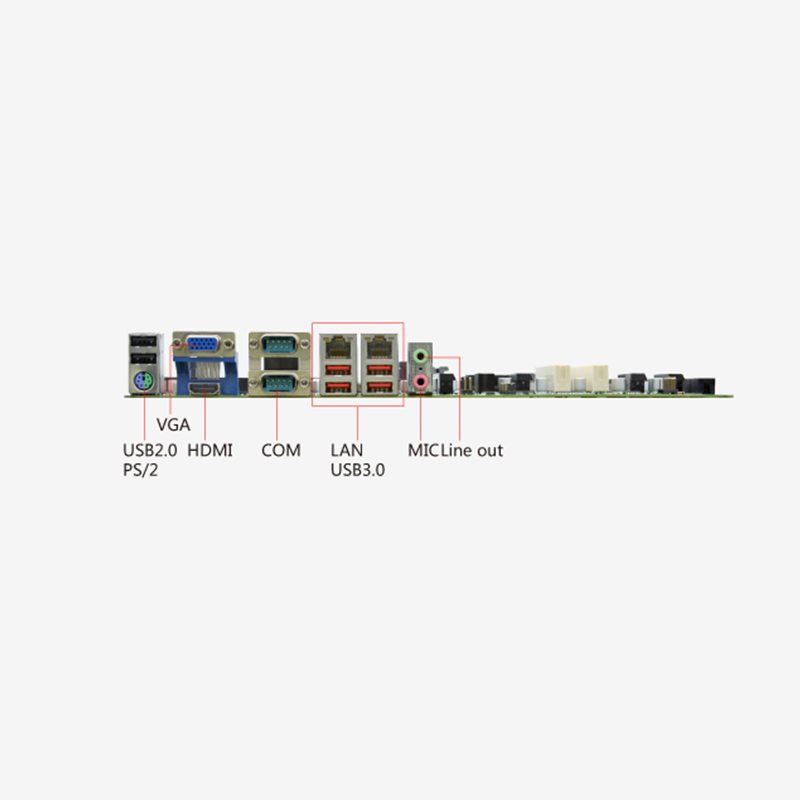

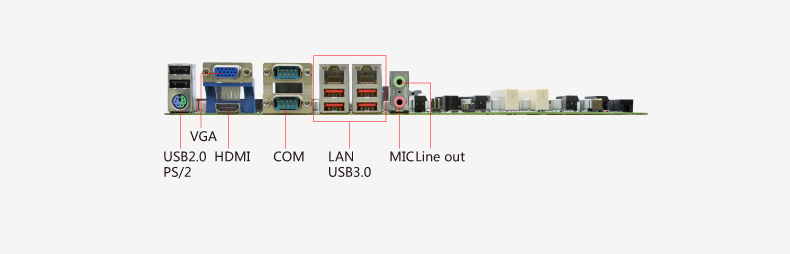

Rear I /O interface:
1x PS/2 keyboard and mouse interface
1x VGA
1x HDMI
2x RS232 (COM1/2 support 5V/12V power supply, COM1/2 support RS485/422 function)
2x RJ45 Gigabit Network Interface
2x USB 2.0
4x USB 3.0
1x Line out(Green), 1x Mic(Red)

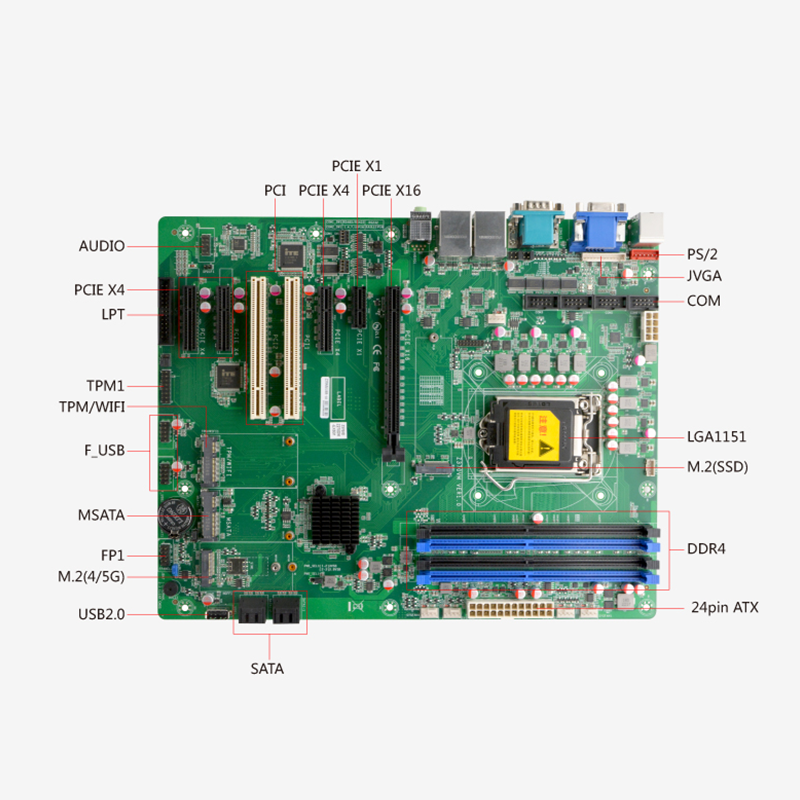

Built in I/O interface:
1x PS/2 keyboard and mouse interface, 1x 6pin(Same signal as PS/2)
1x JVGA 1x 12pin (Same signal as external VGA)
1x JHDMI, 2x 8pin
4x RS232, 2x 5pin
1x Front audio interface, 2x 5pin
4x USB 2.0, 2x 5Pin
1x USB2.0, USB TYPE-A
1x TPM, 2x 8pin
1x Front panel function button and indicator light interface, 2x 5pin
1x LPT 2x 13 pin (The default printer port can be made into GPIO，the BIOS that needs to configure GPIO)
1x 24pin ATX power input interface
1x 8pin ATX power input interface
Fan Connector: 1x 4pin CPU smart fan connector，4x 4pin system smart fan connector
BIOS: 64Mb Flash ROM
OS: Windows 10 / Linux
Watchdog: Support hardware reset function(L256，0~255 seconds)
Power Type: ATX
Working temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

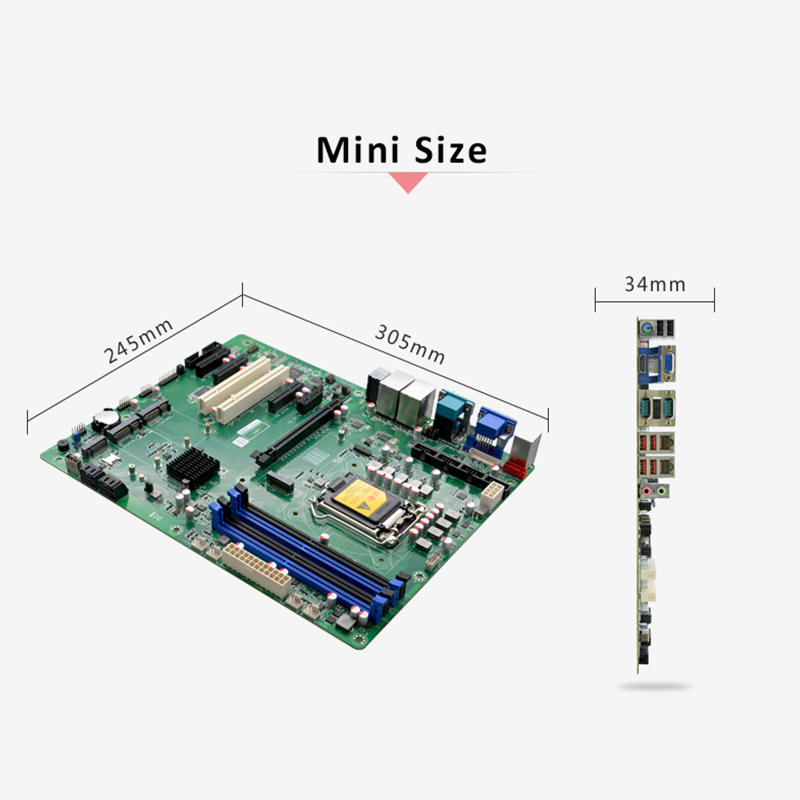

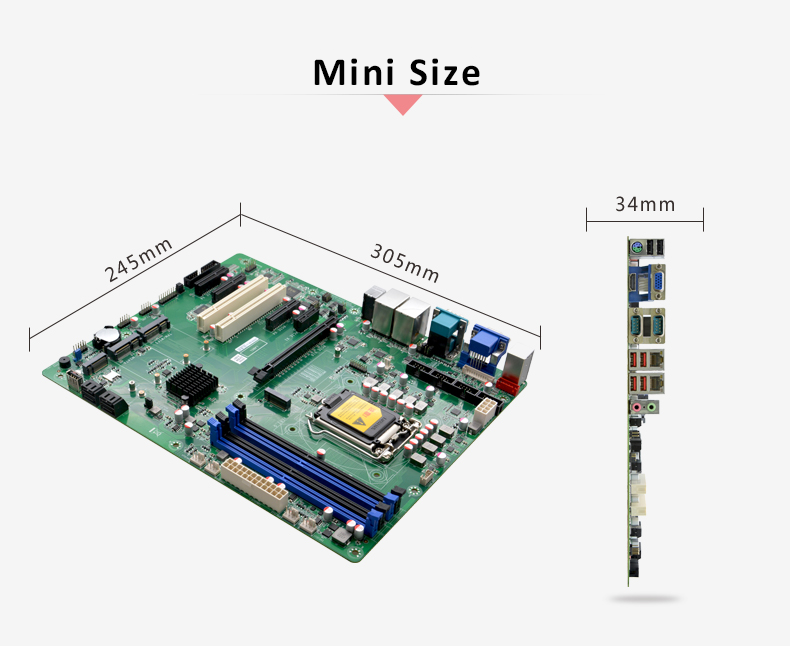

Dimension: 305mm x 245mm(ATX)
