Overview

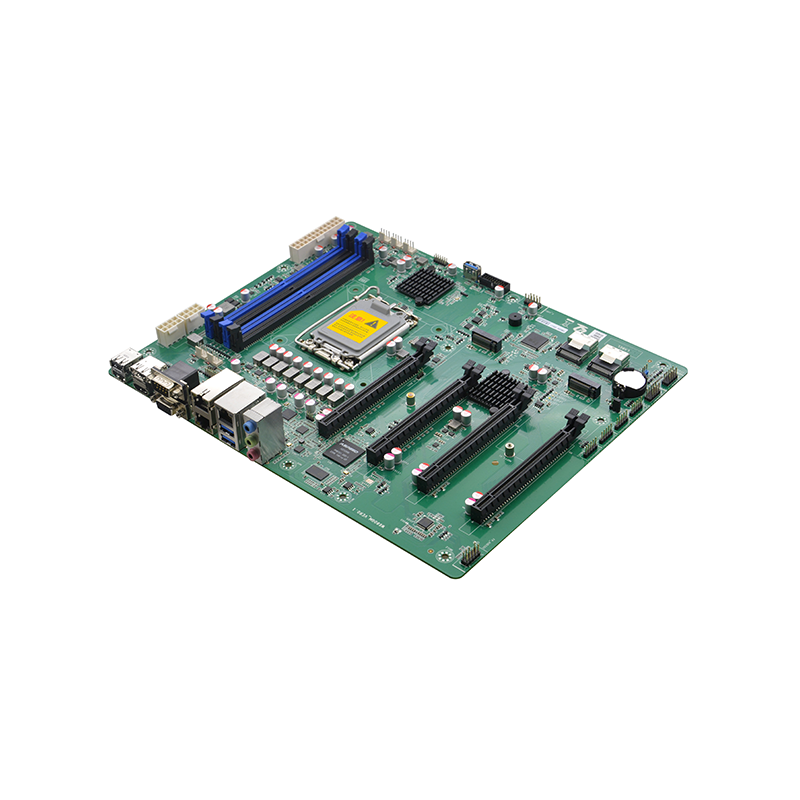

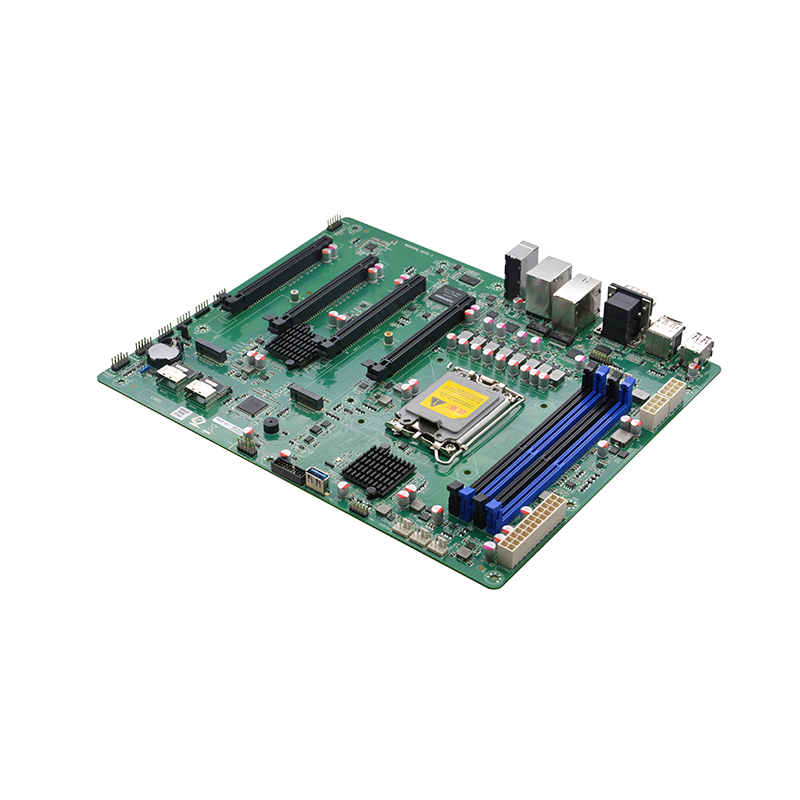

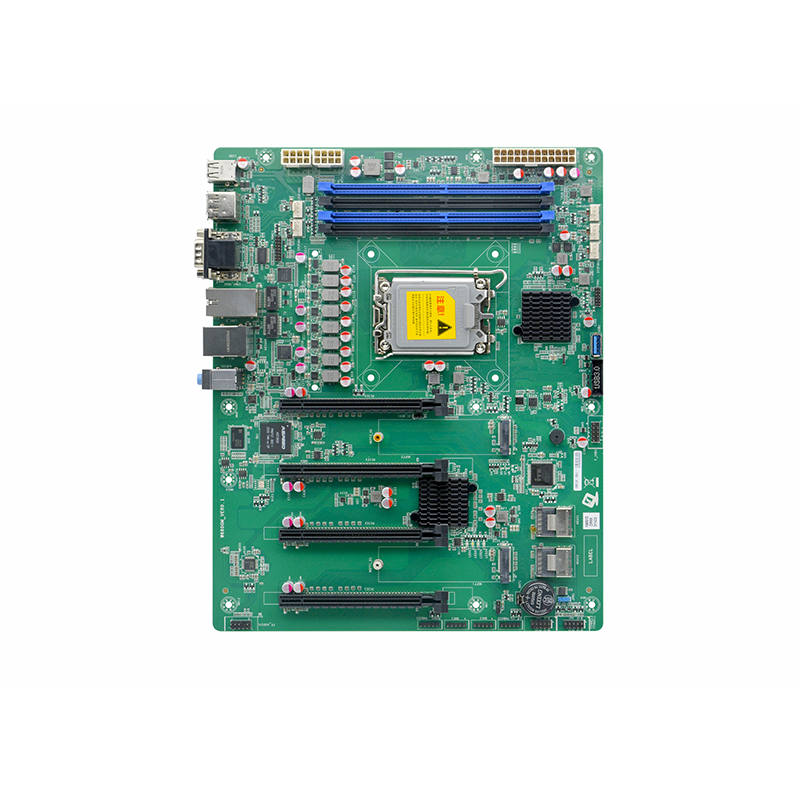

The W680GM VER:0.1 is a high-performance Industrial ATX Motherboard. Equipped with the Intel W680 Express chipset, this Industrial ATX Motherboard supports multiple 12th/13th Gen processors via the LGA1700 interface, with a maximum TDP of 125W, ensuring stable operation in industrial scenarios. Integrated with Intel HD Graphics and featuring DP, HDMI, and VGA (IPMI) ports, it meets diverse display requirements for various industrial applications. Four DDR4 3200MHz slots on this Industrial ATX Motherboard support up to 128GB ECC memory, enabling efficient data processing.
The W680GM VER:0.1 Industrial ATX Motherboard comes with 3 IPMI-enabled RJ45 Gigabit Ethernet ports, 9 USBs, and 1 DB9 COM(RS232) interface. Its storage interfaces, including 2 MSAS (supporting 8 SATA3.0) and 2 M.2 NVMe PCIE X4 SSDs, offer remarkable expandability. The four PCIE3.0 x16 (x8 signal) slots and TPM module further enhance its functionality and security. With 1 ATX 24PIN and 2 ATX 8pin inputs, this Industrial ATX Motherboard ensures stable power supply, making it a perfect fit for industrial automation, intelligent monitoring, and other industrial applications.
Processor: Support LGA1700 12th/13th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 and Xeon processor
Note:Support 125W CPU
Chipset: Adopt Intel® W680 chipset,
RAM: 4x DDR4 DIMM memory slots, support dual-channels up to 3200MHz memory, up to 128GB,support ECC memory
Display: Integrated Intel®HD Graphics, support DirectX12.1,OpenGL4.5, support 4K display
1x VGA,(IPMI display interface)
1x HDMI1.4interface,support the highest resolution of 4096x2160 @24Hz
1x DP interface,support the highest resolution of 4096x2160 @60Hz
Ethernet: 2x I210AT Gigabit Ethernet chip,supports Wake on LAN/PXE function
1x RTL8211F Gigabit network card (IPMI remote management port)
Storage: 2x MSAS hard disk interface, each MSAS supports 4 7pin SATA, a total of 8 7pin SATA transmission speed can reach 6Gbps
2x M.2 slot, supports M.2 Key M 2280 NVME PCIE X4 standard SSD
Audio: Onboard ALC897 7.1+2 vocal channels high fidelity audio controller,supports MIC/Line-out/Line-in
Expansion slot: 4x PCIE3.0 X16 slot, actually X8 signal

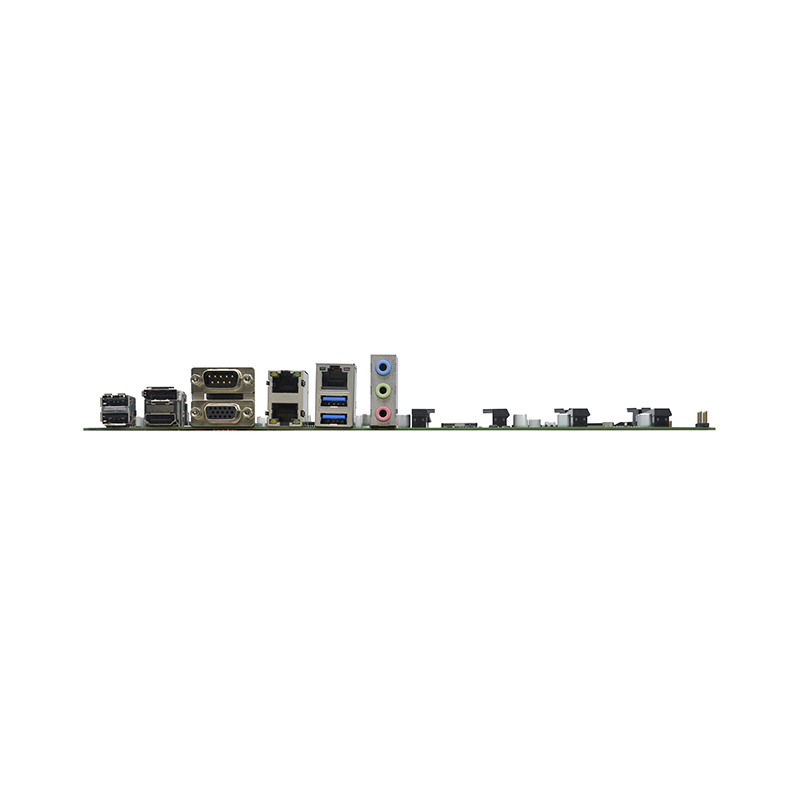

Rear I/O interfaces:
2x USB2.0 interface
1x DP interface
1x HDMI1.4interface
1x VGA interface
1x DB9 serial interface
3x RJ45 Gigabit network interface
2x USB3.0 interface
1x Three-layer audio interface, support Line-out,MICK,Line-in
Inner I/O interfaces:
1x Vertical USB3.0 interface
2x USB2.0 interface 2x 5pin
2x USB3.0 interface 2x 10pin
1x Front panel audio interface, 2x 5pin
1x TPM1 interface 2x 6pin
1x 24pin ATX power interface
2x 8pin ATX power interface
2x Front panel function button and indicator interface 2x 5pin
Fan interfaces: 2x 4pin CPU fan connector;3x 4pin system fan connector
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Operating system: Windows 10/Windows 11/Linux
Power type: Powered by ATX 24Pin and 8pin power supply
Operating temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% Relative humidity, non-condensing
Size: 305mm x 245mm
