Overview
Core Configuration:

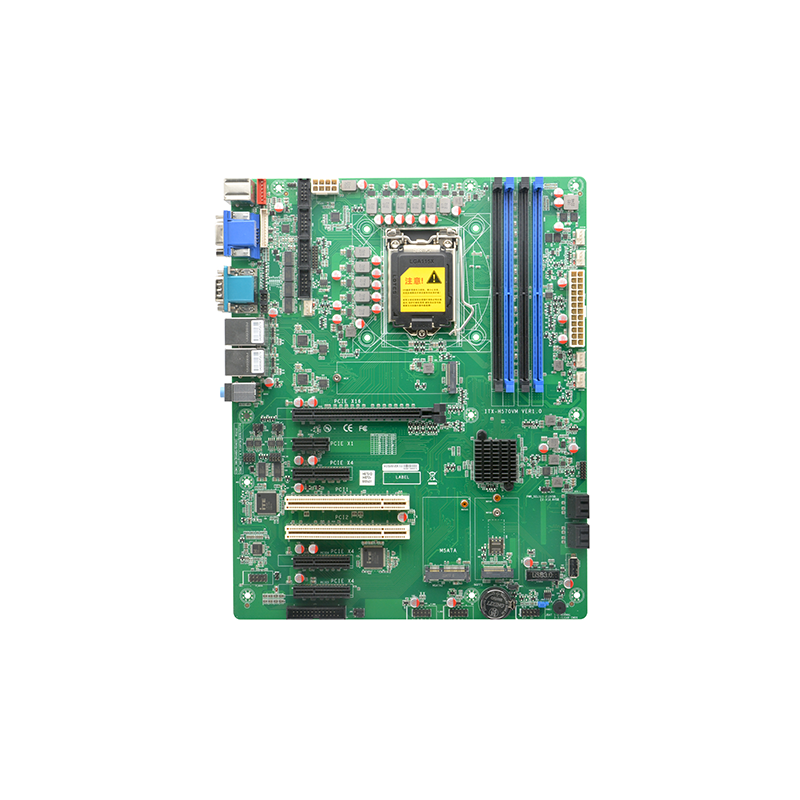

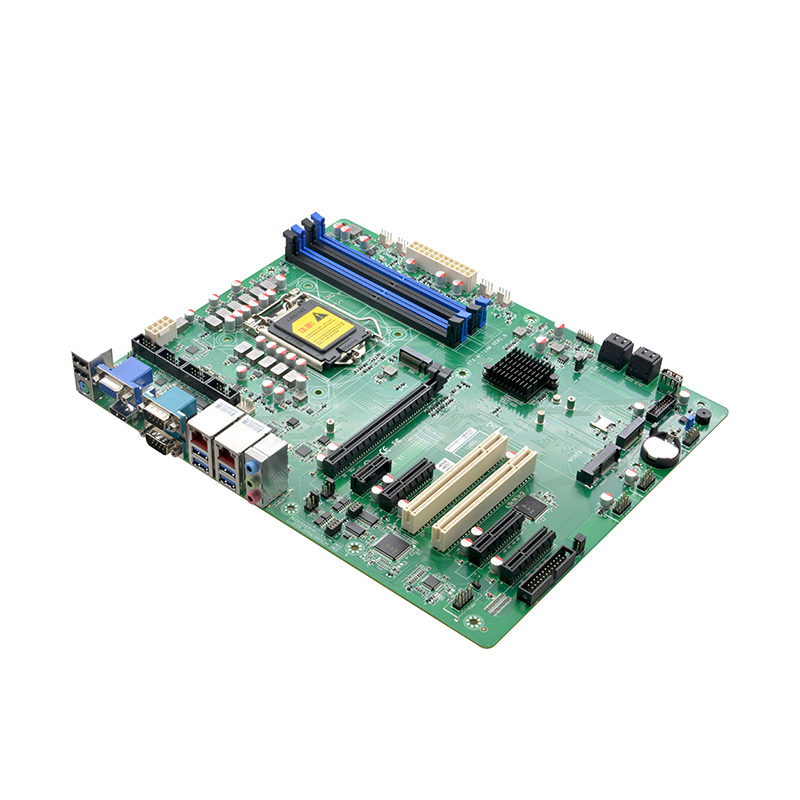

The industrial atx motherboard, H570VM VER:1.0, features the Intel H570 chipset and supports 10th/11th Gen Pentium and Core processors via LGA1200, delivering robust and stable performance.
Display Functionality:
With integrated Intel HD Graphics and 2 HDMI + 1 VGA ports, this industrial atx motherboard enables seamless multi-screen display for industrial applications.
Memory Performance:
Equipped with 4 DDR4 3200MHz slots, this industrial atx motherboard supports up to 128GB of memory, ensuring efficient data processing.
Interface Configuration:
Featuring 2 Gigabit Ethernet ports, 12 USB ports, 6 COM ports, and various storage interfaces, this industrial atx motherboard offers excellent expandability.
PCIe Expansion:
The diverse PCIe interfaces of this industrial atx motherboard make it adaptable to a wide range of industrial device expansions.
Power Supply Assurance:
With dual power supply interfaces, this industrial atx motherboard guarantees stable operation in complex industrial scenarios.
Detial Display
Product Description
Model No.: H570VM VER:1.0

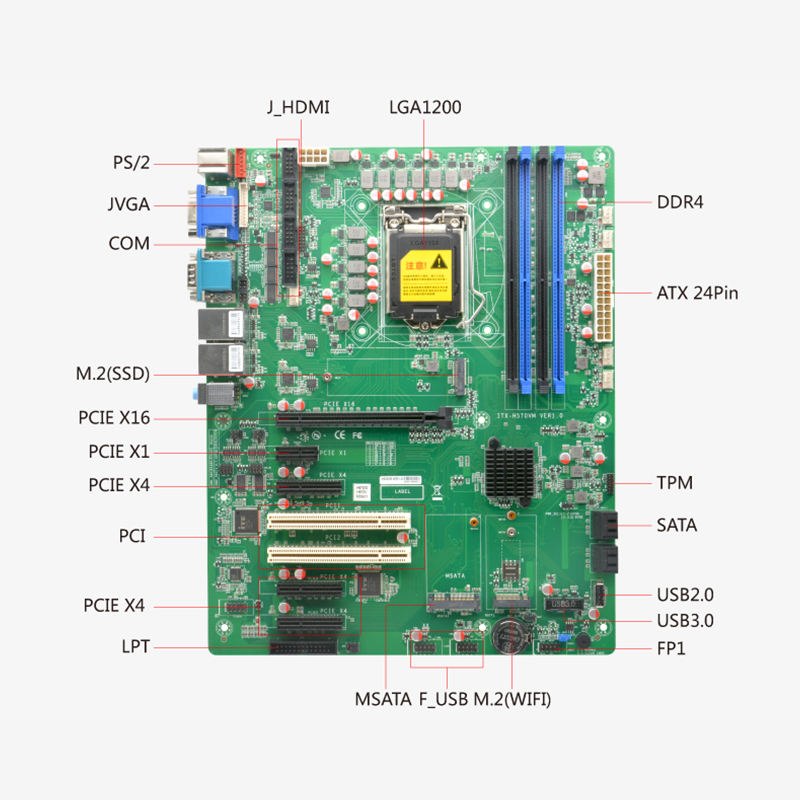

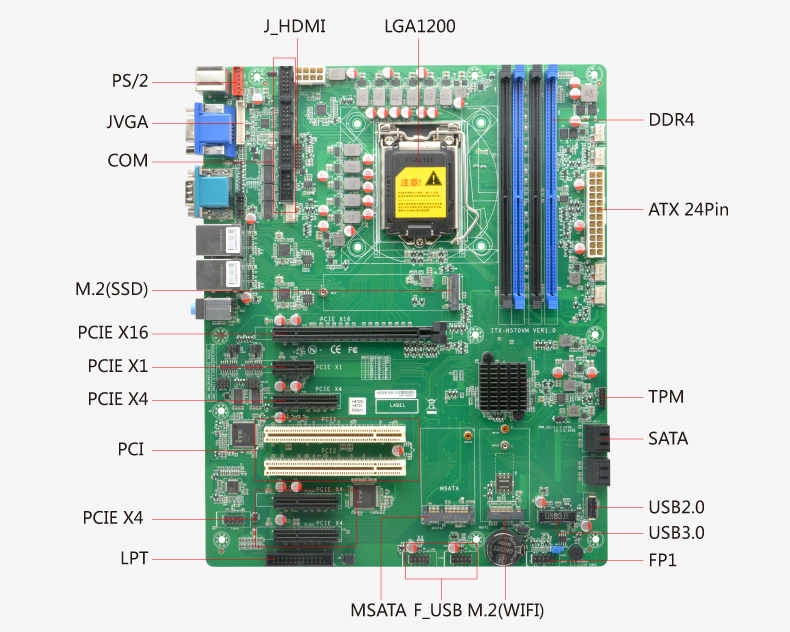

Processor: Supports LGA1200 10th/11th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors
Chipset: Intel H570 High speed chipset
Memory: 4*DDR4 DIMM, supports dual channels 3200MHz memory,up to 128GB
Display: Integrated Intel® HD Graphics, support DirectX12.1,OpenGL4.5
Provide:1x VGA & 2x HDMI1.4,
Ethernet: 2x Intel I226V 2.5G Gigabit Ethernet ,supports Wake on LAN/PXE function
Storage: 4x SATA3.0 ,the transfer rate is up to 6Gbps
1x MSATA,supports Intel protocol SSD ，the transfer rate is up to 6Gbps
1x M.2 slot,supports M.2 2280 NVME PCIE x1/SATA
Audio: Onboard ALC897 7.1+2 high fidelity audio controller,supports Mic_in&Line_out/in
Expansion Slot:
1x PCIE3.0 x16
3x PCIE3.0 x4
1x PCIE3.0 x1
2x PCI
1x M.2 slot, support M.2 Key_B 2242/2252 standard 4G/5G module

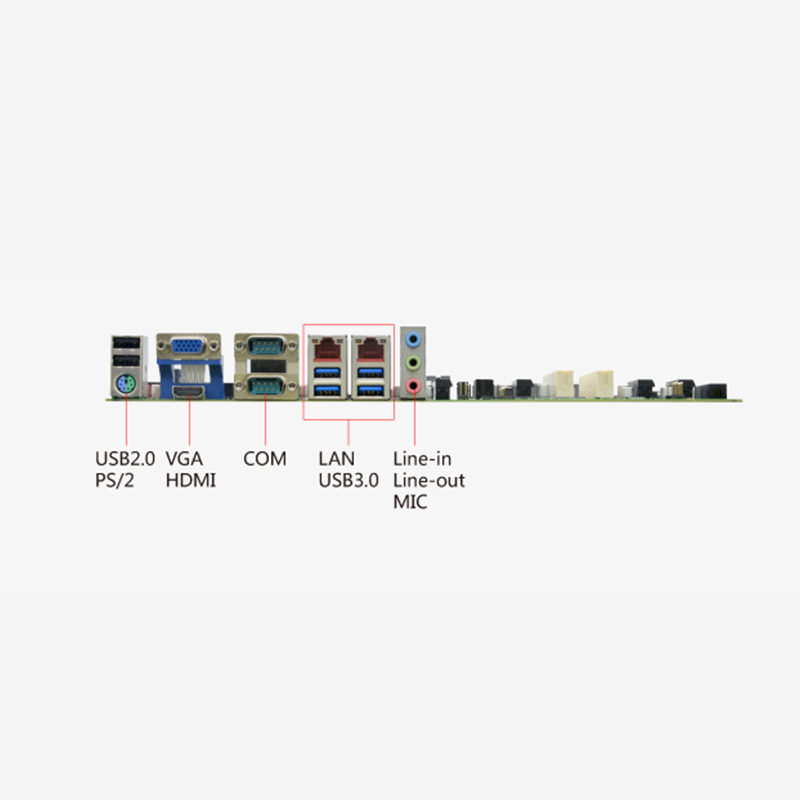

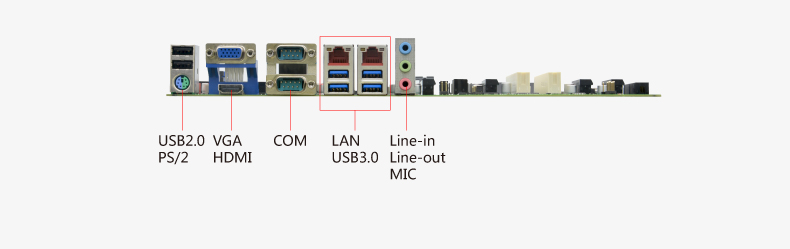

Rear I/O interface:
1x PS/2 for K&M
1x DB15 VGA
1x HDMI1.4
2x DB9 RS232 serial port, support RS485/422 function
2x RJ45 Gigabit Ethernet port
2x USB 2.0
4x USB 3.0
1x Line_out / 1x Line_in / 1x Mic_in
Inner I/O interface:
1x PS/2 1x6pin
1x JVGA 1x12pin
1x JHDMI 2x 8pin
4x RS232 COM 2x 5pin
1x Front audio interface 2x 5pin
4x USB 2.0 2x 5Pin
2x USB3.0 2x 10Pin
1x TPM 2x 6pin
1x Front panel function button and indicator light interface 2x 5pin
1x LPT 2x 13pin
1x SIM slot
1x 24pin ATX power input interface
1x 8pin ATX power input interface
Fan Connector: 1x 4pin CPU smart fan connector,4x 4pin system smart fan connector
BIOS: 128Mb Flash ROM
OS: Windows 10 /11 ; Linux
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: ATX power input
Working temp.: 0℃~60℃
Storage temp.: -20℃~70℃
Working Humidity: 5%-95% ( relative humidity, non-condensing)

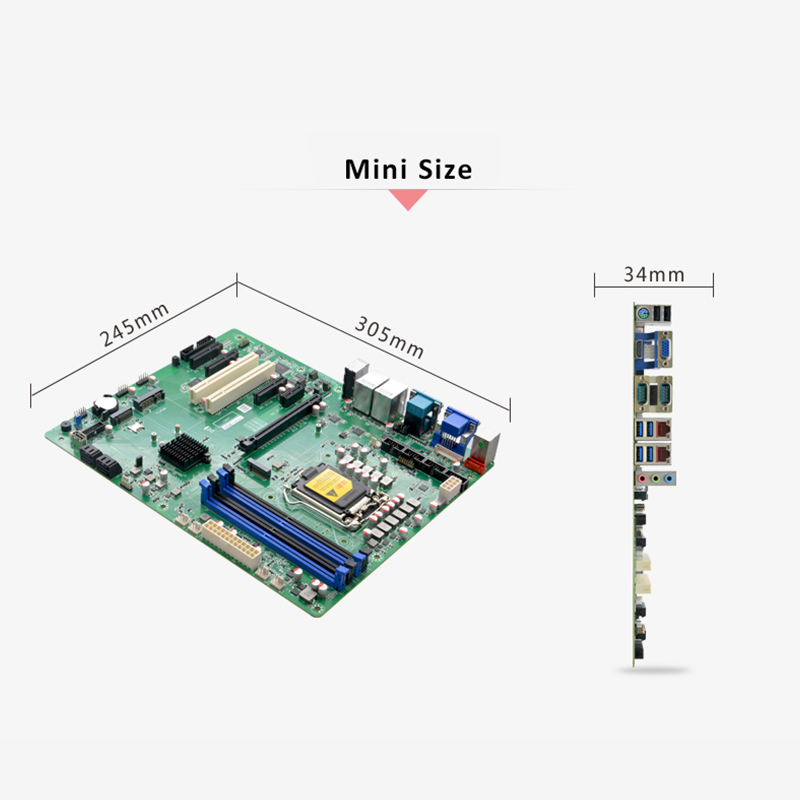

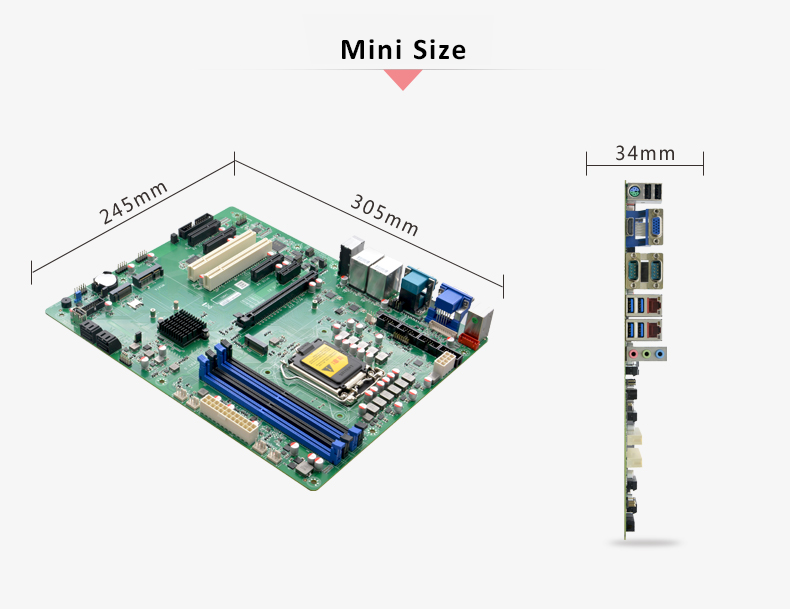

Dimension: 305mm x 245mm
