Overview

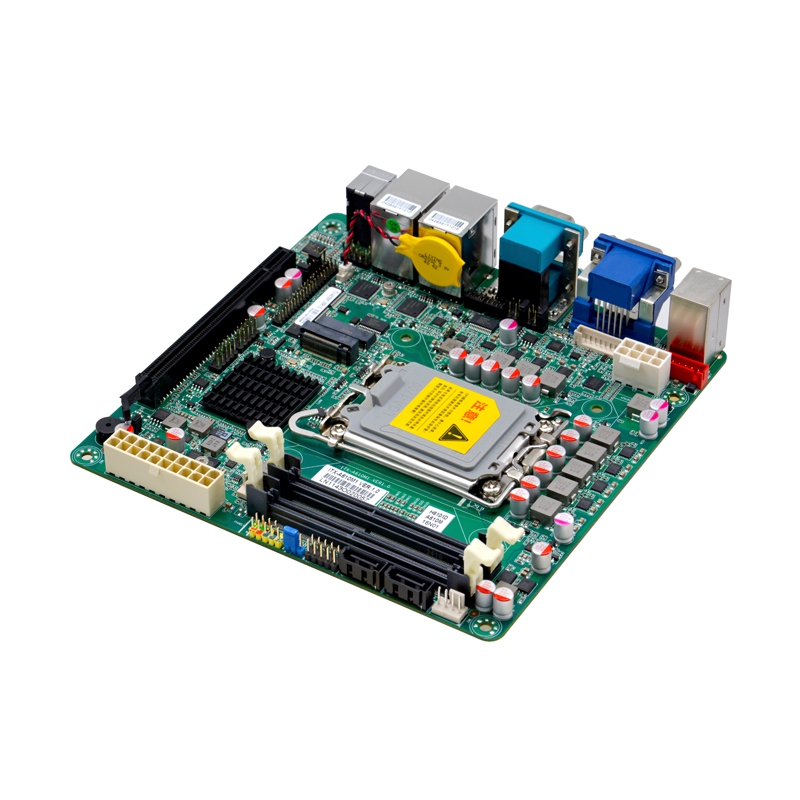

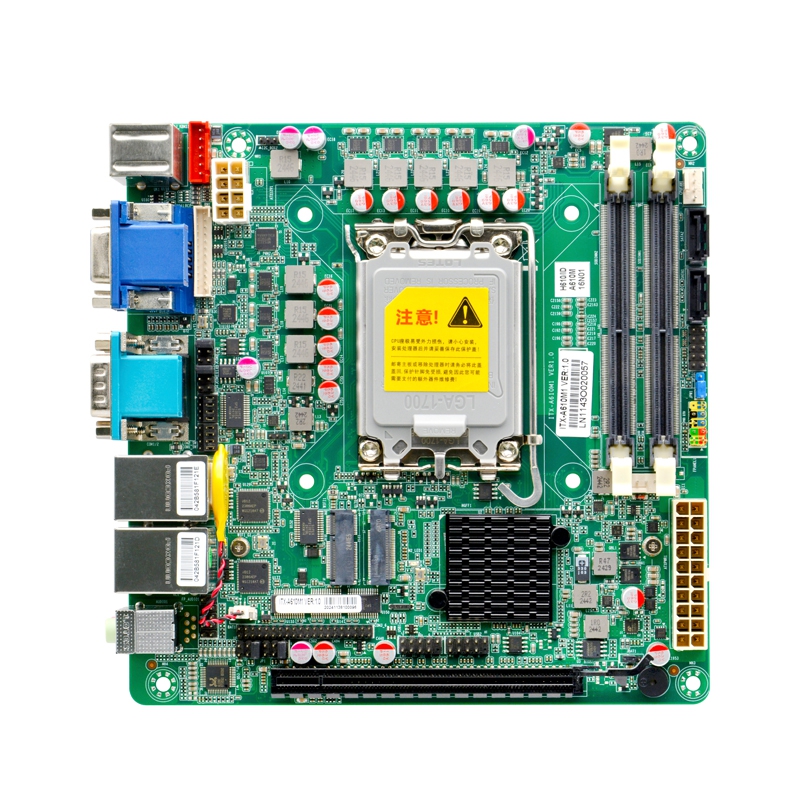

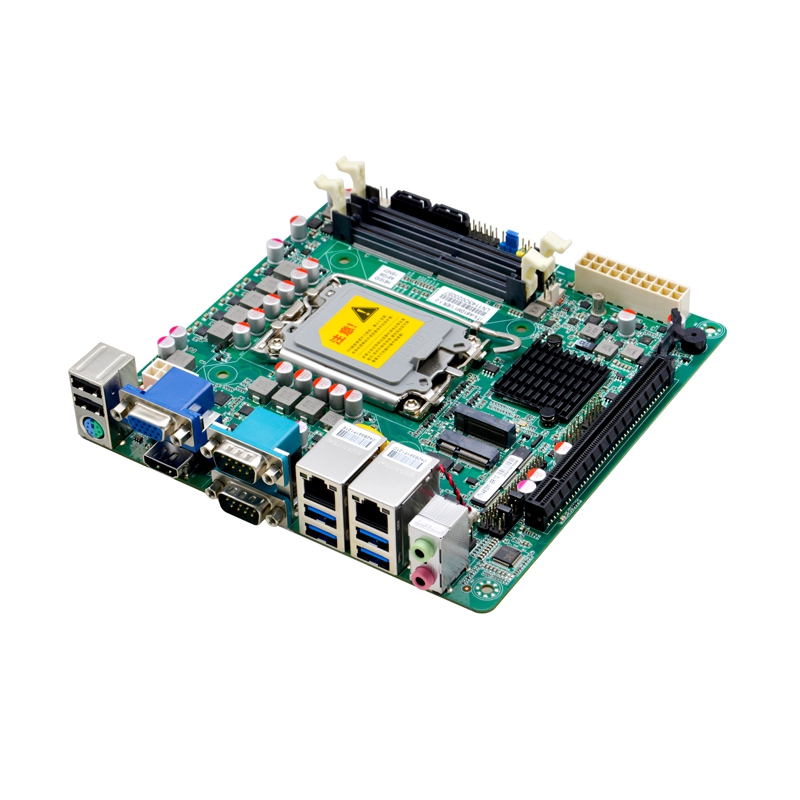

Mini-ITX motherboard, Intel H610 chipset, supports LGA1700 12th/13th/17th Gen CPUs. 2×DDR4 SODIMM (max 64GB), VGA+HDMI, dual Intel I210AT GbE LAN, 1×PCIe x16, 1×M.2 SSD, 1×M.2 WiFi, 6×RS232 (COM1/2 support RS485/422), 5×USB2.0, 4×USB4.0, ATX power.
Advantages for Kiosk:
● 6 serial ports for printer/scanner/card reader
● Dual Intel GbE for network redundancy
● Supports 12th/13th/17th Gen CPUs for smooth GUI
● VGA+HDMI for main + secondary display
● Compact Mini-ITX fits easily into kiosk enclosures

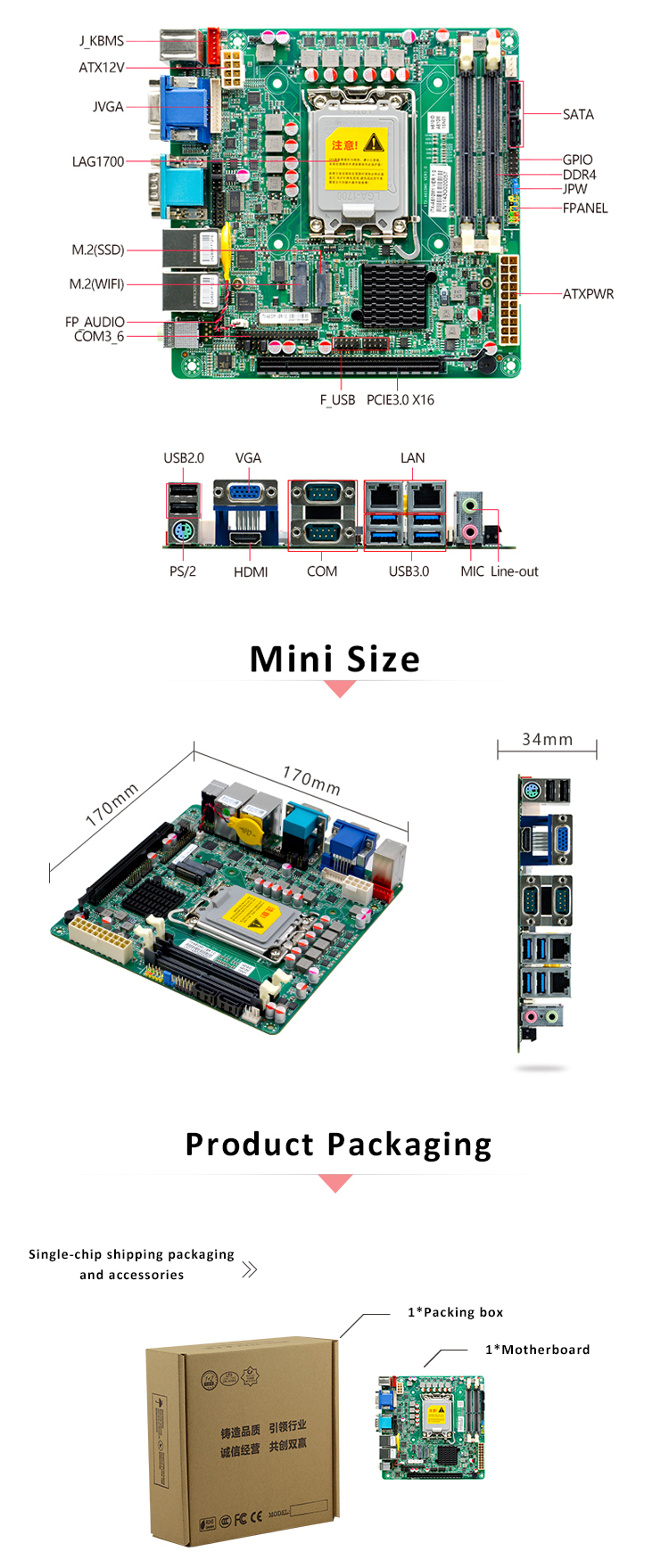

Detail Display
Product Description
Model No.:ITX-A610M1 VER:1.0
Processor:Supports LGA1700 12th/13th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processor
Note:Supports below 125W CPU
Chipset:Intel® H610 chipset
Memory:2* DDR4 SODIMM memory slot, supports dual channels ,up to 3200MHz memory, up to 64GB
Display:
Integrated Intel®HD Graphics , supports DirectX12.1,OpenGL4.5 , supports 4K
1* VGA, the maximum resolution supported is：1920X1200@60Hz
1* HDMI1.4, the maximum resolution supported is：4096x2304 @24Hz
Ethernet:2* Intel ®I210AT Gigabit Ethernet chip, supports Wake on LAN/PXE function
Storage:
2* SATA3.0, the transfer rate is up to 6Gbps
1* M.2 slot，supports M.2 Key M 2260/2280 NVME PCIE3.0 X4/SATA, adaptive SSD
Audio: Onboard ALC897 7.1+2 channel high fidelity audio controller, supporting MIC/Line-out
Expansion Slot:
1* PCIE3.0 X16
1* M.2, support M.2 2230 WIFI module

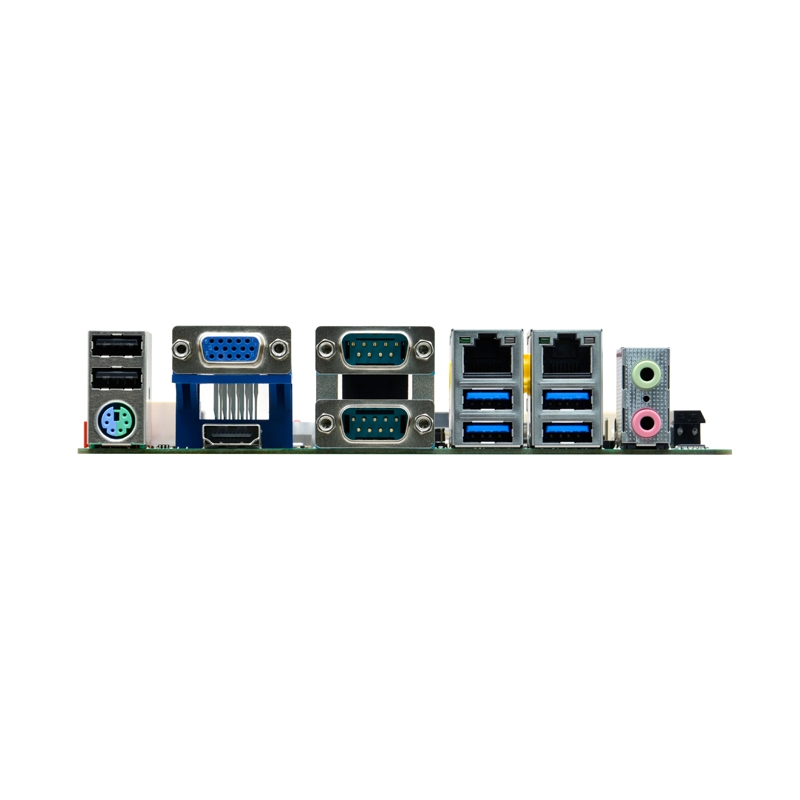

Rear I /O interface:
1* PS/2 (can extend keyboard and mouse)
1* DB15 VGA
1* HDMI1.4
2* DB9 RS232 COM, supports the 9th pin charged function，supports RS485/422
2* USB2.0
4* USB3.0
2* RJ-45 Gigabit Network Interface
1* Double layer audio interface (sound output and MIC input)
Built in I/O interface:
3* USB2.0, 2*5pin，F_USB2 only support one USB2.0
1* Front audio interface, (2*5pin）
1* Front panel function button and indicator light interface, (2*5pin)
1* 24pin ATX power supply outlet, 1* 8pin ATX power supply outlet
1* PS/2 keyboard and mouse interface, 1*6pin
1* JVGA, 1*12pin (Same signal as DB15)
4* RS232 COM，2*20pin
Fan Connector: 1*4pin CPU fan connector ,1*4pin system fan connector
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows 10/Windows 11/Linux
Power Type: Adapt ATX 20Pin and 8pin power supply
Working temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)
Dimension: 170mm x 170mm

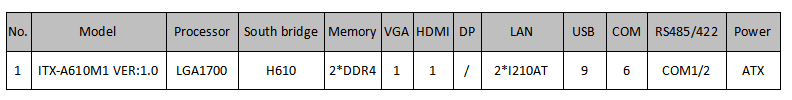

Order Information
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1: Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2: What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
