Product Description

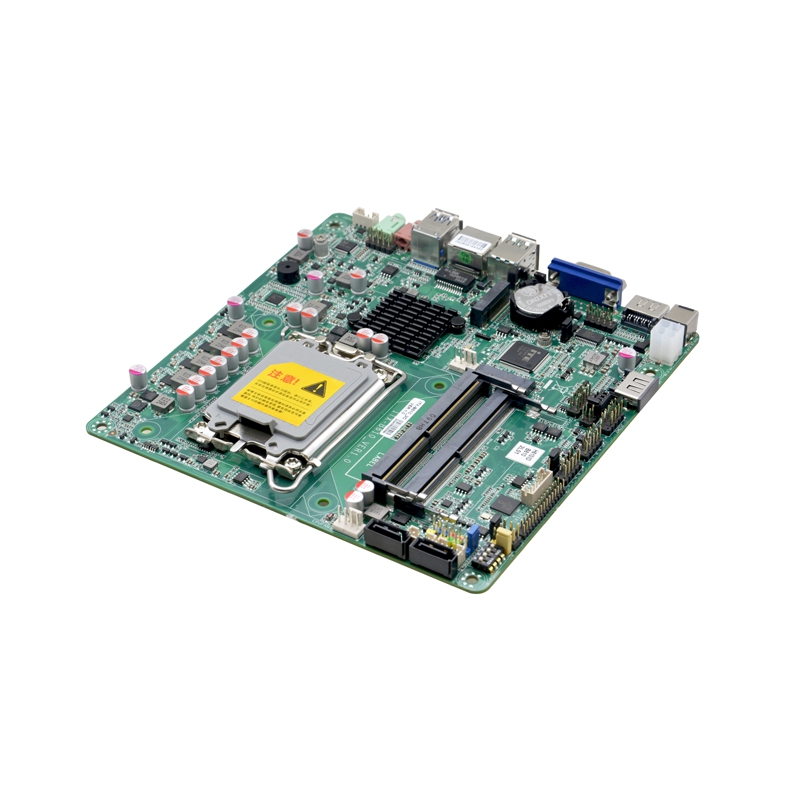

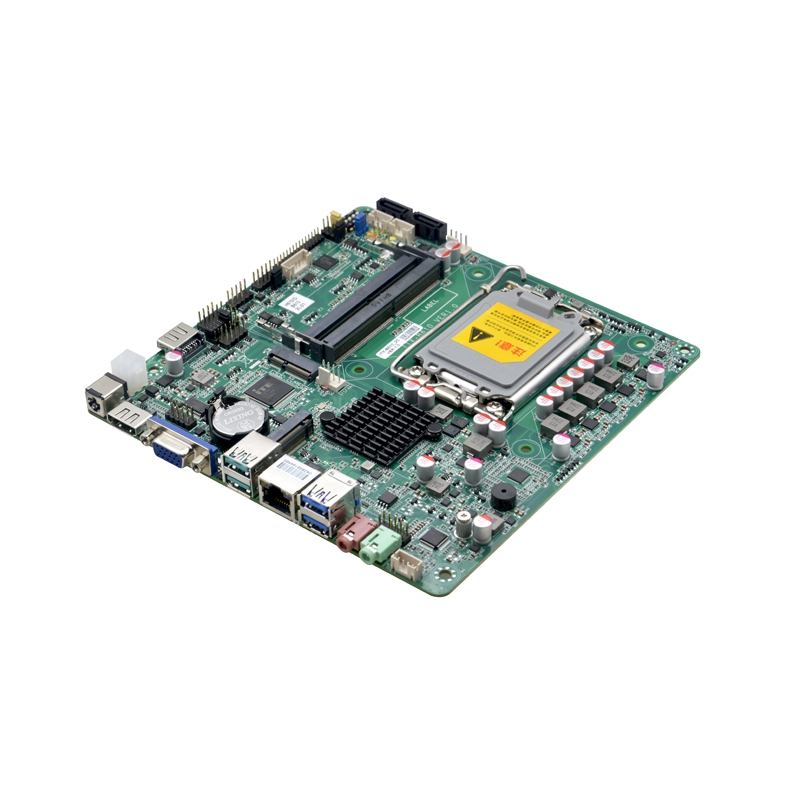

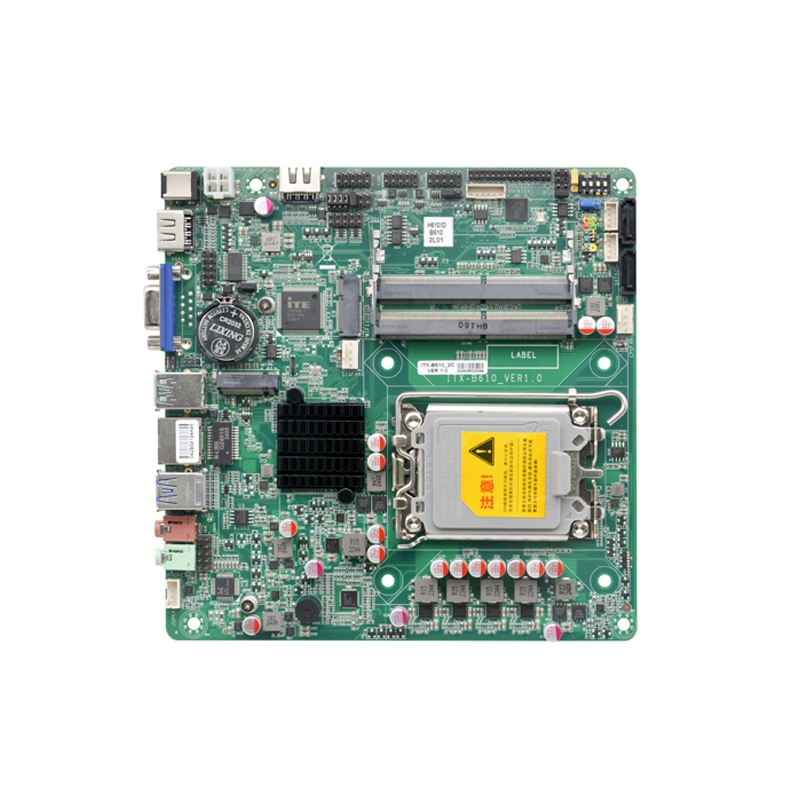

Model No.:ITX-B610_2C VER:1.0
Processor:
Supports LGA1700 12th/13th/14th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processor
Note:Supports below 65W CPU,Turbo Boost is disabled by default
Chipset:
Intel® H610 chipset
Memory:
2* DDR4 SODIMM memory slot, supports dual channels ,up to 3200MHz memory, up to 64GB
Display:
Integrated Intel®HD Graphics , supports DirectX12.1, OpenGL4.5 , supports 4K
1* VGA, the maximum resolution supported is：1920X1200@60Hz
2* HDMI1.4, the maximum resolution supported is：4096x2304 @24Hz
1* LVDS, supports dual channel 24BIT
Ethernet:
1* RTL8111H Gigabit Ethernet chip, supports Wake on LAN/PXE function
Storage:
2* SATA3.0, the transfer rate is up to 6Gbps
1* M.2 slot, supports M.2 Key M 2260/2280 NVME PCIE3.0 X4/SATA, adaptive SSD
Audio:
Onboard ALC897 7.1+2 channel high fidelity audio controller, supporting MIC/Line-out
Expansion Slot:
1* M.2, support M.2 Key E 2230 WIFI&BT module

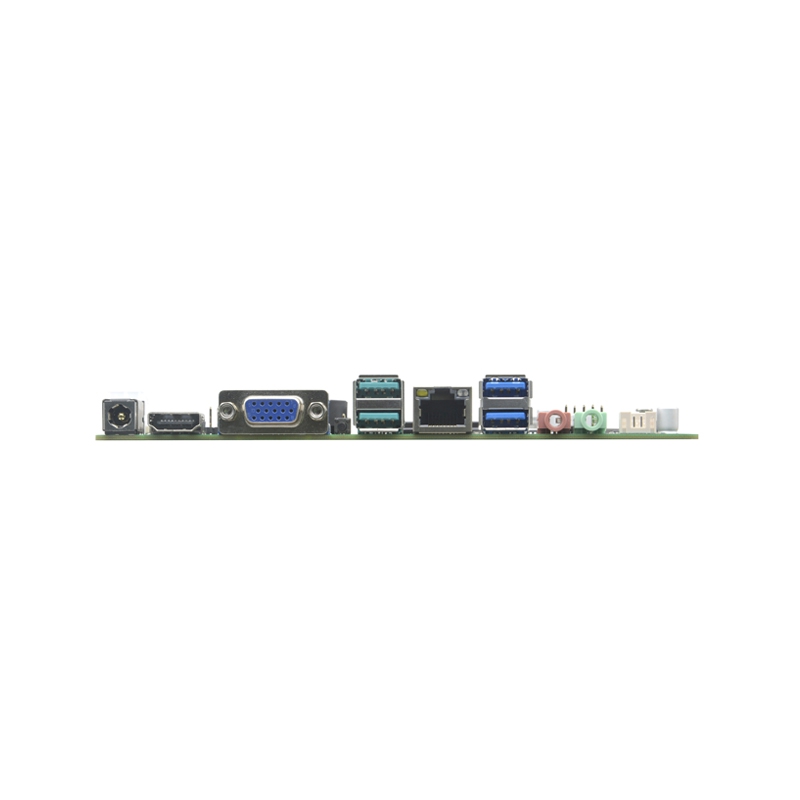

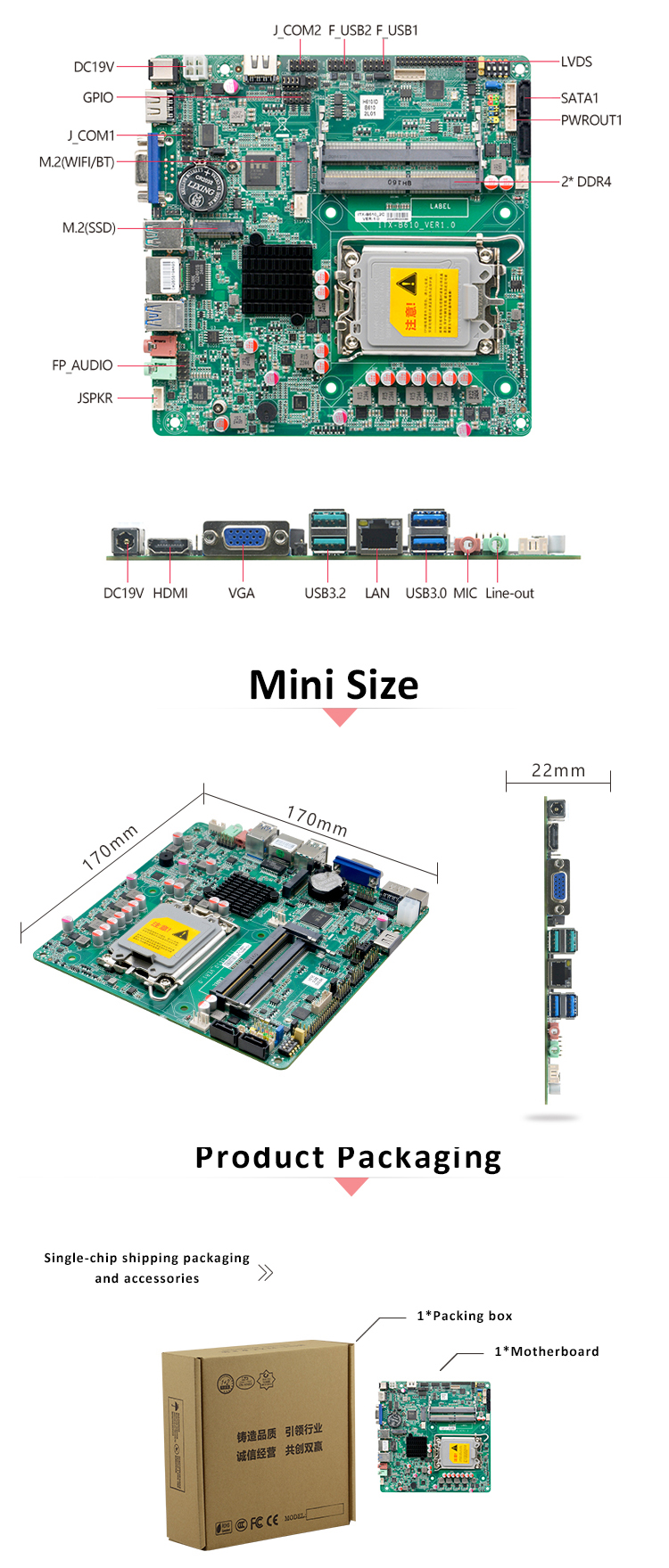

Rear I /O interface:
1*DC power supply slot, support DC19V power supply
1* HDMI1.4
1* VGA
2* USB3.0 (5Gbps) (In the same column as type-C)
1* RJ45 Gigabit Network Interface
2* USB3.2 (10Gbps) (Green)
1* MICK (Red), 1*Line-out (Green)
1* HDMI1.4 (side)
Built in I/O interface:
2* RS232 serial ports, COM1 and DB9 are optional, COM2 supports RS485/422
4* USB2.0, 2*5pin
1* LVDS, supports dual channel 24BIT
2* Hard disk power supply interface, 1*4pin
1* Screen backlight power supply interface, 1*6pin
1* 4pin DC power interface, supports 19V power input and output
1* Front audio interface, 2*5pin
1* Amplifier interface, 1*4pin (NS4251)
1* Front panel function buttons and indicator light interface, 2*5pin
Fan Connector: 1*4pin CPU fan connector, 1*4pin system fan connector
BIOS: 128Mb Flash ROM
GPIO: Support four-input and four-output GPIO function
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows 10/Windows 11/Linux
Power Type: Powered by DC19V power supply
Working temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)
Dimension: 170mm x 170mm
