Products

New Products

4 Lan N97 DDR4 Fanless Mini Firewall

♦Model No.:C2120Z-L4 V2.0(N97)

♦All aluminum alloy, fanless cooling structure

♦Intel®Alder Lake-N N97/Turbo 3.6GHz quad-core CPU

♦1x DDR4 RAM slot, up to 16GB

♦1x SATA + 1x M.2

♦4x RJ45 Lan

♦1x HDMI1.4

♦1x Mini-PCIe for 4G/WIFI

♦5x USB3.0, 1x USB2.0

♦DC_12V Power Input
8 Lan LGA1151 DDR4 SFP Pfsense Firewall System Security

♦ Model No.:R320E-L8 V1.0(R270)

♦ Intel®LGA1151 6th/7th/8th/9th i3/i5/i7 series processor

♦ Intel®Q270/Q250 High speed chipset

♦ 2*DDR4 SODIMM 2400MHz ,max up to 64GB

♦ 8*Intel I210 Gigabit Ethernet port，4 or 2 SFP+ ports can be extended

♦ 2*USB3.0, 1*VGA

♦ 4 or 2 light ports can be extended

♦ Support two groups of BYPASS(Optional)

♦ Standard with 1U AC220V ATX power supply 250W

♦ 1U standard case, high-quality galvanized steel plate / Support Windows&Linux OS
4 Lan N97 DDR4 Machine Vision Motherboard

♦Model No.:ITX-VL305 VER:1.0(N97)

♦Based on Inte Alder Lake-N SOC platform

♦Integrated Intel®Alder Lake-N N97 3.6GHz quad-core processor

♦Intel® UHD Graphics; VGA+HDMI+LVDS/1* EDP for display

♦1*DDR4 2133MHz SO-DIMM Socket, up to 16GB

♦4* Intel WGI210AT Gigabit Ethernet/ 8*USB/ 6*COM /1*SIM/ 1* TPM

♦1*SATA3.0/ 1* M.2 SSD/ 1* Mini-PCIE (Wifi/4G)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W

♦Support DC_12V Input
RK3576 ARM Motherboard

♦Model No.:CX3576-A V1.0 (4G+128G) VER:4G

♦WIFI use FCS960K,support 2.4G/5G dual-band,Bluetooth5.3

♦Bottom plate thread DC2.0*1（12V-36V input)

♦RJ45*1、HDMI*1、USB3.0*1、USB2.0*1、USB2.0 socket*4、TF*1、Audio 3.5mm*1

♦Size:157*100mm

6 Lan Celeron 5205U DDR4 Firewall Motherboard with Bypass

♦Model No.:K520E_B VER:1.0 (5205U)

♦Based on Intel Comet Lake SOC platform 5205U

♦Intel 10th Gen Celeron 5205U 1.90GHz Dual core processor

♦Intel® UHD Graphics;VGA for display(4K)

♦2*DDR4 SODIMM 2400MHz Socket, up to 64GB

♦6* Intel I210AT Gigabit Ethernet(Support 2 sets of BYPASS functions) / 5*USB / 2*COM

♦1* SATA3.0 / 1* MSATA / 1* Mini-PCIE(WIFI / TPM-4COM) /1* M.2(5G) / 1* PCIE X4 /1*PS2 /

♦Support GPIO ; Watchdog

♦Support DC_12V Input

Read More Make an inquiry

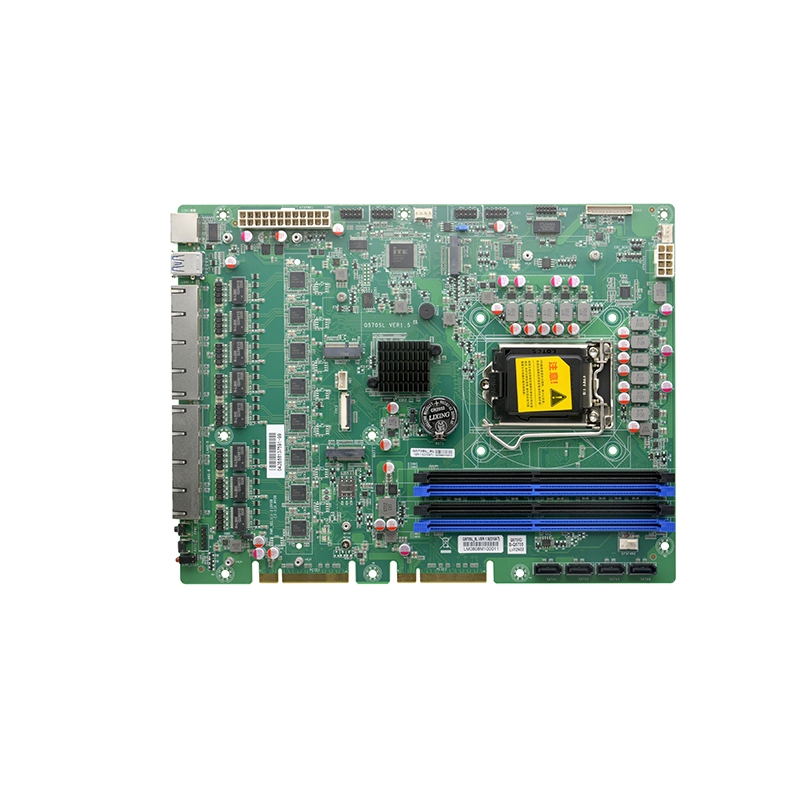

8 Lan LGA1200 Firewall Motherboard

♦Model No.:Q570SL_8L VER:1.5(LGA1200)

♦Based on Intel Q570 express chipset

♦Support socket LGA1200 Intel Celeron/Pentium/Core i3/i5/i7/i9 processors

♦Integrated Intel® HD Graphics ; VGA for Display

♦4*DDR4 UDIMM 3200MHz Socket, up to 128GB memory.

♦8*Intel® WGI210AT Gigabit Ethernet；

1*Intel®KTI226LM Gigabit Ethernet (support VPro)

♦4*SATA3.0 (support RAID 0,1,5,10) / 3*M.2 slot (SSD/4G/5G/WIFI)

♦4*USB / 2*RS232 / 1*TPM / 1*SIM slot / WDT / 2*PCIE X8 slot

♦ATX power Input

Read More Make an inquiry

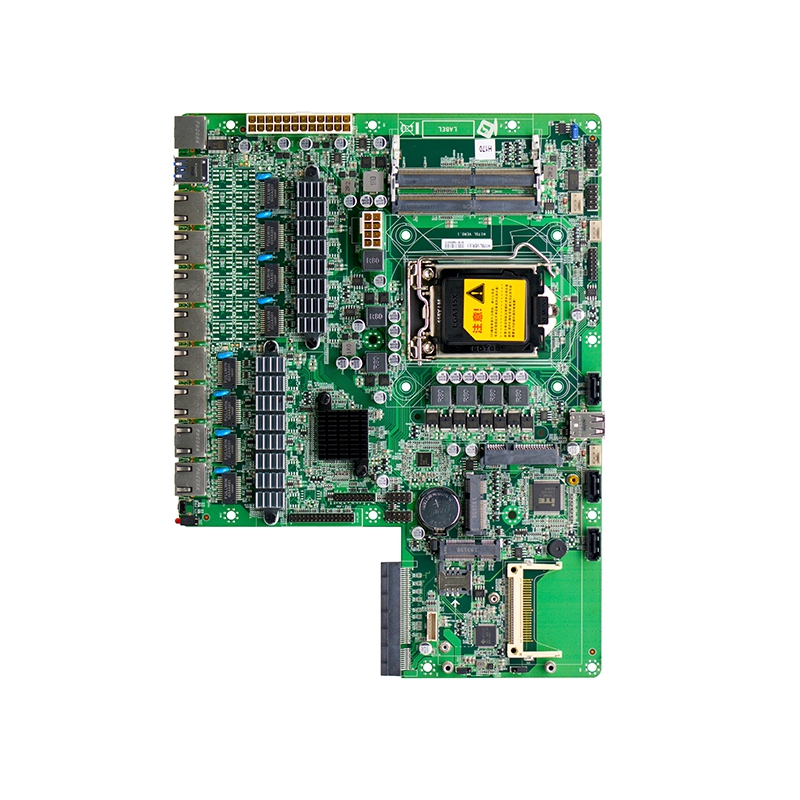

8 Lan LGA1151 Firewall Motherboard

♦Model No.:H17SL VER:1.0(LGA1151)

♦Based on Intel H170 express chipset(Compatible with Z170)

♦Support LGA1151 socket 6th/7th/8th/9th Intel®celeron/Pentium Core™ i3/i5/i7 processors

♦Intel® HD Graphics; HDMI for display

♦2*DDR4 SODIMM 2400MHz Socket, up to 32GB

♦8*Intel WGI211ATI210AT Gigabit Ethernet / 10*USB / 2*COM

♦1*SATA / 1* MSATA SSD / 3* SATA3.0 / 1* CF / 1* 8X PCIE / 1*Mini-PCIE(WIFI/4G)/ 1* PS2 /

♦Support GPIO ; Watchdog

♦ATX power Input

Read More Make an inquiry
6 Lan DDR4 LGA1151 Firewall Motherboard

♦Model No.:R270E VER:1.1(LGA1151)

♦Adopt Intel Q250 Express chipset

♦Support Intel®LGA1151 6th/7th/8th/9th Celeron/Pentium/Corei3/i5/i7/i9 processors

♦Intel®HD Graphics; HDMI+VGA for display

♦2*DDR4 SODIMM 2133MHz Socket, up to 64GB

♦6* Intel I210AT Gigabit Ethernet / 7*USB / 2*COM

♦2* SATA3.0/1* MSATA SSD/1* Mini-PCIE/2* M.2(5G/WIFI) /1* PCIE X8/1* PCIE X4

♦Support GPIO ; Watchdog

♦Support ATX Input

Read More Make an inquiry

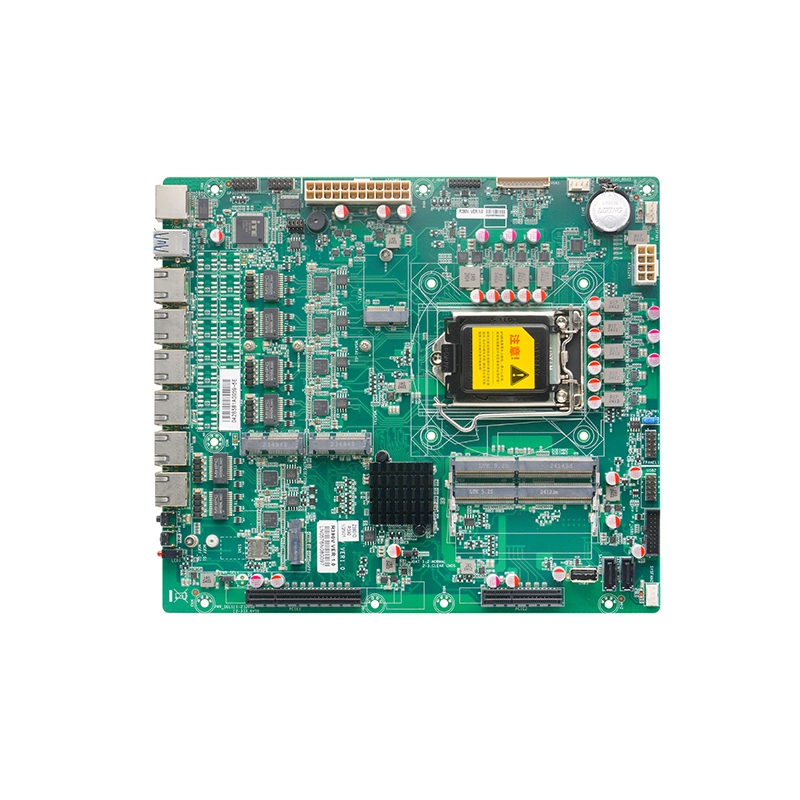

6 Lan LGA1151 Firewwall Motherboard

♦Model No.:R390V VER:1.0(LGA1151)

♦Based on Inte Z390 express chipset LGA1151

♦Support Intel®LGA1151 8th/9th Celeron/Pentium/Corei3/i5/i7/i9 processors

♦Intel®HD Graphics; HDM+VGA for display

♦2*DDR4 SODIMM 2666MHz Socket, up to 64GB

♦6* Intel I226V Gigabit Ethernet / 7*USB / 2*COM / 1* SIM

♦2* SATA3.0/1* MSATA SSD/1* Mini-PCIE/2* M.2(5G/WIFI) /1* PCIE X8/1* PCIE X4

♦Support GPIO ; Watchdog

♦Support ATX Input

Read More Make an inquiry

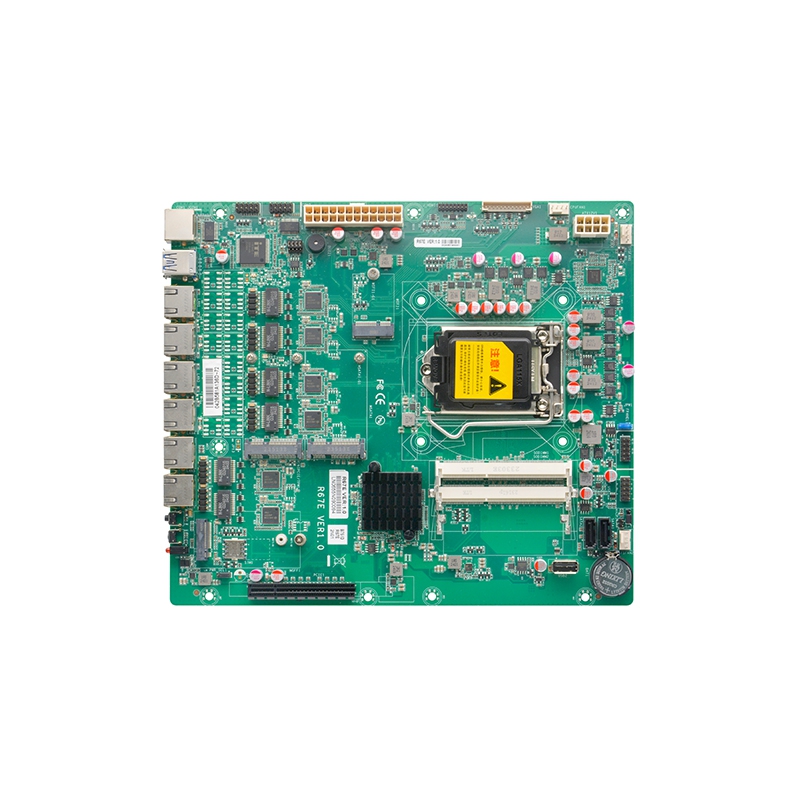

6 Lan LGA1155 Firewall Motherboard

♦Model No.:R67E VER:1.0(LGA1155)

♦Based on Intel B75 express chipset

♦Support LGA1155 socket Intel Celeron/Pentium/Core i3/i5/i7 processors

♦Intel®HD Graphics; HDMI+VGA for display

♦2*DDR3 SODIMM 1600/1333/1066MHz Socket, up to 32GB

♦6* Intel I210AT Gigabit Ethernet / 4*USB / 2*COM

♦2* SATA2.0/1* MSATA 3.0/1* Mini-PCIE/2* M.2(WIFI&5G)/1* PCIE X8

♦Support GPIO ; Watchdog

♦Support ATX Input

Read More Make an inquiry

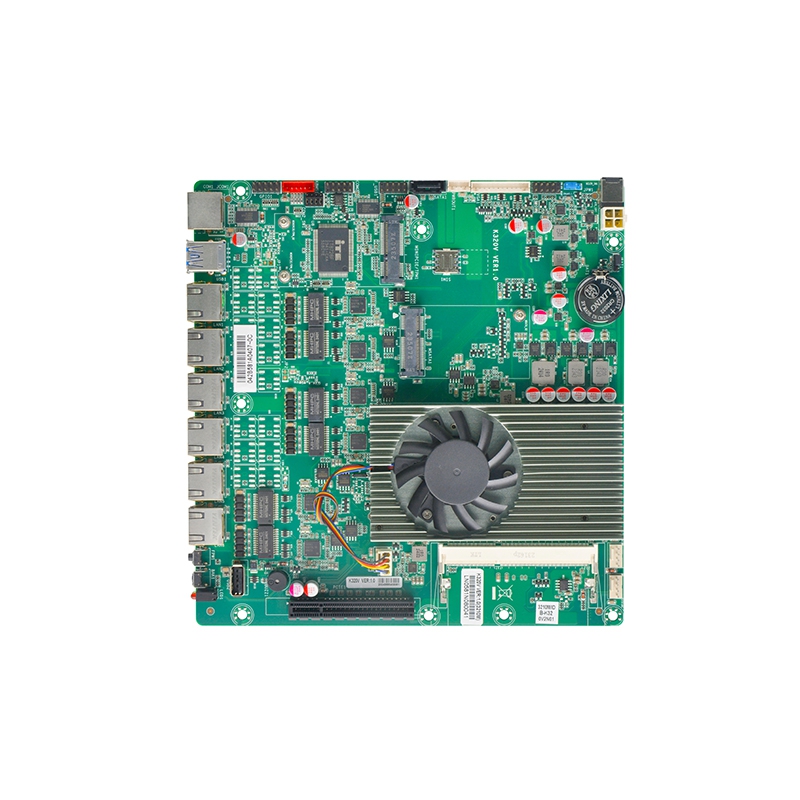

i5-3210M 6 Lan Firewall Motherboard

♦Model No.:K320V VER:1.0 (i5-3210M)

♦Based on Intel HM77 express chipset

♦Integrated Intel®Core I5-3210M 2.5GHz dual core processor

♦Intel® HD Graphics 4000; VGA for display

♦1*DDR3 SODIMM 1600/1333MHz Socket, up to 8GB

♦6* Intel I226V Gigabit Ethernet / 5*USB / 2*COM

♦1* SATA3.0 / 1* MSATA SSD / 1* Mini-PCIE(WIFI /4G/TPM-4COM) / 1* PCIE X8

♦Support GPIO ; Watchdog

♦Support DC_12V Input

Read More Make an inquiry

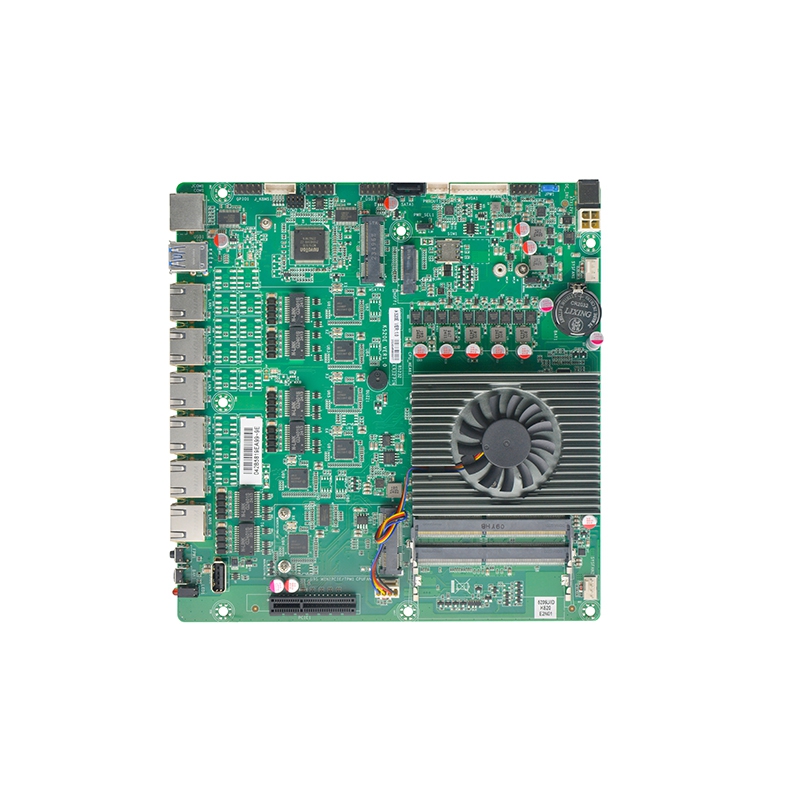

6 Lan Celeron 5205U Firewall Motherboard

♦Model No.:K520E VER:1.0 (5205U)

♦Based on Intel Comet Lake SOC platform 5205U

♦Intel 10th Gen Celeron 5205U 1.90GHz Dual core processor

♦Intel® UHD Graphics;VGA for display(4K)

♦2*DDR4 SODIMM 2400MHz Socket, up to 64GB

♦6* Intel I210AT Gigabit Ethernet / 5*USB / 2*COM

♦1* SATA3.0 / 1* MSATA / 1* Mini-PCIE(WIFI / TPM-4COM) /1* M.2(5G) / 1* PCIE X4 /1*PS2 /

♦Support GPIO ; Watchdog

♦Support DC_12V Input

Read More Make an inquiry
4 Lan J1900 Firwall Motherboard

♦Model No.:ITX-M9E VER:1.0 (J1900)

♦Based on Intel Bay trail SOC platform

♦Integrated Intel Celeron J1900 2.0GHz quad core processor

♦Intel®HD Graphics;VGA for display

♦1*DDR3L 1600/1333 MHz SO-DIMM Socket, up to 8GB memory.

♦4* Intel I211 Gigabit Ethernet / 6*USB /1*COM

♦1* SATA / 1*7PIN SATA / 1* MSATA SSD / 1* Mini-PCIE(WIFI/4G)

♦Support GPIO ; Watchdog

♦Support DC_12V Input

Read More Make an inquiry

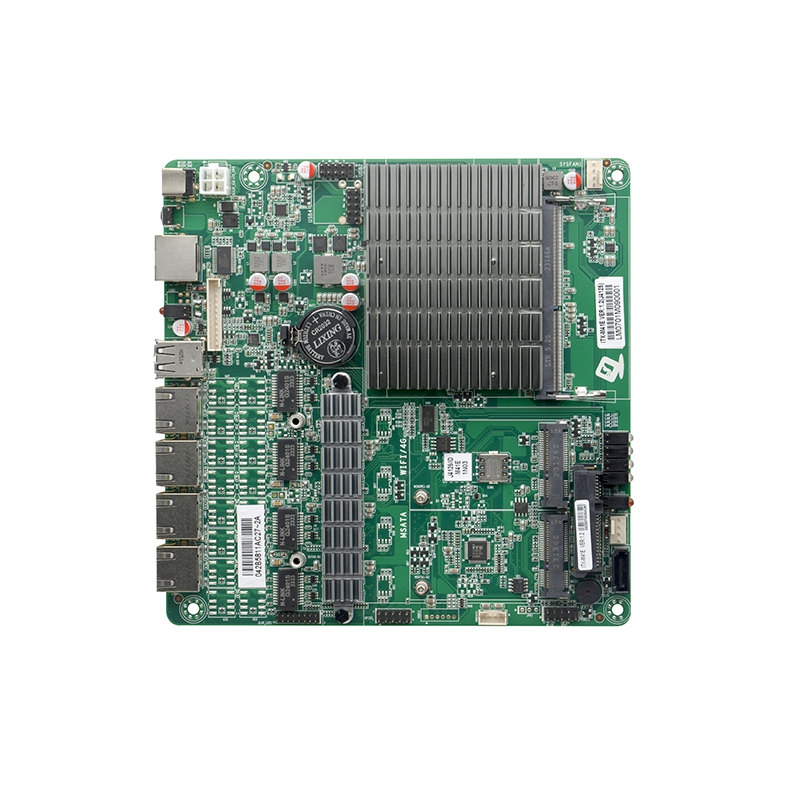

4 Lan J4125 Firewall Motherboard

♦Model No.:ITX-M41V VER:1.1(J4125)

♦Based on Intel Gemini Lake SOC platform

♦Integrated Intel Celeron J4125 2.0GHz Quad core processor

♦Integrated Intel HD Graphics 600 ; 1*VGA for Display

♦1*DDR4 2400MHz SO-DIMM Socket, up to 8GB memory.

♦2*SATA2.0 / 1*mSATA 2.0 SSD / 1*mini-pcie(Wifi/3G/4G) /1* SIM slot

♦4*RJ45- Intel I225V 2.5G Ethernet ports (Bypass optional)

♦6*USB2.0 / 1*RJ45 RS232(CISCO standard) / 1*PS2

♦Provide: 1* DC_Jack 12V Input ; 1*ATX 4pin 12V input (fanless)

Read More Make an inquiry
4 Lan N97 Firewall Motherboard

♦ Model No.: ITX-VL305 VER:1.0(N97)

♦ Integrated Intel®Alder Lake-N N97 3.6GHz quad-core processor

♦ 1* SODIMM DDR4 3200MHz ram,up to 16GB

♦ 1* VGA, 1*HDMI1.4, 1* LVDS/1* EDP

♦ 4* Intel WGI210AT Gigabit Ethernet

♦ 4* USB3.0 ; 4* USB2.0 ;6*COM

♦ DC 12V power input

Read More Make an inquiry
6 Lan J1900 firewall motherboard

♦Model No.: D19SL VER:1.0

♦Based on Intel Bay trail SOC platform

♦Integrated Intel Celeron J1900 2.0GHz quad core processor

♦Integrated Intel HD Graphics ; 1*VGA for Display

♦1*DDR3L 1600/1333 MHz SO-DIMM Socket, up to 8GB memory.

♦2*SATA2.0 / 1*mSATA 2.0 SSD / 2*mini-pcie(Wifi/3G/4G) / 1* SIM slot

♦6*RJ45- Intel I210AT Gigabit Ethernet (Bypass optional)

♦6*USB2.0 / 1*RJ45 RS232(CISCO standard) / 1*PS2

♦Provide: 1* DC_Jack 12V Input ; 1*ATX 4pin 12V input (fanless)

Read More Make an inquiry
