New Products

2 Lan Dual DDR5 4K Display Thin ITX Motherboard

♦Model No.: ITX-YS140R1_I526L

♦Based on Intel Meteor Lake SOC platform 125H

♦Integrated Core™ Ultra 5 125H 4.5GHz 14 core processor

♦Intel® Arc™ graphics; EDP + DP + HDMI1.4 + LVDS(4K display)

♦2*DDR5 5600MHz SO-DIMM Socket, up to 96GB

♦2*RTL8111H 1GbE Ethernet/8*USB/6*COM/1*SIM

♦2*SATA3.0/1* M.2 2280 NVME SSD/1*MINI-PCIE (Wifi/4G)/1*M.2 2230(WIFI)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W

♦Support DC_12V Input
RK3576 ARM Motherboard

♦Model No.:CX3576-A V1.0 (4G+128G) VER:4G

♦WIFI use FCS960K,support 2.4G/5G dual-band,Bluetooth5.3

♦Bottom plate thread DC2.0*1（12V-36V input)

♦RJ45*1、HDMI*1、USB3.0*1、USB2.0*1、USB2.0 socket*4、TF*1、Audio 3.5mm*1

♦Size:157*100mm
LGA1151 1+1 Power Supply 1U Firewall Appliance

♦Model NO.:ST-C2468L-2P V1.0

♦1U Standard Rack_mount Chassis

♦Intel Socket LGA1151 processors

♦2x DDR4 RAM slot, up to 32GB

♦4x SATA3.0 + 1x MSATA + 1x M.2

♦8x 2.5GbE Ports (RJ45)

♦2x PCI-E x8 (SFP+ Expansion)

♦(Bypasss/Vpro) Optional

♦1x Mini-pcie&M.2 (Wifi&BT&4G/5G LTE)

♦2x USB3.0 ; 4x USB2.0(inner)

♦1+1 Redundant Power Supply (Hot_Swap)
4 Lan N100 2x SFP+ (10Gb) Firewall MIni Router

♦Model NO.:ST-AD12N-6S V1.0

♦Aluminum Alloy ; Active Cooling

♦Intel N97/N100/N200/N305 CPUs

♦1x DDR5 RAM slot, up to 32GB

♦1x SATA3.0 + 1x M.2 NVMe X1 + 1x TF slot

♦4x 2.5GbE RJ45 + 2x SFP+ (10Gb)

♦DP+HDMI+Type_C Triple Display

♦1x Mini-PCIe for 4G LTE

♦1x SIM slot

♦5x USB2.0 ; 1x USB3.0

♦DC_12V Power Input

125H DDR5 Thin ITX Motherboard

♦Model:ITX-YS140R1_I526L VER:0.1(125H)
♦Integrated Intel® Core™ Ultra 5 125H 4.5GHz 14 core 18 thread processor

♦2* SODIMM 5600MHz DDR5,up to 96GB

♦2x RJ45 GbE ports

♦1x EDP, 1x DP, 1x HDMI1.4,1x LVDS

♦1x Mini-PCIE slot(WIFI / 4G); 1x M.2 (WIFI)

♦2x SATA3.0 ; 1x M.2

♦6x COM; 8x USB;1x SIM card

♦DC_12V power supply

Read More Make an inquiry

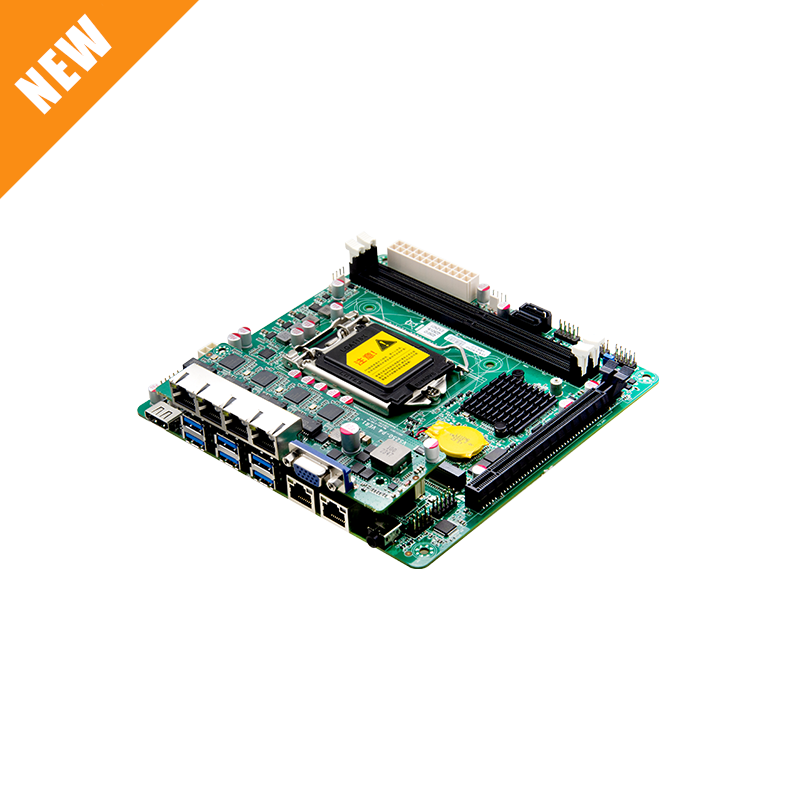

Dual Lan LGA1151 DDR4 Machine Vision Motherboard

♦Model No.:ITX-VS250 VER:1.0

♦Based on Intel Q250 Chipset

♦Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9

♦Intel HD Graphics ; 1*VGA + 1*HDMI for Display

♦2*DDR4 2400MHz DIMM socket, up to 64GB

♦2*RJ45 Gigabit Eth / 8*USB / 2*COM(RS232) 2*SATA / 1*M.2 NVME SSD / 1* PCIE3.0 X16/ 1* 80pin socket(including 4*PCIE signal, 1*VGA signal, can expand 4*POE LAN+ 1*VGA)

♦Support GPIO ; Watchdog Timer

♦Support ATX 24Pin ; 1*socket 4pin 12V

Read More Make an inquiry

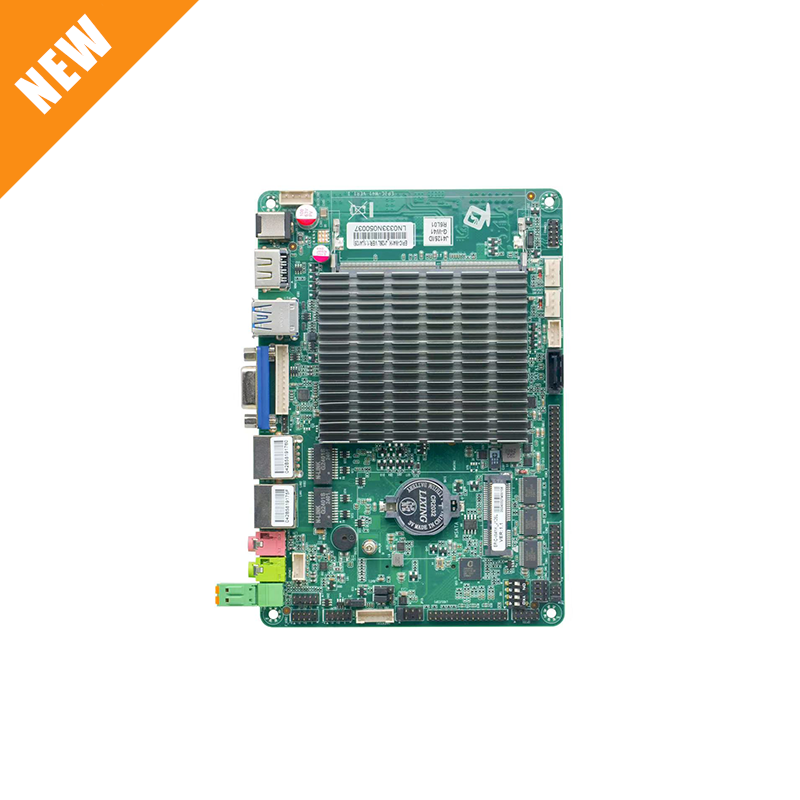

2 Lan J4125 Fanless 3.5 inch Motherboard

♦Model No.: EPIC-W41K_J126L VER:1.0

♦Based on Intel Gemini Lake SOC platform

♦Integrated Celeron J4125 2.0GHz Quad core processor

♦Intel UHD Graphics 600 ; VGA+HDMI+LVDS/eDP for Display

♦1*DDR4 2400MHz SO-DIMM socket, up to 8GB

♦2*RJ45 Gigabit Eth / 6*USB / 6*COM(RS232/485/422) / 1*SIM slot

♦1*SATA3.0/1*mSATA 3.0/1*mini-pcie(Wifi/3G/4G)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 2Ω/3W

♦Support DC 9V~36V Wide voltage power input (Fanless)

Read More Make an inquiry

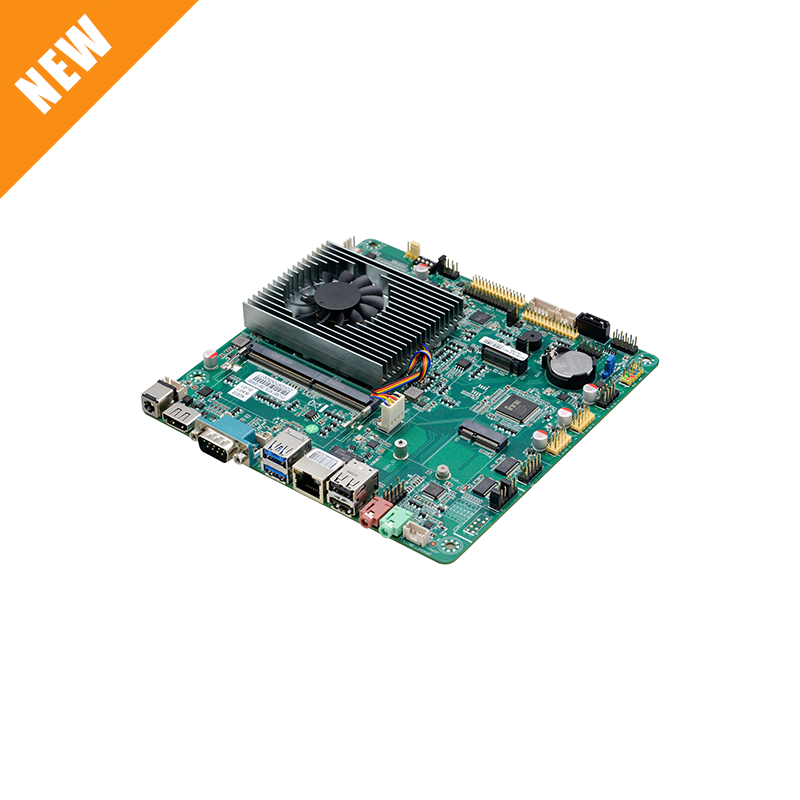

N100 Dual EDP DDR4 Thin ITX Motherboard

♦Model No.:ITX-LS307_N112L VER:0.1(N100)

♦Based on Intel Alder Lake-N SOC platform

♦Integrated 12nd Gen Celeron N100 3.4GHz Quad core processor

♦Intel UHD Graphics ; VGA+ HDMI2.0 + LVDS + 2*eDP for Display

♦1*DDR4 3200MHz SO-DIMM socket, up to 16GB

♦1*RTL8111H Gigabit Eth / 10*USB / 2*COM

♦1*SATA3.0 / 1*M.2 SSD / 1*M.2 Key E 2230 WIFI

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W

♦Support DC_12V Input

Read More Make an inquiry

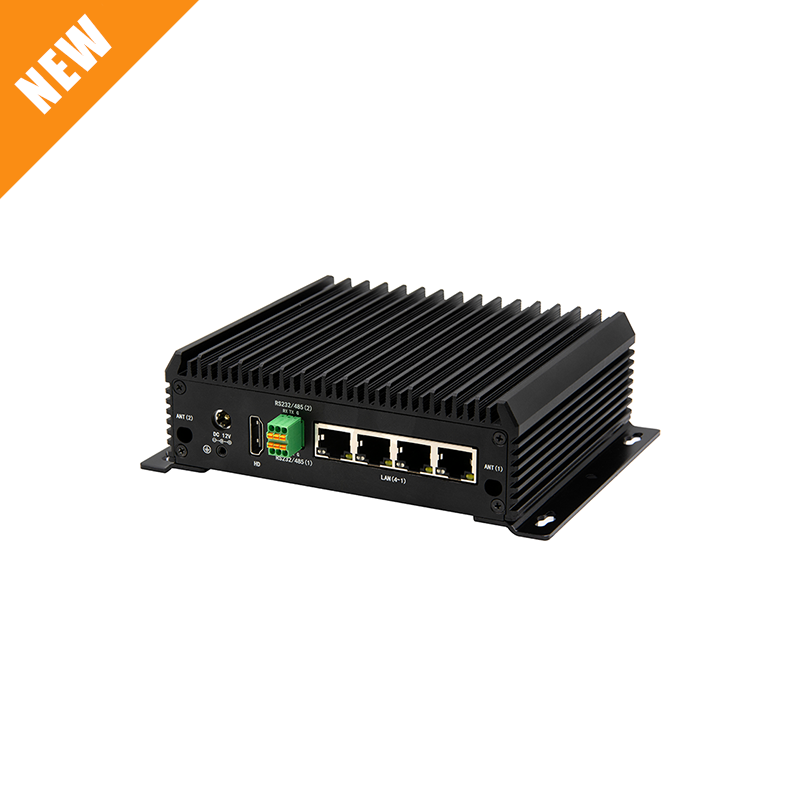

4 Lan N97 DDR4 Fanless Industrial Computer

♦Model No.:C2120Z-L4 V2.0(N97)

♦All aluminum alloy, fanless cooling structure

♦Intel®Alder Lake-N N97/Turbo 3.6GHz quad-core CPU

♦1x DDR4 RAM slot, up to 16GB

♦1x SATA + 1x M.2

♦4x RJ45 Lan

♦1x HDMI1.4

♦1x Mini-PCIe for 4G/WIFI

♦5x USB3.0, 1x USB2.0

♦DC_12V Power Input

Read More Make an inquiry
15.6” TFT LCD Computer Workstation Machine

♦Capacitive / Resistive touch screen: 15.6” TFT LCD(1920 x 1080)/ 300 cd/m2
♦Fashionable and simple appearance, independent open mold

♦High precision die-cast aluminum molding, efficient heat dissipation

♦Self-developed X86 architecture industrial motherboard Equipped with Intel ® 12th Gen CoreTM i5 processor

♦Built-in 500W camera, 125K+13.56Mhz dual-frequency card reader and high-precision barcode recognition module

♦Compatible with 99% of industry software, With strong expansibility

Read More Make an inquiry
18.5 inch TFT LCD i5-10210U Industrial Tablet PC

♦Resistive touch:18.5" TFT LCD / 1920*1080 / 300 cd/m²

♦3mm Super Thin Front Bezel, Best for Embedded Cabinet.

♦Pure flat panel IP65 dust-proof and waterproof.

♦High precision aluminum alloy material.

♦Self-developed fanless X86 architecture industrial motherboard

♦Dual gigabit adaptive Ethernet ports for faster transmission.

♦Industrial protection, applicable to various harsh environments.

♦Supporting 12V-36V wide voltage power supply;

♦Rich interfaces and strong extensibili.

Read More Make an inquiry
12 inch TFT LCD Industrial Touch Monitor

♦Capacitive / Resistive touch:12" TFT LCD / 1024*768 / 1000 cd/m²

♦UV anti-UV touch screen

♦Optical bonding process can prevent screen fogging effectively.

♦The screen brightness can be adjusted, supporting automatic sensitivity adjustment and manual key adjustment.

♦Comply with EMC anti-electromagnetic interference standard, industrial protection, and adapt to various harsh environments.

Read More Make an inquiry
i5-1235U 2 Lan Industrial Computer

♦ Model No.: P6760F-C6 V1.0(1235U)

♦ Integrated Intel i5-1235U/1.30GHz,10-core 12-thread processor

♦ 2*SODIMM DDR4 2400MHz memory,up to 64GB

♦ 1*HDMI2.0，1*HDMI，1*VGA，support triple display

♦ 2*Intel I210AT gigabit port

♦ 6*RS232/485 DB9 serial port,COM1~2 supports CAN (can module needs to be loaded)

♦ 2*USB3.0，4*USB2.0

♦ Supports DC 9~36V wide voltage

♦ Fanless cooling, copper tube heat conduction

Read More Make an inquiry
12th i5-1235U Dual Lan 3.5 inch Motherboard

♦ Model:EPIC-EH120_I526L VER:0.1(1235U)

♦ Integrated 12th Intel® I5-1235U 10-core processor

♦ 1x DDR4 RAM slot, up to 64GB

♦ 1x SATA3.0 + 1x M.2

♦ 2x RJ45 GbE ports

♦ 2x HDMI1.4,1x LVDS/eDP(4K/60Hz)

♦ 2x M.2 for 4G/5G/WIFI&BT

♦ 8x USB; 6x COM

♦ DC_12V Power Input

Read More Make an inquiry
J6426 Dual Lan HDMI2.0 Industrial Mini PC

♦ Model No.: N1250Z-H2 V0.1(J6426)
♦ Intel®Pentuim J6426/2.0GHz 4 core 4 thread processor

♦ 2* SODIMM DDR4 3200MHz ram,up to 32GB

♦ 2* HDMI2.0

♦ 2* Intel I211 Gigabit Ethernet

♦ 1* Console serial ports

♦ 3* USB3.0 ； 3* USB2.0

♦ DC 12V power input

♦ Fanless aluminum alloy structure, all aluminum alloy

Read More Make an inquiry
2 Lan LGA1700 DDR5 ATX Motherboard

♦ Model No.: W671DM VER:0.1

♦ Support LGA1700 12th/13th/14th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 CPU

♦ 4* SODIMM DDR5 4800MHz ram,up to 128GB

♦ 1* VGA ; 2* HDMI1.4

♦ 2* Intel ®I210AT Gigabit LAN

♦ 2* USB3.0; 4* USB3.2; 4* USB2.0; 1*Vertical USB2.0; 1*TYPE-E USB3.0

♦ ATX 24Pin and 8pin power supply

Read More Make an inquiry
