Product Description
Model No.：P6760F-C6 V1.0(1235U)

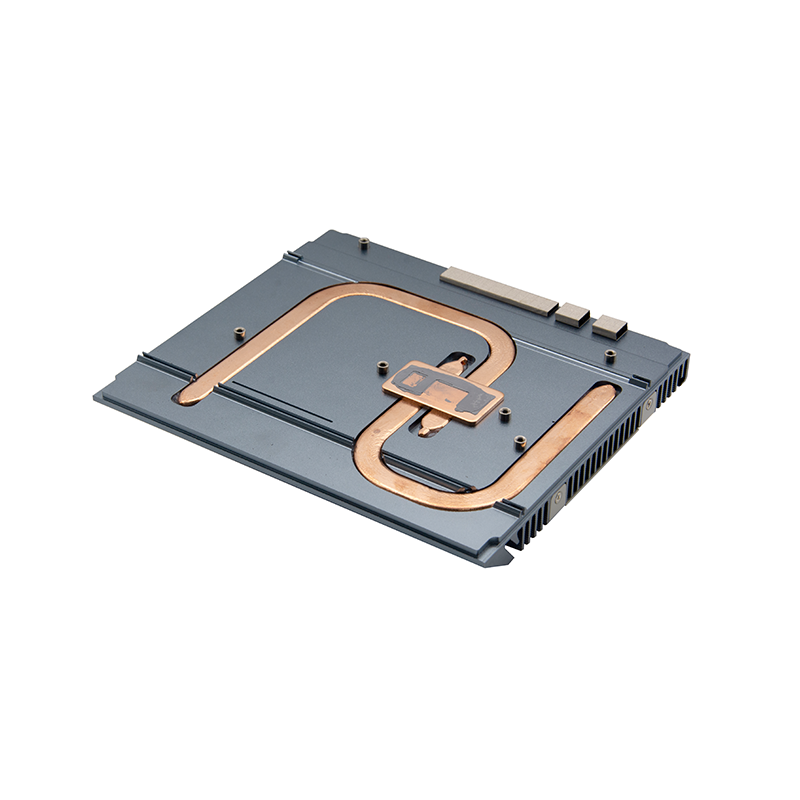

Chassis: Structure: Aluminum alloy + sheet metal material fan cooling
Colour: Iron gray + sand gray
Dimension: 185 x 164.3 x 63.5MM
Weight（net）: 1.8KG

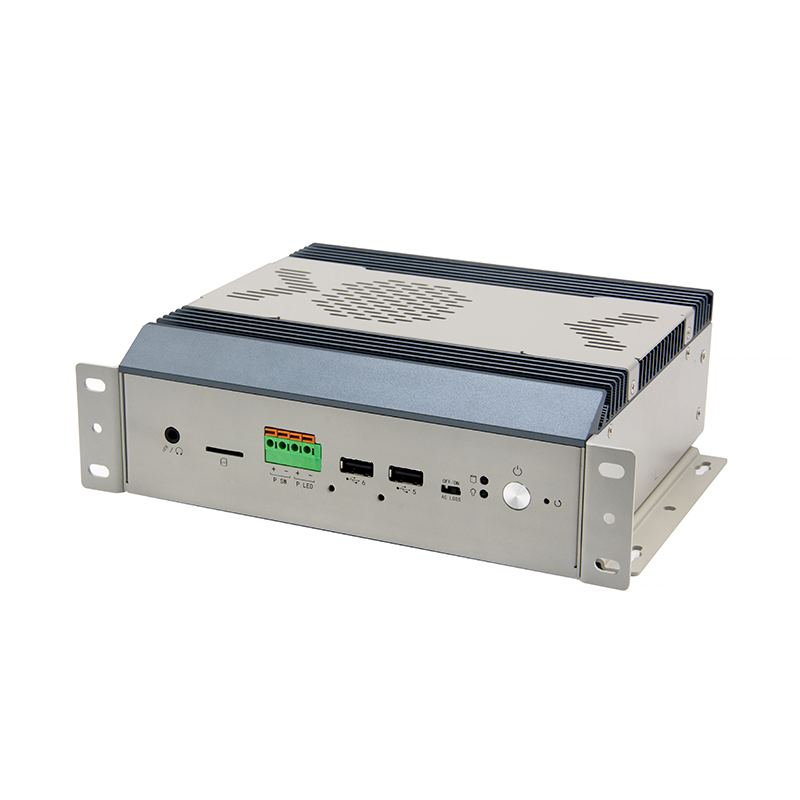

Installation: Desktop/wall-mounted/DIN rail
Motherboard: CPU: Intel®i5-1235U/1.3GHz，Turbo 4.4GHz,10-core 12-thread processor，TDP 15W
Display: Intel®Iris Xe Graphics eligible
Memory: 2x SODIMM DDR4 3200MHz , up to 64GB

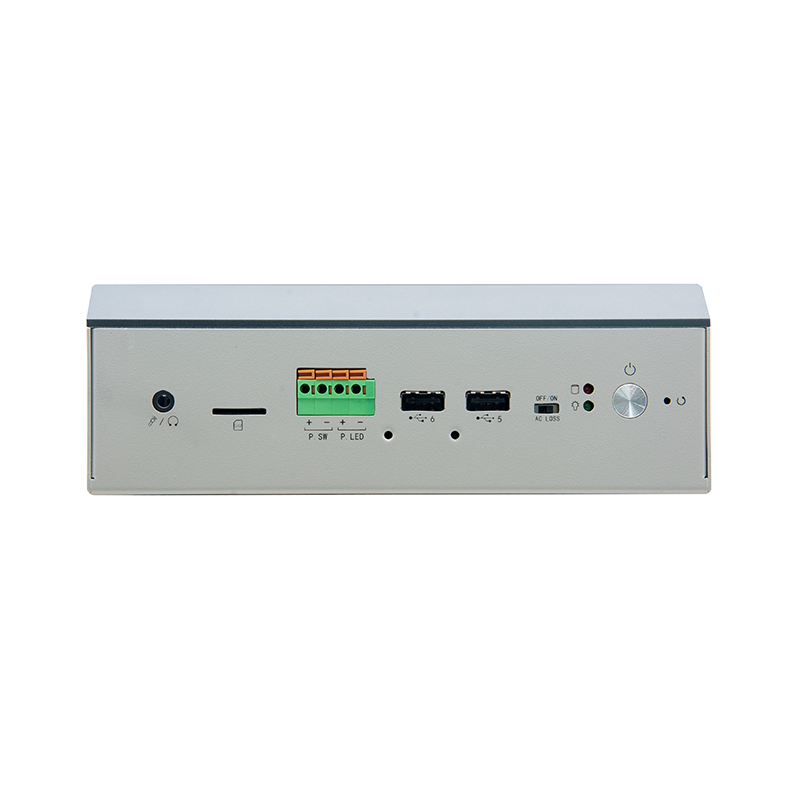

Front I/O interface:
Switch: 1x Power on button, 1x One key restore, 1x ACLOSS (power on DIP switch)
LED: 1x power indicator light, 1*hard disk indicator light
USB: 2x USB2.0
Audio: 1x Audio，Line out&Mic two-in-one
Phoenix terminal: 1x 4P(1*boot signal/1*power indicator signal)
SIM: 1x SIM standard card slot

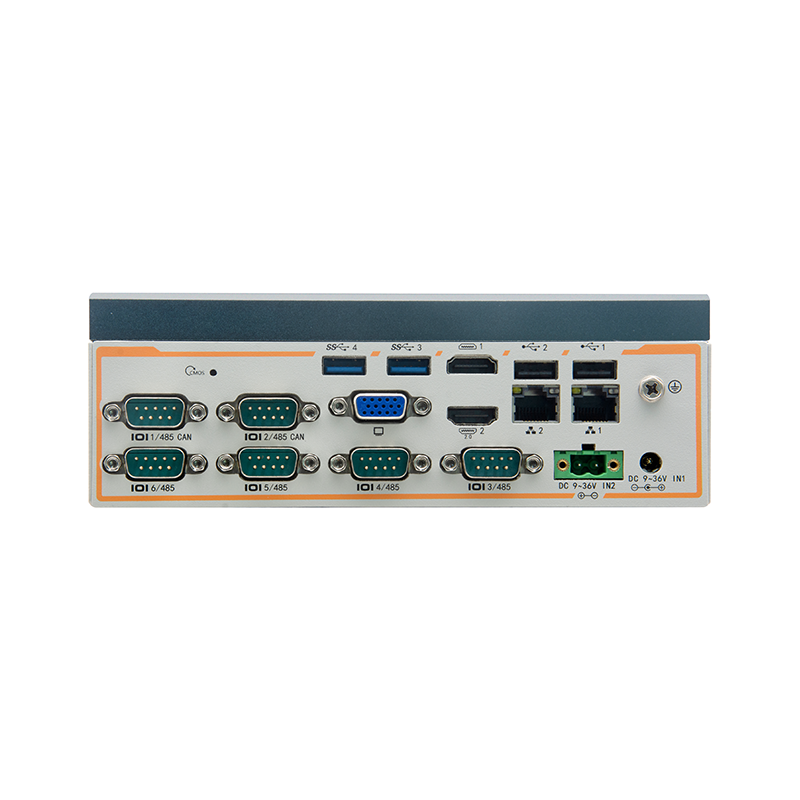

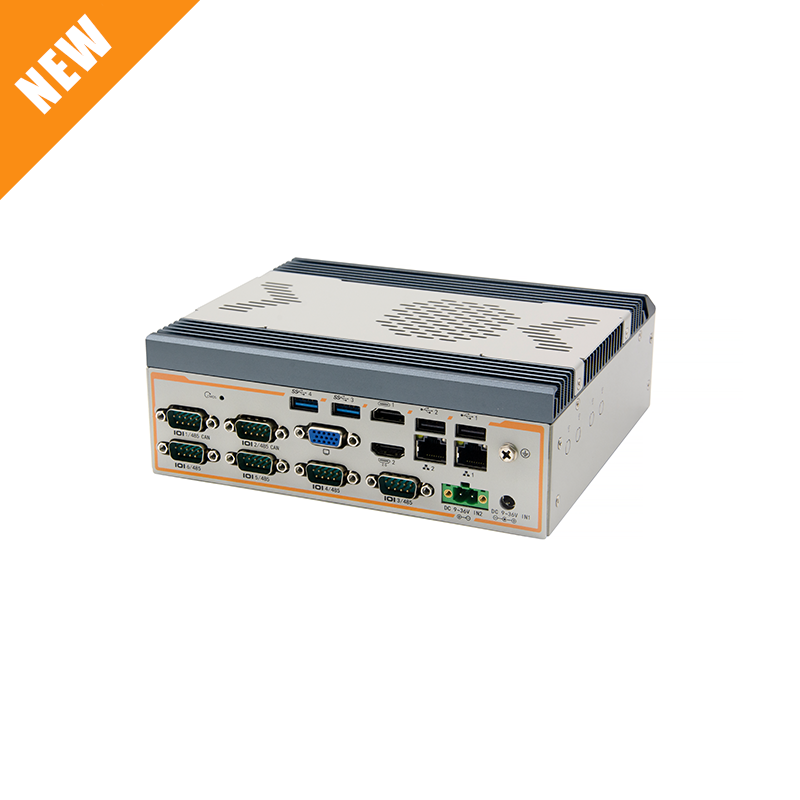

Rear I/O interface:
Switch: 1x CMOS restore button
Display: 1x HDMI2.0(4096*2304@60Hz),1*HDMI1.4(4096*2304@60Hz),1x VGA, support triple display
COM: 6x RS232/485 DB9 serial port；COM1~2 support CAN(CAN module needs to be loaded)
Lan: 2x Intel I210AT Gigabit port
USB: 2x USB3.0，2x USB2.0

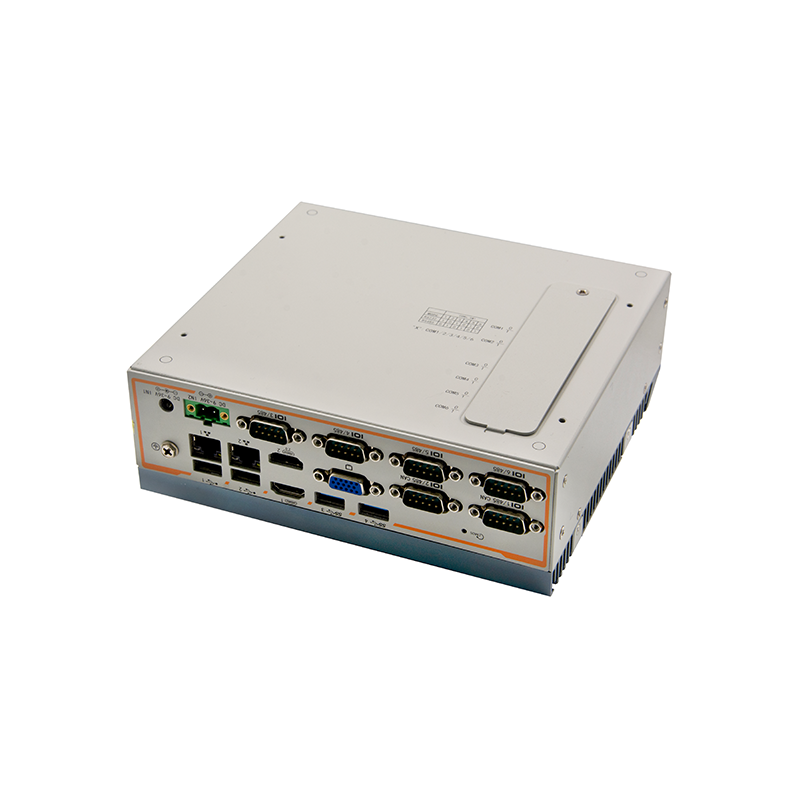

DIP switch: 6 sets of 6-bit DIP switches, used for RS232/485 switching (the DIP switch is located at the bottom of the chassis)
Power interface: 1x DC interface or 1x 2P P=5.08mm Phoenix terminal, supports DC 9~36V wide voltage power input
Storage:
SATA: 1x 2.5-inch hard drive bay
MSATA: 1x MSATA
M.2: 1x M.2/SSD，support Key-M，2280，NVME PCIE x4 SSD
Expansion: MINIPCIE: 1x MINIPCIE，support WiFi or 4G module
OS: Microsoft: Windows 10
Linux: Linux
Power supply:
Power Type: External power adaptor
Voltage Input: DC 9-36Vwide voltage
Power output: AC TO DC 60Wor more (Depending on specific equipment)
Environment:
Working Temp.: -10℃～50℃
Storage Temp.: -20℃～70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
