This high-performance Thin ITX motherboard integrates Intel‘s 3rd Gen Core™ i5-3210M processor (2C/4T, 2.5GHz) with HM76 chipset in a compact Thin ITX form factor (170×170mm), offering exceptional multi-display capabilities and industrial-grade reliability.
Key Features:
✔ Powerful Processing: Intel i5-3210M with HD Graphics 4000
✔ Quad-Display Support: VGA + dual HDMI + dual eDP/LVDS
✔ Memory Configuration: Single-channel DDR3 1600MHz (max 8GB)
✔ Industrial Connectivity:
1×GbE LAN + 10×USB (4×USB3.0)
2×COM (RS232) + PS/2 + LPT
✔ Storage & Expansion:
2×SATA 2.0 + 1×mSATA
1×mini-PCIe (WiFi/4G)
✔ Rugged Design:
GPIO + Watchdog Timer
4Ω/3W audio amplifier
✔ Dual Power Input: 12V DC jack or ATX 4-pin
Detail Display
Product Description

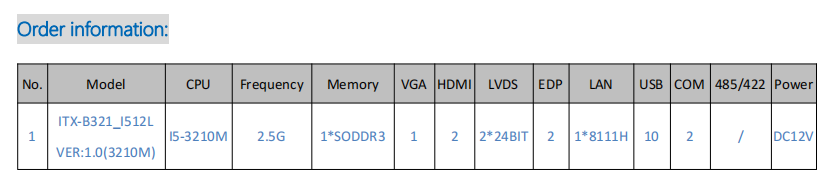

Model No.: ITX-B321_I512L VER:1.0(3210M)
Processor: Integrated 3rd Gen Intel Core i5-3210M 2.50GHz 2 cores 4 threads processor, TDP 18W
Compatible with Intel® Sandy/Ivy Bridge Celeron/Pentium/I3/I5/I7 BGA1023 processors
Chipset: Intel HM76 Express Chipset
Memory: 1x DDR3 1600/1333MHz, single channel SODIMM memory slot, up to 8GB
Display: Integrated Intel HD Graphics 4000, supports single display, dual display mode, extended mode
1x VGA ; 2x HDMI ; 2xEDP (Or 1x LVDS + 1xEDP display)
Note: LVDS and EDP are adaptive. The supported display combinations are: LVDS single display, EDP1 single display, LVDS+EDP2 dual display, EDP1+EDP2 dual display.
J_EDP2 cannot be used alone. When using dual displays, the brightness adjustment is invalid and is only effective when using single display. The backlight control of EDP2 is shared with that of EDP1.
Ethernet: 1x RJ45 Gigabit Ethernet port (RTL8111H), support Wake_on_LAN/PXE function
Storage: 1x SATA2.0, the transfer rate up to 3Gbps
1x MSATA slot, the transfer rate up to 6Gbps
Audio: Onboard ALC262 6 channel high fidelity audio controller, support Mic_in / Line_out
The 2Ω 3W horn for power amplifier recommended
Expansion Slot: 1x Mini-PCIE slot，support WIF/3G/4G moudle
Rear I/O:
1x VGA
1x HDMI
2x USB3.0 ; 2x USB2.0
1x RJ45 GbE LAN
1x Line-out (green) ; 1x Mic_in (red)
1x DC_Jack (DC_12V input)

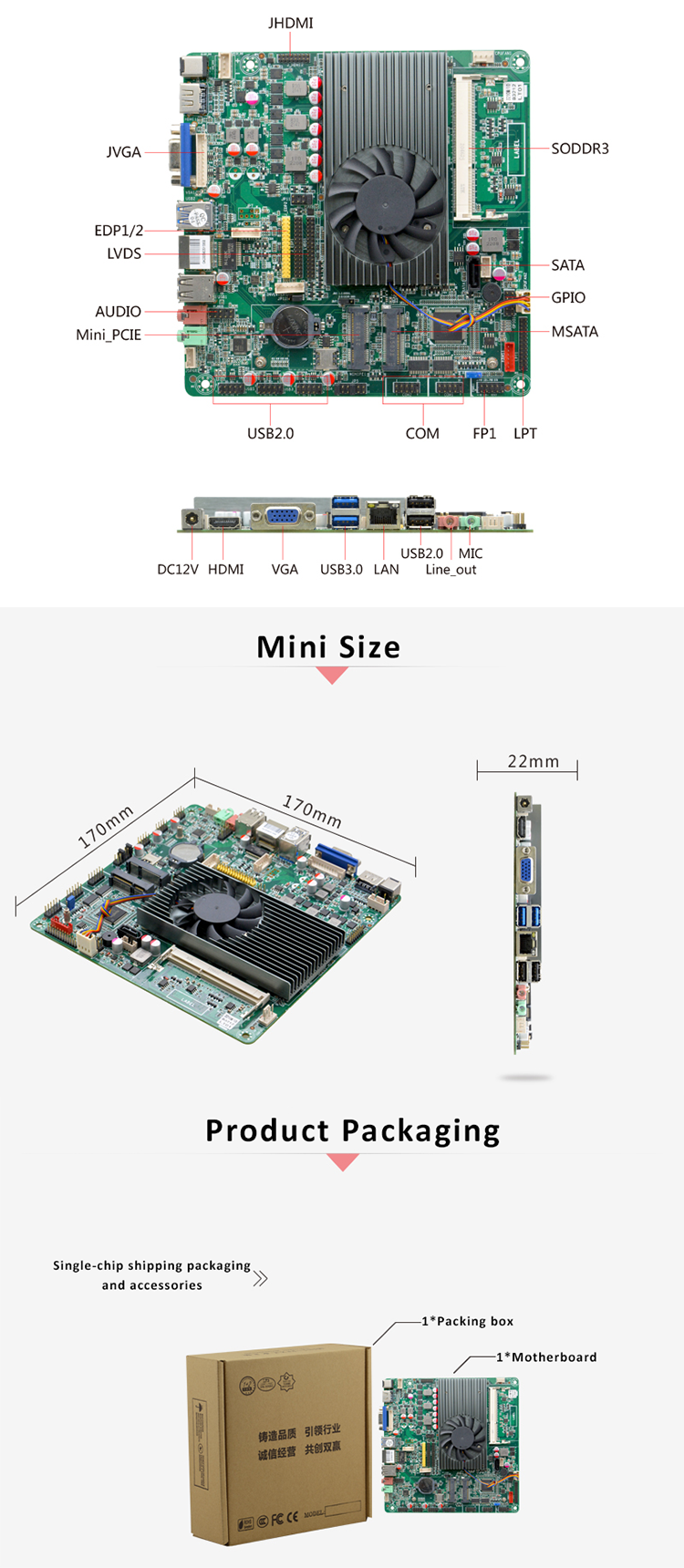

Inner I / O:
2x EDP
1x LVDS (LVDS and J_EDP1 are optional)
1x Screen backlight power supply interface, 1*6pin
1x JVGA1, 1*12pin (Same signal as DB15)
1x JHDMI, 2*8pin
2x RS232 serial ports ( COM1/2 provide power on the 9th pin)
1x LPT Connector, 2*13Pin
6x USB2.0, 2*5pin
1x PS/2 KB&MS Connector, 1*6Pin
1x Front panel function button and indicator light interface, 2*5pin
1x Front audio interface, 2*5pin
1x Power amplifier interface, 1*4pin
1* 4pin DC power slot (support DC_12V input/output)
1x Hard drive power supply interface, 1*4pin
1x SIM card slot
Fan interface: 1x 4Pin smart system fan interface ; 1x 4Pin CPU intelligent fan interface
GPIO: Support 4-way input and output GPIO
BIOS: 32Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0 ~ 255 seconds)
OS: Window 7/Windows 10/Linux
Power Type: DC_12V
Working temp.: -10℃～60℃
Storage temp.: -20℃～70℃
Working humidity: 5%-95%(Relative humidity, non condensing)
Dimension: 170mm x 170mm
