Features
This
application level firewall
is powered by Intel Alder Lake-N processors (N95/N97/N100/N200/i3-N305) and features four Intel i226-V 2.5G LAN ports. It supports up to 48GB DDR5 memory and offers SATA/mSATA/CF storage options (select one). Expansion includes one PCI-E x8 slot and one miniPCIe for 4G/WiFi. Built-in 4-channel GPIO, 255-level watchdog, Wake-on-LAN, PXE, and Console port ensure easy management. Supports 100-240V wide-range power input, available in 1U/2U form factors with 0°C~60°C operating temperature.
This application level firewall is ideal for SMB perimeter security, branch office access, and campus gateway deployments. The four 2.5G ports support NGFW, UTM, application identification and control, SD-WAN, and load balancing. PCI-E expansion enables performance upgrades, while 1U/2U form factors flexibly fit different rack spaces. With miniPCIe wireless expansion, it also suits retail stores and remote monitoring. Compatible with Windows and Linux, it integrates with enterprise security software and open-source firewall platforms.
Product Description
Main:
CPU: N95 / N97 / N100 / N200 / i3-N305
Code Name: Intel® Alder Lake-N
Memory: 1* SO-DIMM DDR5 4800MHz MAX 48G
LAN:
IC: Intel® i226-V
Speed: 2500Mbps 2.5G adapting
Interface: 4* Intel® Ethernet Contoller 2.5G RJ45
Support NetWork WakeUp / PXE
Storage: 1* SATA3.0 6Gbps / 1* mSATA / 1* CF (One out of three)
Display: 1* VGA / 1* JHDMI / 1* EDP
BIOS: AMI UEFI BIOS
USB: 1* USB2.0 / 1* USB3.0; 2* USB2.0(Vertical) / 6* USB2.0(Array pin)
Power Supply:
Voltage: 100-240V~50 / 60Hz
ATX: ATX 4PIN 12V/DC-12V 55mm*25mm
PCI-E: 1*PCI-E x8 Slot Gen3 PCle3.0 x4
GPIO: 4* programmable GPIO
Watchdog: 255 Levels, 0-255 Seconds
COM: 1* RJ45 Console / 2* COM (Array pin)
4G/WiFi:1* miniPCle
Dimension:

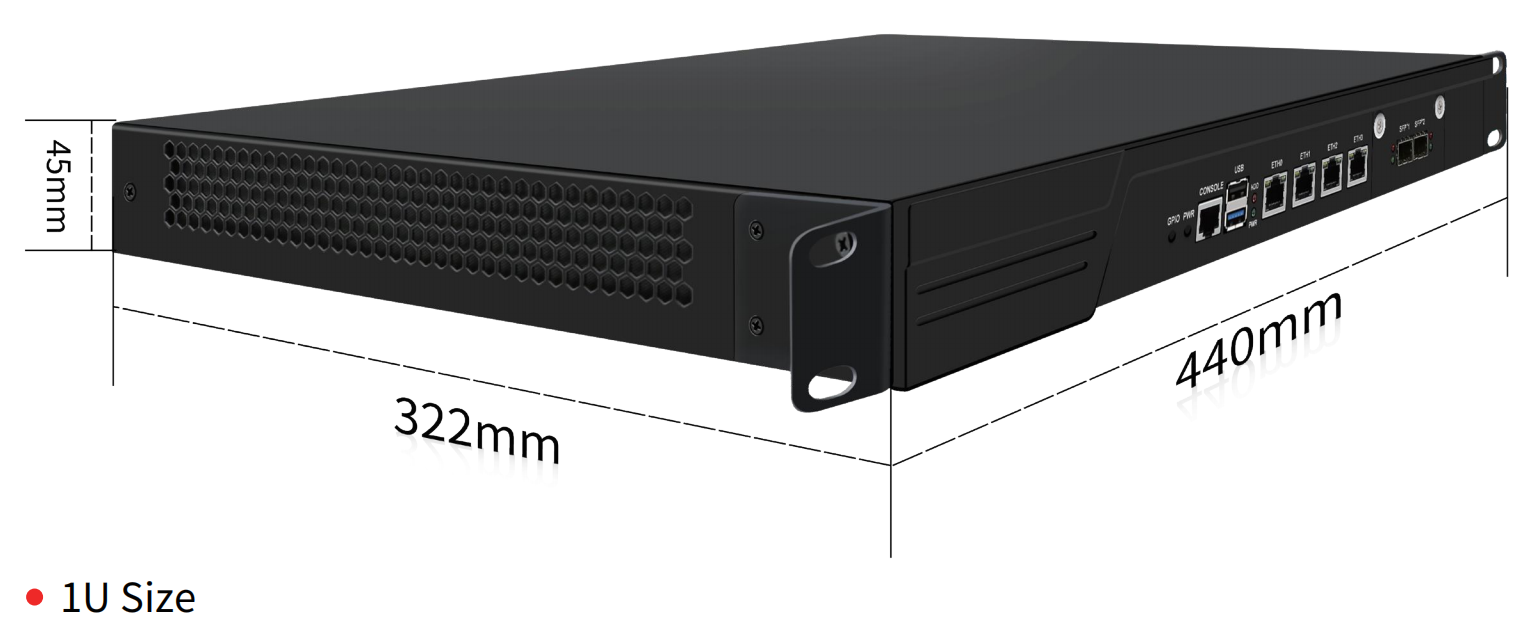

1U: 440mm*320mm*45mm
2U: 435mm*439mm*90mm
Working Temperature: 0℃~60℃
Storage Temperature: -10℃~70℃
Working Humidity: 10%~90%
Storage Humidity: 5%~95%, non-condensing
OS: Windows10 / 11,Windows Server, Linux
.png)
.png)
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
.jpg)
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
