Key Advantages:
✔ High-performance quad-core - Intel J4125 CPU (10W TDP)
✔ Enterprise network security - 4×GbE ports + optional Bypass
✔ Dual storage - SSD+HDD hybrid storage support
✔ Wireless expansion - Mini-PCIE+SIM slot for 4G/WiFi
✔ Industrial reliability - Wide voltage input (AC 100-240V)
✔ Professional management - RS232 console port
Typical Applications:
◼ Enterprise firewall deployment
◼ VPN security gateway
Product Description
Model NO.: R41EUZ version:1.0
Chassis:

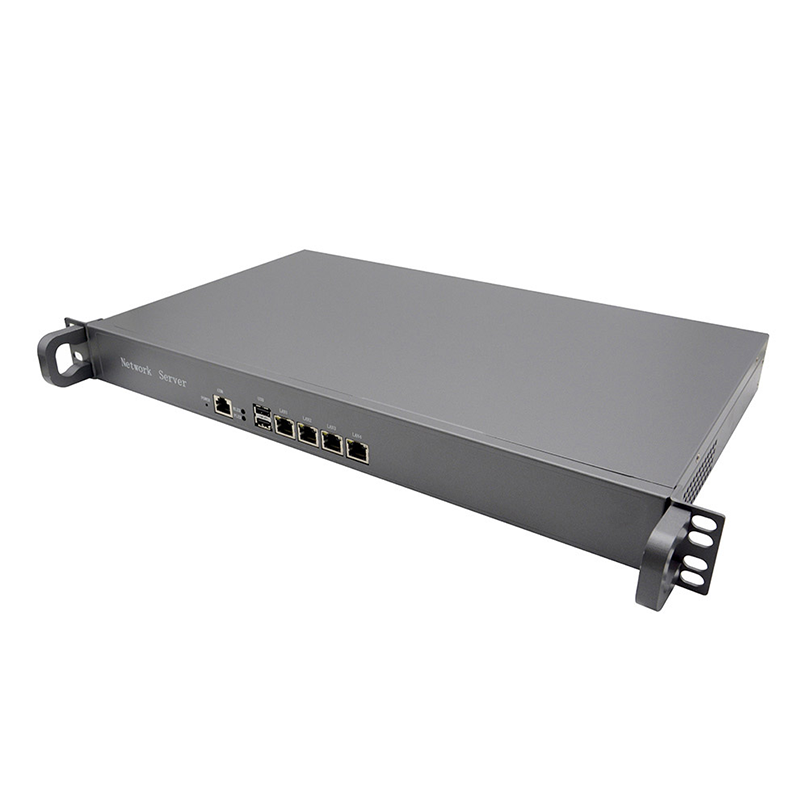

Structure: 1U standard chassis, high quality galvanized steel

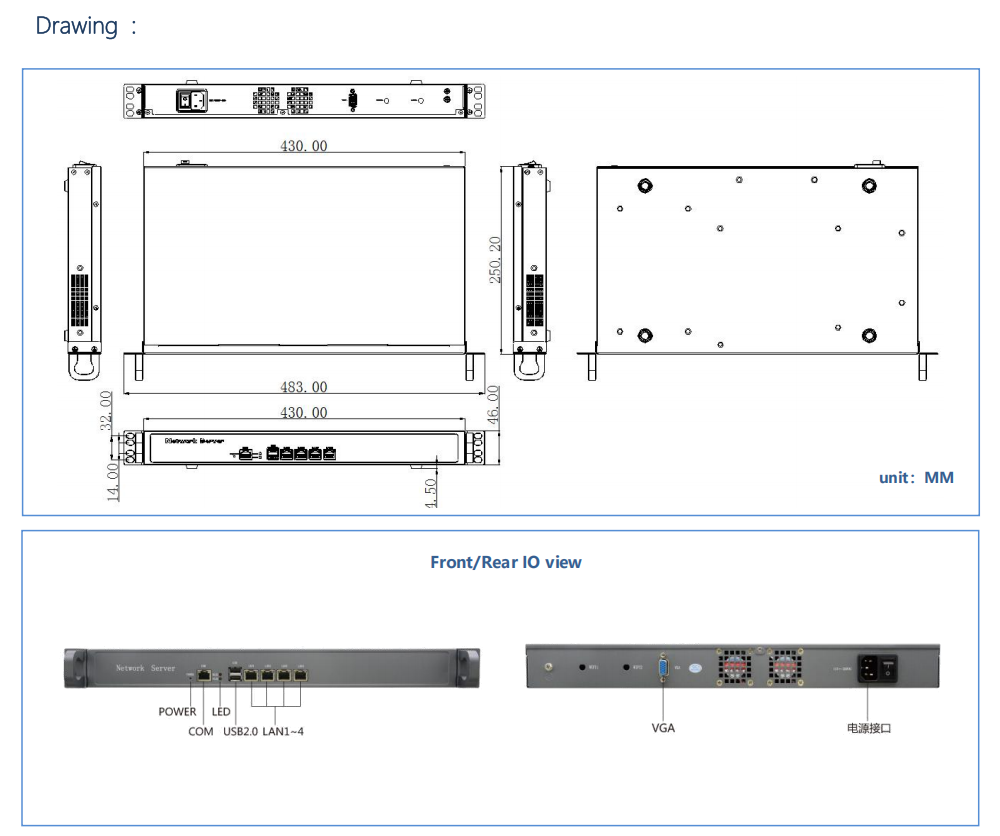

Dimension: 430mm*250mm*46mm
Color: Iron gray
Installation: Rackmount / Desktop

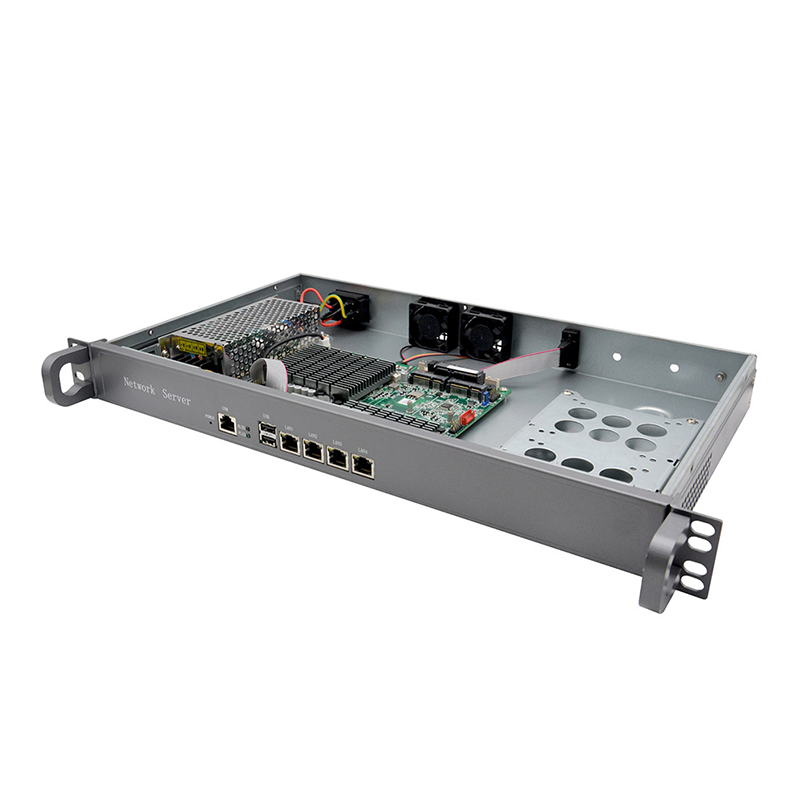

Motherboard:
Processor:Integrated Intel®Celeron J4125 2.0GHz quad-core quad-thread processor ; TDP 10W
compatible Intel® Gemini Lake series CPU
Chipset: Gemini Lake SOC
Display: Integrated Intel® UHD Graphics 600
Memory: 1* SODIMM slot ,support single channel 2400MHz DDR4 memory, up to 8GB

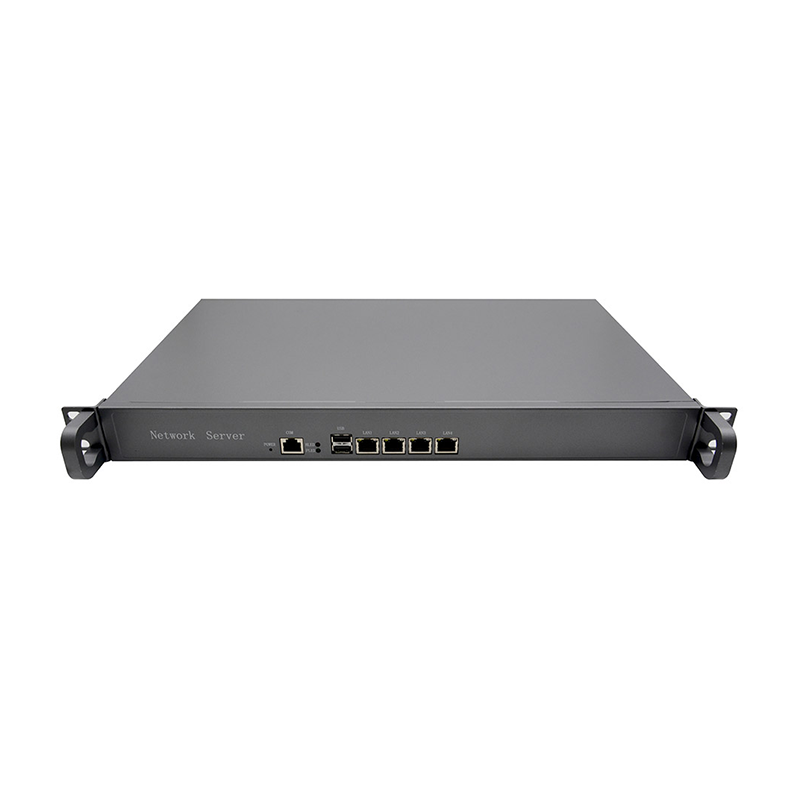

Front I/O:
Switch: 1* Power switch
Ethernet:
4* RJ45 Intel I210 gigabit Ethernet ports, supporting Wake_on_Lan/PXE
Bypass function optional
USB: 2* USB2.0
COM: 1* RJ45 CISCO standard serial port ( RS232 )
LED: 1* Power LED ; 1*HDD LED

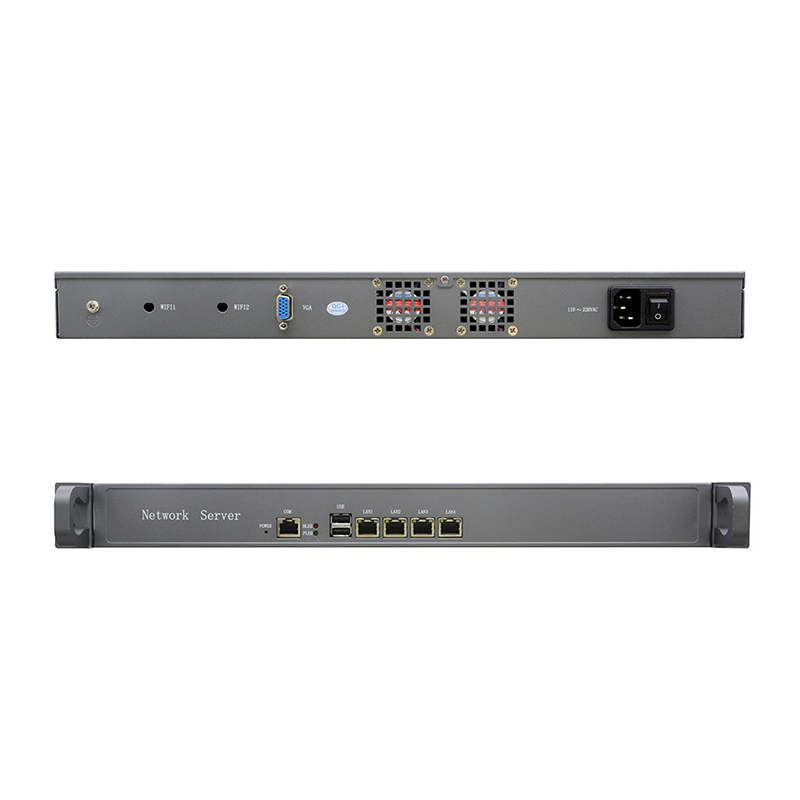

Rear I/O:
Display: 1* VGA
power: 1* AC power plug (100V~240V power input)
Storage:
SATA :1* 2.5”/3.5” SATA HDD
SSD: 1* mSATA slot ,support SSD ,transfer speed up to 3Gbps
Extension:
Mini PCIE: 1* Mini-PCIE slot ，support WIFI/4G module
Note:WIFI with LAN4 optional ,default LAN4
OS support:
Microsoft Windows: Yes
Linux: Yes
Watch Dog: Support hardware reset function (L256, 0~255 seconds)
Power:
Power Type: ATX power supply (preinstalled)
Voltage Input: AC 100V~240V
Power output: AC to DC_60W
Reliability:
Working Temp. :-10℃～60℃
Storage Temp.: -20℃～70℃
Relative Humidity :5%-95% relative humidity, non-condensing
Working Vibration :0.5g rms/5-500HZ/random/operating

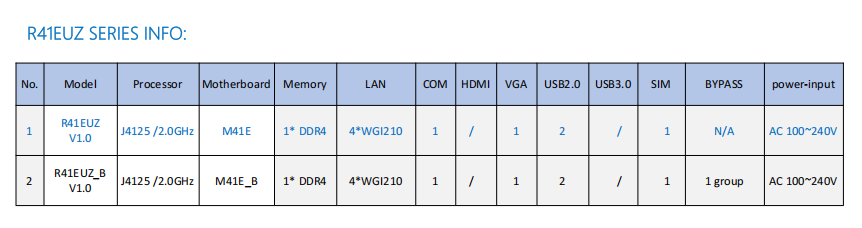

-order.png)
