Features
The SII-D525-4LL is a 1U rack-mountable hardware platform built for firewall and network security applications, powered by the Intel® D525 processor and NM10 chipset. It offers 4 x Intel® i211-AT Gigabit RJ45 ports for high-performance security gateway connectivity, along with 1 x SATA 3.0, 1 x mSATA, 1 x VGA, 2 x USB2.0, 1 x RJ45 COM console, and 8 x programmable GPIO. Additional features include Wake-On-LAN, PXE boot, and a 255-level watchdog timer, with DC 12V or AC 100–240V power input.
This appliance is well-suited for firewall appliances, VPN security gateways, UTM (unified threat management), IDS/IPS, and perimeter security deployments. With broad OS support (Windows and Linux) and a compact 1U form factor, the SII-D525-4LL delivers a reliable, cost-effective security foundation for SMB and branch office environments.
Product Description
Main:
CPU: Intel® D525
Chipset: Intel® NM10
Memory: 1* SO-DIMM DDR3 1066/1333/1600MHz MAX 8G
LAN:
IC: Intel® 82574L / Intel® i226-V
Speed: 1000Mbps / 2500Mbps 2.5G adapting
Interface: 4 /6* Intel® Ethernet Contoller RJ45
support NetWork WakeUp / PXE
Storage: 1* SATA3.0 6Gbps / 1* mSATA
Display: 1* VGA 2* 15Pin max to 1920 * 1080@60HZ
BIOS: AMI UEFI BIOS Legacy
USB: 2* USB2.0; 1* USB2.0 (Array pin)
Power Supply:
Voltage：DC12V-5A 55*25 / AC 100-240V~50/60Hz
Power mode: 60W Single power supply
Other:
GPIO: 8* programmable GPIO
Watchdog: 255 Levels, 0-255 Seconds
COM: 1* RJ45 Console

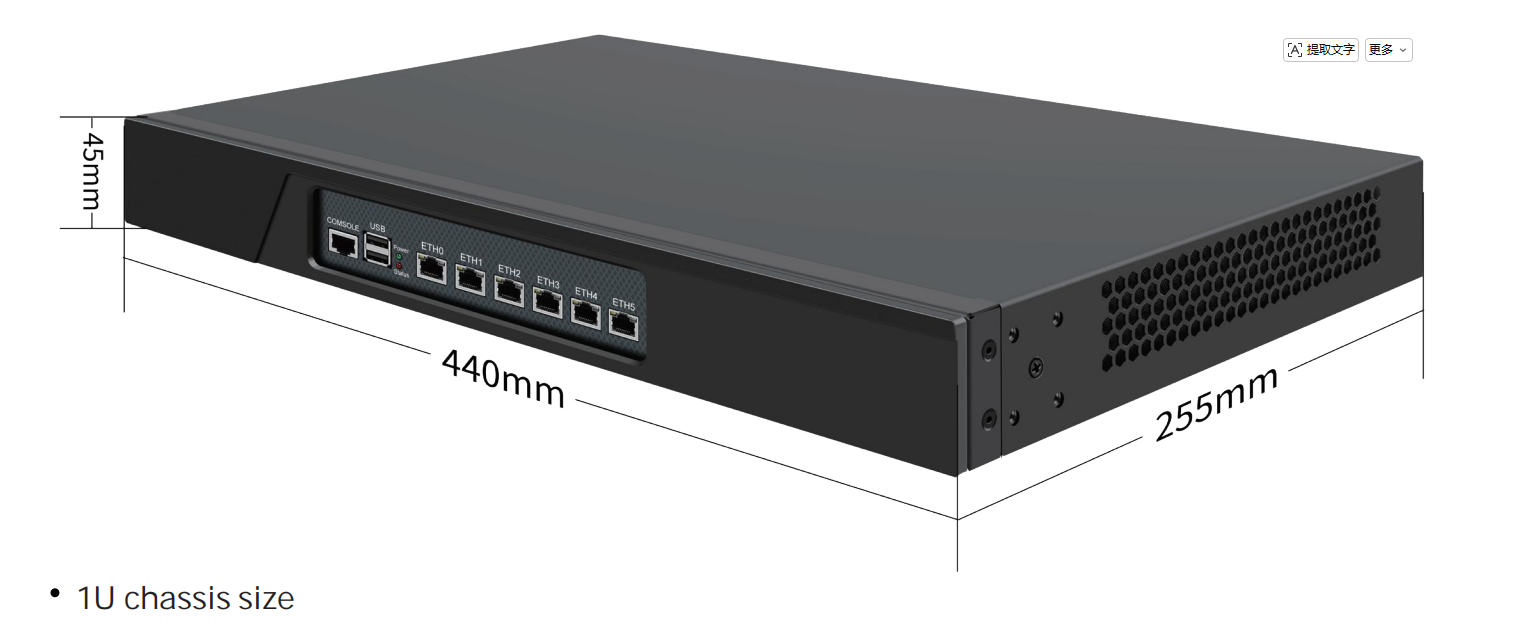

Dimension: 1U(440mm*255mm*45mm)
Working Temperature: 0℃~60℃
Storage Temperature: -10℃~70℃
Working Humidity: 10%~90%
Storage Humidity: 5%~95%, non-condensing
OS:Windows XP / 7 / 10 / 11,Windows Server , Linux
