Features

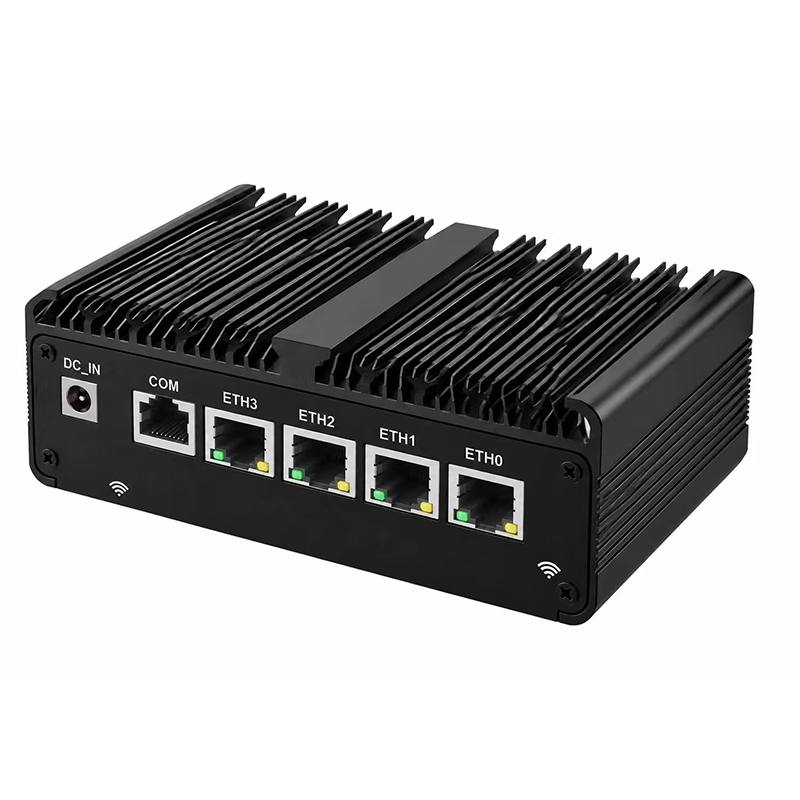

SII-H30W-N150-4L is a compact fan-less Firewall Mini PC powered by Intel N150 quad-core four-thread processor (6W TDP) with Intel HD Graphics 600. It adopts full-aluminum passive-cooling chassis sized 138×125×48 mm, supporting single-slot DDR5-4800 memory up to 16GB. Desktop and wall-mount installation are available.
It features 4×Intel I226V 2.5GbE LAN ports with Wake-on-LAN & PXE boot, HDMI + DP dual 4K@60Hz display outputs, 1×RS232/485 COM port, multiple USB interfaces and dual SIM slots for 4G/5G. Storage includes M.2 Key-M 2280 NVMe SSD and SATA3.0. Mini-PCIe and M.2-2242 slots support WiFi, 4G and 5G module expansion. It uses DC 12V power input and supports hardware watchdog reset.
Compatible with Windows 10/11 and mainstream Linux systems, this unit operates stably from -20℃ to 60℃. It is ideal for multi-network gateway, network security and edge computing applications.
Details

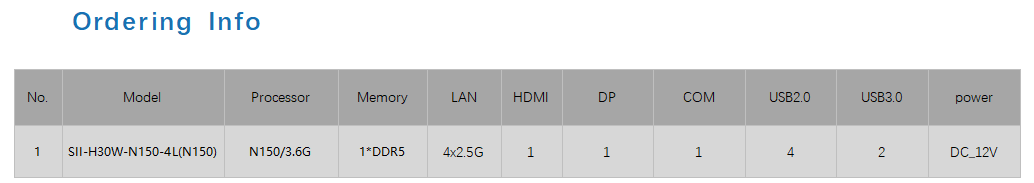

Model No.: SII-H30W-N150-4L(N150)
Chassis:
Structure: All materials are made of aluminum, fanless cooling structure
Dimension: 138 x 125 x 48mm (L*W*H)
Color: Black
Installation: Support Desktop / Wall-mounted
Motherboard:
Processor： Integrates Intel® Alder Lake-N N150 /3.6GHz quad-core, quad-threaded processor; TDP: 6 W
Chipset: Integrates Intel® HD Graphics 600
Memory :1x SO-DIMM slot, supports 4800MHz DDR5 16GB memory

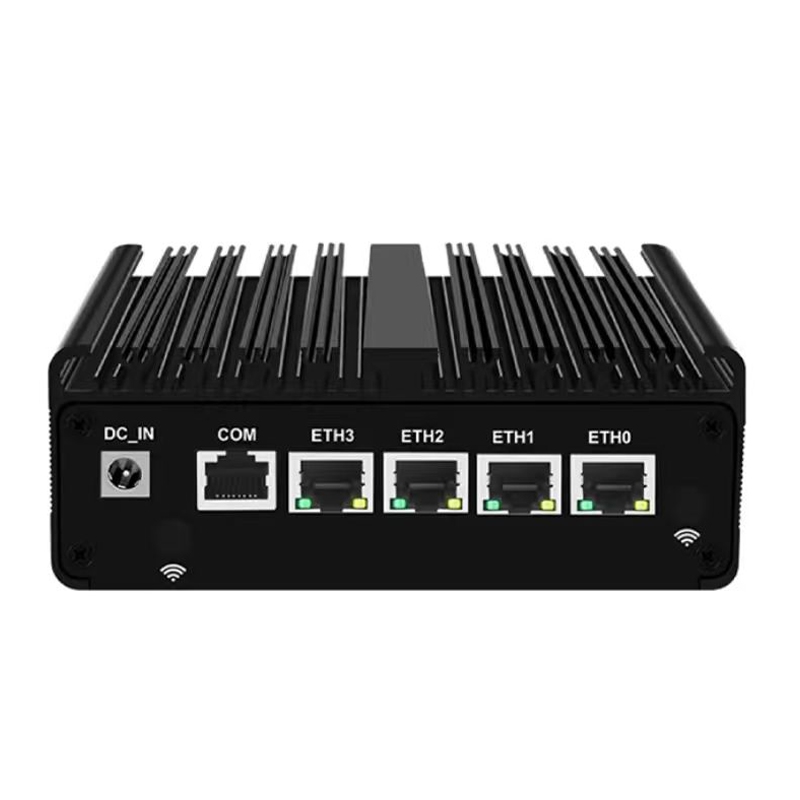

Front I/O:
Power: 1x DC Jack 12V (5.5 x 2.5 mm)
COM: 1x RS232/485
LAN :4x I226V 2.5GbE , support network wake-up / PXE functions

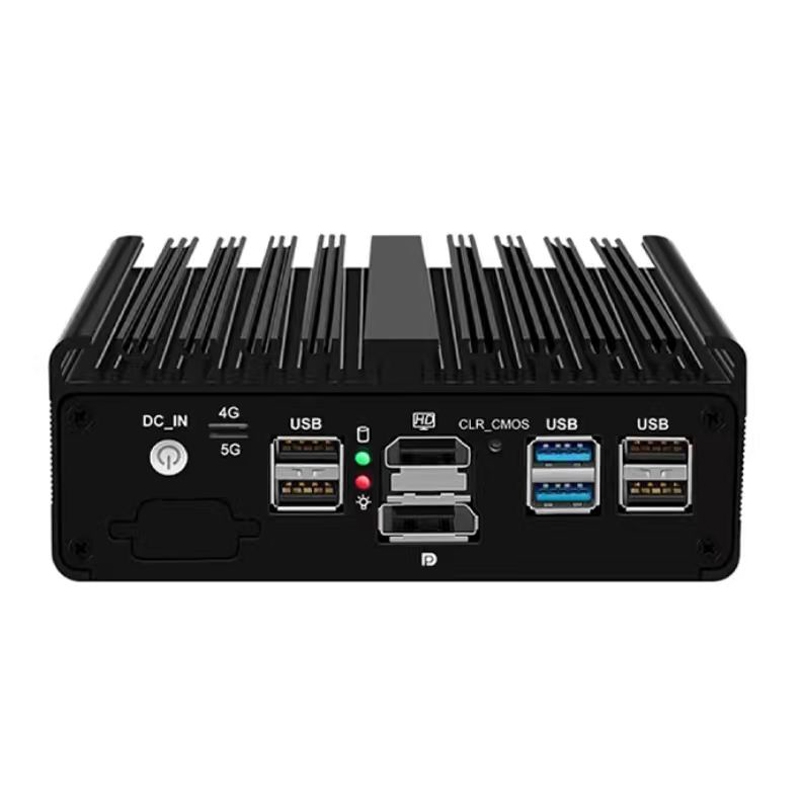

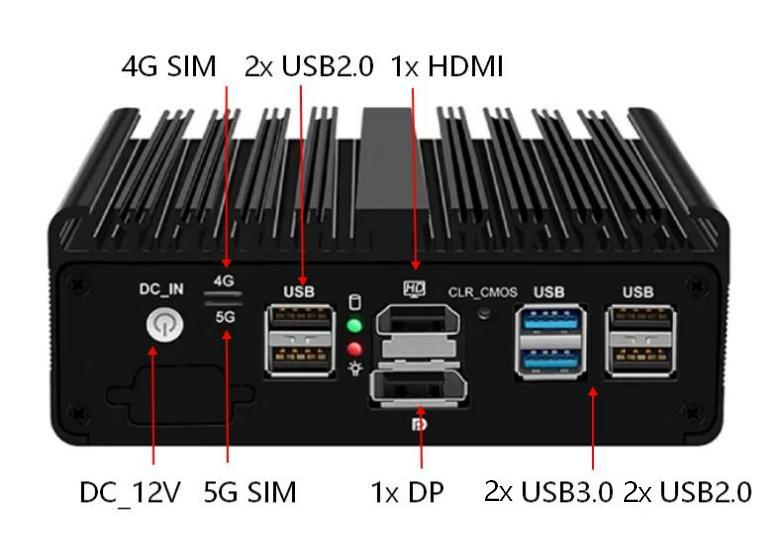

Rear I/O:
Power: 1x Power Button
Display: 1x HDMI, 1x DP, supports dual 4K / 60Hz
SIM: 1x 4G SIM slot, 1x 5G SIM slot
USB: 4x USB 2.0, 2x USB 3.0 (5Gbps)
LED: 1x HDD LED
CLR_CMOS: 1x CLR_CMOS
Storage:
SSD: 1x M.2 slot, supports Key-M, 2280 NVMe PCIe x4 SSD
SATA: 1x SATA 3.0 slot
Expansion:
PCIe:
1x MINI PCIe slot, supports 4G / Wi-Fi /3G
1x M.2 2242 NVMe SSD, supports 5G module
O/S :
Windows: Windows 10/11
Linux: Ubuntu / Debian / CentOS, etc.
Watchdog: Support hardware reset function (level 256, 0~255 seconds)
Power Supply:
Power supply: External power adapter
Voltage input: DC_12V
Reliability:
Working Temp.: -20℃~60℃
Storage Temp.: -20℃~70℃
Relative Humidity: 5%—95% relative humidity, non-condensing
Working Vibration: 0.5 grms/5—500Hz/random/operating
