Overview
This firewall mainboard adopts Intel® HM86 chipset, supporting Intel® PGA 946 4th Gen Haswell processors and integrated Intel® HD Graphics with VGA display. Equipped with 1*DDR3L SODIMM slot (max 8GB) and 6Intel® I210AT Gigabit Ethernet ports, the firewall mainboard ensures smooth data processing and multi-network connection for security tasks.
Boasting rich expansion interfaces (SATA3.0/mSATA3.0/Mini-PCIe/M.2/PCIE2.0 X8) and peripheral ports (USB3.0/2.0/COM/SIM), the firewall mainboard enables flexible functional expansion. It supports Watchdog function and DC 12V power input, guaranteeing 24/7 stable operation of the firewall mainboard.
Applicable Scope
This firewall mainboard is a reliable core for entry-level firewall appliances, SMB network security gateways and lightweight industrial edge security devices.

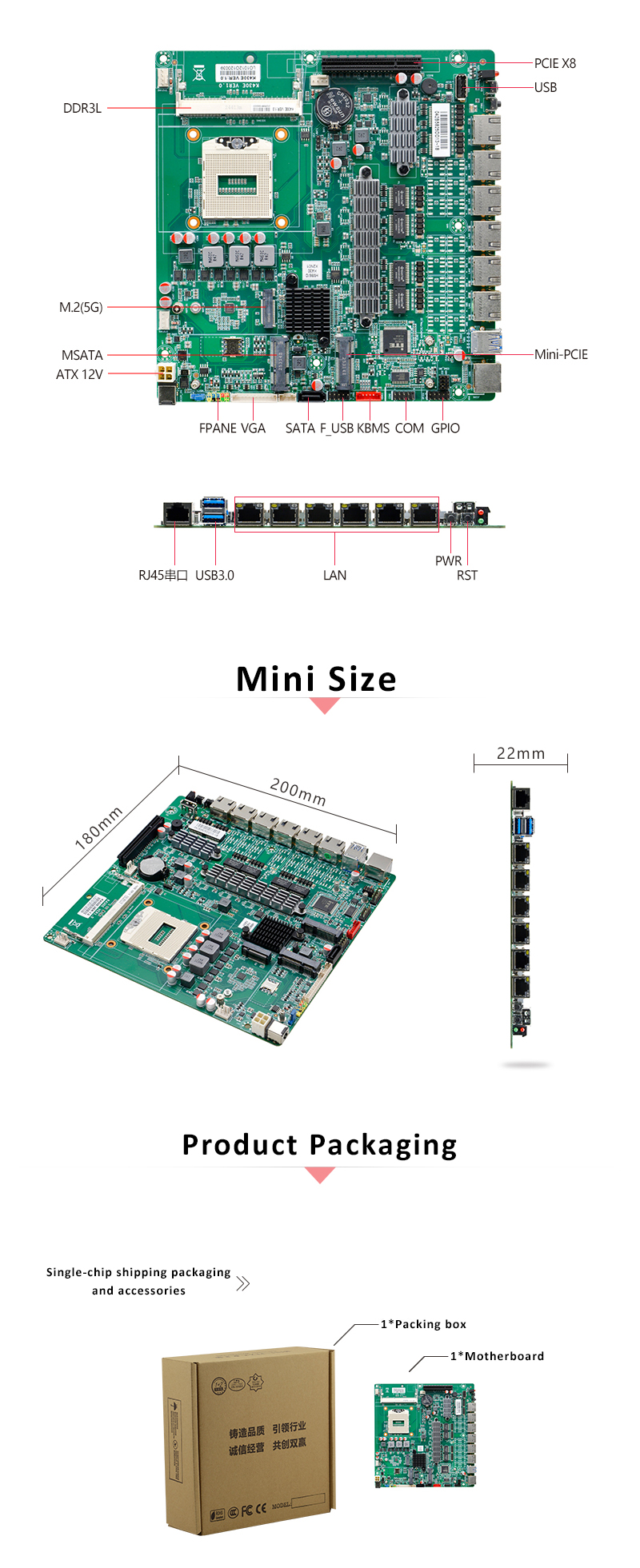

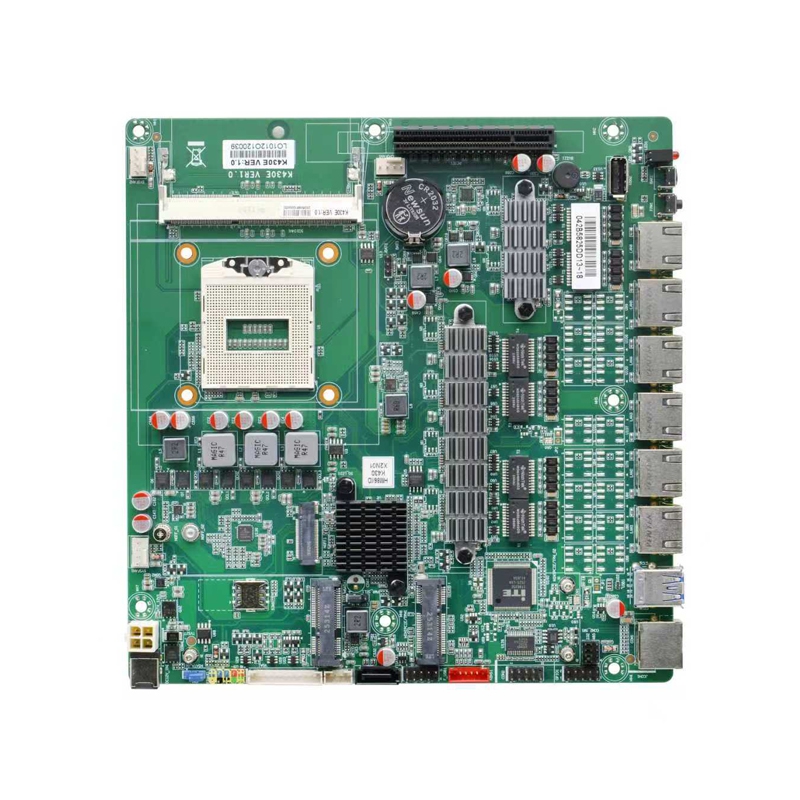

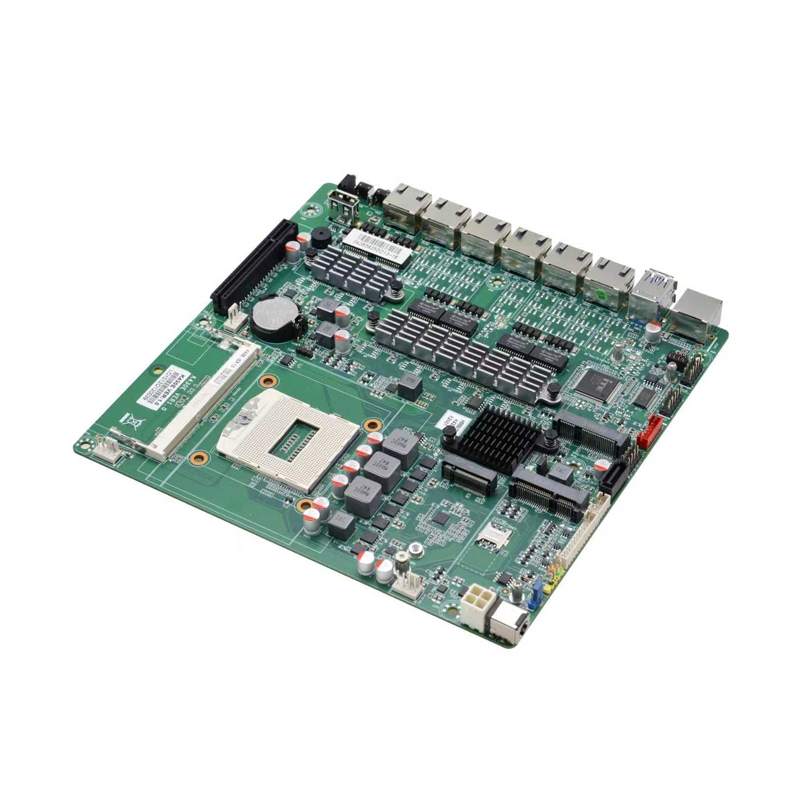

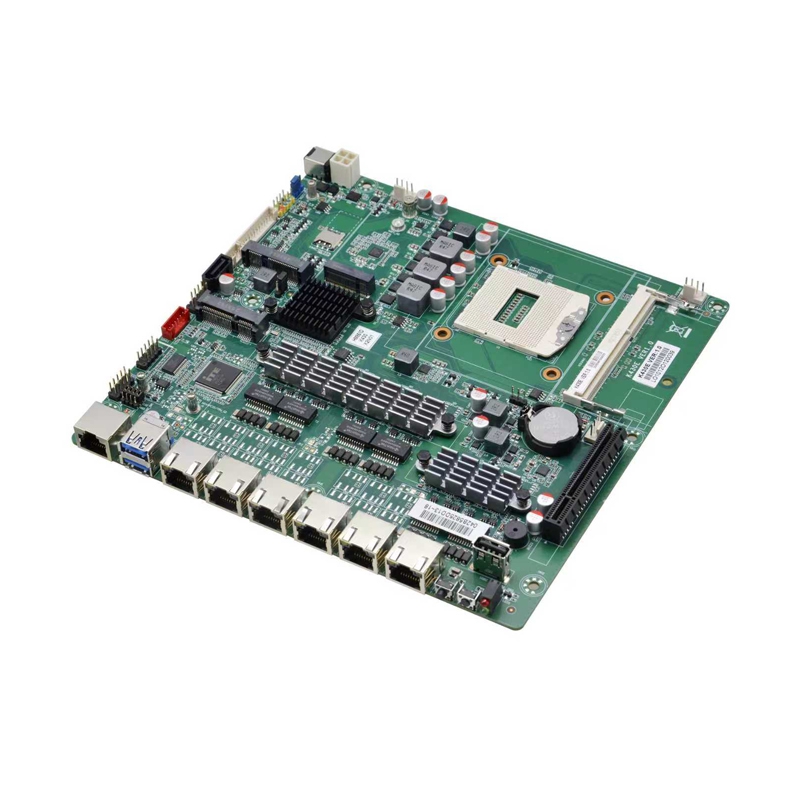

Detail Display
Product Description
Model No.: K430E VER:1.0
Processor: Support Intel®PGA 946 Intel® haswell 4th gen Celeron/Pentium/Corei3/i5/i7 processor
Chipset: Adopt Intel®HM86 high-speed chipset
Memory: 1* DDR3L SODIMM memory slot, support 1600/1333MHz 1.35V memory, up to 8GB
Graphics: Integrated Intel® HD Graphics, 1* VGA
Network: 6* Intel I210AT Gigabit network, support wake-up / PXE function
Storage:
1* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps
1* MSATA3.0, supports Intel protocol SSDs with transfer speeds up to 6Gbps
Expansion slots:
1* Mini-PCIe slot, supports WIFI/TPM-4COM modules. TPM-4COM functionality requires BIOS modification
1* M.2 slot, supports M.2 Key B 2242/2252 5G modules
1* PCIE2.0 X8

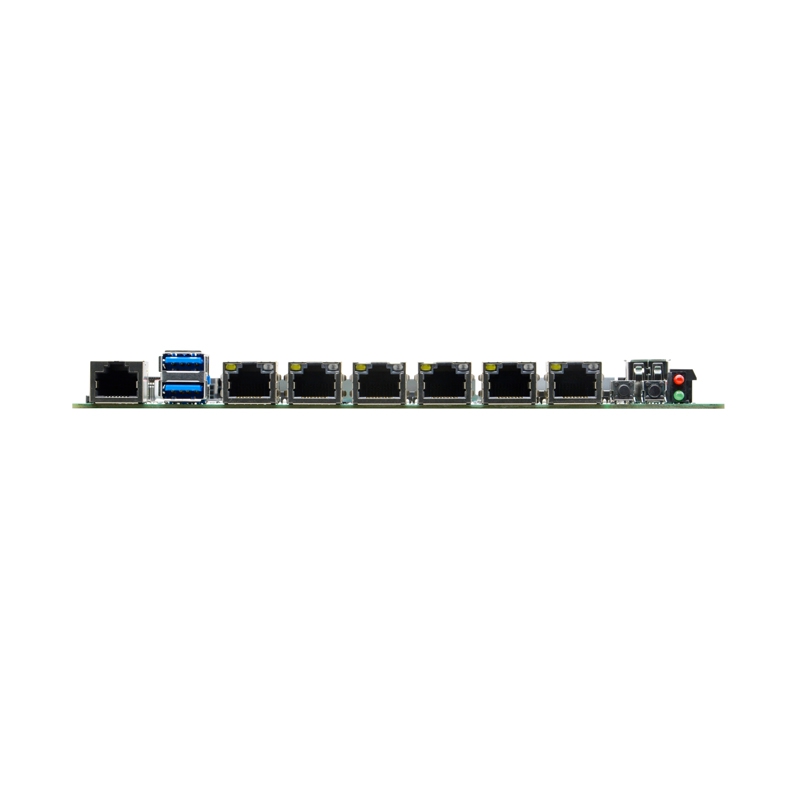

Rear I/O interface:
1* RJ45 serial port (shared with 2* 5-pin serial headers)
2* USB 3.0 interface (5Gbps)
6* RJ45 Gigabit network interface
1* Power switch, 1* One-key recovery
1* Dual-layer LED indicator (red on top, green on the bottom; upper layer for hard drive, lower layer for power)
Built in I/O interface:
1* JVGA interface (1*12pin, PH=2.0mm)
1* RS232 serial interface (2*5pin, PH=2.54mm, supports RS485)
1* Single-layer vertical USB 2.0 interface (2*USB 2.0 interfaces, 2*5pin, PH=2.54mm)
1* PS/2 keyboard/mouse interface (1*6pin, PH=2.0mm)
1* Front panel power button and indicator light interface (2*5pin, PH=2.54mm)
1* Hard drive power interface (1*4pin, PH=2.0mm)
1* DC12V power interface (supports 12V power input, side view)
1* 4pin ATX power interface (can be used as a 12V input power interface)
1* SIM card slot
Fan connector: 1* 4-pin CPU smart fan connector, 2* 4-pin system fan connectors
GPIO: Support 4-way input and output GPIO
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
OS: Windows® 7/ 8.1/ 10/Linux
Power type: DC 12V
Working Temp.: -20℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)
Dimension: 200mm x 193mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
