Features
This firewall product is powered by Intel Gemini Lake processors and features six Intel i226-V 2.5Gbps LAN ports for high-speed data forwarding. It supports up to 32GB DDR4 memory, SATA and mSATA storage, VGA display, and an M.2 B_Key slot for 4G/WiFi expansion. Built-in GPIO, watchdog, Wake-on-LAN, PXE, Console, and COM ports ensure easy management. Available in Desktop, 1U, and 2U form factors with wide voltage support and 0°C~60°C operating temperature.
This firewall product is ideal for SMB perimeter security, branch office access, campus gateway, and SD-WAN edge routing. The six 2.5G ports support UTM, NGFW, and load balancing. With three form factors and M.2 wireless expansion, it suits temporary offices, retail stores, and remote monitoring. Compatible with Windows and Linux, it integrates easily with open-source firewall platforms.
Product Description
Main:
CPU: Intel® N4000 / J4105 / J4125
Code Name: Gemini Lake
Memory: 2 * SO-DIMM DDR4 2400/2666/3200MHz Max 32G
LAN:
IC: Intel® Ethernet Controller i226-V
Speed: 2.5G adapting
Interface: 6* 2.5Gbps Ethernet Controller, RJ45
Support NetWork WakeUp / PXE
Storage: 1* SATA / 1* mSATA
Display: 1* VGA
BIOS: AMI UEFI BIOS Legacy
USB:
1* USB2.0 / 1* USB3.0
2* USB2.0 / 2* USB2.0(Array pin)
Power Supply:
Voltage: 100-240V~50/60Hz
Mainboard: ATX 4Pin 12V / DC-12V 55mm*25mm
GPIO: 8* programmable GPIO
Watchdog: 255 Levels, 0-255 Seconds
COM: 1* RJ45 Console / 1* COM (Array pin)
4G/WiFi: 1* M.2 B_Key
Dimension:
Desktop: 210mm*201mm*45mm

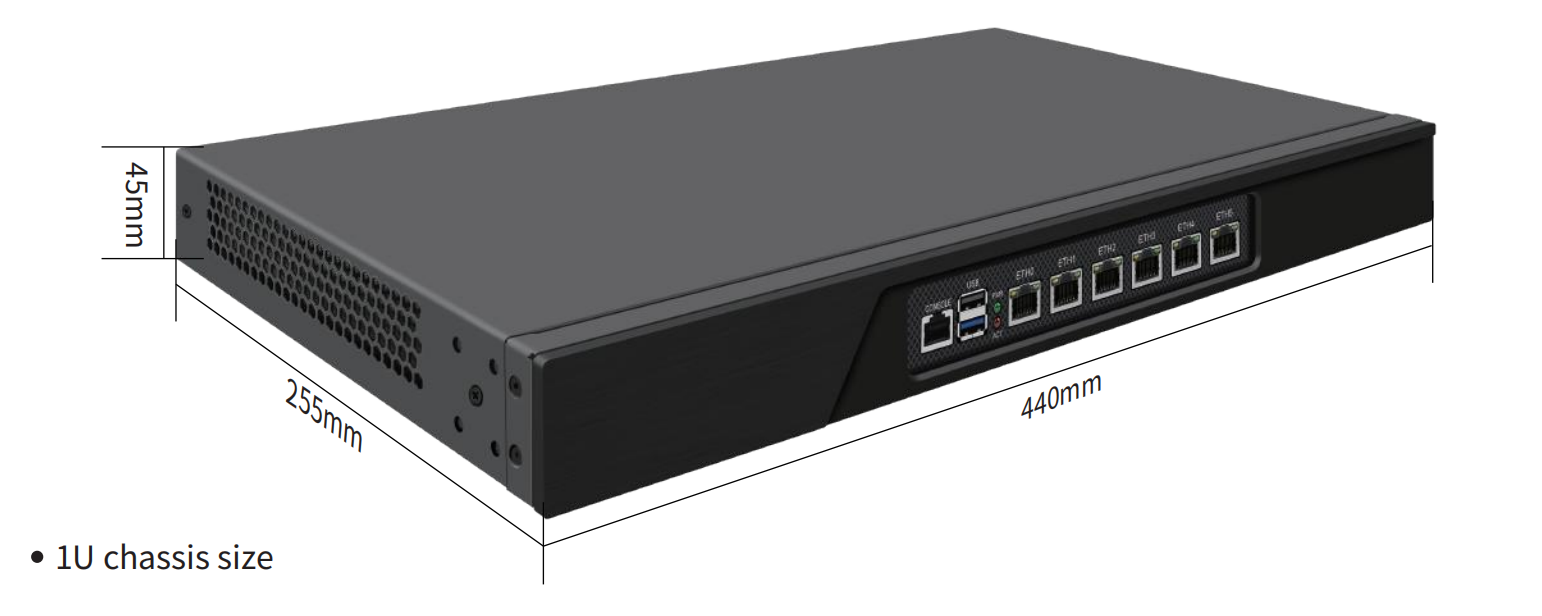

1U: 440mm*255mm*45mm
2U: 435mm*405mm*90mm)
PCB: 200mm(W) * 180mm(L)
Working Temperature: 0℃~60℃
Storage Temperature: -10c~70℃
Working Humidity: 10%~90%
Storage Humidity: 5%~95%, non-condensing
OS: Windows10 / 11,Windows Server, Linux
Customization:
Ethernet: 6; Intel 82574L / Intel i210-AT / Intel i211-V
POWER SOURCE: 2; LAN1-LAN4
.png)
.png)
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
.jpg)
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
