Features

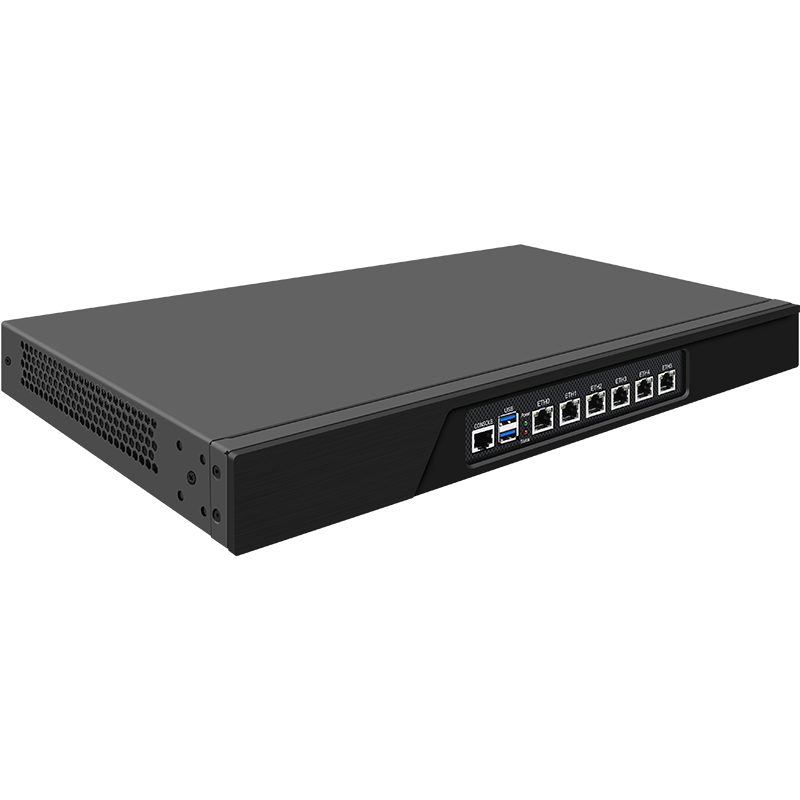

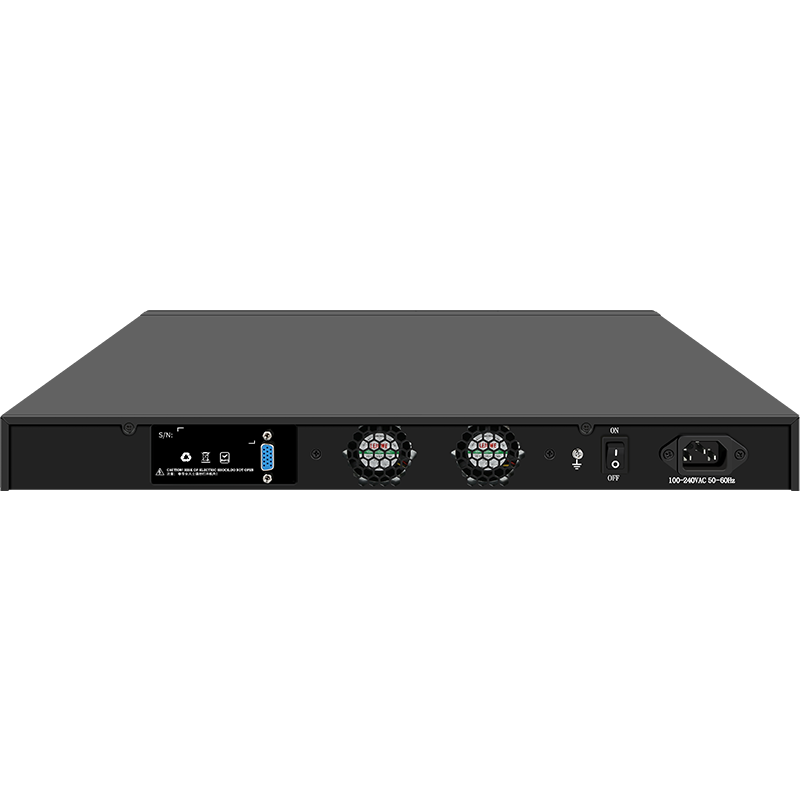

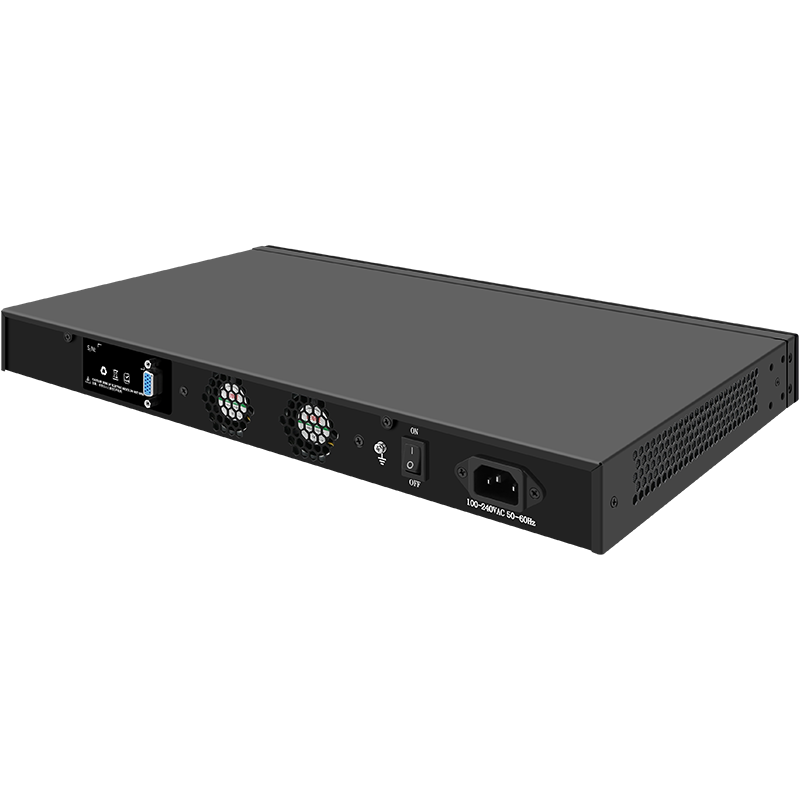

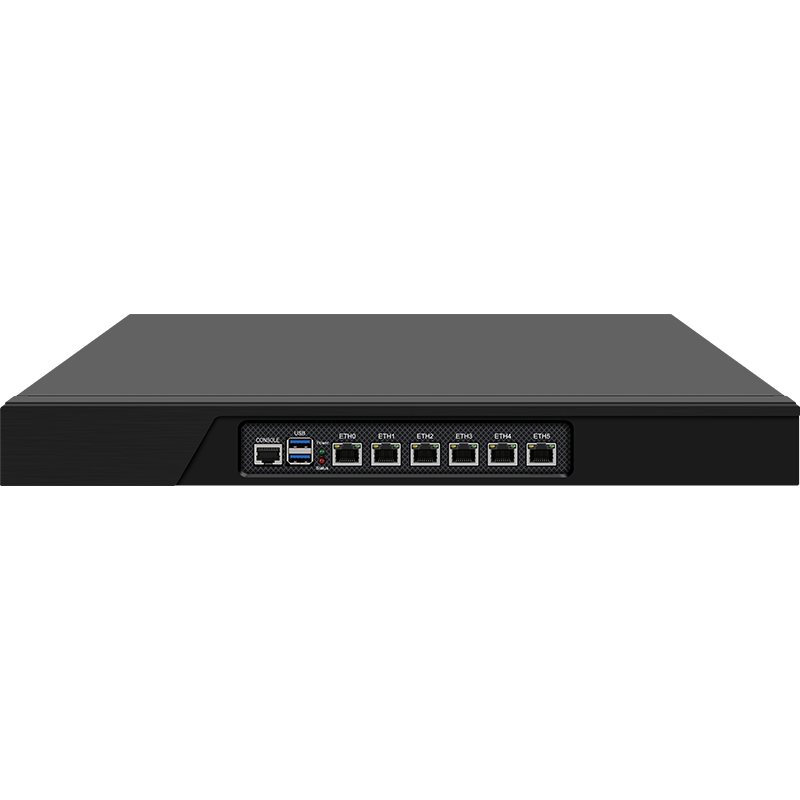

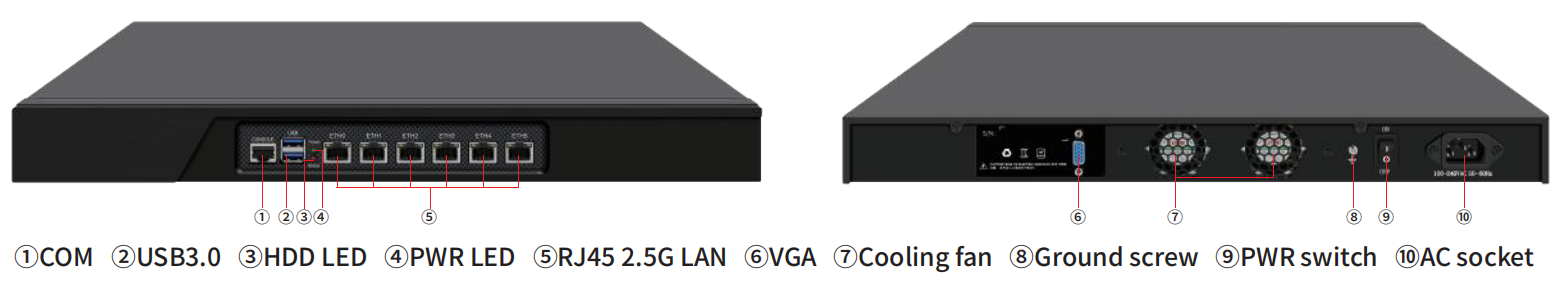

This 1U rackmount
hardware firewall
is powered by Intel Jasper Lake processors and features six Intel i226-V 2.5Gbps LAN ports for high-speed data forwarding. It supports up to 32GB DDR4 memory, mSATA and SATAIII storage, VGA/HDMI display, two MINI PCIE slots for 4G and WiFi/Bluetooth expansion, plus watchdog, Wake-on-LAN, PXE, and RJ45 Console for easy management. Wide voltage support (100-240V) and 0°C~60°C operating temperature ensure reliable deployment.
This hardware firewall is ideal for SMB perimeter security, branch office access, campus gateway, and SD-WAN edge routing. The six 2.5G ports support UTM, NGFW, and load balancing. With 4G expansion, it suits temporary offices, retail stores, and remote monitoring. Compatible with Windows and Linux, it integrates easily with open-source firewall platforms like OPNsense and pfSense.

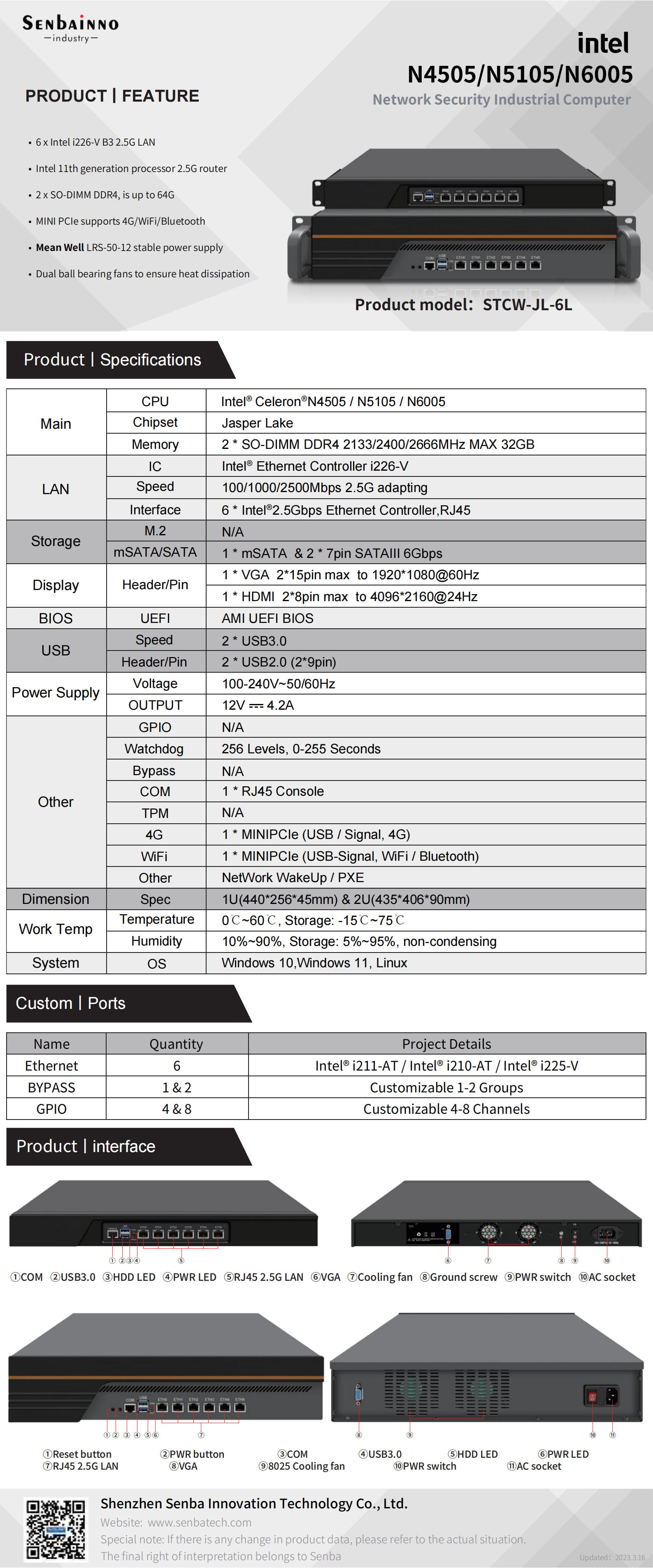

Product Description
Main:
Code Name: Intel® Celeron®N4505 / N5105 / N6005
Popular model: Jasper Lake
Memory: 2* SO-DIMM DDR4 2133/2400/2666MHz MAX 32GB
LAN:
IC: Intel® Ethernet Controller i226-V
Speed: 100/1000/2500Mbps 2.5G adapting
Interface: 6* Intel®2.5Gbps Ethernet Controller,RJ45
Support NetWork WakeUp / PXE
Storage: 1 * mSATA & 2 * 7pin SATAIII 6Gbps
Display:
1* VGA 2*15pin max to 1920*1080@60Hz
1* HDMI 2*8pin max to 4096*2160@24Hz
BIOS: AMI UEFI BIOS
USB: 2* USB3.0; 2* USB2.0 (2*9pin)
Power Supply:
Voltage:100-240V~50/60Hz
Output: 12V 4.2A
Watchdog: 256 Levels, 0-255 Seconds
COM: 1* RJ45 Console
4G: 1* MINIPCIe (USB / Signal, 4G)
WiFi: 1* MINIPCIe (USB-Signal, WiFi / Bluetooth)
Dimension:
1U: 440*256*45mm
2U: 435*406*90mm
Working Temperature: 0℃~60℃
Storage Temperature: -15℃~75℃
Working Humidity: 10%~90%
Storage Humidity: 5%~95%, non-condensing
OS:Windows 10,Windows 11, Linux
Customization:
Ethernet: 6*(Intel® i211-AT / Intel® i210-AT / Intel® i225-V)
BYPASS: Customizable 1-2 Groups
GPIO: Customizable 4-8 Channels
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
.jpg)
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
