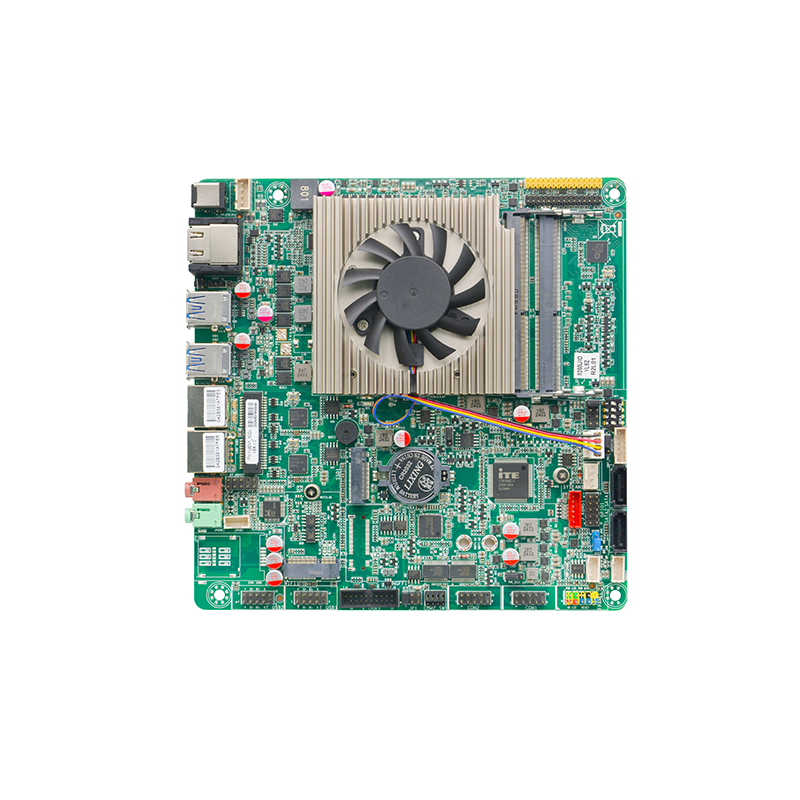

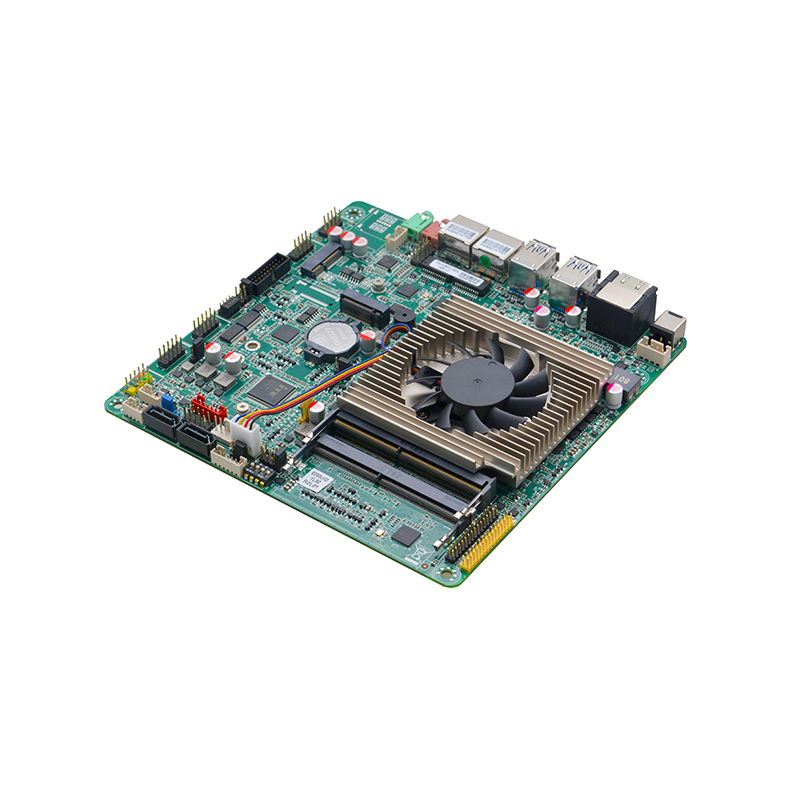

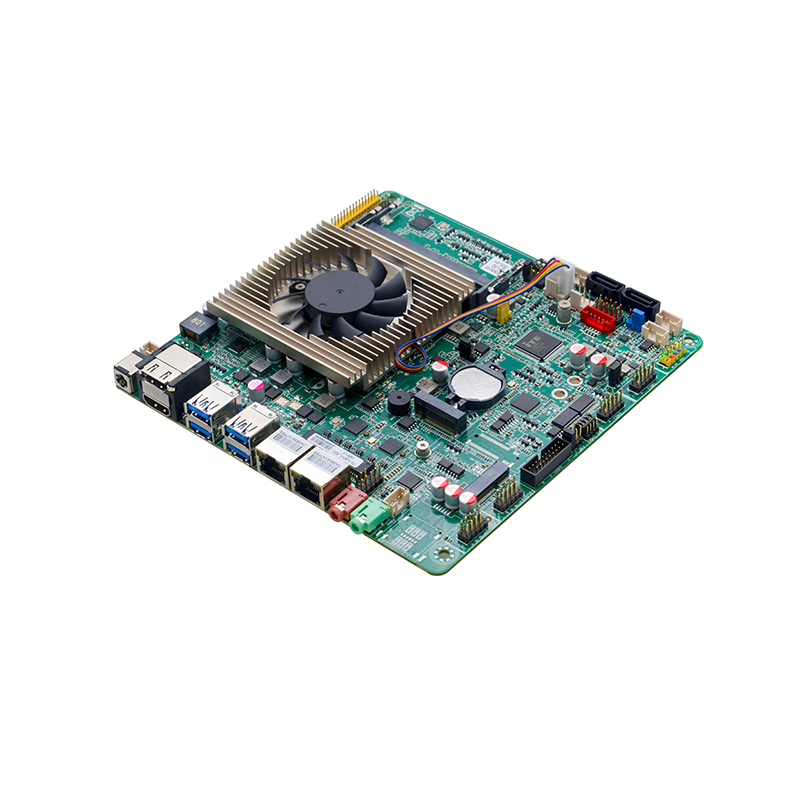

This ultra-compact Thin ITX motherboard integrates Intel® Core™ i5-8260U processor (4C/8T, 1.6GHz) in a space-saving Thin ITX form factor (170×170mm), delivering optimal performance-per-watt for industrial applications requiring reliable computing in constrained spaces.
Key Specifications:
✔ Efficient Processing: Intel i5-8260U with 15W TDP
✔ Multi-Display Support: eDP + dual HDMI1.4 + LVDS (quad-display capable)
✔ Memory Configuration: Dual-channel DDR4 2400MHz (max 64GB)
✔ Industrial-Grade Connectivity:
Dual Intel® GbE ports
10×USB (including USB3.1 Gen2)
2×COM ports (RS232/485 configurable)
✔ Storage & Expansion:
2×SATA3.0 + 1×M.2 NVMe
Dual M.2 slots (WiFi 6 & 5G modules)
✔ Power Design: 12V DC input
Product Description
Model No.: ITX-YL82V1_I522L VER:1.0
Processor:
Integrated 8th gen Intel®I5 8260U 1.6GHz quad-core eight-thread processor, TDP 15W
Compatible with Intel® Whiskey Lake-U/Comet Lake-U/Coffe Lake-U 8th/10th Celeron /Pentium/I3/I5/I7 low-power processors
Chipset: SOC
Memory: 2x SODIMM slot, supports 2400MHz DDR4 memory up to 64GB
Display:
Integrated Intel® UHD Graphics, supports DirectX 12 OpenGL 4.5, supports 4K
2x HDMI1.4 interface, the highest resolution supported is: 4096x2304@24Hz
1x Support dual-channel 24bit LVDS interface
1x EDP interface, choose one of the two with LVDS through pop-up
Network: 2x Intel I226 Gigabit network , supports network wake-up and PXE functions
Storage:
2x SATA3.0 hard disk interface, transmission speed up to 6Gbps
1x M.2 slot, supports M.2 2260/2280 NVME PCIE x4/SATA adaptive standard SSD
Audio:
Integrated ALC897 7.1+2-channel high-fidelity audio controller, supports MIC, Line_out, and power amplifier
Support amplifier 4Ω 3W speaker
Expansion slots:
1x M.2 slot, supports M.2 Key E 2230 WIFI module
1x M.2 slot, supports M.2 Key B 2242/4452 5G module (reserved, optional)

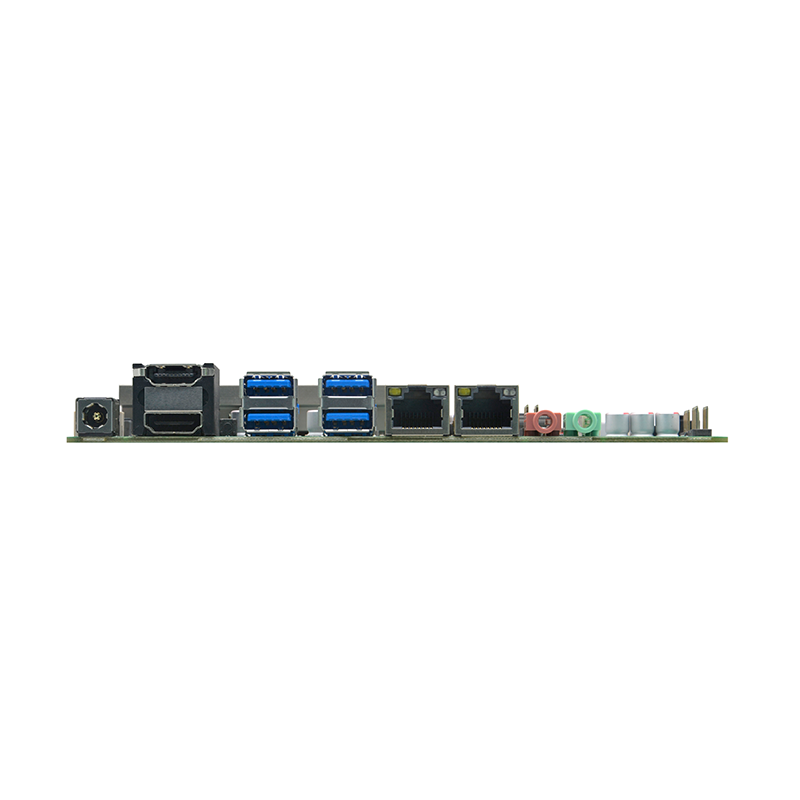

Backplane I/O interface:
4x USB3.0
2x HDMI1.4
2x RJ45 Gigabit network interface (one network port is listed with USB2.0)
1x Line-out(green), 1x MIC(red)
1x DC12V power interface, supports 12V power input
1x SIM card slot (reserved, optional)
1x Clear CMOS button
Built in I/O interface:
1x LVDS interface 2x 15pin, supports dual channel 24bit
1x LVDS backlight power supply interface 1x 6pin
1x EDP interface 2x 15pin, choose one of the two with LVDS through pop-up
2x RS232 serial interface, COM2 supports RS485/422 function
1x PS/2 keyboard and mouse interface (red) 1x 6Pin
4x USB2.0 interface 2x 5pin
2x USB3.0 interface 2x 10pin
1x Front audio interface 2x 5pin
1x Front panel switch button and indicator light interface 2x 5Pin
2x Hard drive power supply interface 1x 4pin
1x Power amplifier interface 1x 4pin
1x DC power interface 1x 4pin (can be used as 12V input power interface)
Fan: 1x 4pin CPU fan interface; 1x 4pin system fan interface
GPIO : Supports four-in and four-out GPIO functions
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (level 256, 0~255 seconds)
OS: Windows 10 /11/Linux
Power supply: DC 12V
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95% ( relative humidity, non-condensing)
Dimension: 170mm x 170mm
