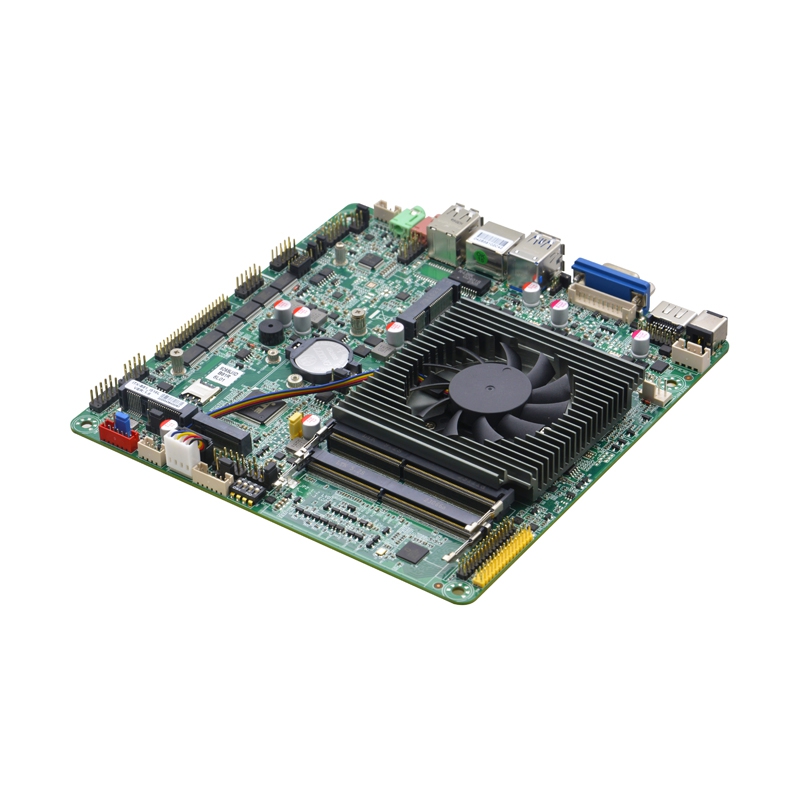

Overview
This ITX-CB81_I516L VER:1.6(8265U) industrial motherboard features Intel Whiskey Lake SOC with 8th Gen i5-8365U quad-core processor and UHD Graphics. It supports dual DDR4 up to 64GB, VGA+HDMI+LVDS, Gigabit LAN (dual optional), SATA3.0, MSATA, M.2 NVME, 6x USB2.0, 2x USB3.0, 6x COM (RS232/485/422), Mini-PCIE for WiFi/4G, watchdog timer, and DC 12V power input.

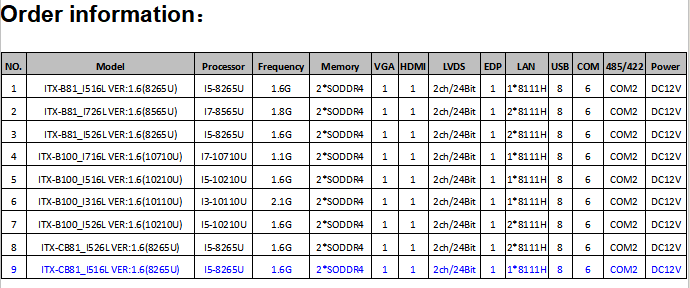

Product Description
Model No.: ITX-CB81_I516L VER:1.6(8265U)
Processor:
Integrated 8th gen Intel®I5-8265U 1.6GHzQuad core Quad thread processor, TDP 15W
Integrated Intel®Whiskey Lake-U/Comet Lake-U 8th/10th Celeron/Pentium/I3/I5/I7 low power processor
Chipset: SOC
Memory: 2*DDR4 SODIMM memory slot, support 2400MHz memory, up to 64GB
Display:
Integrated Intel® UHD Graphics , support DirectX 12 OpenGL 4.5, support 4K
1*VGA, the highest supported resolution：1920X1200@60Hz
1*HDMI1.4, the highest supported resolution：4096x2304@24Hz
1* Supports dual-channel 24-bit LVDS interface, 1* EDP, selectable between LVDS and EDP via a jumper, defaults to LVDS.
Ethernet :1* RTL8111H Gigabit Ethernet,supports Wake on LAN/PXE function
Storage:
1* SATA3.0, the transfer rate is up to 6Gbps
1* MSATA, SSDs that support Intel protocol, the transfer rate is up to 6Gbps
1* M.2, supports M.2 2260/2280 NVME PCIE x4/SATA adaptive standards SSD
Audio:
Integrated ALC897 7.1+2 channel high-fidelity audio controller, supporting MIC, Line_out, and power amplifier.
It is recommended to use 4 Ω 3W horn for power amplifier
Expansion Slot: 1* Mini-PCIE, supports WIFI/4G module

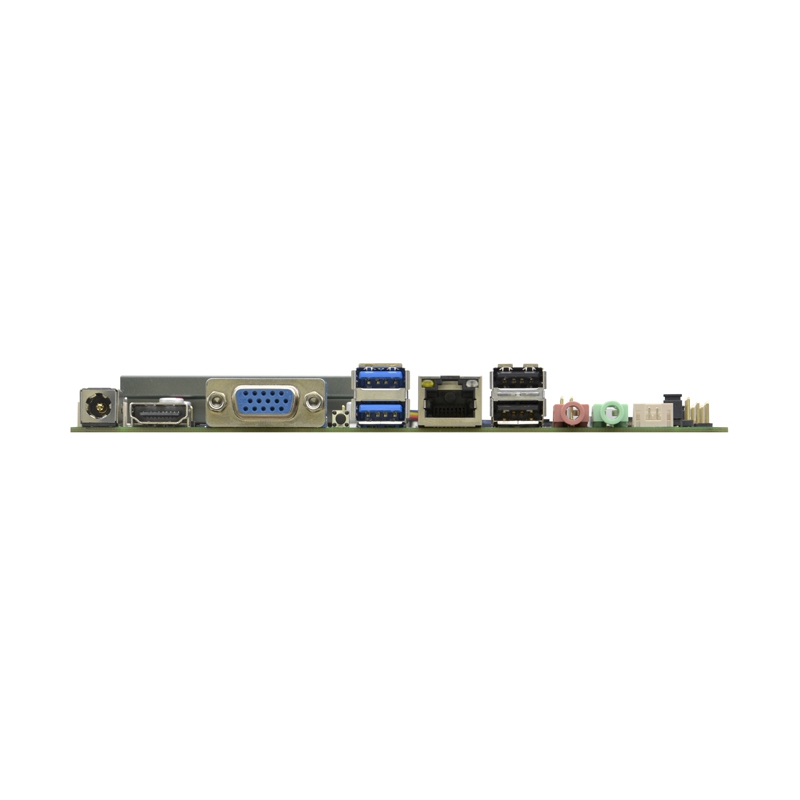

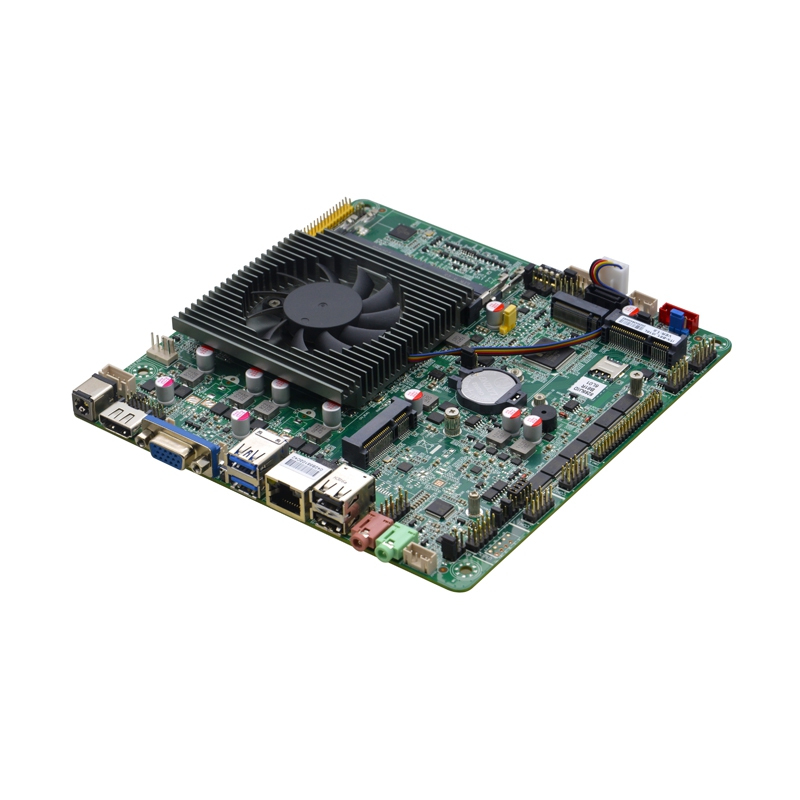

Backplane I / O interface:
2* USB3.0
1* HDMI
1* DB15 VGA
2* RJ45 Gigabit Network Interface
1* Line-out(green), 1* MIC(red)
1* DC12V power interface, supports 12V power input

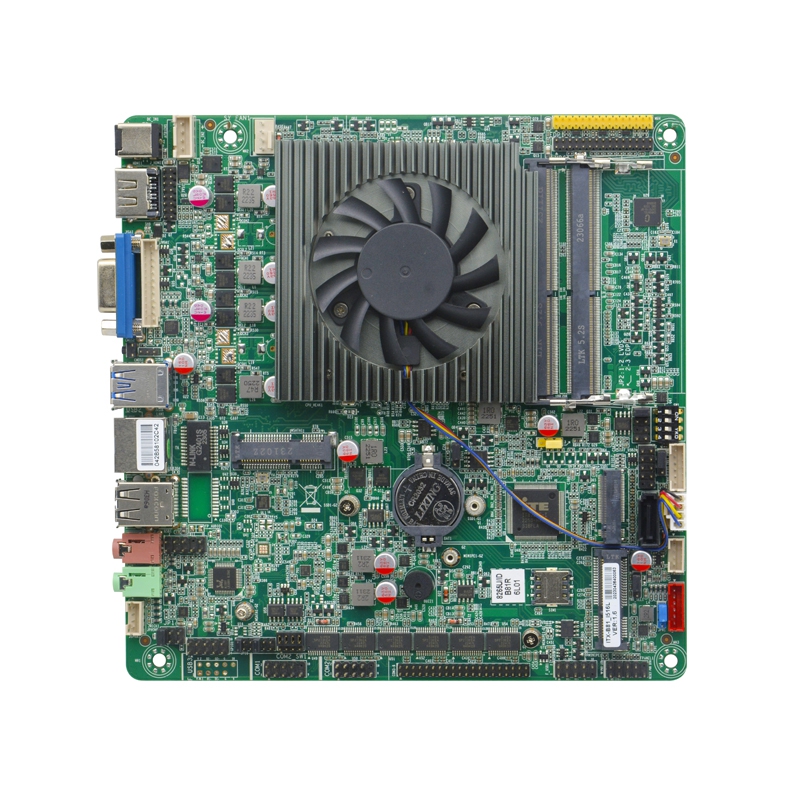

Built in I / O interface:
1* JVGA1, 1*12pin (same signal as DB15)
1* JHDMI, 2*10pin,same signal as HDMI interface
1* LVDS, 2*15pin, support dual channel 24bit
1* EDP interface (yellow) 2* 15pin, selectable between LVDS and EDP via jumper, LVDS is the default.
1* LVDS screen backlight power supply interface 1*6pin
6* RS232 serial ports, COM1/2 supports power-on function on pin 9, and COM2 supports RS485/422 functionality.
1* PS/2 keyboard and mouse interface (red) 1*6Pin
6* USB2.0, 2*5pin ,
1* Front audio interface, 2*5pin
1* Front panel function button and indicator light interface, 2*5Pin
1*Hard disk power supply interface, 1*4pin
1*Power amplifier interface, 1*4pin
1* DC power interface, 1*4pin, supports 12V Power input and output
1* SIM
Fan interface: 1* 4-pin CPU smart fan connector, 1* 4-pin system fan connector
GPIO: Support 4-way input and output GPIO
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0 ~ 255 seconds)
Power Type: DC 12V
OS: Windows 10 /11/Linux
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% (Relative humidity, non condensing)
Dimension: 170mm x 170mm
