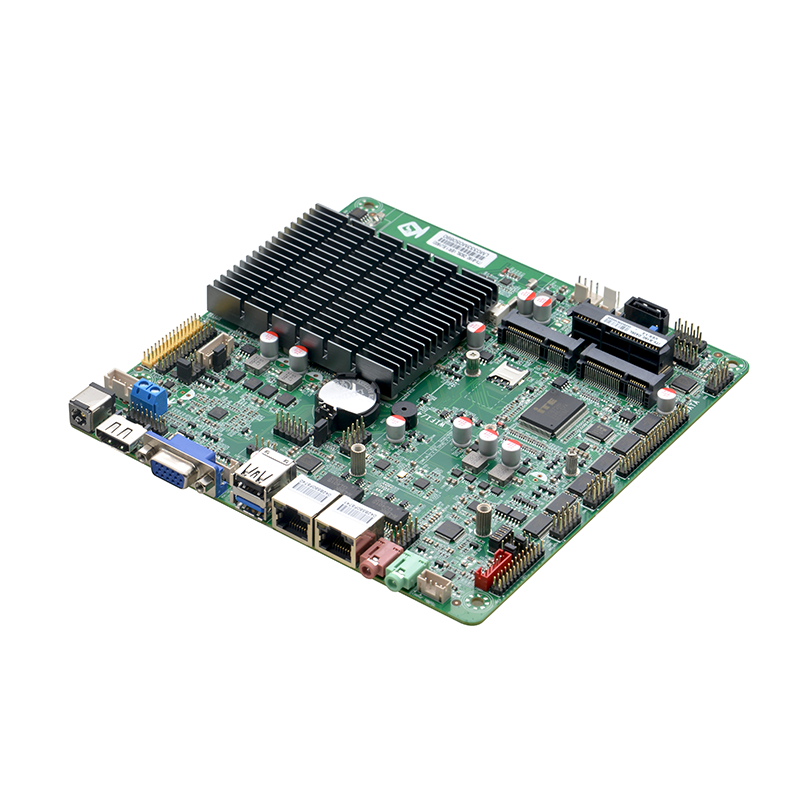

This cost-effective Mini Thin ITX motherboard integrates Intel‘s Bay Trail J1900 processor (4C/4T, 2.0GHz) in a compact Mini Thin ITX form factor (170×170mm), delivering reliable quad-core performance with legacy industrial interfaces in fanless operation.
Key Features:
✔ Quad-Core Efficiency: Intel J1900 with HD Graphics (10W TDP)
✔ Multi-Display Support: VGA + HDMI + LVDS (triple output)
✔ Memory: Single DDR3L 1600MHz (max 8GB)
✔ Industrial I/O:
Dual GbE + 9×USB
6×COM (RS232/485) + SIM + LPT + PS/2
✔ Storage & Expansion:
2×SATA2.0 + 1×mSATA
1×mini-PCIe (WiFi/4G)
✔ Rugged Design:
GPIO + Watchdog + 4Ω/3W audio
Fanless dual 12V DC input
Detail Display
Product Description

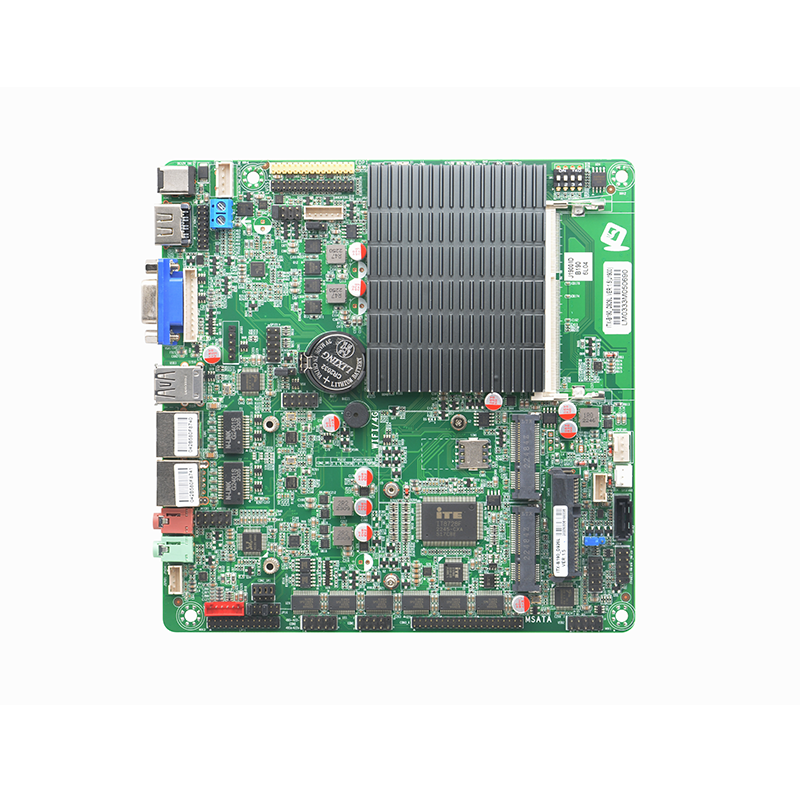

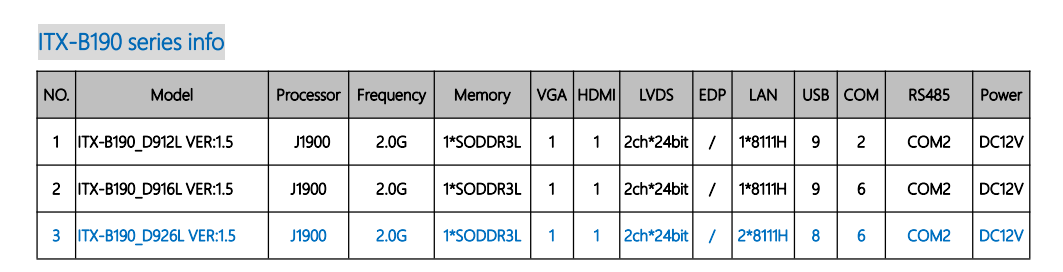

Model NO.: ITX-B190_D926L VER:1.5
CPU: Integrated Intel® J1900/2.00GHz Quad core,TDP 10W
Chipset: Intel® Bay trail SOC
Memory: 1x SODIMM, support 1600/1333MHz DDR3L/1.35V Memory, Up to 8GB
Display: Integrated Intel® HD Graphics
Support 1x VGA, 1x HDMI, 1x LVDS/EDP(Dual channel support 24BIT)
Support VGA+HDMI/ HDMI+LVDS/ VGA+LVDS Synchronous / asynchronous display
LAN: 2x RTL8111H 10/100/1000Mbps Ethernet,Support Wake-on-LAN/PXE
Storage: 1x MSATA slot. Support MSATA SSD, the transfer rate up to 3Gbps.
1x SATA2.0 HDD port(optional)
1x SATA2.0 2.5” notebook hard disk connector (docking port)
Audio: Integrated ALC262 6-Channel output,Support MIC/Line-out
Advise 4Ω 3W loudspeaker
Expansion Slots: 1x Mini-PCIE slot , Support WIFI/3G/4G modules

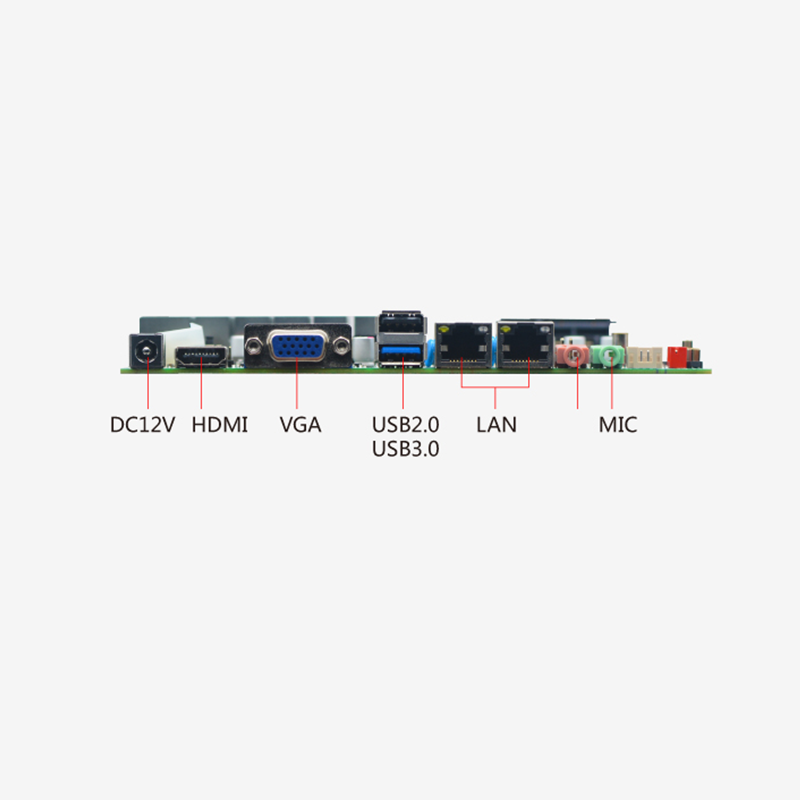

Rear I/O:
1x USB3.0 ; 1x USB2.0
1x HDMI
1x VGA
2x RJ-45
1x Line out（Green）
1x Mic_in （Red )
1x DC_JACK

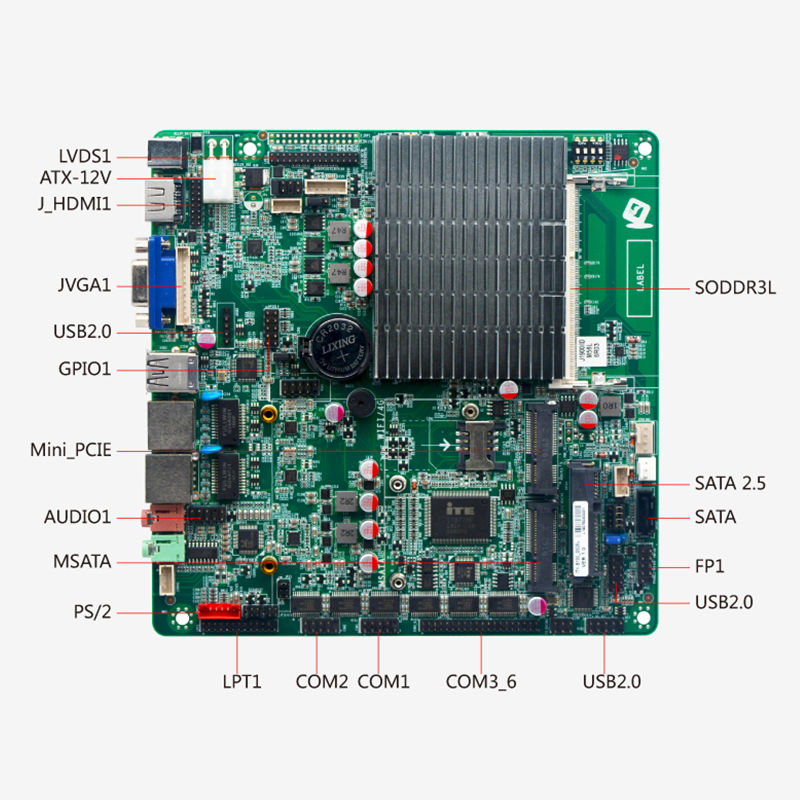

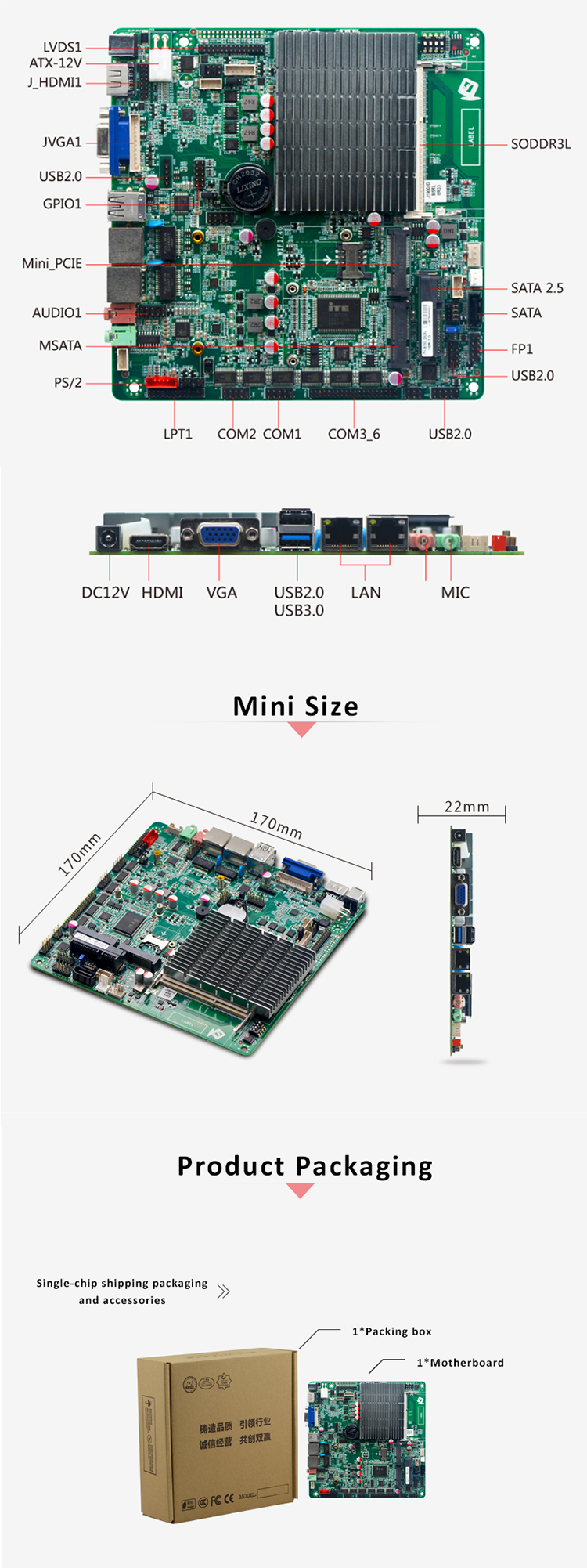

Internal I/O:
1x LVDS (2x 15pin) Dual channel support 24BIT LCD Display
1x LVDS INVERTER (1x 6pin）
1x EDP (1x 15pin)
1x Panel brightness adjust connector 1x 4pin
1x JHDMI (2x 8Pin)
1x JVGA1 (1x 12pin)
6x RS232 COM (pin header; COM3 Support RS485/422)
1x LPT (2x 13pin）
6x USB2.0 (2x 5pin）
1x USB2.0 (1x 5pin）
1x PS/2 (1x 6Pin)
1x AUDIO (Front Audio interface 2x 5pin)
1x SIM Card socket
1x Hard disk power supply interface (1x 4pin)
1x FP1 (2x 5pin Front panel buttons and LED connected)
1x power amplifier (1x 4pin)
1x 4PIN ATX power slot (DC_12V power input/output)
Fan interface: 1x CPU FAN 4pin ; 1x SYSTEM FAN 3pin
GPIO: 1x GPIO (Support 4bit input/output GPIO function)
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Operating System: Windows 7/Windows 10/Linux
Power Input: DC_12V Single power supply
Operating Temp.: -10℃～60℃
Storage Temp. :-20℃～70℃
Humidity: 5%-95%(relative humidity; non-condensing)

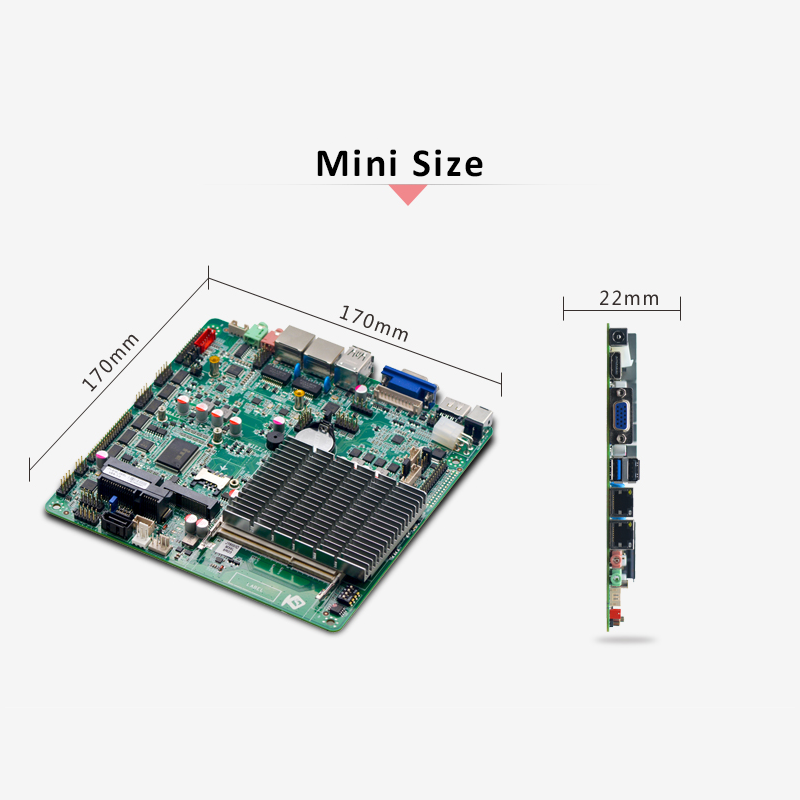

Dimension: 170mm x 170mm
