Overview
This advanced 3.5 inch motherboard utilizes the Intel Elkhart Lake SOC platform (J6412), powered by a 10th Gen Intel Celeron J6412 Quad-Core processor (2.0GHz) with Intel UHD Graphics, delivering superior performance in an ultra-compact industrial form factor.
Key Features:
●Multi-display support: Simultaneous VGA + HDMI + LVDS outputs
●Enhanced memory capacity: 1× DDR4 2400MHz SO-DIMM (up to 16GB)
●Comprehensive industrial I/O:
2× Gigabit Ethernet ports
7× USB ports (including USB3.0)
6× industrial COM ports (RS232/485/422)
SIM card slot for cellular connectivity
●Flexible storage configuration:
1× SATA3.0
1× mSATA 3.0
1× mini-PCIe slot (for WiFi/3G/4G modules)
●Industrial-grade robustness:
Watchdog Timer
GPIO control interface
4Ω/3W audio amplifier
●Low-power operation: 12V DC input
Detail Display
Product Description

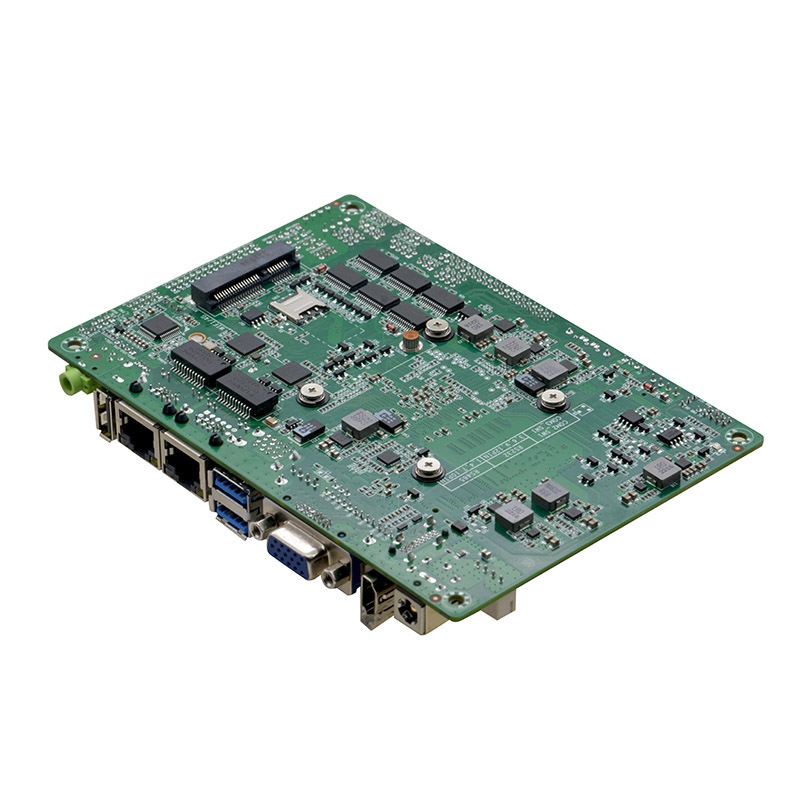

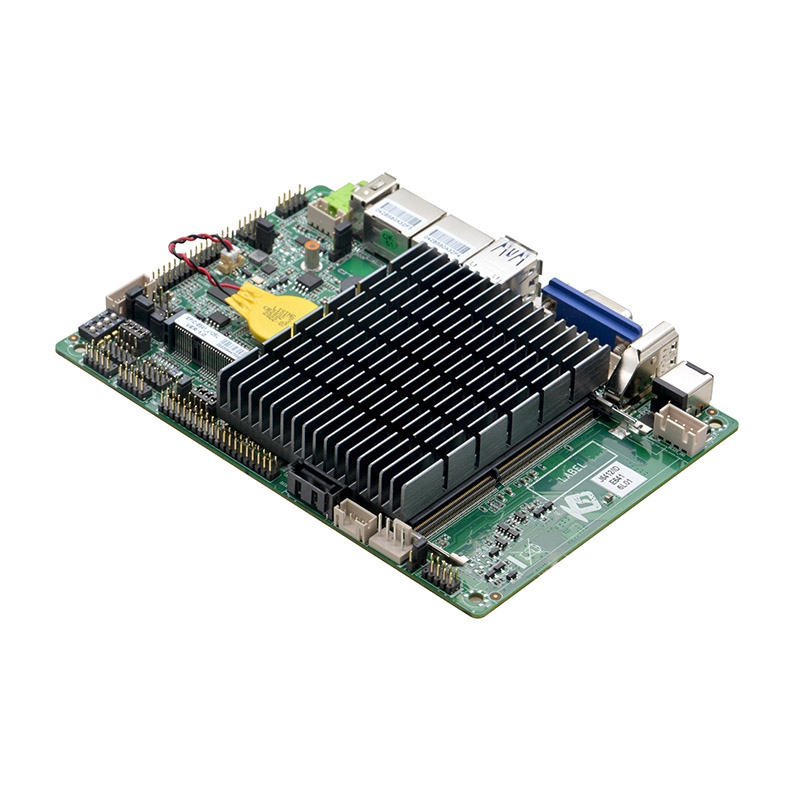

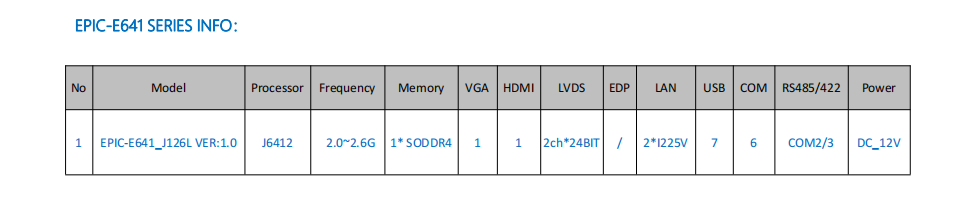

Product model: EPIC-E641_J126L VER:1.1
processor: Integrated Intel® Celeron J6412 2.0 ~ 2.6GHz Quad core Quad threads processor (TDP: 10W)
Chipset: SOC
RAM: 1x SODIMM memory slot, single channel 2400MHz DDR4 memory, up to 16GB
Display: Intel® UHD Graphics
1x VGA ; 1x HDMI ; 1x LVDS (support triple display)
Ethernet: 2x Intel I225V 2.5 Gigabit Ethernet Controller, supports Wake on LAN/PXE function
Storage: 1x MSATA slot, support SSD, the transfer rate up to 6Gbps
1x 7pin SATA3.0, the transfer rate up to 6Gbps
Audio: Onboard ALC897 7.1+2 vocal channels high fidelity audio controller, supports MIC/Line-out and power amplifier
suggest use 4Ω3W horn

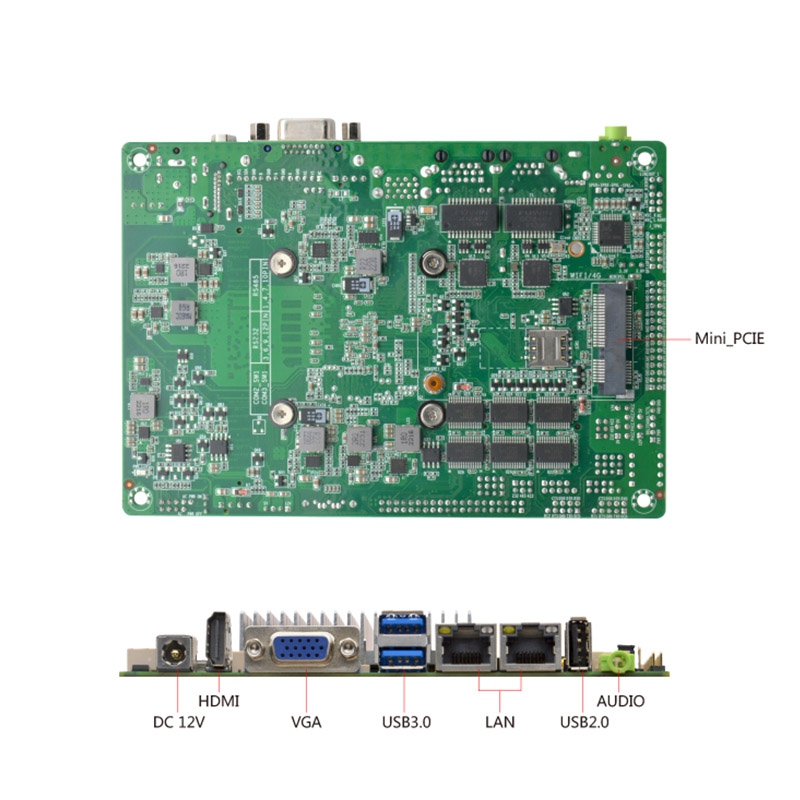

Expansion slot: 1x Mini-PCIE slot, support WIF/4G module

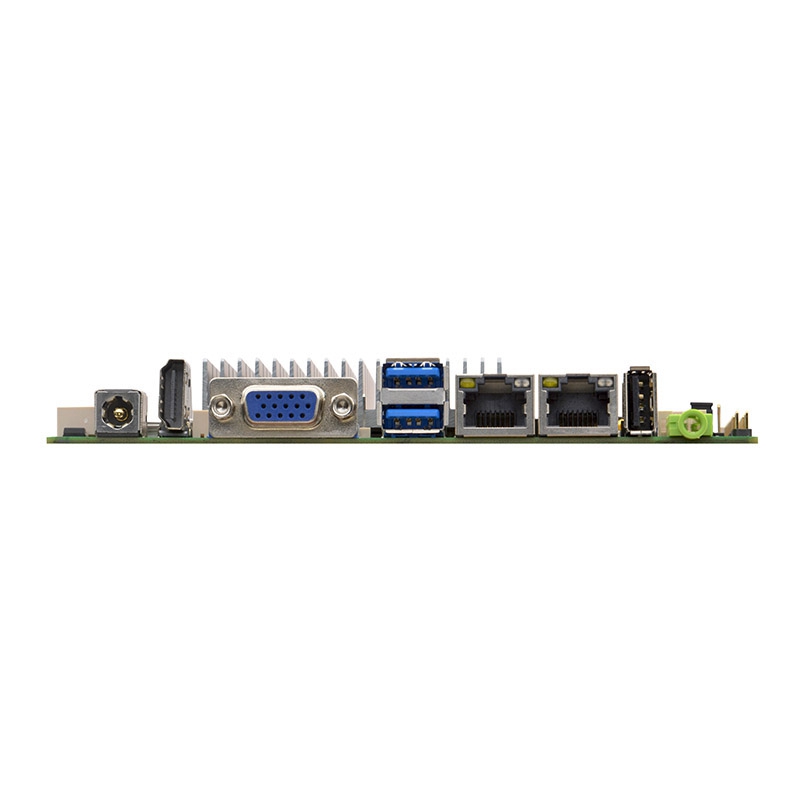

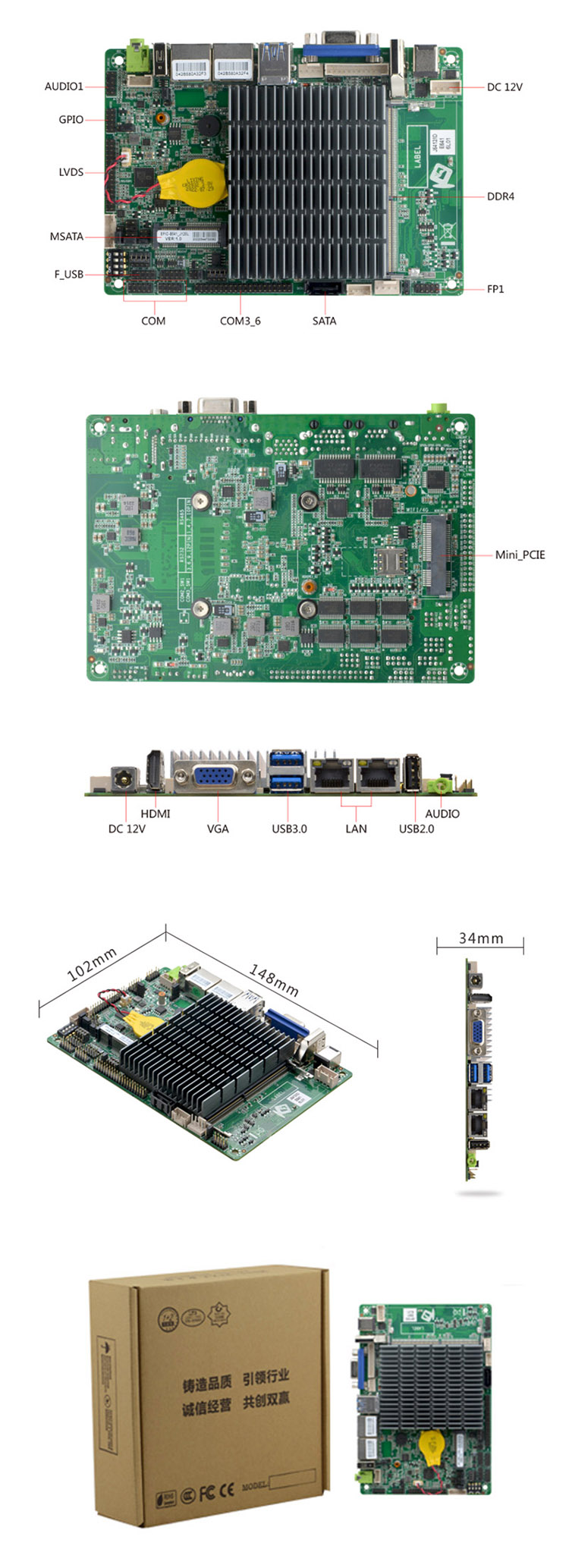

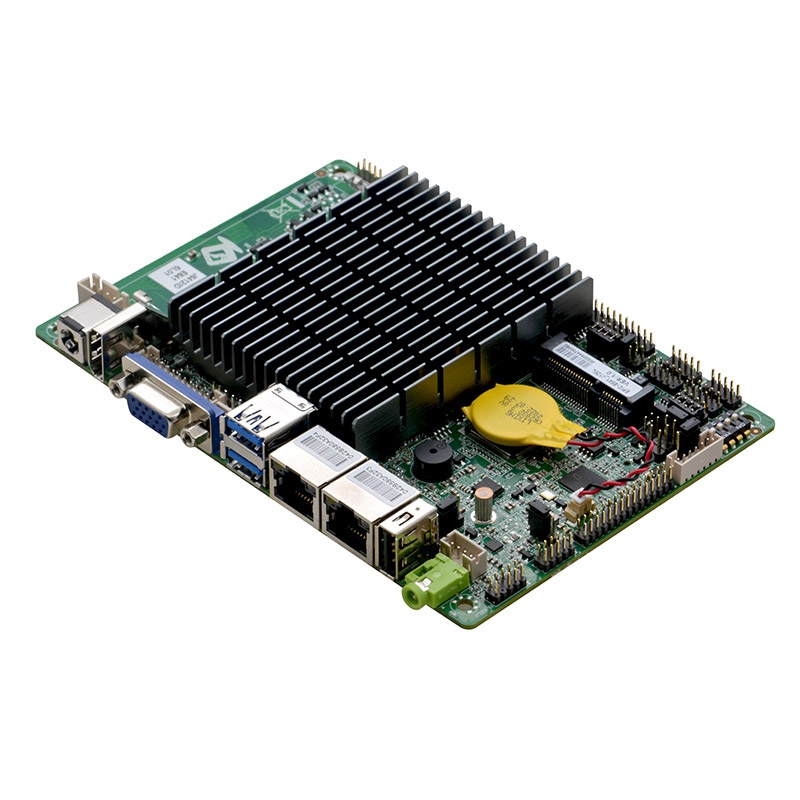

Rear I/O interfaces:
1x DC_Jack
1x VGA
1x HDMI
2x USB3.0 ; 1x USB2.0
2x RJ45 2.5 Gigabit Lan
1x Line-out

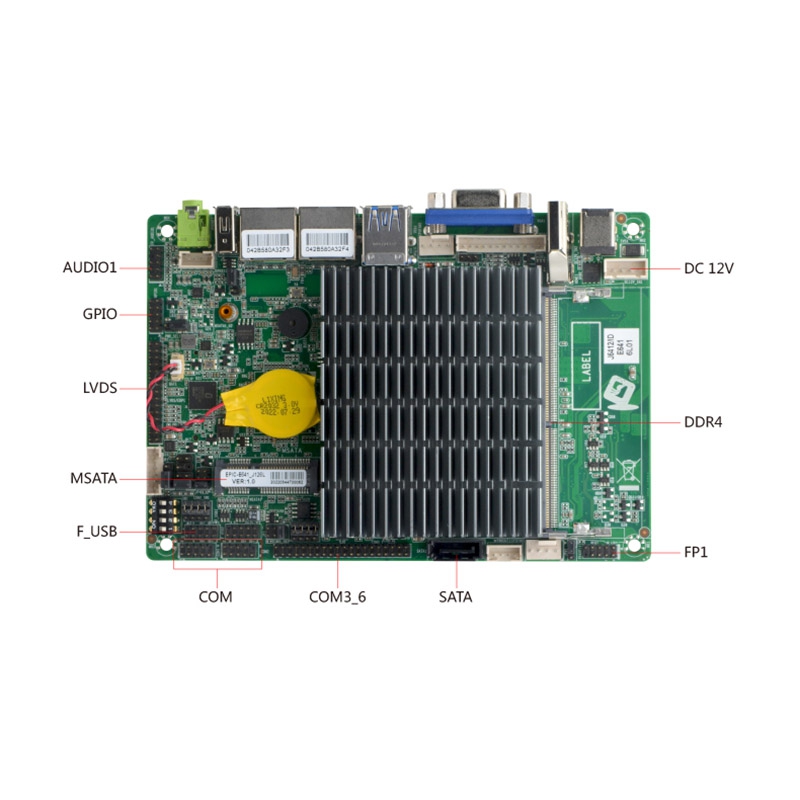

Inner I/O interfaces:
1x 4pin DC power interface, support DC_12V input/output
1x JVGA interface, 1x 12pin(Same signal as DB15)
1x LVDS interface, 2x 15pin,Support dual-channel 24BIT, shared pin with EDP
1x Screen backlight power supply interface, 1x 6pin
4x USB2.0, 2x 5pin

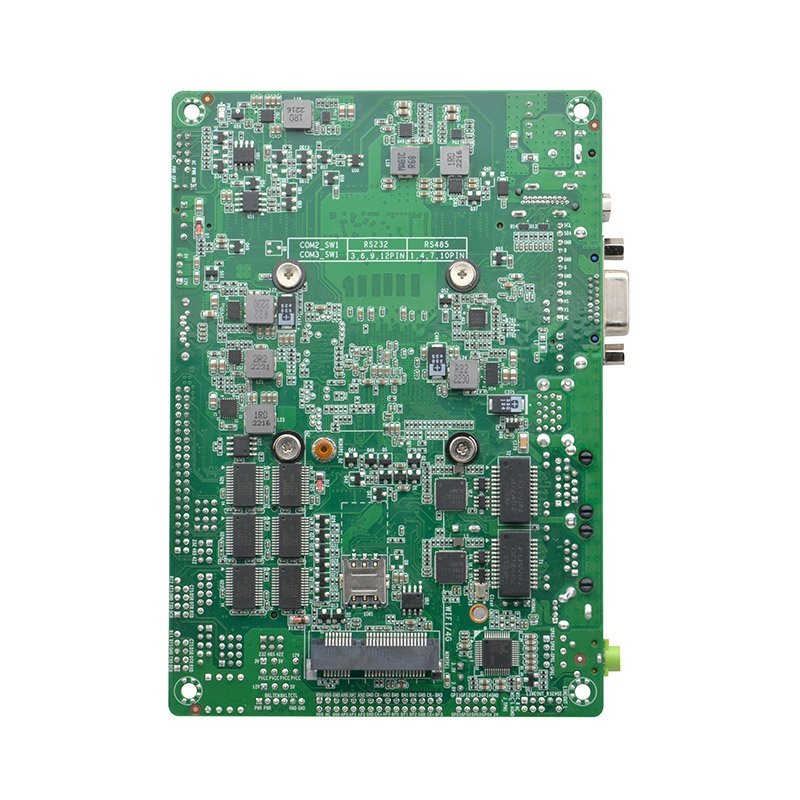

6x RS232 serial ports (pin header), COM2/COM3 support RS485/422 function
1x HDD power connector, 1x 4pin
1x front audio interface, 2x 5pin
1x power amplifier interface, 1x 4pin
1x SIM card slot
1x Front panel function button and indicator interface, 2x 5pin
Fan interfaces: No fan cooling, reserved 1*4pin CPU smart fan interface ; 1x 4pin system fan interface
GPIO: 4x GPI ; 4x GPO
BIOS: 64Mb flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Operating system: Windows / Linux
Power type: DC_12V
Operating temperature: -10℃~60℃
Storage temperature: -20℃~70℃
Working humidity: Relative humidity 5%-95%, no condensation

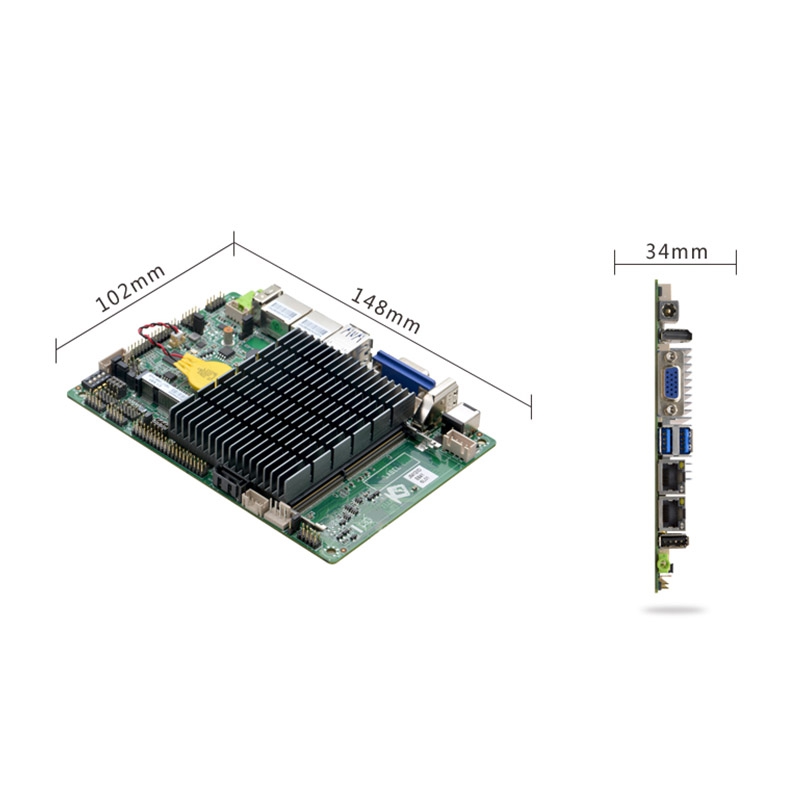

Size: 148 mm x 102 mm
