This high-performance 3.5 inch motherboard is built on the Intel Coffee Lake-U SOC platform, featuring the 8th Gen Core i5-8260U Quad-Core processor (1.6GHz base, up to 3.9GHz Turbo) with Intel UHD Graphics, delivering exceptional computing power in a compact industrial form factor.
Key Features:
●4K multi-display support: VGA + HDMI + LVDS/eDP outputs
●High-speed memory: 1× DDR4 2400MHz SO-DIMM (up to 32GB)
2× Gigabit Ethernet ports
7× USB ports (including USB3.0)
6× multi-protocol COM ports (RS232/485/422)
●Flexible storage options:
1× SATA3.0
1× mSATA 3.0
1× mini-PCIe slot (for WiFi/3G/4G modules)
●Industrial reliability:
Watchdog Timer
GPIO control
4Ω/3W audio amplifier
●Low-power operation: 12V DC input

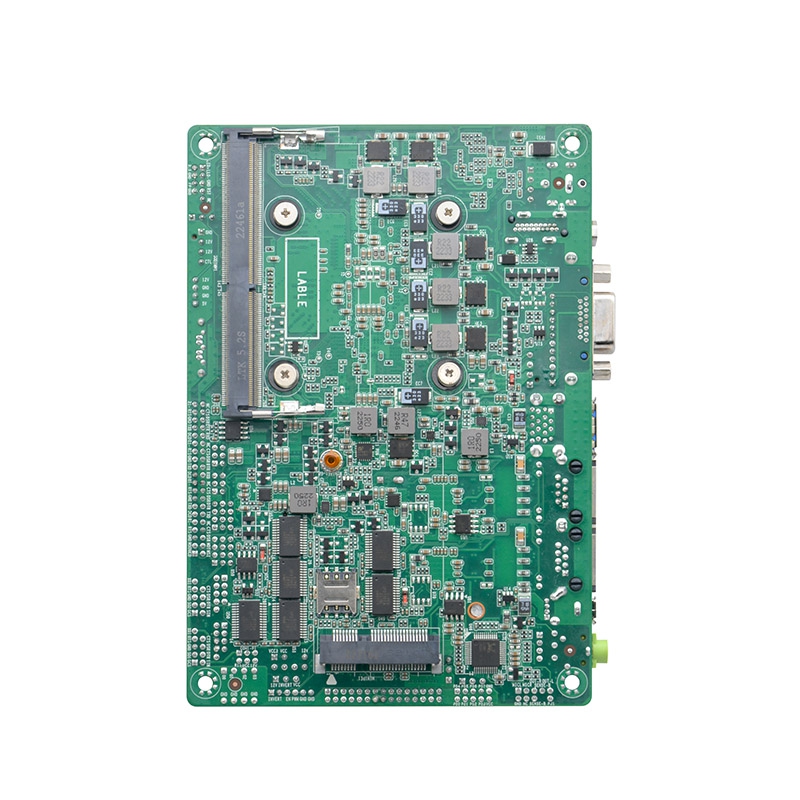

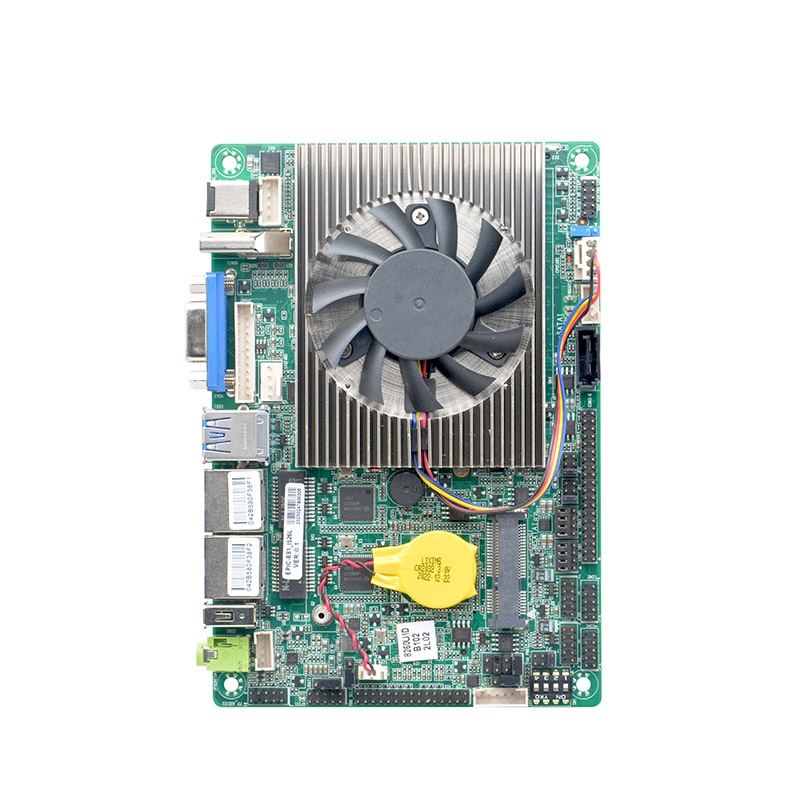

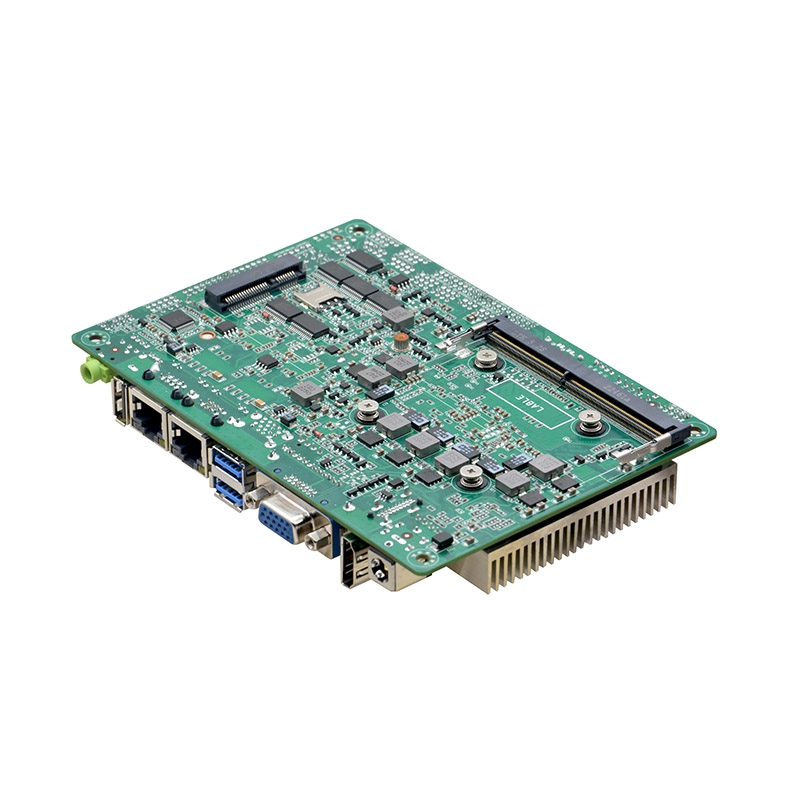

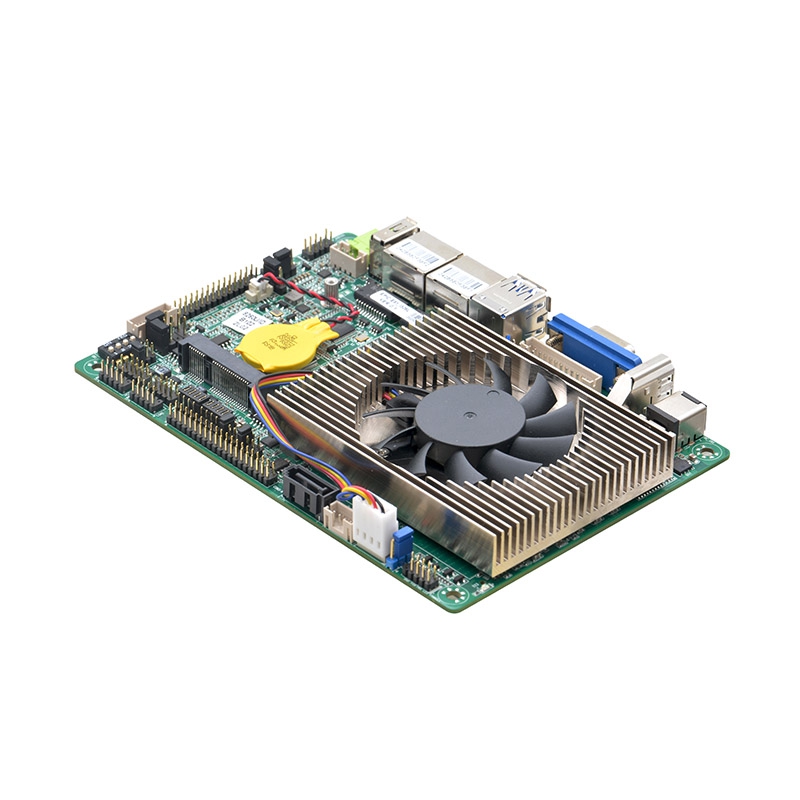

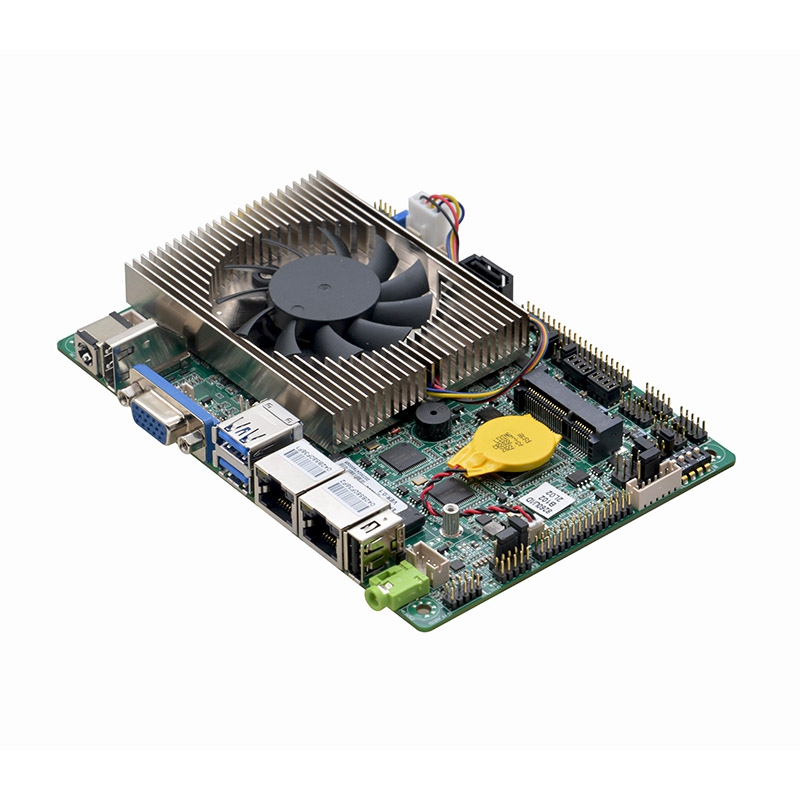

Detail Display
Product Description

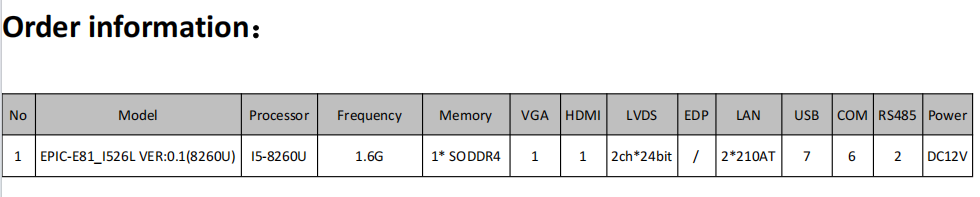

Model No.: EPIC-E81_I526L VER:0.1(8260U)
Processor: Integrated Intel® 8th I5-8260U 1.6GHz Quad core eight thread processor,TDP 15W
Compatible with Intel®WhiskeyLake-U/CometLake-U/CoffeLake-U 8th/10th Celeron / Pentium/ I3/I5/I7 series low power consumption processors
Chipset: SOC
Memory: 1x DDR4 SODIMM memory slot,supports 2666MHz memory,up to 32GB
Display: Integrated Intel® UHD Graphics ,supports DirectX 12 OpenGL 4.5, supports 4K
1x VGA,1x HDMI,1x LVDS,supports dual channels 24Bit
Ethernet: 2x Intel WGI210AT Gigabit Ethernet, supports Wake on LAN/PXE function
Storage: 1x 7pin SATA3.0,the transfer rate is up to 6Gbps
1x MSATA slot, supports Intel protocol SSD,the transfer rate is up to 6Gbps
Audio: Integrated ALC897 7.1+2 channel high fidelity audio controller,supports Line_out, power amplifier
power amplifier support 4Ω/3W dual channel
Expansion Slot: 1x Mini-PCIE slot，supports WIFI/4G module

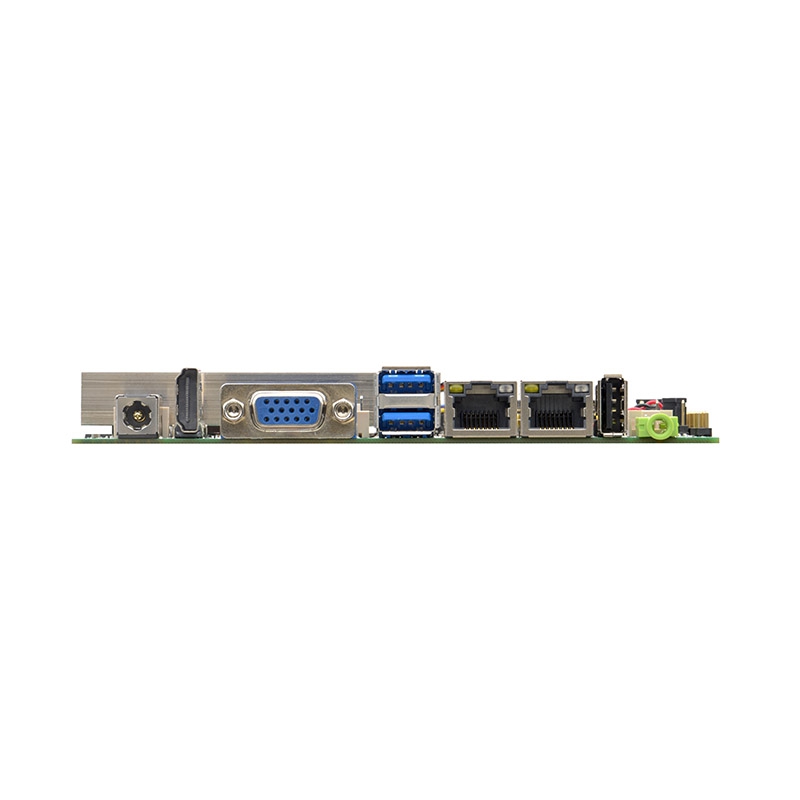

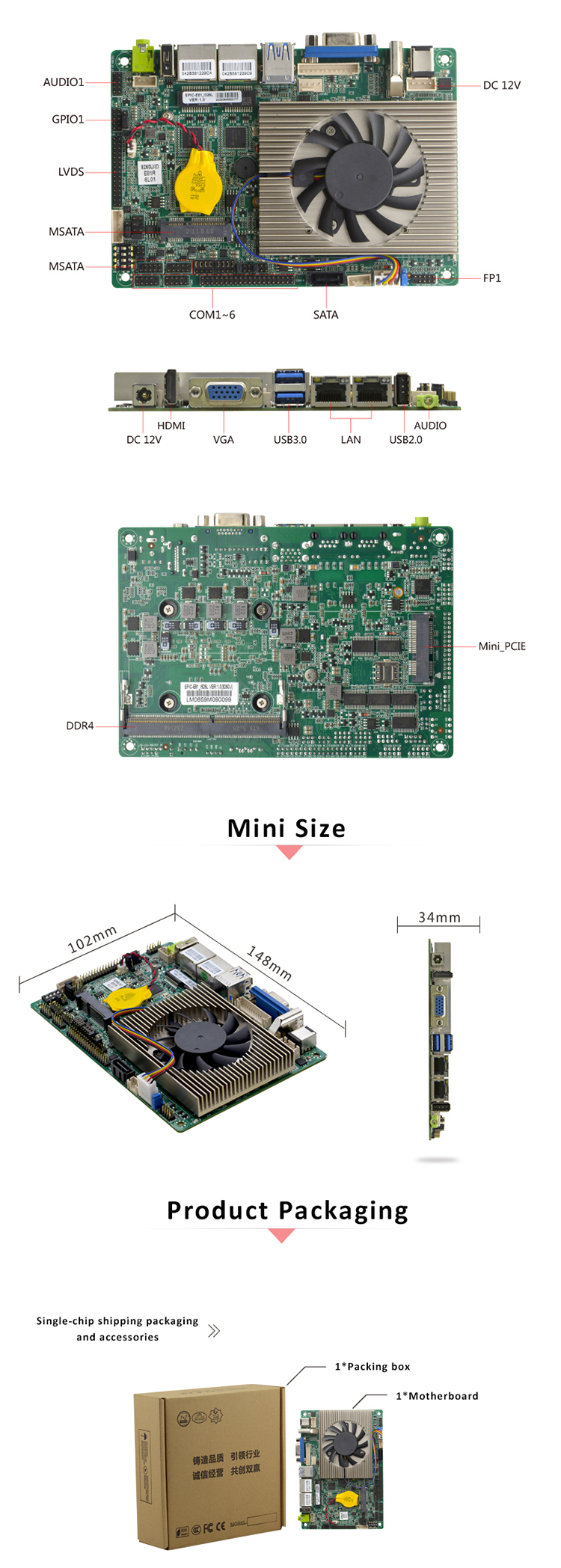

Backplane I/O interface:
1x DC 12V power input interface
1x HDMI
1x VGA
2x USB3.0
1x USB2.0
2x RJ45 Gigabit network interface
1x Line-out (Green)
Built in I/O interface:
1x 4pin ATX power interface，supports 12V power input output
1x JVGA, 1x 12pin (Same signal with DB15)
1x LVDS,supports dual channel 24BIT,share row pin with EDP,can choose to do EDP interface
1x Backlight power supply interface, 1x 6pin
6x RS232 COM，COM1 supports the 9th pin charged,COM2/3 supports RS485/422 function
4x USB2.0, 2x 5pin
1x Front audio interface, 2x 5pin
1x Power amplifier interface, 1x 4pin
1x Hard disk power supply interface, 1x 4pin
1x Front panel function button and indicator light interface, 2x 5pin
Fan connector: 1x 4pin CPU smart fan connector, 1x 3pin system fan connector
GPIO: Supports 4-way input output GPIO
BIOS: 64Mb Flash ROM
Watchdog: Supports Hardware reset function (L256,0~255 seconds)
OS: Windows7/Windows 10/Linux
Power Type: DC 12V
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% (relative humidity,non-condensing)
Dimension: 148mm x 102mm
