Overview
This energy-efficient 3.5 inch motherboard is built on the Intel Braswell SOC platform, featuring the Intel Pentium J3710 Quad-Core processor (1.6GHz) with Intel HD Graphics, offering reliable performance in a fanless industrial design.
Key Features:
●Triple display outputs: VGA + HDMI + LVDS for flexible configurations
●Memory support: 1× DDR3L SO-DIMM (up to 8GB at 1600/1333MHz)
●Comprehensive industrial I/O:
2× Gigabit Ethernet ports
7× USB ports
6× multi-protocol COM ports (RS232/485/422)
PS/2 keyboard/mouse interface
SIM card slot for cellular connectivity
●Storage flexibility:
1× SATA3.0
1× mSATA SSD
1× mini-PCIe (for WiFi/3G/4G modules)
●Industrial reliability:
Watchdog Timer
GPIO control
2Ω/5W high-power audio amplifier
●Low-power operation: 12V DC input

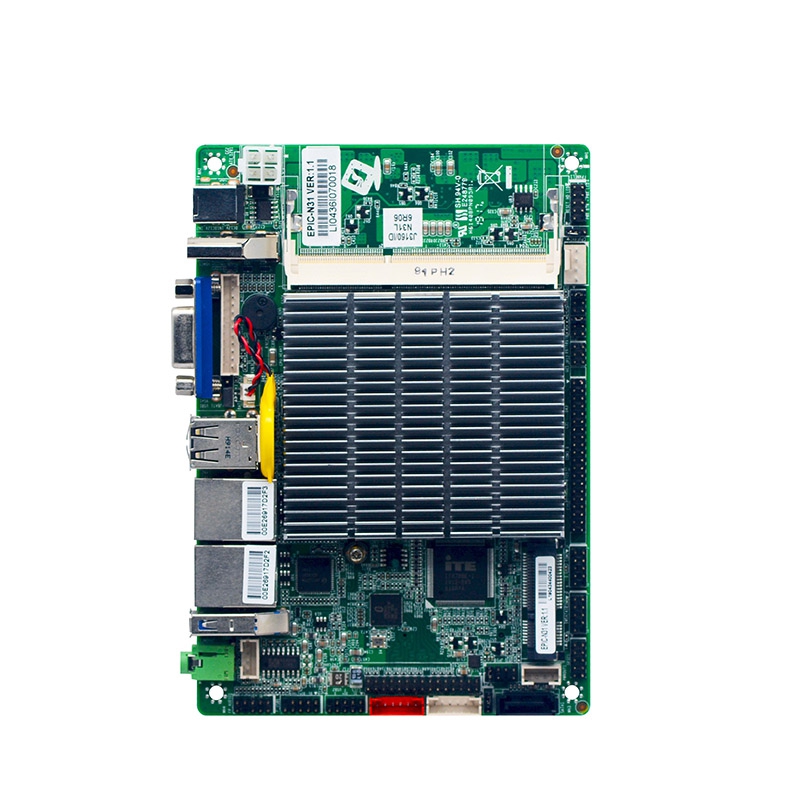

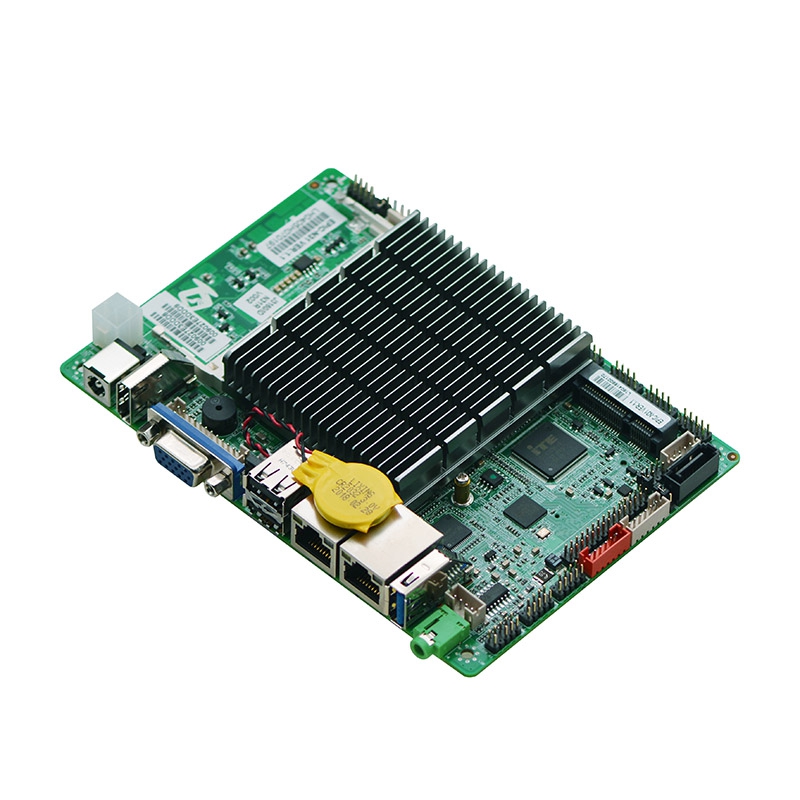

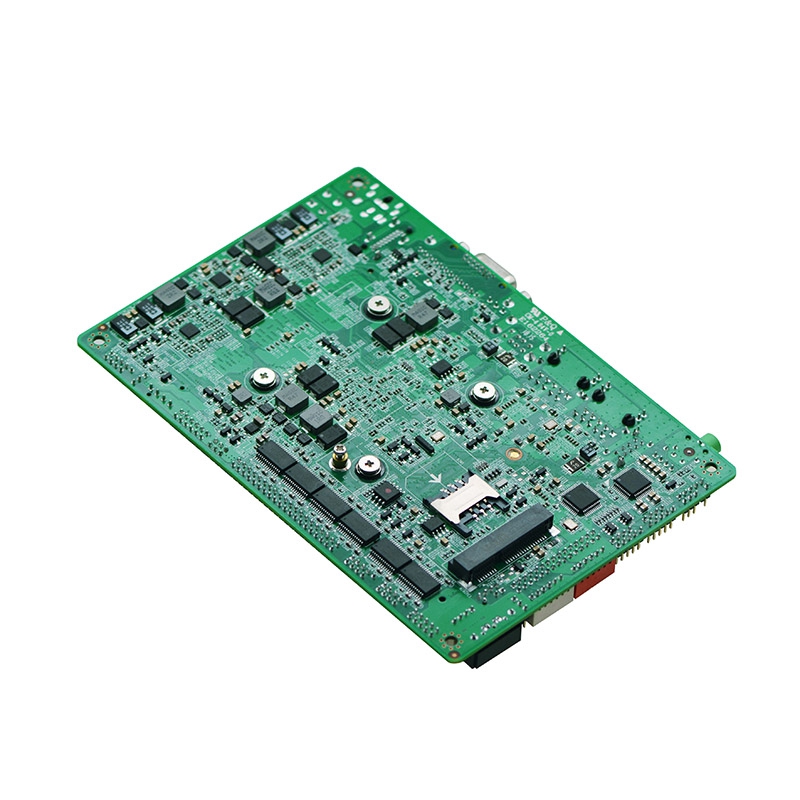

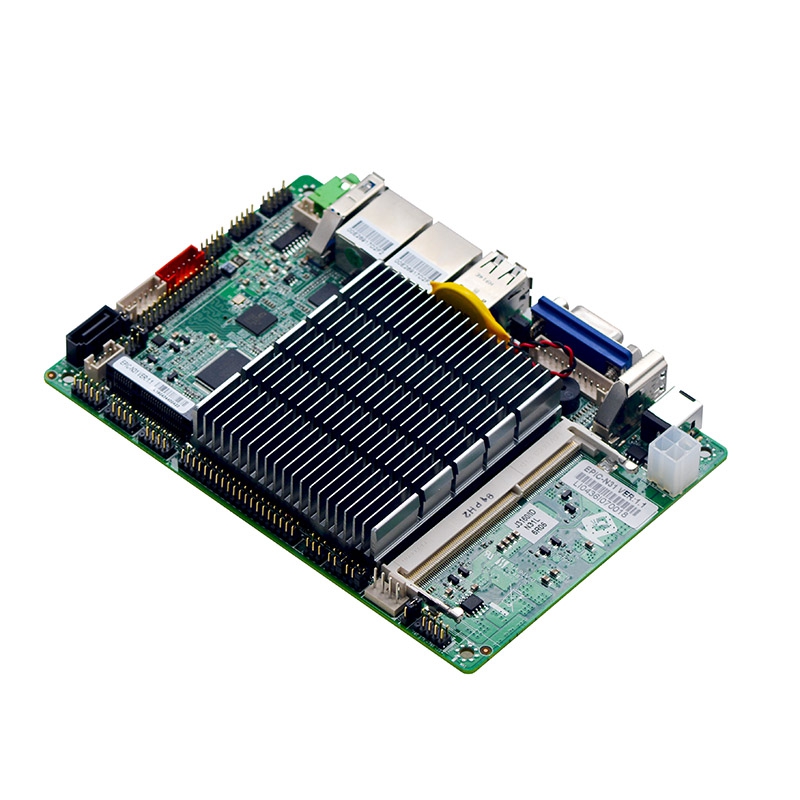

Detail Display
Product Description

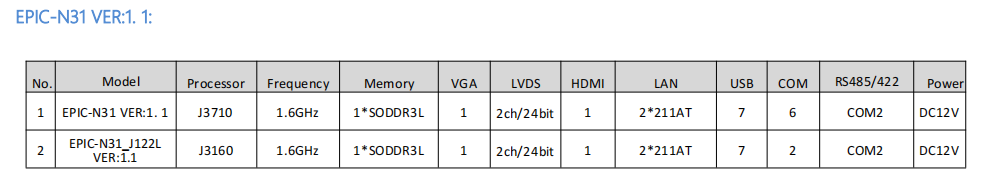

Model NO.: EPIC-N31 VER:1.1
CPU: Integrated Intel® Celeron J3710 1.6GHz quad core processor ; TDP 6W
Chipset: Intel® Braswell SOC
Memory: 1x SODIMM Socket, Support 1600/ 1333MHz DDR3L/ 1.35V Memory, Up to 8GB
Display: Integrated Intel® HD Graphics 400
Provide 1x VGA ; 1x HDMI1.4 ; 1x LVDS (dual channel 24bit)
Support VGA / HDMI1.4 / LVDS Synchronous / asynchronous display
LAN: 2x Intel 211 Gigabit Ethernet cards, Support Wake-on-LAN/PXE
Storage: 1x SATA3.0 hard disk connector, transfer rate up to 6Gbps
Audio: Integrated ALC662 6-Channel output, Support MIC_in / Line-out
Advise 2Ω5W loudspeaker for audio power amplifier
Expansion Slots: 1x Mini- PCIE Support WIFI&BT/3G/4G LTE modems
1x MSATA3.0 socket. Support MSATA SSD transfer rate up to 6Gbps

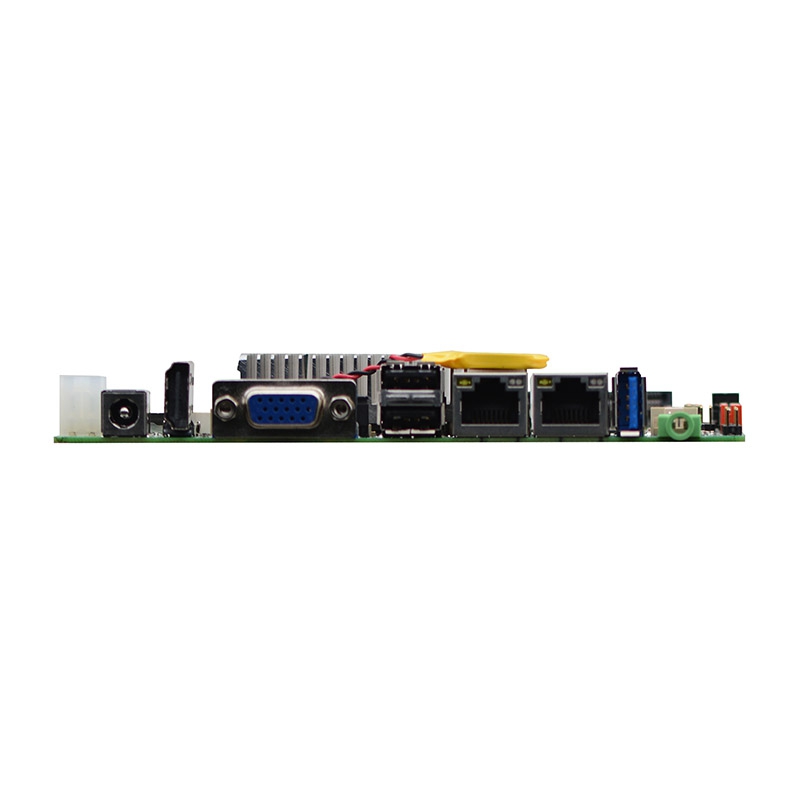

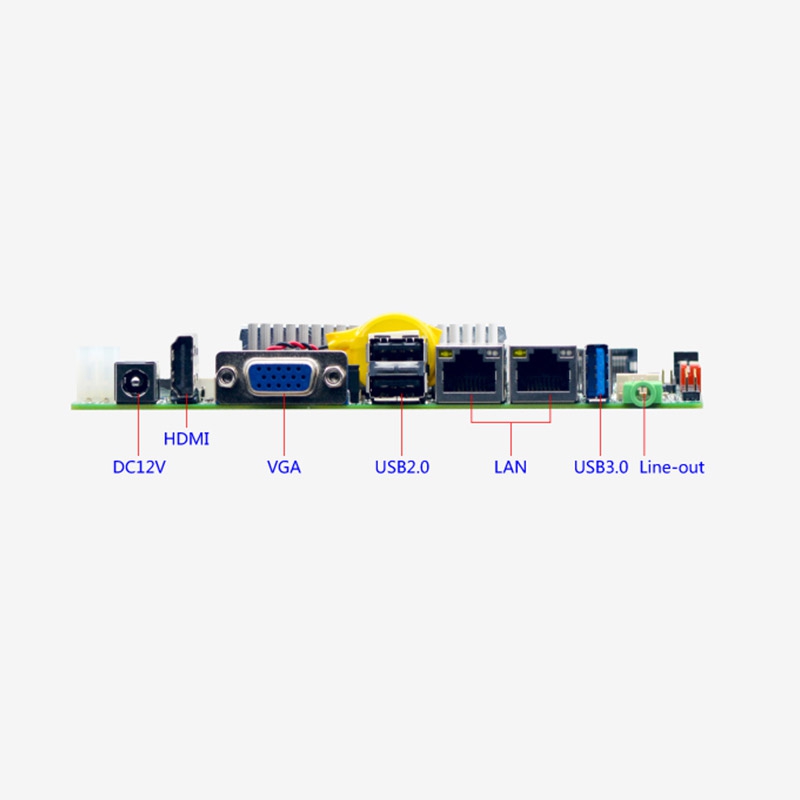

Rear I/O:
1x USB3.0
2x USB2.0
1x HDMI1.4
1x VGA
2x RJ-45 Gigabit Ethernet
1x Line_out
1x DC_JACK ( DC_12V input)

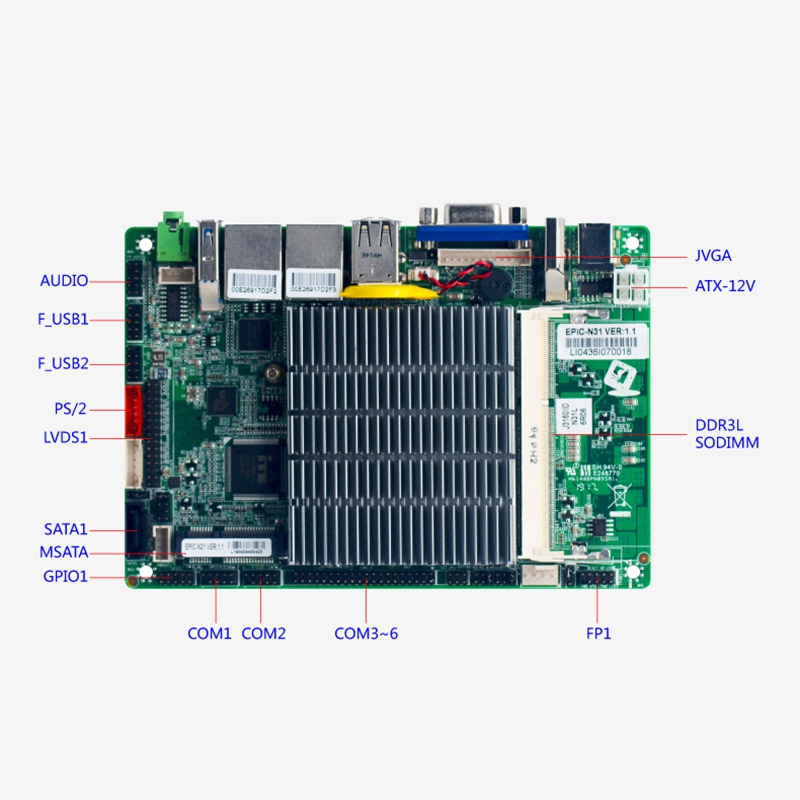

Inner I/O:
1x LVDS connector (2x 15pi n)
1x LVDS backlight power connector ( 1x 6pin)
1x JVGA ( 1x 12pin, share same signal with DB15)
6x COM RS232 (pin header; COM2 support RS485/RS422)
4x USB2.0 (2x 5pin )
1x PS/2 ( 1x 6Pi n)
1x AUDIO ( Front Audio interface 2x 5pin)
1x Audio power amplifier ( 1x 4pin)
1x SIM Card socket
1x PWROUT ( 1x 4pin SATA power supply interface )
1x FP1 (2x 5pin Front panel buttons and LED connected)
1x 4pin ATX power socket, support 12V power input/output
Fan interface: Support passive cooling; provide 1x CPUFAN 4pin connector
GPIO: 1x GPIO (Support 4- bit input/output GPIO function)
BIOS: AMI 64MB Flash ROM
Watchdog: Support hardware reset function ( L256, 0~255 seconds)
Power Input: DC_12V Si ngle power supply
Operating Temp.: - 10C~60C
Storage Temp.: -20C~70C
Humidity: 5%-95%(relative humidity; non-condensing)

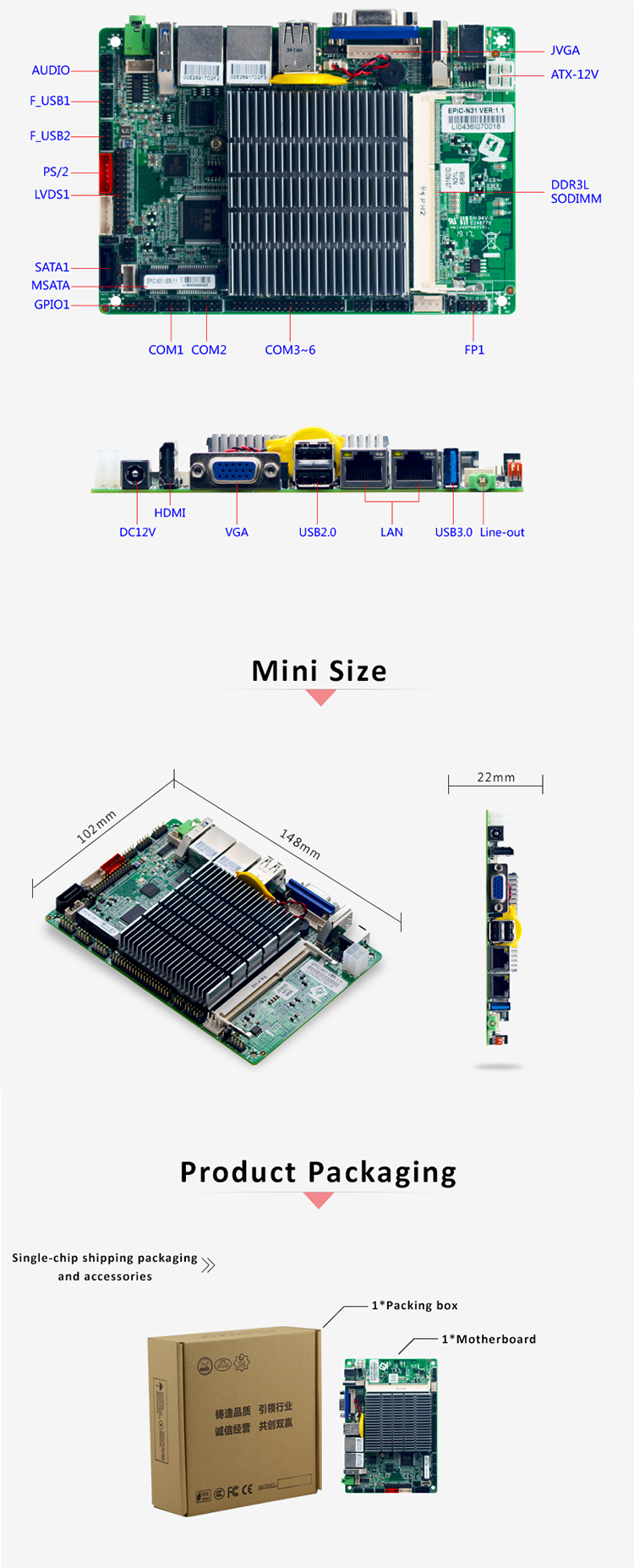

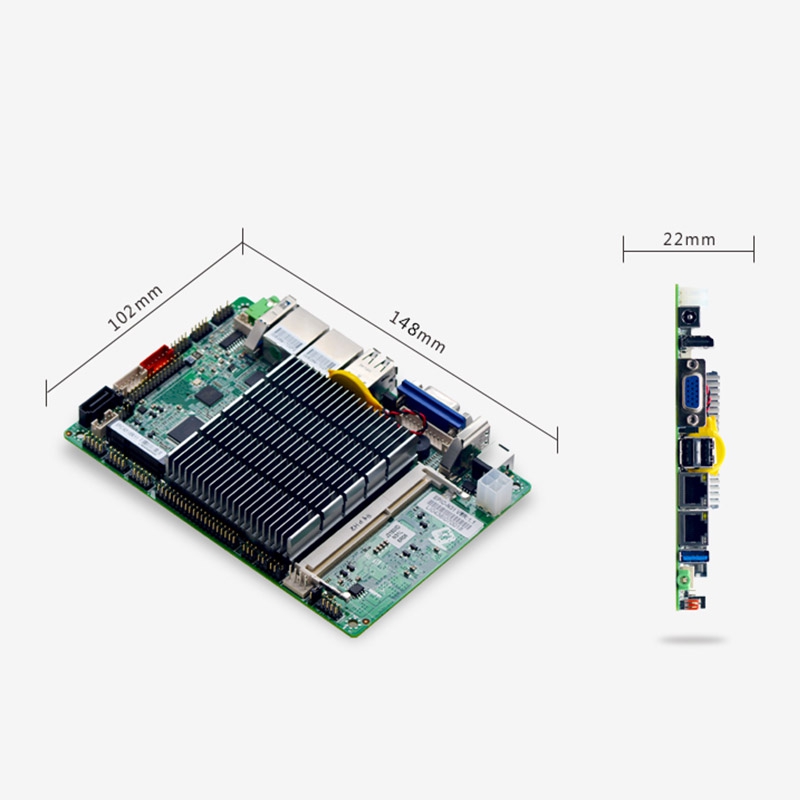

Dimension: 148mm x 102mm
