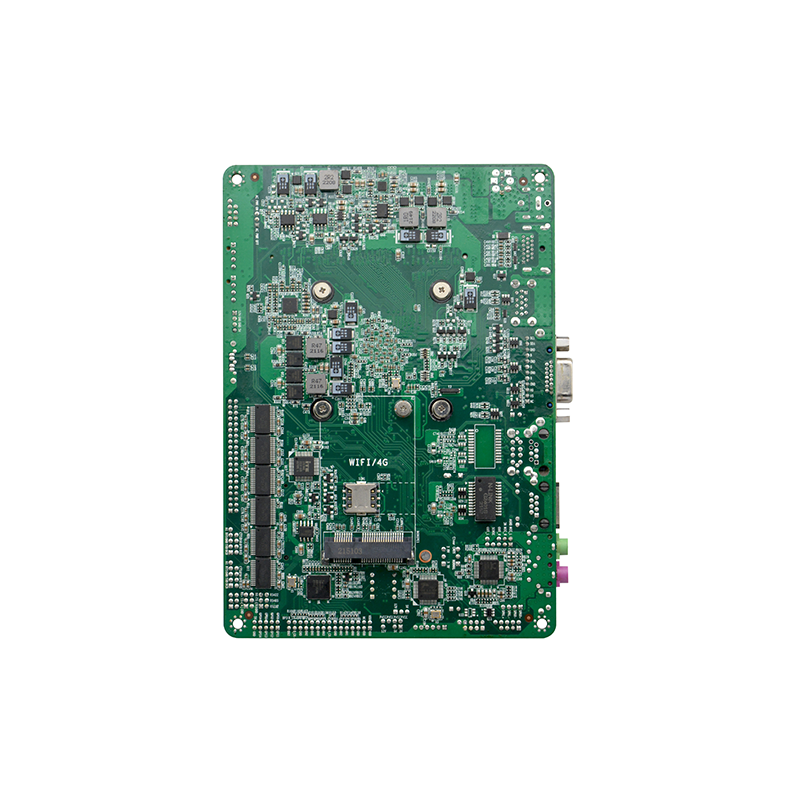

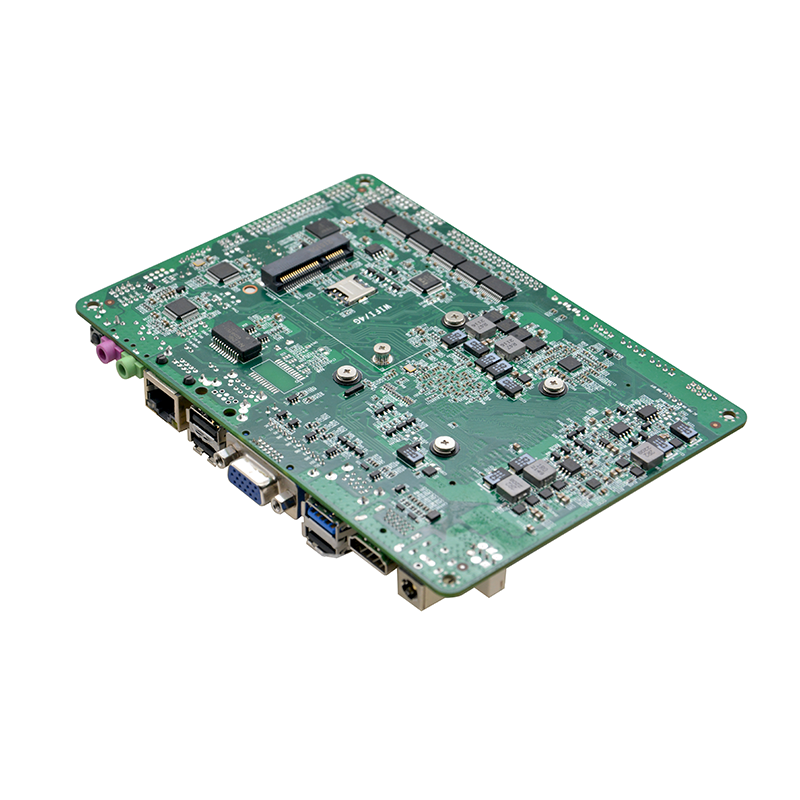

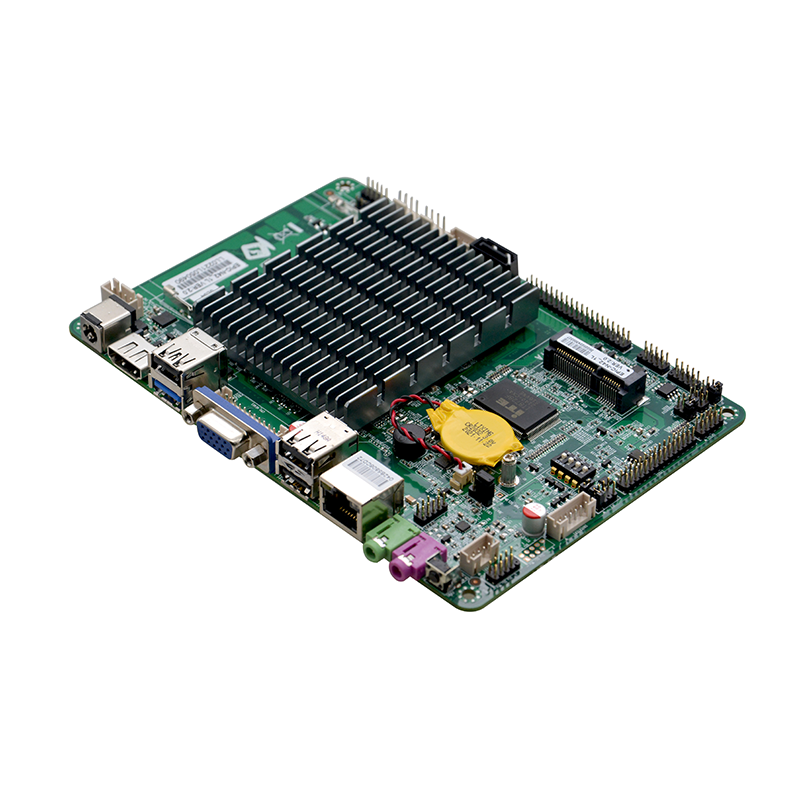

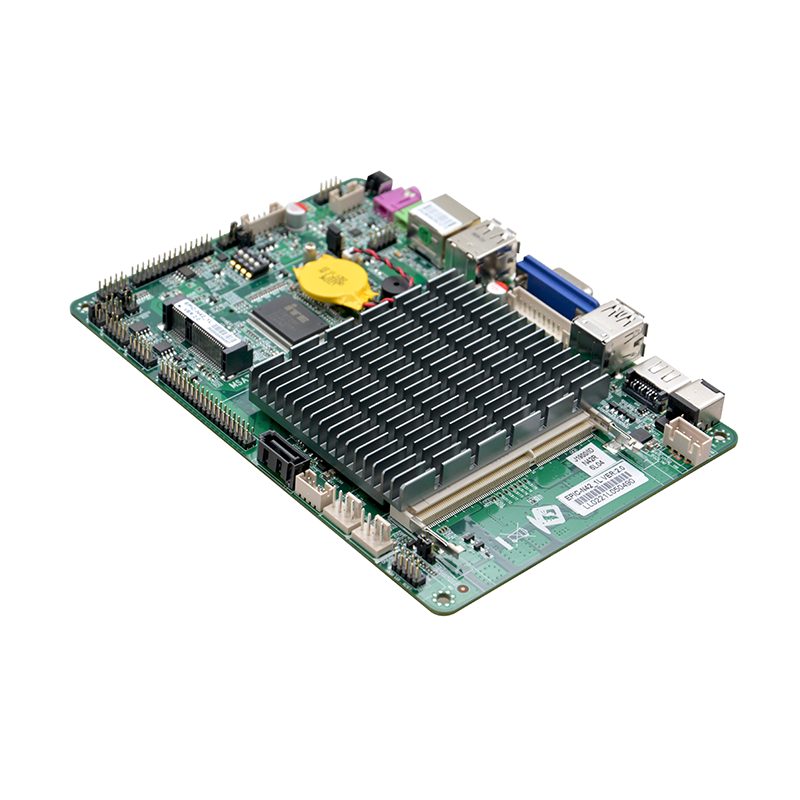

This rugged 3.5 inch motherboard features the Intel Bay Trail SOC platform with an Intel J1900 Quad-Core processor (2.0GHz) and Intel HD Graphics, delivering reliable performance in a compact industrial form factor.
Key Features:
●Triple display support: VGA + HDMI + LVDS outputs
●Flexible memory: 1× DDR3L SO-DIMM slot (up to 8GB)
●Rich industrial I/O:
1× Gigabit Ethernet (optional 2× RJ45)
6× USB ports
6× COM ports (RS232/485)
●Multiple storage options:
1× SATA2.0
1× mSATA SSD
1× mini-PCIe (for WiFi/3G/4G) + SIM slot
●Industrial reliability:
Watchdog Timer
GPIO control
2Ω/5W audio amplifier
●Low-power operation: 12V DC input
Ideal for: Factory automation, kiosk systems, transportation, and harsh environment applications
Product Description

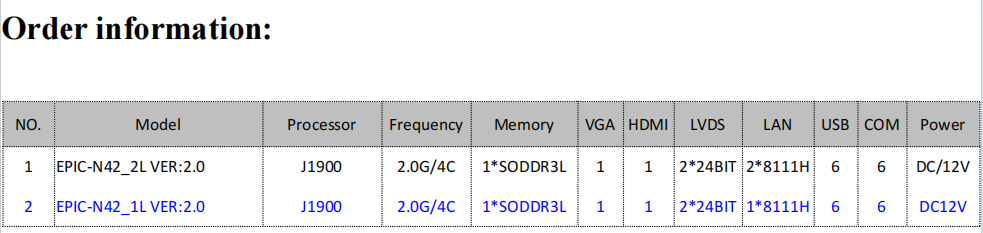

Model No.:EPIC-N42_1L VER:2.0
Processor:Integrated Intel®J1900/2.00GHz quad-core processor,TDP10W
Chipset:Based on Intel® Bay trail SOC platform
Memory:1x DDR3L SODIMM slot, Supports single channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB
Display:Integrated Intel®HD Graphics core graphics card
Provide 1x VGA,1x HDMI,1x LVDS interface (support dual channel 24BIT)
Support VGA; HDMI; LVDS Synchronous or asynchronous display
Ethernet:1x Realtek RTL8111H Gigabit Ethernet ,supports Wake on LAN/PXE function
Storage:1x SATA2.0 hard disk interface, transmission speed up to 3Gbps
Audio:Onboard AL892 7.1+2 channel high-fidelity audio controller, support MIC, Line_out, power amplifier
Suggest power amplifier 4Ω3W horn
Expansion Slot:1x Mini-PCIE slot, supports WIFI,4G module
1x MSATA slot supports WIFI(optional), SSD (default: SSD, support Intel protocol SSD, transmission speed up to 3Gbps

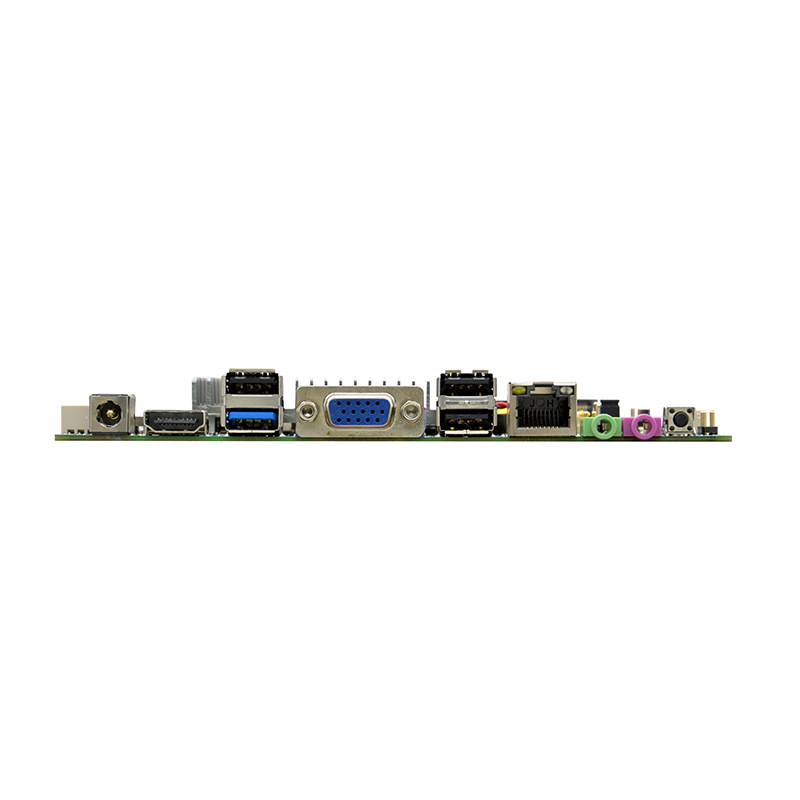

Rear I/O interface: 1x12V DC power input port
1x HDMI
1x VGA
1x RJ-45 Gigabit network interface
1x USB3.0
3x USB2.0
1x Line out interface (green)
1x MIC interface (red)
1x Power switch
Built in I/O interface: 1x DC power connector 1x 4pin (12V input/output power connector)
2x USB 2.0 interface 2x 5Pin
1x JVGA port 1x 12Pin, same signal as DB15
6x RS232 serial port, COM3 supports RS485/RS422 functions.
1x front audio interface 2x 5pin
1x front amplifier interface 1x 4Pin
1x LVDS interface 2x 15pin, support dual channel 24bit(dual 8)
1x LVDS backlight power supply interface 1x 6pin
1x Front panel switch button and indicator port 2x 5Pin
1x hard drive power port 1x 4pin
1x SIM card seat
Fan Connector:Support fan-less heat dissipation, reserved 1x 4pin CPU intelligent fan port, 1x 4pin system fan port
GPIO:Support 4-way input output GPIO function
BIOS:64Mb Flash ROM
Watchdog:Support hardware reset function (L256, 0~255 seconds)
Power Type:DC 12V power supply
Operating system:Windows 7/Windows 10/Linux
Working temperature:-10℃～60℃
Storage temperature:-20℃～70℃
Working Humidity:5%-95%( relative humidity, non-condensing)
Dimension:165mm x 115mm
