Overview

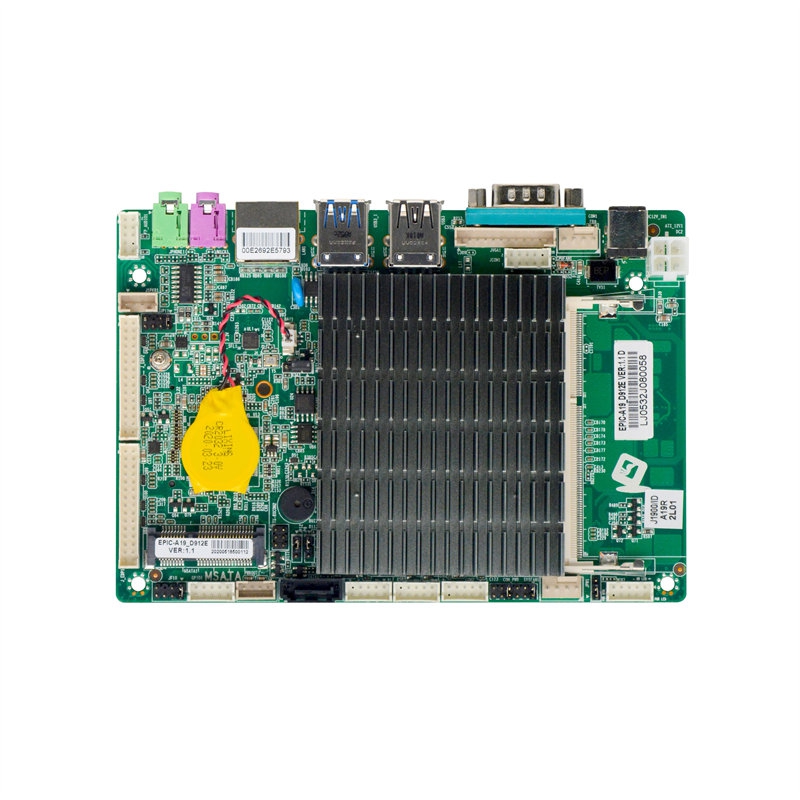

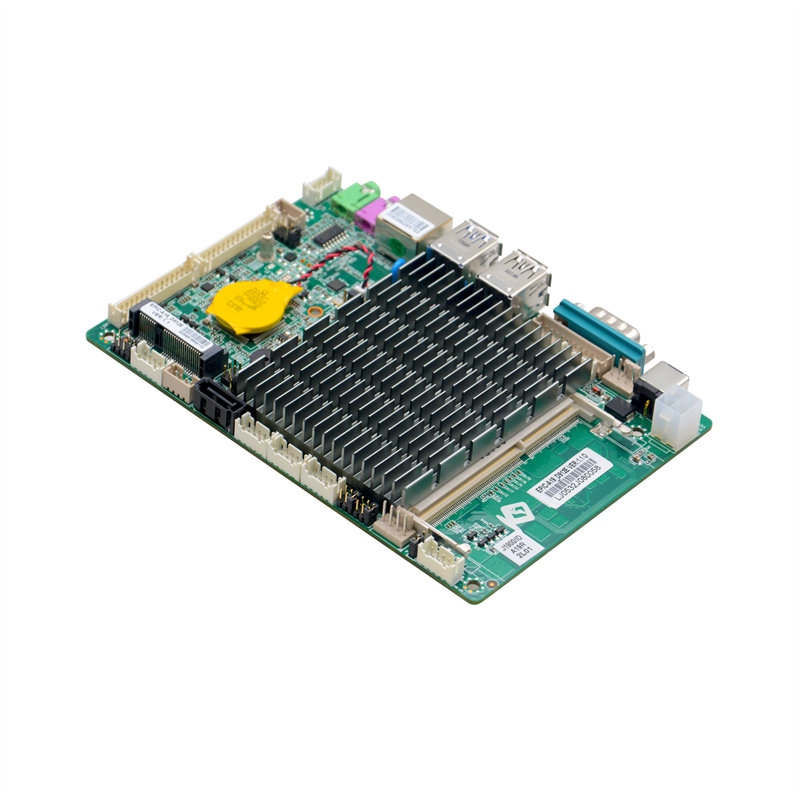

This rugged 3.5 inch motherboard is built on the Intel Bay Trail SOC platform, featuring the Intel J1900 Quad-Core processor (2.0GHz) with Intel HD Graphics, delivering reliable performance in a compact industrial form factor.
Key Features:
●Dual eDP + VGA display outputs for flexible multi-monitor configurations
●Memory expansion: 1× DDR3L SO-DIMM slot (up to 8GB)
●Rich industrial connectivity:
1× Gigabit Ethernet port
8× USB ports
2× multi-protocol COM ports (RS232/485/422)
SIM card slot for cellular connectivity
●Multiple storage options:
1× SATA2.0
1× mSATA SSD
1× mini-PCIe slot (for WiFi/3G/4G modules)
●Industrial-grade reliability:
Watchdog Timer
GPIO control
2Ω/5W high-power audio amplifier
●Low-power operation: 12V DC input
Detail Display
Product Description

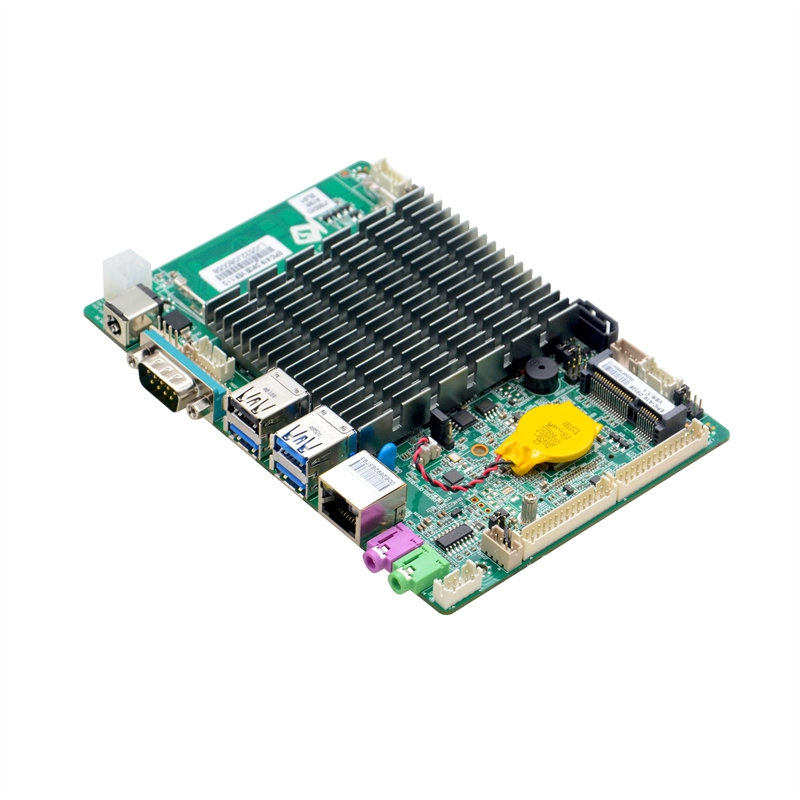

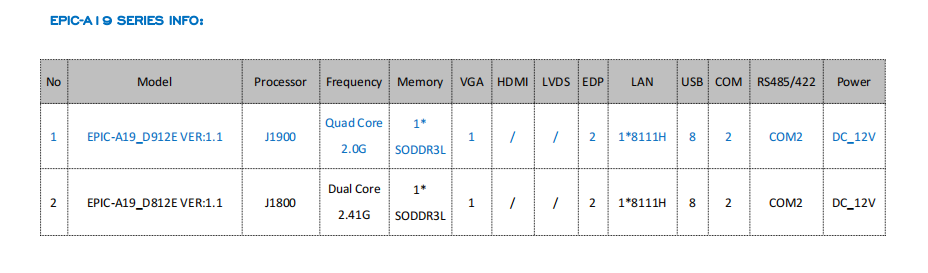

Product model: EPIC-A19_D912E VER: 1.1
Processor: Integrated Intel® Celeron J1900/2.0GHz quad-core processor ; TDP 10W (Celeron_J1800 dual core CPU optional)
Chipset: Based on Intel® BayTrail SOC platform
RAM: 1x SODIMM memory slot, support single channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB
Display: Integrated Intel® HD Graphics
1x VGA ; 2x EDP display interfaces
Ethernet: 1x RTL8111H Gigabit ethernet card, support Wake on LAN, PXE function
Storage: 1x 7pin SATA2.0 hard disk interface, transfer rate up to 3Gbps
1x MSATA slot, support Intel standard SSD, transfer rate up to 3Gbps
Audio: Onboard ALC662 6-channel high-fidelity audio controller, support MIC_in/Line_out
The amplifier is recommended to use 2Ω 5W speakers

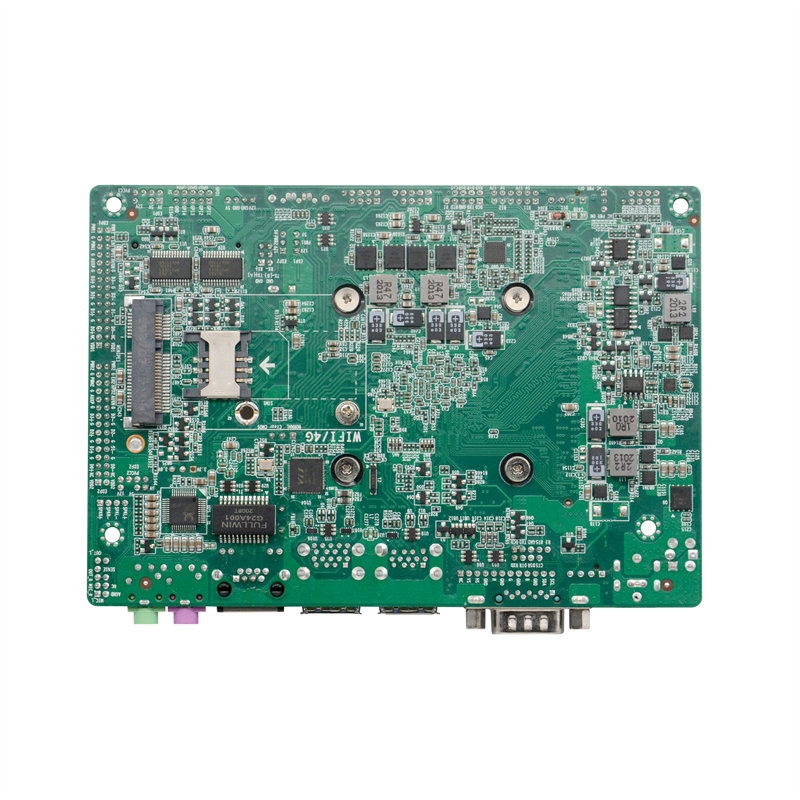

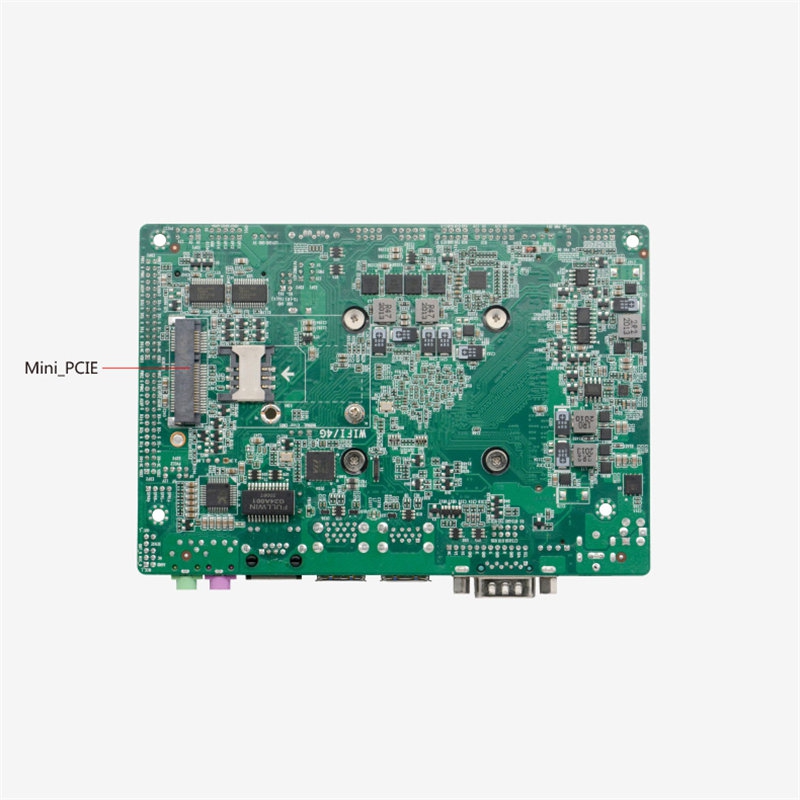

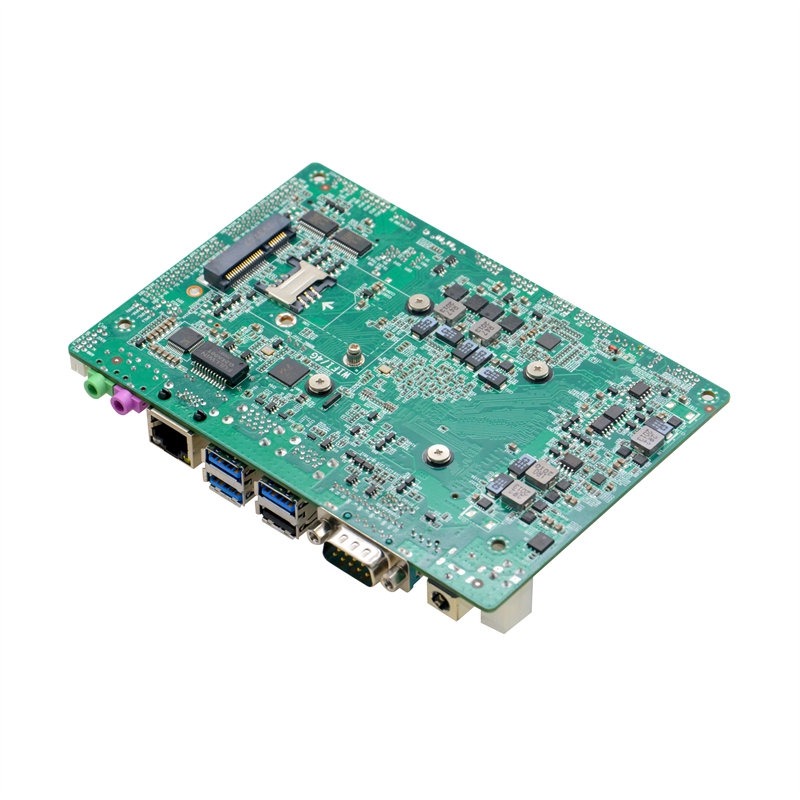

Expansion slot:1x Mini-PCIE slot, support WIF/4G/GPS module

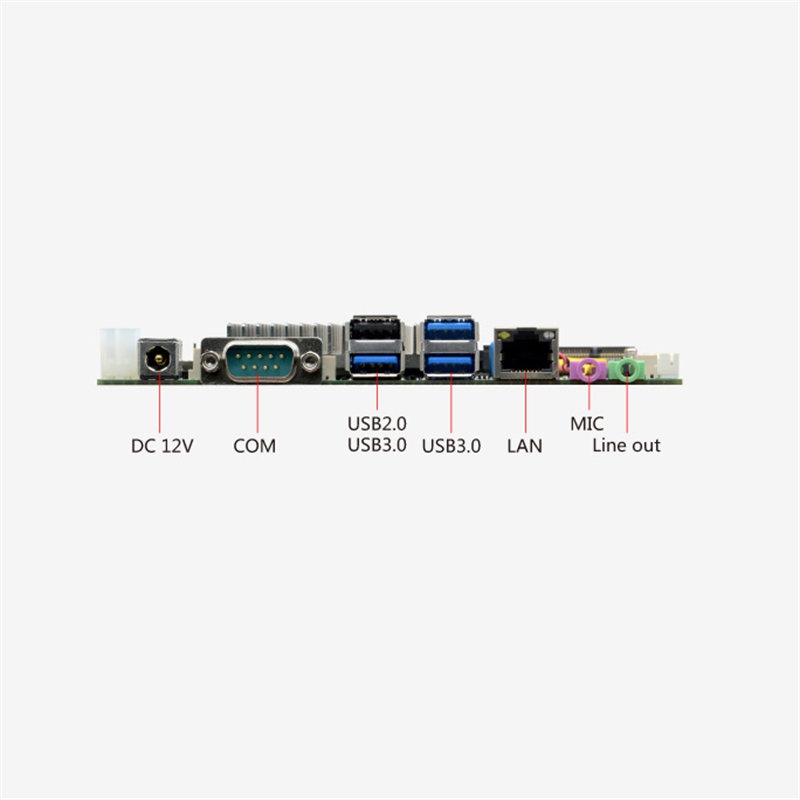

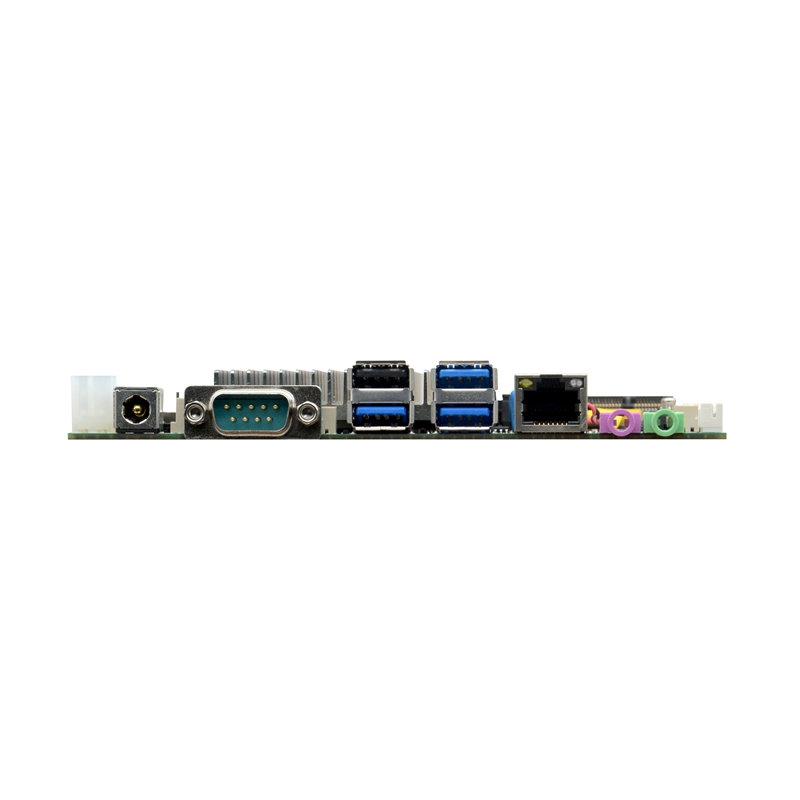

Rear I/O interfaces:
1x DC_Jack DC_12V power input
1x DB9 RS-232 serial interface
3x USB3.0 ; 1x USB2.0
1x RJ45 Gigabit ethernet interface
1x Mic_in ; 1x Line_out

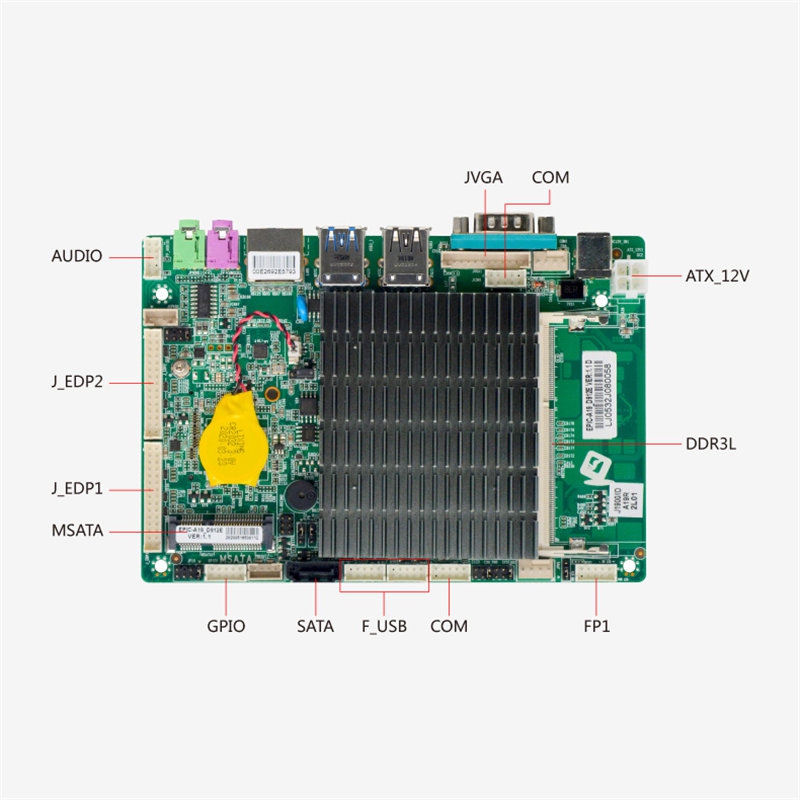

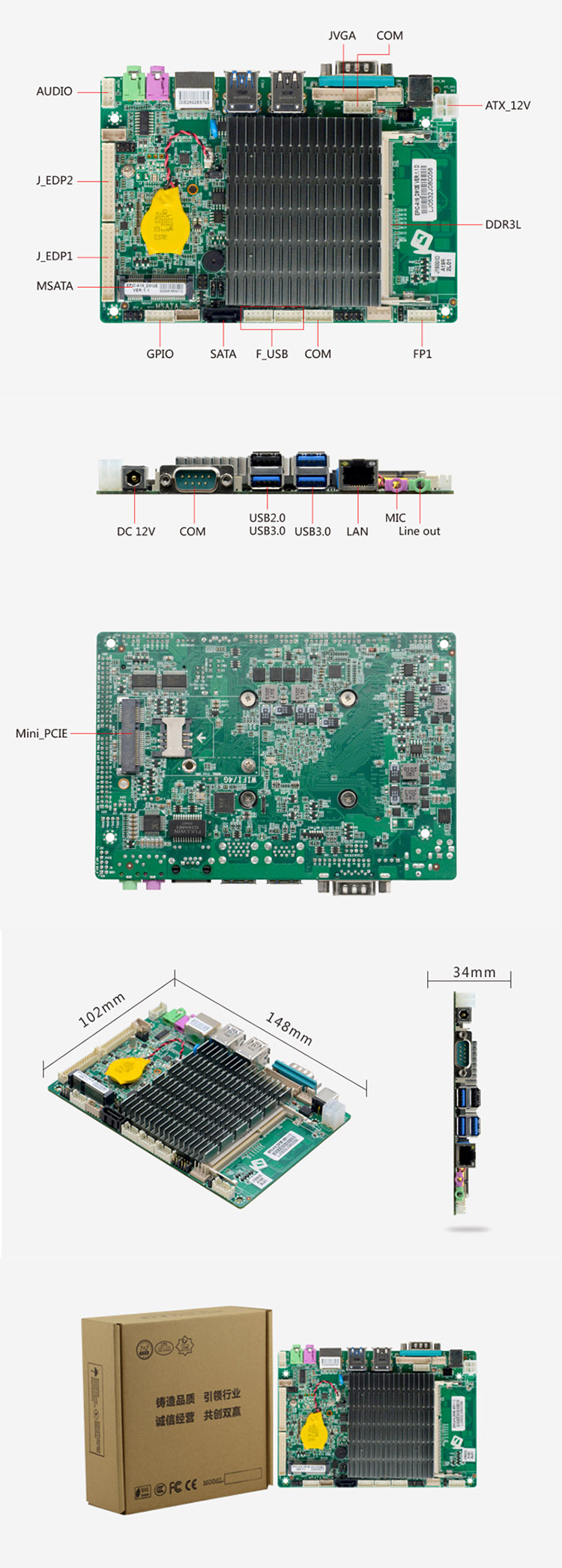

Inner I/O interfaces:
1x 4pin ATX power interface, support DC_12V input/output
1x JVGA interface 1x 12pin
2x EDP display interface 2x 15pin,
4x USB2.0 2x 5pin
2x RS232 serial interface 2x 5pin (COM2 support RS485/422 , JCOM1 and DB9 RS232 serial interface optional)
1x HDD power connector 1x 4pin
1x front audio interface 2x 5pin
1x power amplifier interface 1x 4pin
1x SIM card slot
1x Front panel function button and indicator interface 2x 5pin
Fan interfaces:No fan cooling, reserved 1x 4pin CPU intelligent fan interface ; 1x 4pin system fan interface
GPIO:Support 4 line input&output GPIO
BIOS:AMI 64Mb flash ROM
Watchdog:Support hardware reset function (256 levels, 0~255 seconds)
Operating system:Windows 10 / Linux
Power type:Powered by DC_12V (DC_12V 5A power supply unit recommended)
Operating temperature: -10℃~60℃
Storage temperature: -20℃~70℃
Working humidity: Relative humidity 5%-95%, no condensation

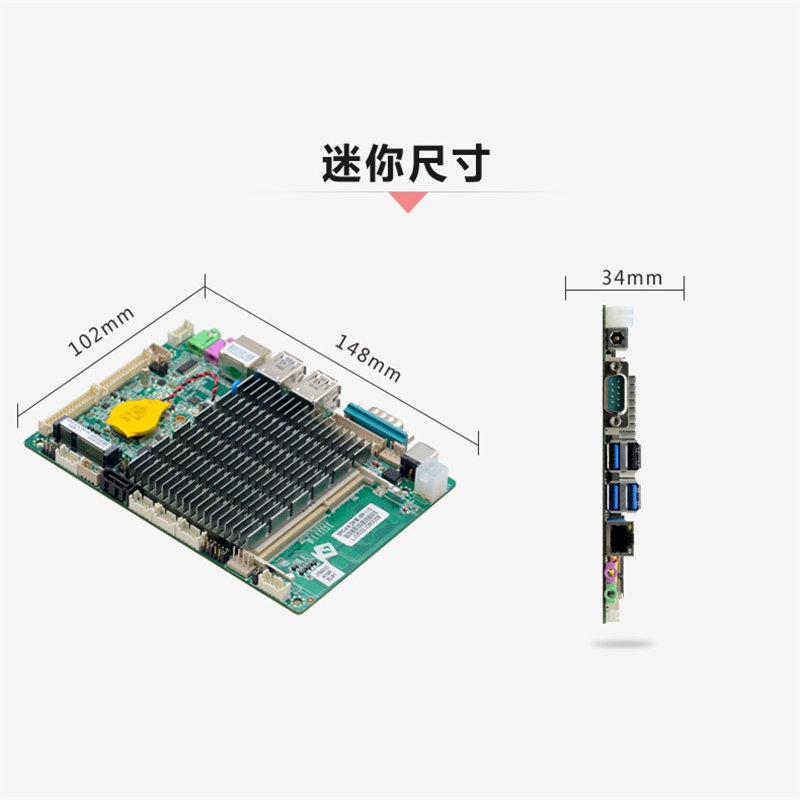

Size: 148 mm x 102 mm
