Overview
This high-performance 3.5 inch motherboard is built on the Intel Bay Trail SOC platform, featuring the Intel J1900 Quad-Core processor (2.0GHz) with Intel HD Graphics, delivering robust computing power in a compact industrial form factor.
Key Features:
●Triple display outputs: Supports VGA + HDMI + LVDS simultaneously
●Memory expansion: 1× DDR3L SO-DIMM slot (up to 8GB)
●Comprehensive industrial I/O:
2× Gigabit Ethernet ports
7× USB ports
6× industrial COM ports (RS232/485)
SIM card slot for cellular connectivity
●Flexible storage configuration:
1× SATA2.0
1× mSATA SSD
1× mini-PCIe slot (for WiFi/3G/4G modules)
●Industrial-grade reliability:
Watchdog Timer
GPIO control interface
2Ω/5W high-power audio amplifier
●Low-power operation: 12V DC input

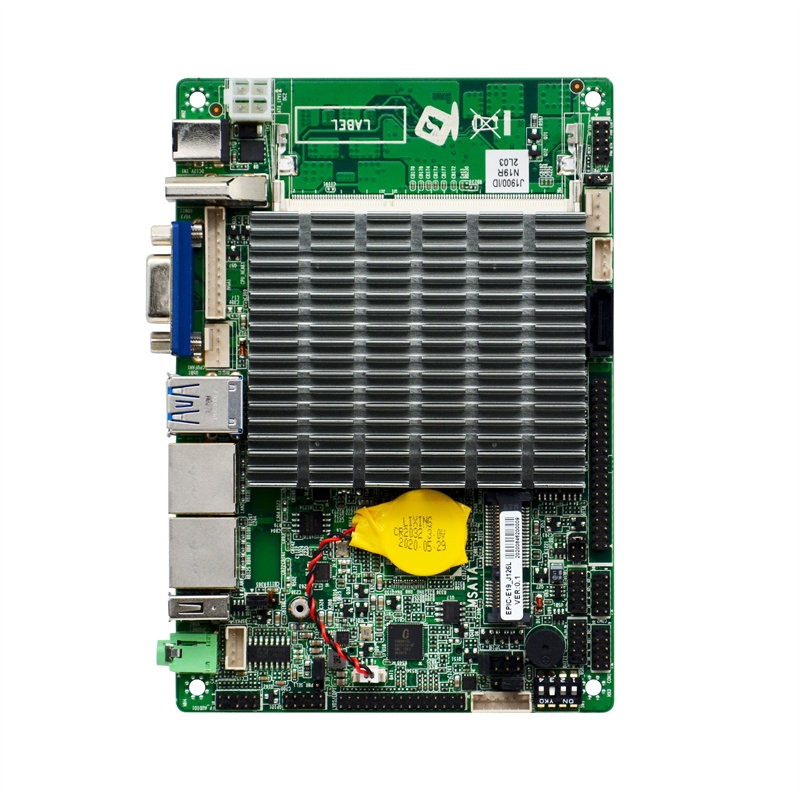

Detail Display

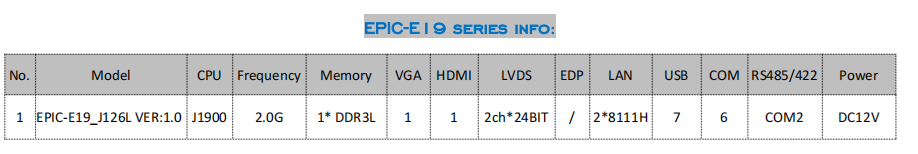

Product Description
Model No.: EPIC-E19_J126L VER:1.0
Processor: Integrated Intel® J1900/2.0GHz quad-core processor, TDP 10W
Chipset: Based on Intel® BayTrail platform
RAM: 1x SODIMM memory slot, support single channel 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB
Display:
Integrated Intel®HD Graphics core graphics card
1x VGA, 1x HDMI interface, 1x LVDS interface
Internet: 2x RTL8111H Gigabit network card, support Wake on LAN, PXE function
Store: 1x 7pin SATA2.0 hard disk interface, transfer rate up to 3Gbps
1x MSATA slot, SSD solid state drive supporting Intel protocol, transmission rate up to 3Gbps
Audio:
Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out.
The power amplifier is recommended to use 2Ω5W speakers

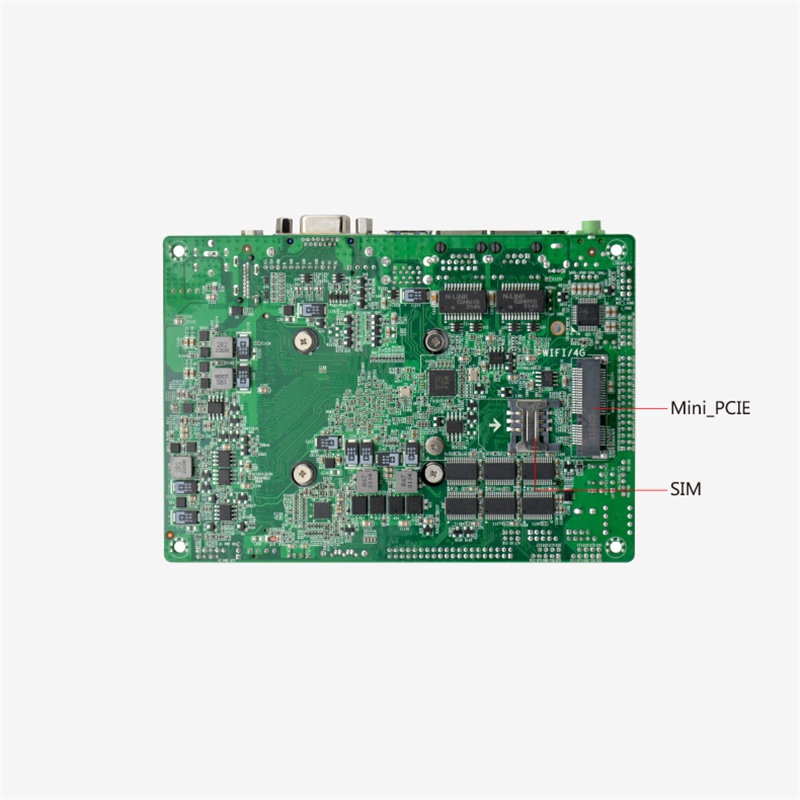

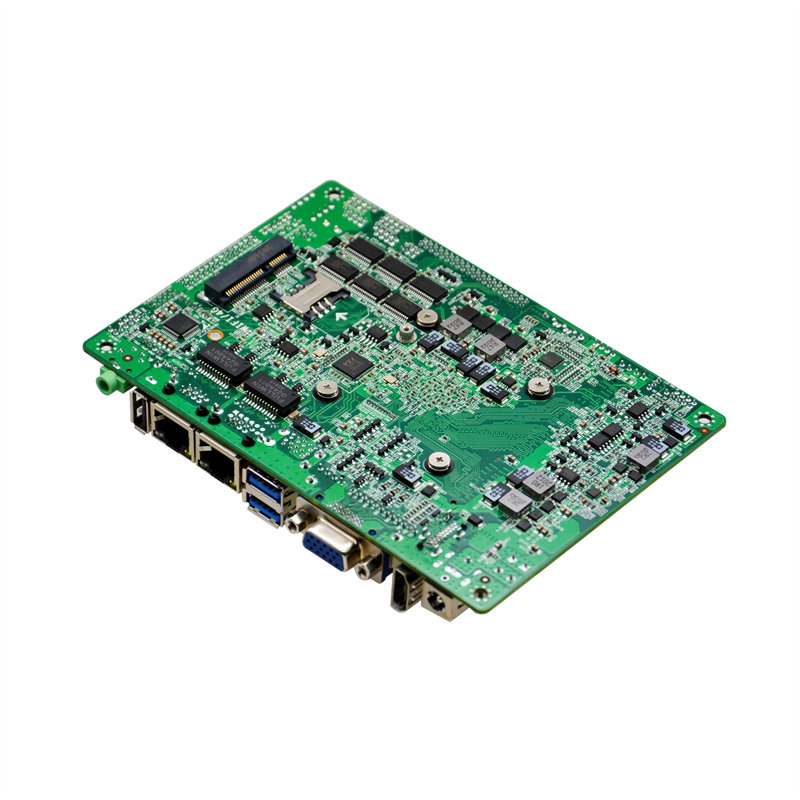

Expansion slot:1x Mini-PCIE slot, support WIF/4G module

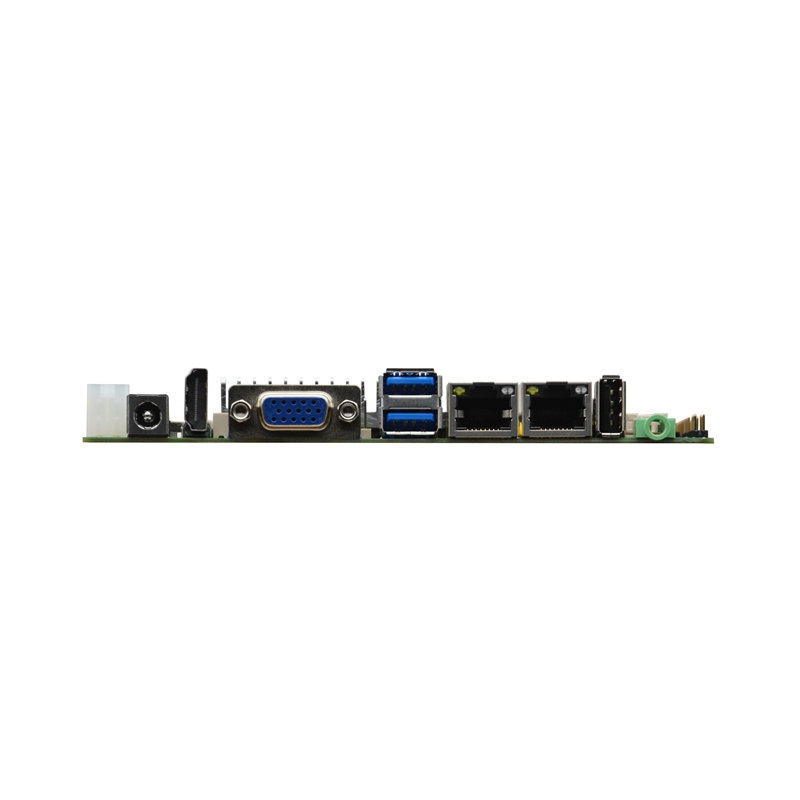

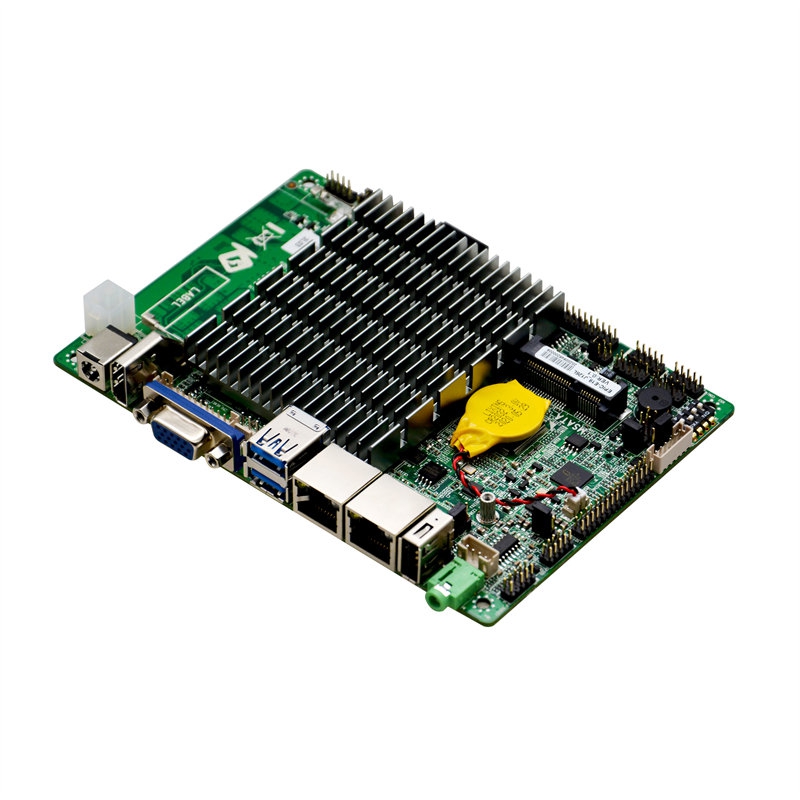

Rear I/O:
1x DC 12V power input interface
1x VGA display interface
1x HDMI display interface
2x USB3.0 interface, 1x USB2.0 interface
2x RJ45 Gigabit network interface
1x Line-out (green)

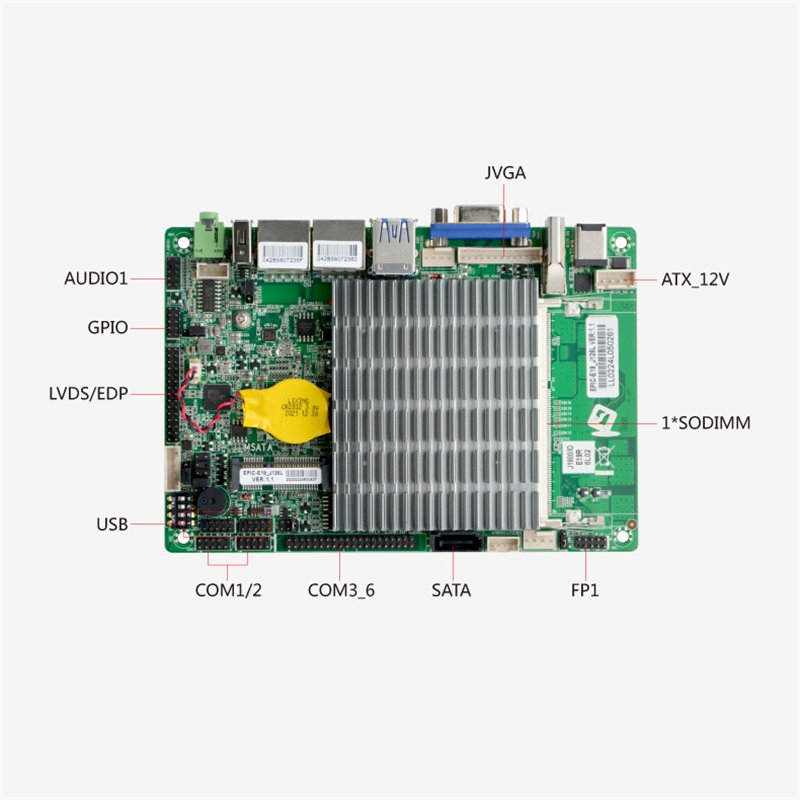

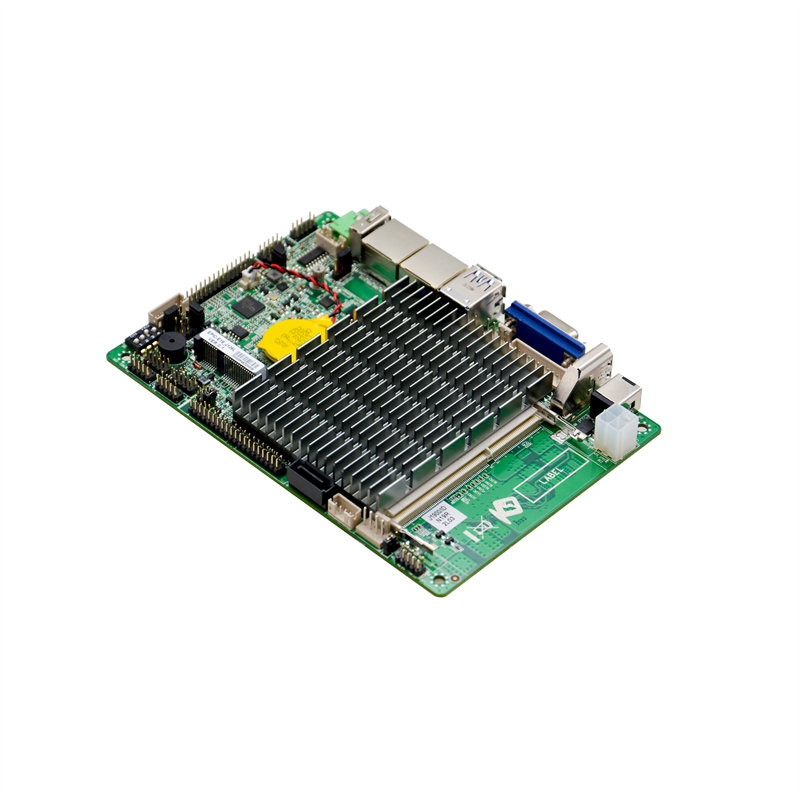

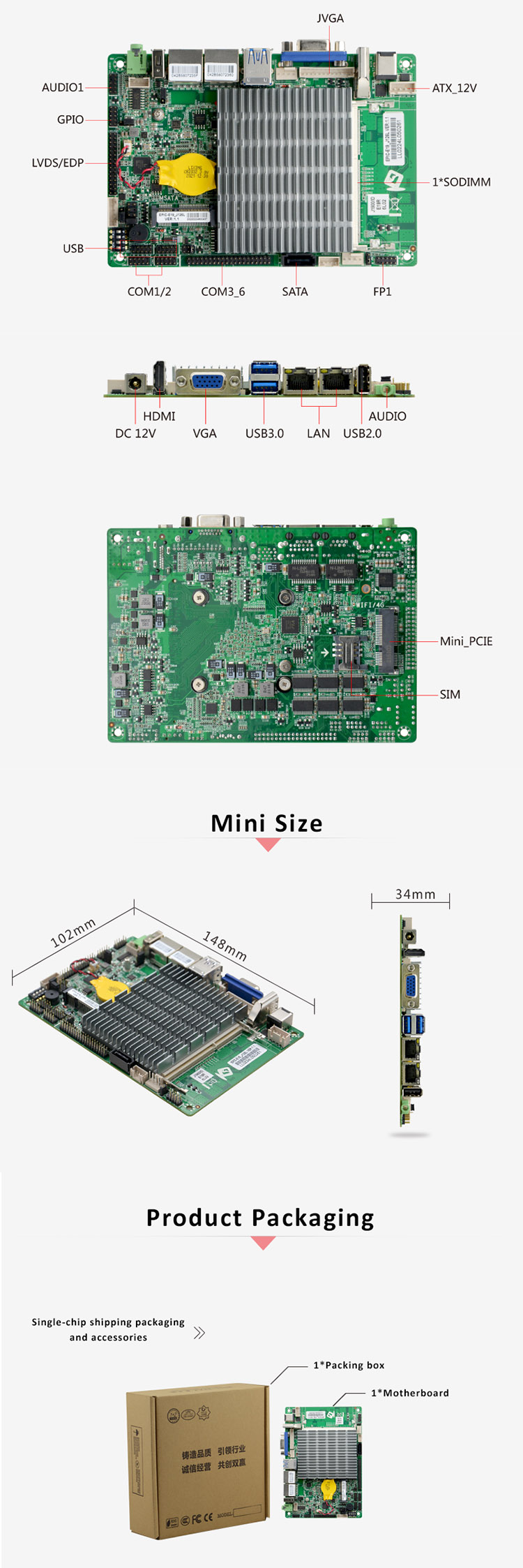

Built-in I/O:
1x 4pin ATX power connector, support 12V power input and output
1x JVGA interface 1x12pin, the same signal as DB15
1x LVDS interface, 2x15pin, support dual channel 24BIT
1x Screen backlight power supply interface 1x 6pin
4x USB2.0 interface, 2x 5pin
6x RS232 serial interface, COM1 supports the 9th pin charged function, COM2/COM3 supports RS485 function,
1x HDD power supply interface 1x 4pin
1x Front audio interface 2x 5pin
1x power amplifier interface 1x 4pin
1x SIM card slot
1x Front panel function button and indicator port 2x 5pin
Fan interface: Fanless cooling, reserved 1x 4pin CPU intelligent fan interface, 1x 4pin system fan interface
GPIO: Support 4 input and output GPIO
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Operating system: Windows 10/Linux
Power type: Powered by DC 12V power supply
Operating temp.: -10℃～60℃
Storage temp.: -20℃～70℃
Working humidity: 5%-95% relative humidity, non-condensing

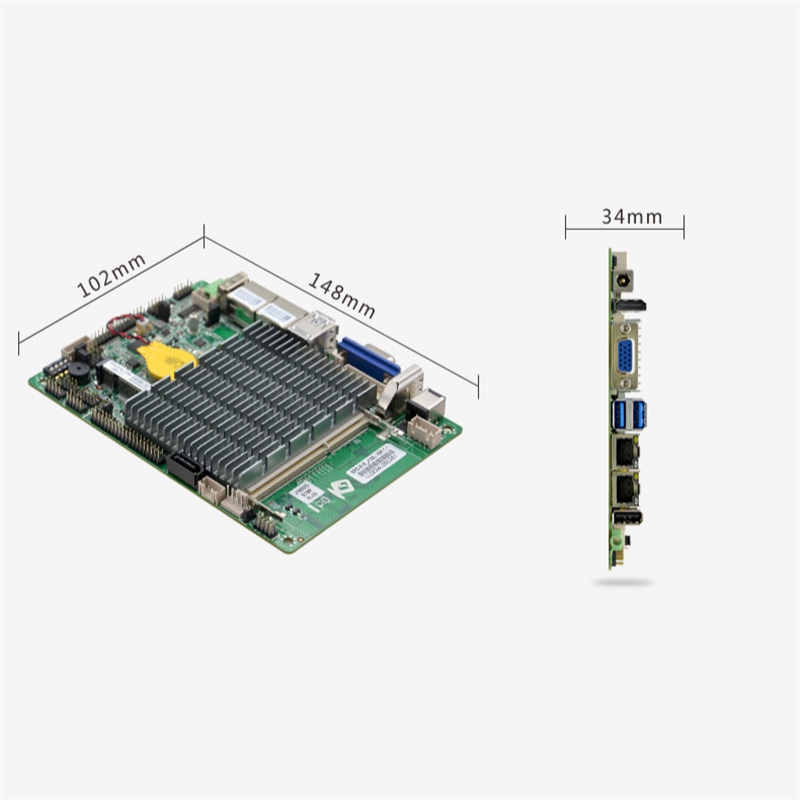

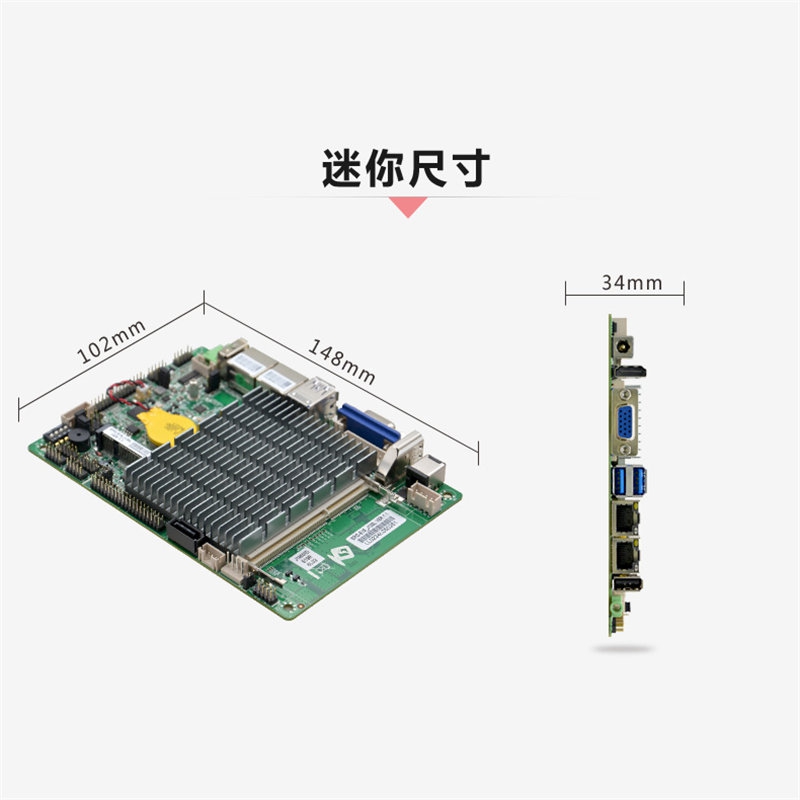

Dimension: 148mm x 102mm
