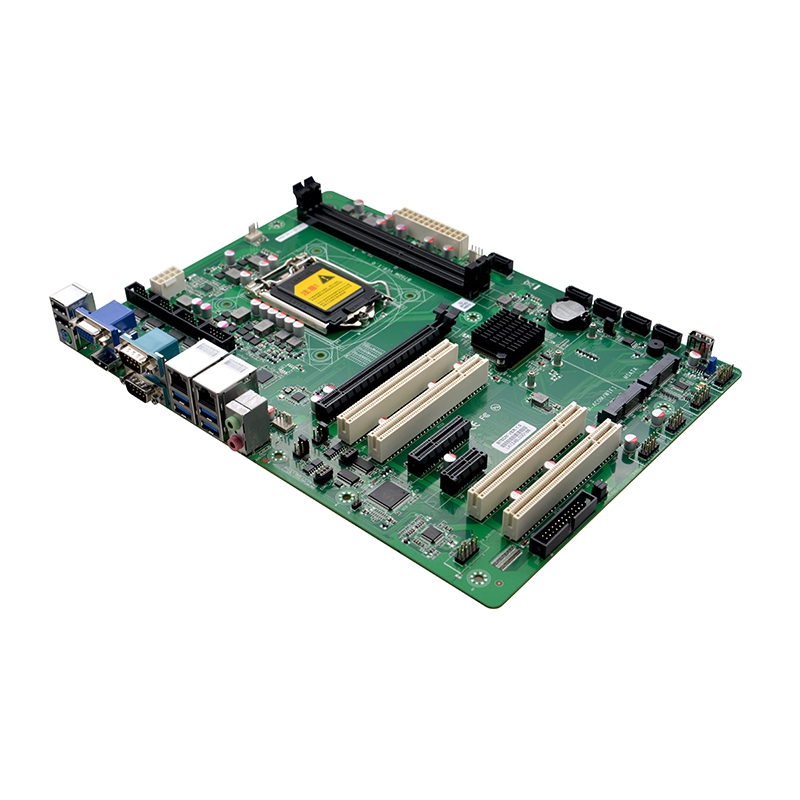

Overview
The B75DM VER:1.0 is an industrial-grade ATX motherboard featuring an LGA1155 socket and B75 southbridge, designed for harsh industrial environments. It supports 2×DDR3 memory slots, offers dual display outputs (VGA + HDMI), and includes 2×Gigabit LAN ports, 11×USB interfaces, and 6×COM serial ports for versatile industrial connectivity. Powered by standard ATX power supply, it ensures reliable operation.
Applications: Industrial automation, digital signage, smart warehousing, machine vision, energy monitoring, etc.
Product Description
Model No.: B75DM VER:1.0 (LGA1155)
Processor: Integrated LGA1155 2th/3th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor
Chipset: Intel B75 high speed chipset
Memory: 2* DDR3 DIMM memory slot, supports dual channels 1066/1333/1600MHz memory, is up to 16GB
Display:
Integrated Intel® HD Graphics graphics controller, 1*VGA , 1*HDMI 1.4
Support independent display, dual display mode, extended mode
Ethernet:
1* Intel I211AT Gigabit Ethernet , supports Wake on LAN/PXE function
1* Intel I219V Gigabit Ethernet ,supports Wake on LAN/PXE function
Storage:
5* SATA 2.0, the transfer rate is up to 3Gbps
1* MSATA slot, the transfer rate is up to 6Gbps
Audio: Integrated ALC892 high fidelity audio controller, supporting Mic、Line out
Expansion Slot:
1* PCIE x16
1* PCIE x4
1* PCIE x1
4* PCI
1* Mini-PCIE，supports WiFi (Optional TPM-4COM small board, can expand 4 serial ports)

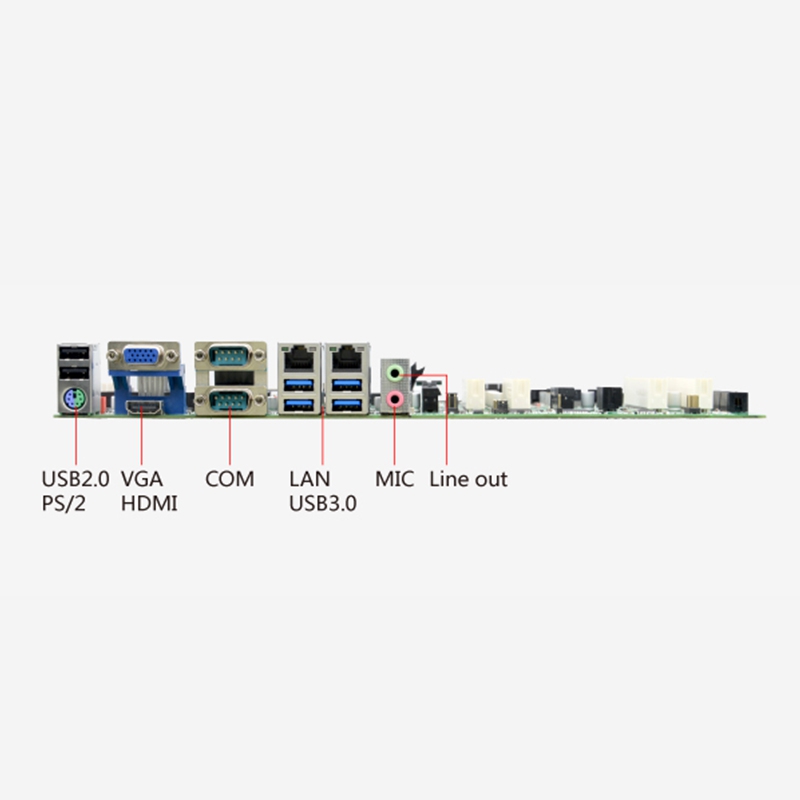

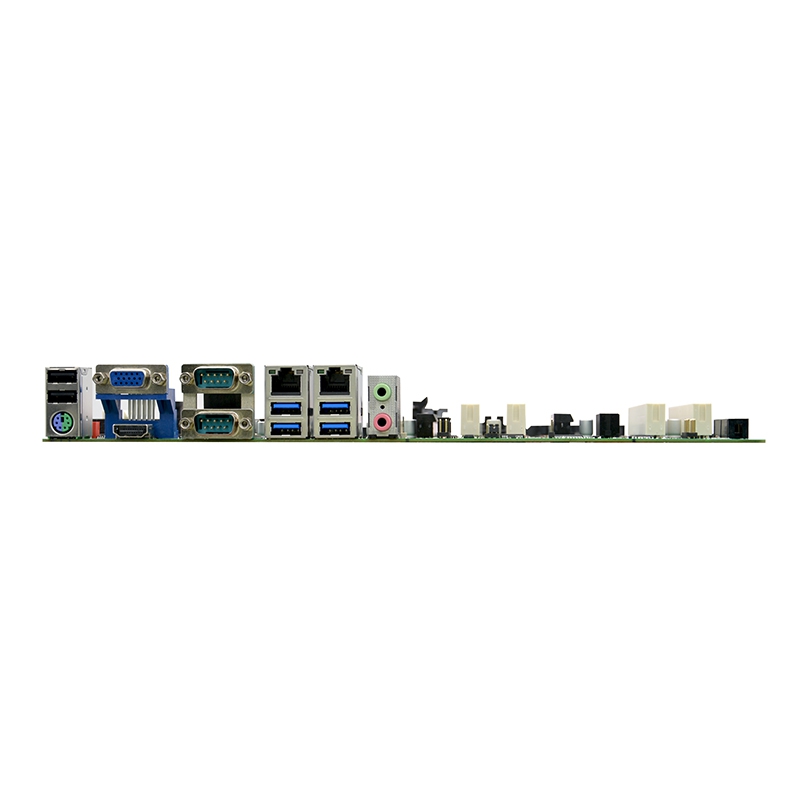

Backplane I/O interface:
1* PS/2 keyboard and mouse interface
1* VGA
1* HDMI
2* RS232, COM1/2 supports 5V/12V power supply function, COM1/2supports RS485/422 function
2* USB 2.0
4* USB 3.0
2* RJ-45 Gigabit Network Interface
1* Line out (Green), 1* MIC (Red)

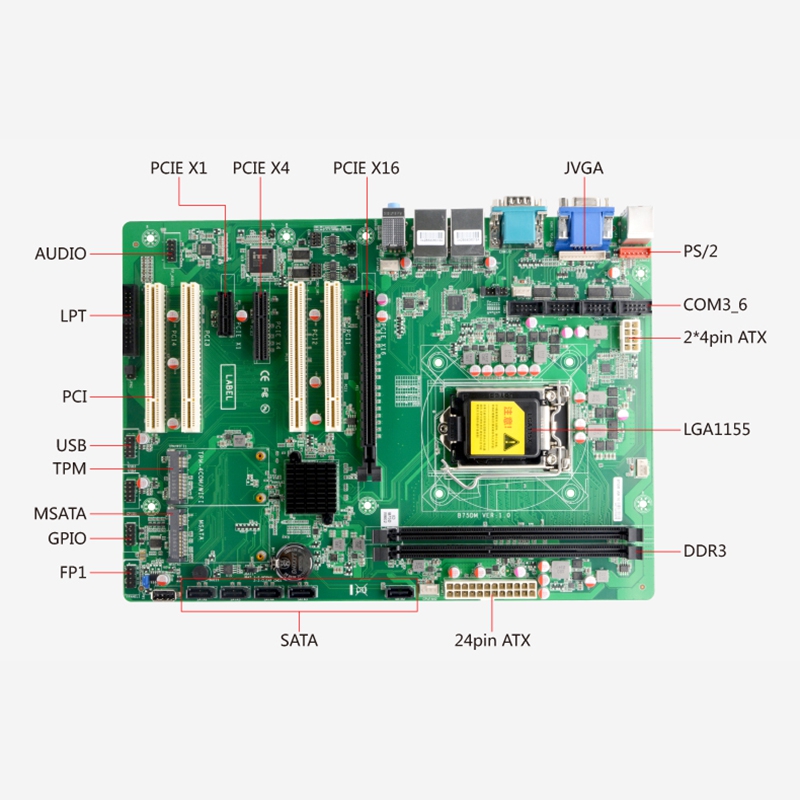

Built in I/O interface:
4* RS232
1* JVGA1, 1*12pin (Same signal as external VGA)
1* PS/2 keyboard and mouse interface, 1*6pin
1* LPT, 2*13pin, 2.54mm
1* Front audio interface, 2*5pin
4* USB 2.0, 2*5Pin
1* USB2.0, USB-TYPE A
1* Front panel function button and indicator light interface, 2*5pin排针
1* 24pin ATX power input interface
2* 4pin ATX power input interface
1* AC Power-on automatic power-on function, 1*3pin
Fan Connector: 2* 4pin CPU smart fan connector, 2*4pin system smart fan connector
GPIO: Support 4-way input output GPIO function
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows 7/Linux
Power Type: 24Pin ATX
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

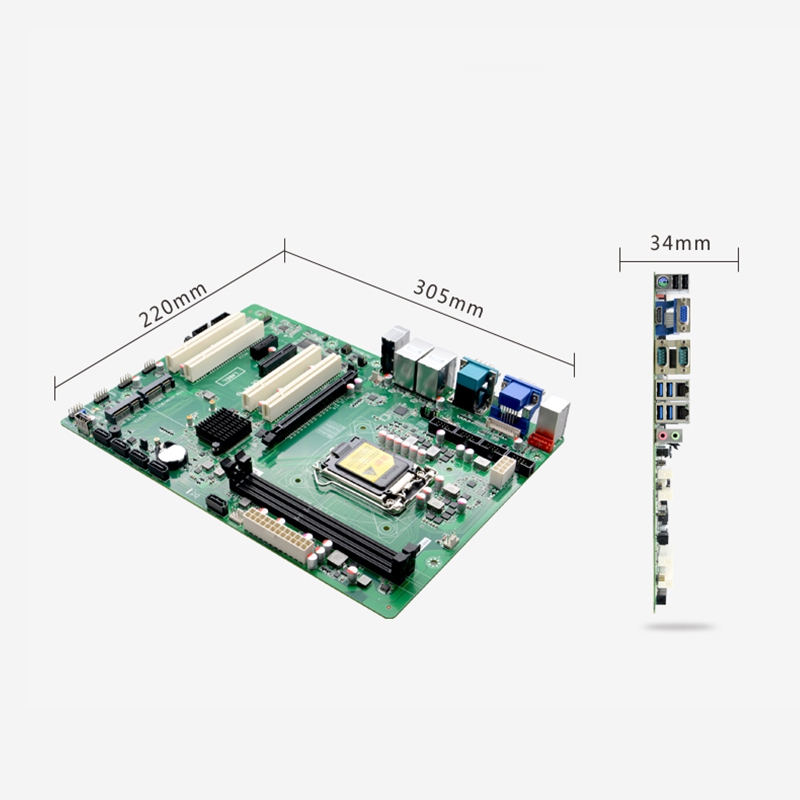

Dimension: 305mm x 220mm（ATX）

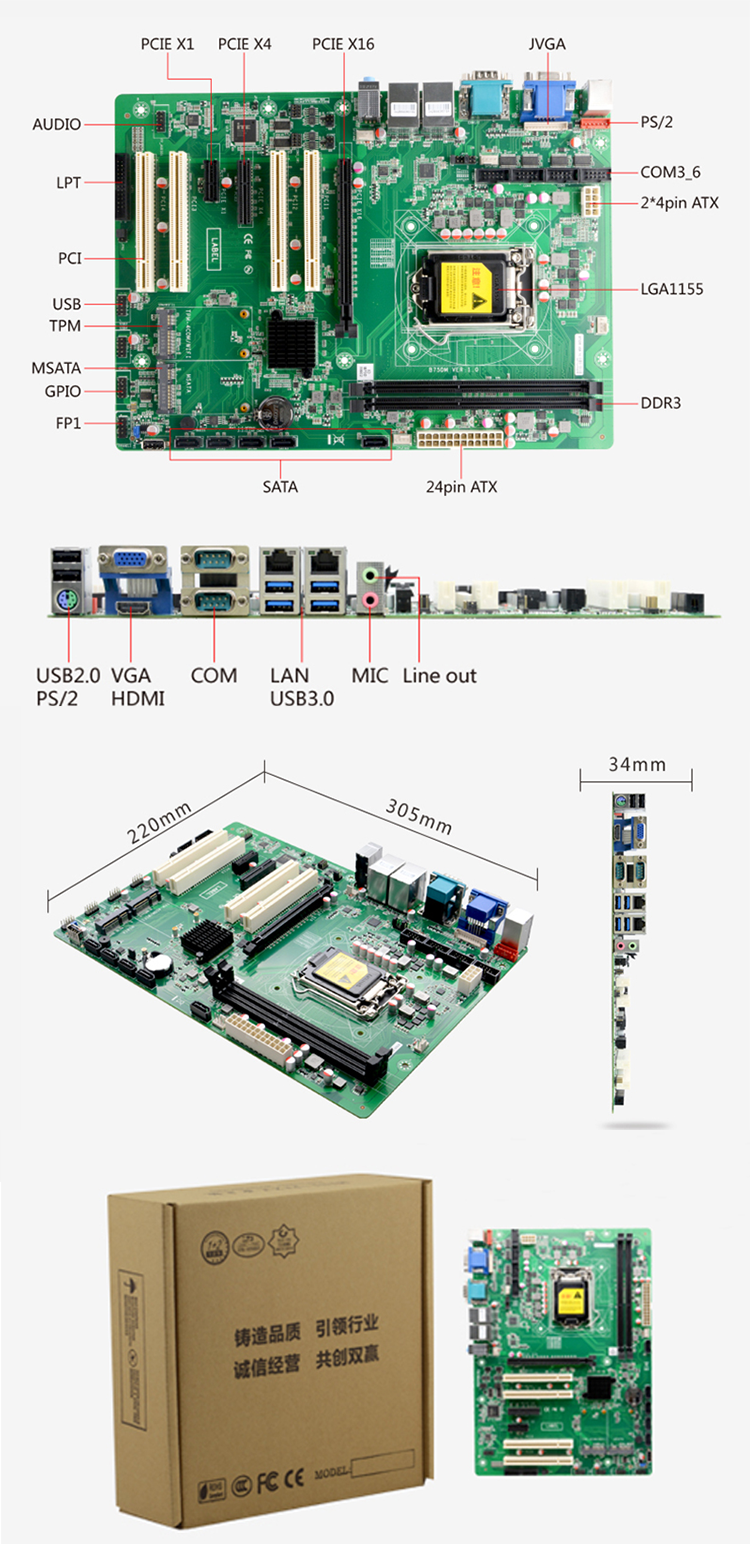

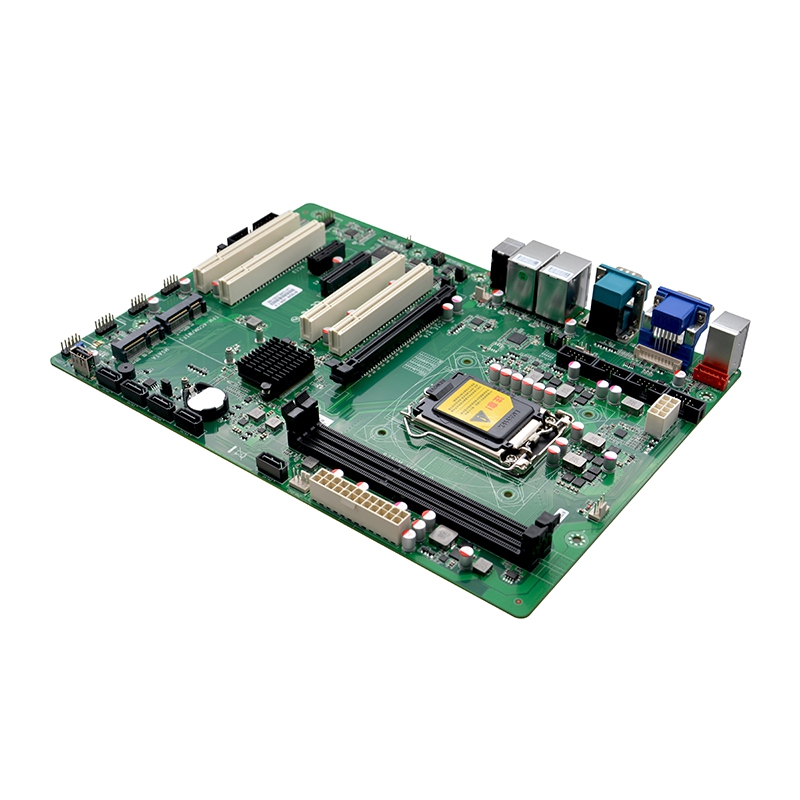

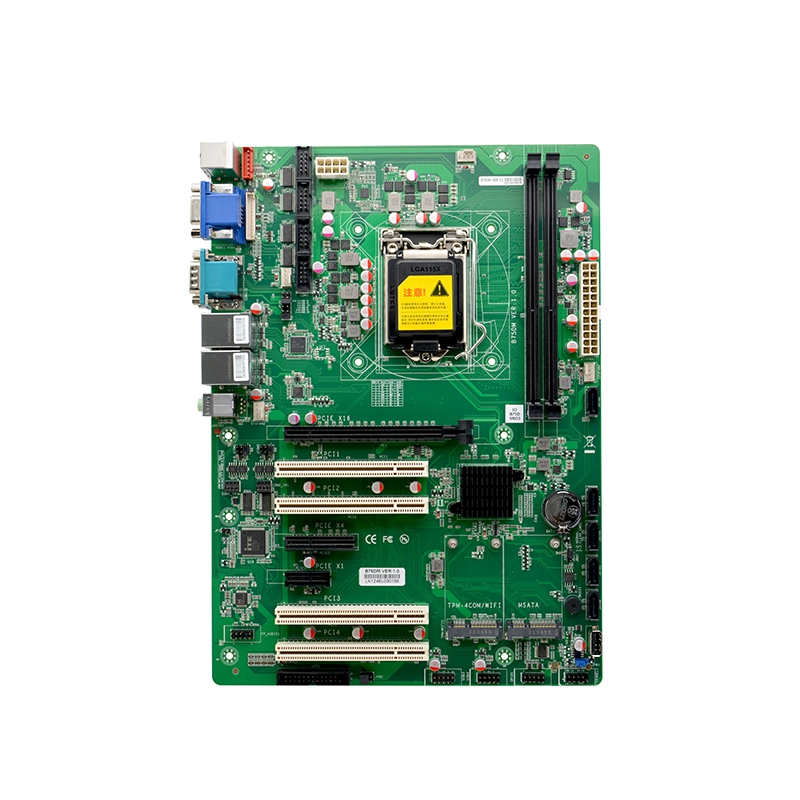

Detail Display
Application Field
The Industrial ATX Motherboard is a high-performance computing motherboard specially designed for industrial environments. It features stability, durability and scalability and is widely used in the following fields:
1.Industrial Automation
●Applied in PLC control, robotic control, and production line management.
2.Machine Vision
●Supports high-precision image processing for quality inspection and defect detection.
3.IoT & Edge Computing
●Serves as an industrial IoT gateway for data acquisition and real-time analytics.
4.Intelligent Transportation
●Used in traffic signal control and in-vehicle computing systems.
5.Energy Management
●Applied in smart grids and renewable energy monitoring systems.
6.Medical Equipment
●Used in medical imaging and diagnostic equipment control.
7.Military & Aerospace
●Suitable for extreme-environment computing with high reliability requirements.
8.Test & Measurement
●Applied in industrial testing and data acquisition systems.
Industrial ATX motherboards, with rugged design and high performance, are key components in Industry 4.0 and smart manufacturing.
