Overview

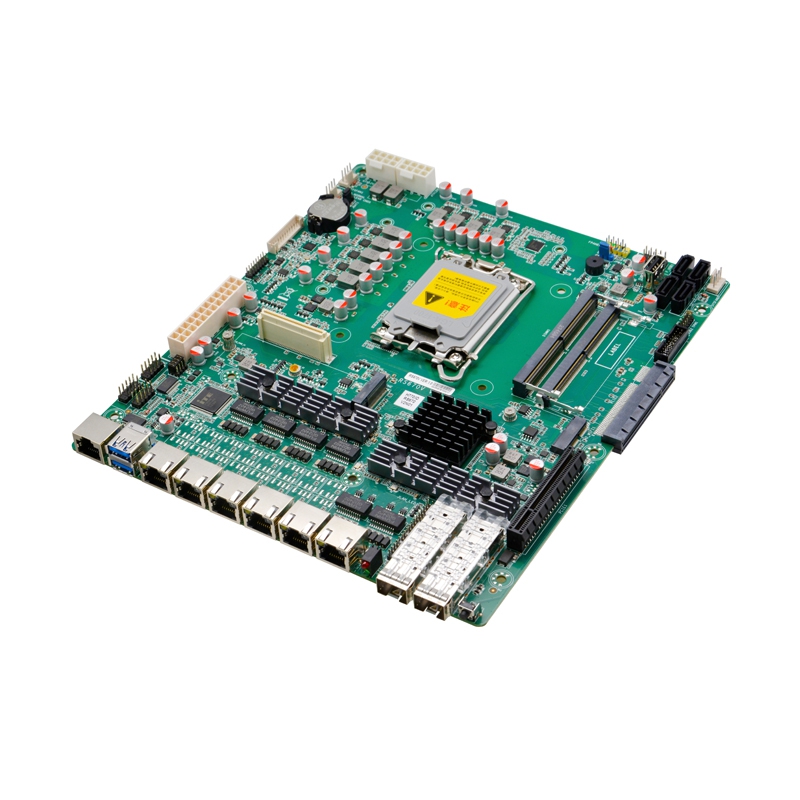

This x86 firewall motherboard features Intel® H770 chipset, supporting LGA1700 12/13/14th Gen Intel multi-series processors, with Intel® HD Graphics and VGA+HDMI1.4 dual display for easy visual management. The x86 firewall motherboard is equipped with 2*DDR5 SODIMM 5600MHz slots (max 64GB), 6*I226V Gigabit Ethernet and 2*I210AS Gigabit fiber optic interfaces, ensuring high-speed data processing and dual-mode network connectivity for heavy security loads.
Boasting 4*M.2 Key M 2280 NVME and rich peripheral ports (USB/COM/TPM), the x86 firewall motherboard meets diverse storage and expansion needs. It supports Watchdog function and ATX power input, guaranteeing 24/7 stable operation of the x86 firewall motherboard.
Applicable Scope
This x86 firewall motherboard is a premium core component for enterprise-grade firewall appliances, high-speed network security gateways and large-scale industrial/business network protection systems.
Detail Display
Product Description

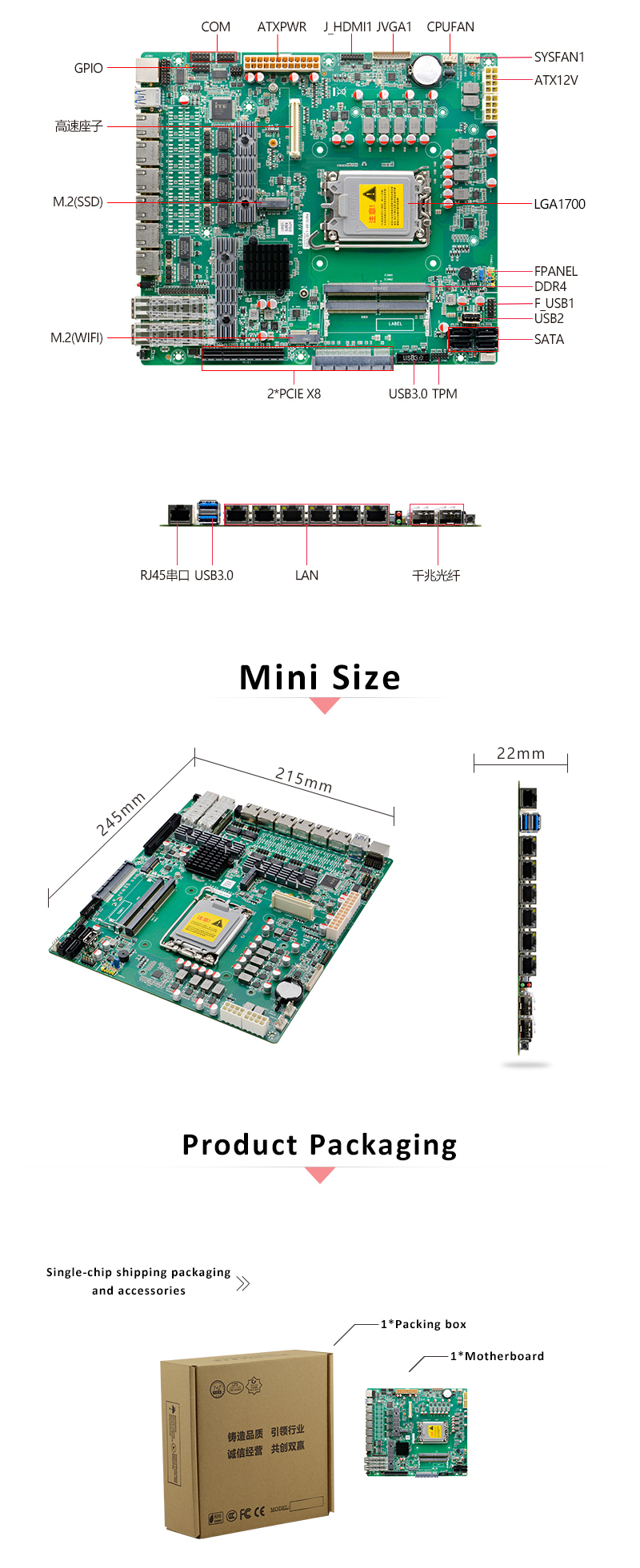

Model No.: RS670V VER:1.0
Processor: Support LGA1700 12th/13th/14th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processor
Chipset: Adopt Intel® H770 chipset
Memory: 2* DDR5 SODIMM memory slot,support 5600MHz memory, up to 64G
Display:
Integrated Intel®HD Graphics , support DirectX12.1,OpenGL4.5, support 4K display
1* VGA, the transmission speed can reach 1920X1200@60Hz
1* HDM1.4, the transmission speed can reach 4096x2160 @24Hz
Ethernet:
6* Intel I226V 2.5G Gigabit network, support wake-up / PXE function
2*Intel I210AS Gigabit fiber optic interface
Storage:
4* SATA3.0, the transmission speed can reach 6Gbps, support RAID 0,1,5,10
1* M.2, support M.2 Key M 2280 NVME PCIE3.0 X4/SATA adaptive
Audio: N/A
Expansion slots:
1* PCIE X8 slot
1* PCIE X8 slot(Side insertion)
Note:The last group of signals in the vertical x8 signal configuration consists of one PCIeX1 signal, switched by a resistor. (BOM defaults to x8 signal)
1* M.2, support WIFI&BT
1* 80-pin high-speed connector, containing COM3-6 TTL full-line signals and 2* PCIe connectors
Rear I/O interface:
1* RJ45 serial port, shared with 2* 5-pin serial headers
2* USB3.0
6* RJ45 Gigabit Ethernet ports
2* Gigabit fiber optic ports
1* Power switch
1* Dual-layer LED indicator (red on top, green on the bottom; top layer for hard drive, bottom layer for power)
Built in I/O interface:
2* USB2.0, 2*5pin
2* USB3.0, 2*10pin
1* Single-layer USB 2.0
1* JVGA header connector 1*12pin
1* JHDMI header connector 2*8pin
2* RS232 serial interfaces 2*5pin, supports RS485, COM1 and external RJ45 are selectable
1* Front panel power button and indicator light interface 2*5pin
1* Ethernet port indicator light 2*17pin
1* 24pin ATX power interface
2* 2*4pin ATX power interface
1* TPM, 2*6pin
Fan connector: 1*4pin CPU smart fan connector, 2* 4pin system fan connectors
GPIO: Support 4-way input and output GPIO
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Power type: ATX
OS: Windows 10 ,/Linux
Working Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)
Dimension: 245mm x 215mm
