Overview

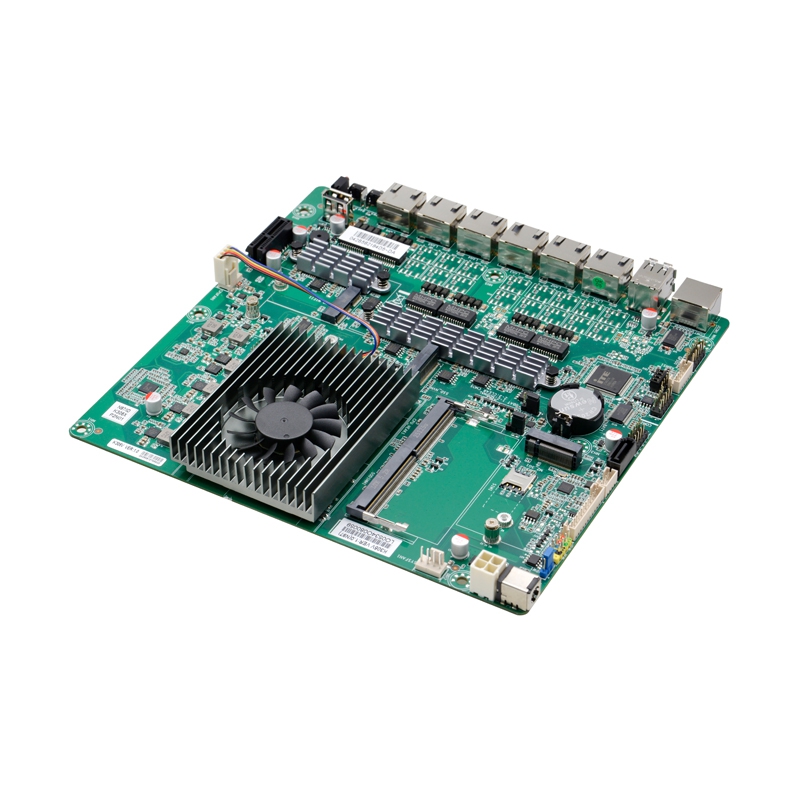

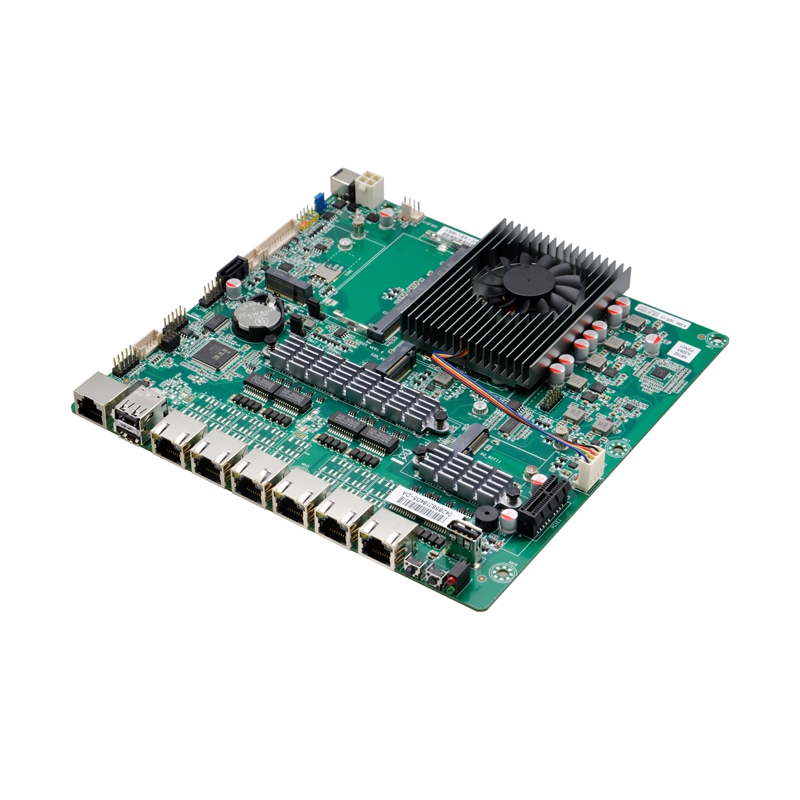

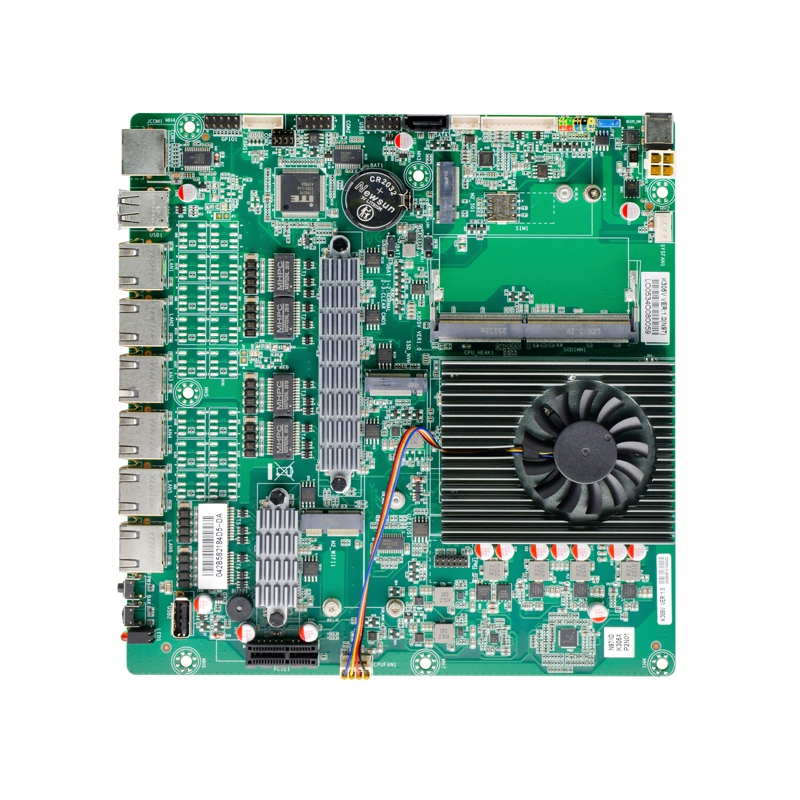

The K305V VER:1.0 is a compact firewall motherboard with Intel® Alder Lake-N SOC chipset, integrated N97 3.6GHz quad-core processor, Intel® UHD Graphics and VGA display for basic visual management.
This firewall motherboard has 1*DDR4 SODIMM slot (max 16GB), 6*Intel I226V Gigabit Ethernet ports, and rich storage/expansion interfaces, supporting flexible functional expansion for firewall tasks.
With Watchdog function and DC 12V power input, the firewall motherboard ensures 24/7 stable operation, serving as a reliable core for entry-level network security devices.
Product Description
Model No.: K305V VER:1.0(N97)
Processor:
Integrated Intel®Alder Lake-N N97 3.6GHz quad-core processor, TDP 12W
Compatible with Intel® Alder Lake-N all series CPU
Chipset: SOC
Memory: 1* DDR4 3200MHz SODIMM memory slot, up to 16GB
Display:
Integrated Intel®UHD Graphics, supports DirectX12.1,OpenGL4.5, supports 4K
1*VGA, the highest supported resolution is: 1920X1200@60Hz
Ethernet: 6* Intel I226V 2.5G Gigabit Ethernet,supports Wake on LAN/PXE function
Storage:
1* SATA3.0, the transfer rate is up to 6Gbps
1* M.2, supports M.2 2280 NVME PCIE X1/SATA adaptive SSD
Audio: N/A
Expansion Slot:
1* M.2, supports M.2 2230 WIFI
1* M.2, supports M.2 Key B 2242/2252 5G
1* PCIE X1
Note: The M.2 slot offers a choice between Wi-Fi, PCIe x1 slot/5G, and the default is the PCIe x1 slot.

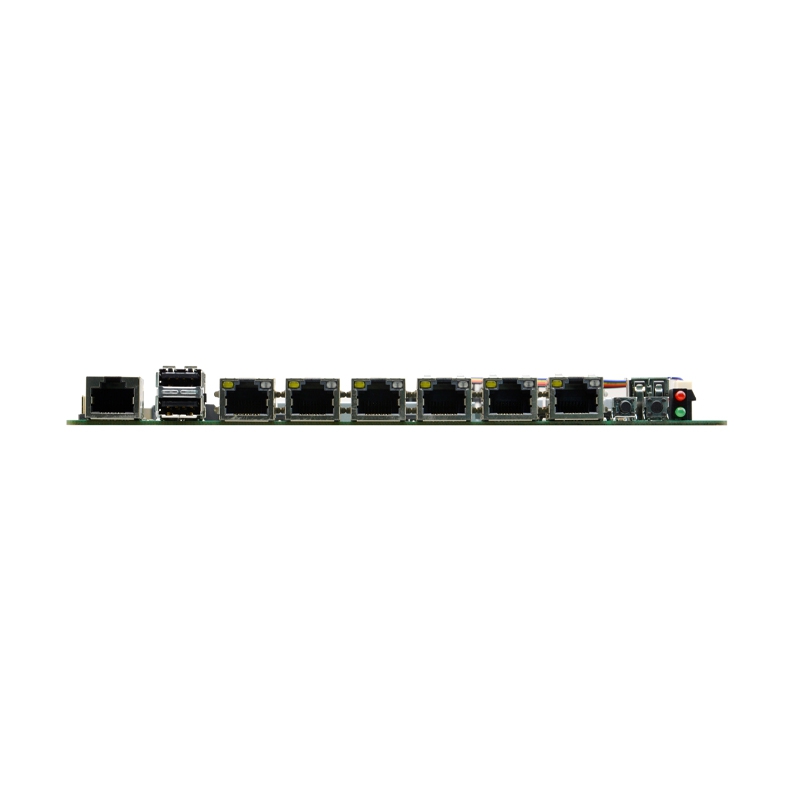

Rear I/O interface:
1* RJ45 serial port (shared with 2* 5-pin serial headers)
2* USB2.0
6* RJ45 Gigabit Ethernet ports
1* Power switch, 1* One-key recovery
1* Dual-layer LED indicator (red on top, green on the bottom; upper layer for hard drive, lower layer for power)
Built in I/O interface:
1* JVGA1, 1*12pin
1* RS232, 2*5pin,COM2 supports RS485
1* single-layer vertical USB 2.0 interface
2* USB2.0, 2*5pin
1* PS/2 keyboard and mouse interface (red) 1* 6-pin
1* GPIO header (4 inputs, 4 outputs)
1* Front panel power button and indicator light interface 2* 5-pin
1* Hard drive power connector 1* 4-pin
1* DC 12V power connector, supports 12V power input (side)
1* ATX power connector 2* 2-pin (can be used as DC12V input power connector)
1* SIM
Fan Connector: 1* 4pin CPU smart fan connector, 1* 4pin system fan connector
GPIO: Support 4-way input output GPIO function
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: DC 12V
OS: Windows 10 /11/Linux
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)
Dimension: 200mm x 193mm
