Scope of application
SII-3588-A belongs to high performance Android series products, with 8nm advanced manufacturing process; With 8-core 64-bit size core architecture, 4 A76 large core frequency can reach 2.4G, 4 A55 small core frequency can reach 1.8G; With NPU, with 6TOPS AI computing power,Mali-G610 MC4 GPU; 8K video codec,8K display output.
Function introduction
The SII-3588-A runs Android13. The board is equipped with LVDS, eDP, MIPI, HDMI display output interface, MIPI Camera, 1 Gigabit network 1 100 Gigabit network and other interfaces, and built-in universal backlight board interface, and screen voltage jumper, compatible with more kinds of display; Stronger performance, faster, more rich interface, is your best choice in human-computer interaction, intelligent terminal, industrial control projects.
Features

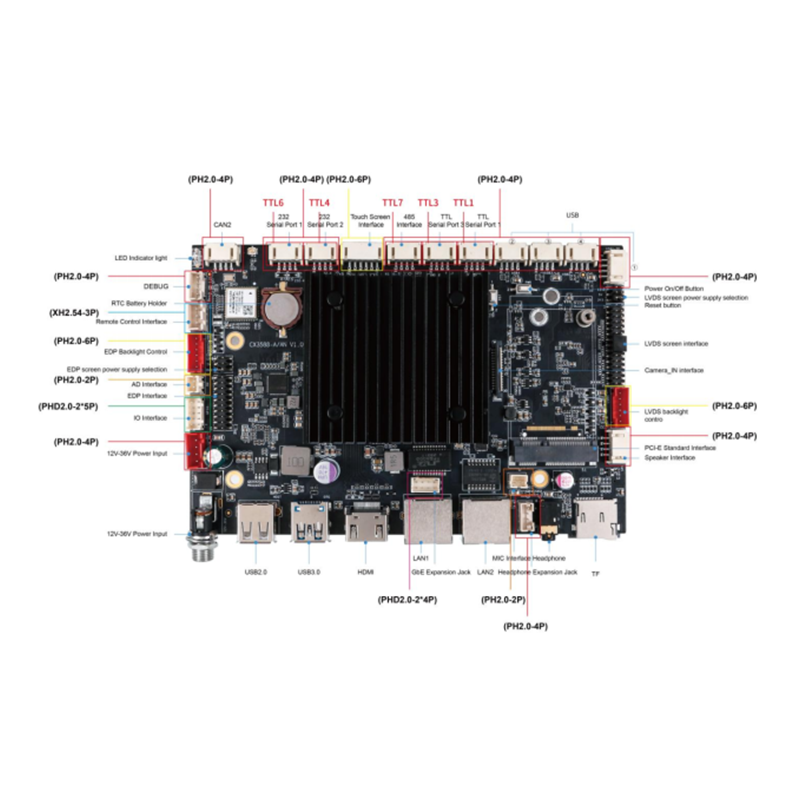

● Multi-channel display interface: LVDS, eDP, MIPI, HDMI display output interface.
● Rich expansion interface: 6 USB interfaces (1 USB2.0 HOST standard interface, 4 USB2.0 PH2.0 HOST interface socket, 1 standard USB3.0 OTG interface), 2 TTL serial port, 2 RS232, 1 RS485, 6 GPIO support input and output, can meet the requirements of various peripherals on the market.
● Multiple network interfaces: 1*1000M Ethernet interface, 1 * 100M Ethernet interface, support 5G and 2.4G WIFI, built-in PCI-E 4G module interface.
● High definition: Maximum support 8K/60HZ video output, support LVDS/EDP/MIPI/HDMI interface LCD display.
● Customized with Android system, provide system call interface API reference code, perfect support for customer upper-layer application APP development.
● Perfect support for infrared, optical, capacitive, resistor, touch film and other mainstream touch screen.
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1: Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2: What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
