Products

New Products

4 Lan N97 DDR4 Fanless Mini Firewall

♦Model No.:C2120Z-L4 V2.0(N97)

♦All aluminum alloy, fanless cooling structure

♦Intel®Alder Lake-N N97/Turbo 3.6GHz quad-core CPU

♦1x DDR4 RAM slot, up to 16GB

♦1x SATA + 1x M.2

♦4x RJ45 Lan

♦1x HDMI1.4

♦1x Mini-PCIe for 4G/WIFI

♦5x USB3.0, 1x USB2.0

♦DC_12V Power Input
8 Lan LGA1151 DDR4 SFP Pfsense Firewall System Security

♦ Model No.:R320E-L8 V1.0(R270)

♦ Intel®LGA1151 6th/7th/8th/9th i3/i5/i7 series processor

♦ Intel®Q270/Q250 High speed chipset

♦ 2*DDR4 SODIMM 2400MHz ,max up to 64GB

♦ 8*Intel I210 Gigabit Ethernet port，4 or 2 SFP+ ports can be extended

♦ 2*USB3.0, 1*VGA

♦ 4 or 2 light ports can be extended

♦ Support two groups of BYPASS(Optional)

♦ Standard with 1U AC220V ATX power supply 250W

♦ 1U standard case, high-quality galvanized steel plate / Support Windows&Linux OS
4 Lan N97 DDR4 Machine Vision Motherboard

♦Model No.:ITX-VL305 VER:1.0(N97)

♦Based on Inte Alder Lake-N SOC platform

♦Integrated Intel®Alder Lake-N N97 3.6GHz quad-core processor

♦Intel® UHD Graphics; VGA+HDMI+LVDS/1* EDP for display

♦1*DDR4 2133MHz SO-DIMM Socket, up to 16GB

♦4* Intel WGI210AT Gigabit Ethernet/ 8*USB/ 6*COM /1*SIM/ 1* TPM

♦1*SATA3.0/ 1* M.2 SSD/ 1* Mini-PCIE (Wifi/4G)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W

♦Support DC_12V Input
RK3576 ARM Motherboard

♦Model No.:CX3576-A V1.0 (4G+128G) VER:4G

♦WIFI use FCS960K,support 2.4G/5G dual-band,Bluetooth5.3

♦Bottom plate thread DC2.0*1（12V-36V input)

♦RJ45*1、HDMI*1、USB3.0*1、USB2.0*1、USB2.0 socket*4、TF*1、Audio 3.5mm*1

♦Size:157*100mm

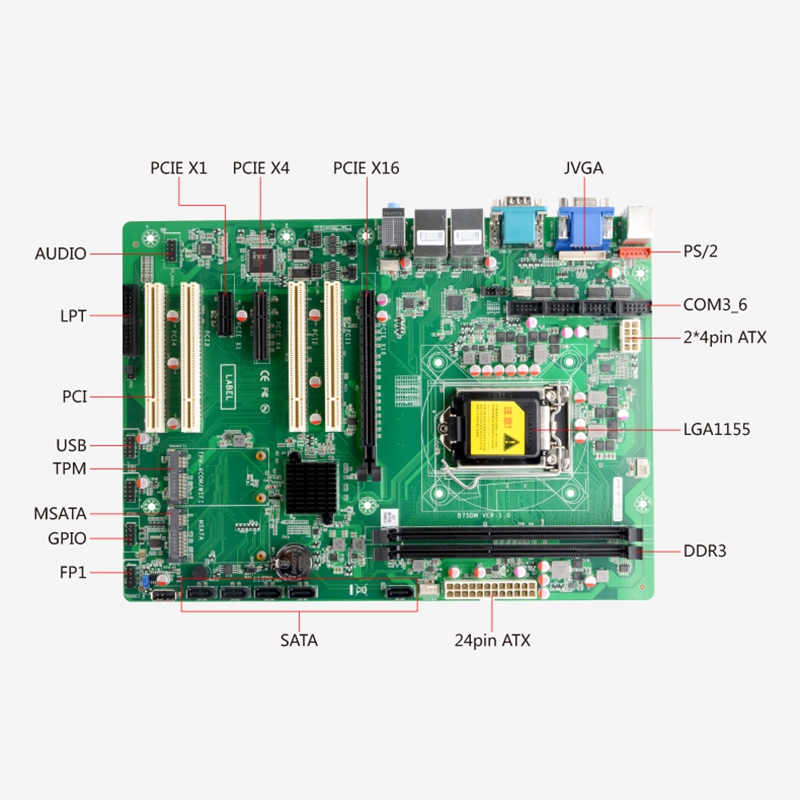

2 Lan LGA1155 DDR3 Industrial ATX Motherboard

♦Model No.:B75DM VER:1.0 (LGA1155)

♦Adopt Intel B75/Q77 Express chipset

♦Support LGA1155 socket 2nd/3rd Gen Pentium/Core i3/i5/i7 processors

♦Integrated Intel HD Graphics ; HDMI + VGA for display

♦2*DDR3 DIMM 1600/1333/1066MHz Socket, up to 16GB memory.

♦2*RJ45 Gigabit Ethernet / 11*USB / 6~10*COM(RS232/485/422)

♦5*SATA2.0 / 1*mSATA / 1*mini-pcie for (Wifi/TPM-4COM module )

♦1*PCIE x16 ; 1*PCIE x4 ; 1*PCIE x1 ; 4*PCI slot ; 1*LPT ; 2* PS2 ;1*WDT ; 1*GPIO

♦Provide: 1* ATX 24PIN Input ; 1*ATX 8pin input

Read More Make an inquiry
LGA1150 Dual Lan DDR3 Industrial ATX Motherboard

♦Model No.:H86DM VER:1.0 (LGA1150)

♦Adopt Intel Q85 Express chipset

♦Support LGA1150 socket 4th Gen Intel Pentium/Core i3/i5/i7 processor

♦Integrated Intel HD Graphics ; 2*HDMI + VGA for display

♦4*DDR3 DIMM 1600/1333/1066MHz Socket, up to 32GB memory.

♦2*RJ45 Gigabit Ethernet / 15*USB / 6~10*COM(RS232/485/422)

♦5*SATA3.0 / 1*mSATA / 1*mini-pcie for (Wifi/TPM-4COM)

♦1*PCIE x16 ; 1*PCIE x4 ; 1*PCIE x1 ; 4*PCI slot ; 1*LPT ; 2* PS2 ; 1*LPT

♦Provide: 1* ATX 24PIN Input ; 1*ATX 8pin input

Read More Make an inquiry

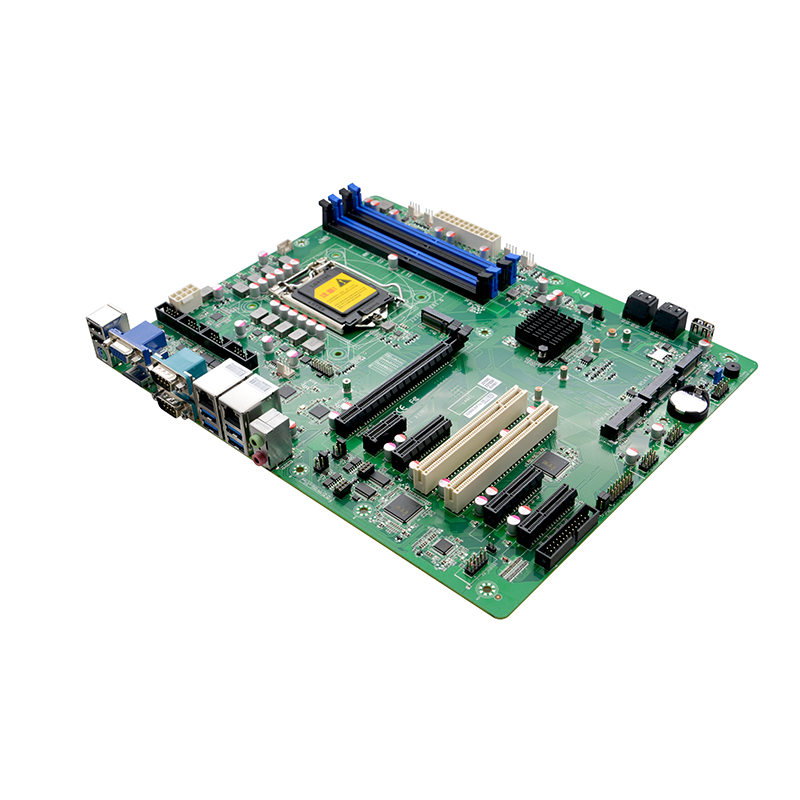

LGA1151 Dual Lan 4*ddr4 Industrial ATX Motherboard

♦Model No.:Z270DM VER:1.0(LGA1151)

♦Adopt Intel Z270 Express chipset

♦Support LGA1151 6th~9th Gen Pentium/Core i3/i5/i7 processors

♦Integrated Intel HD Graphics ; 2*HDMI + VGA for display

♦4*DDR4 2133/2400/2666MHz DIMM socket, up to 64GB

♦2*RJ45 Gigabit Eth / 11*USB / 6~10*COM(RS232/485/422) /1*TPM

♦4*SATA3.0 / 1*mSATA / 1*M.2 (NVMe PCIE x4) / 1*M.2 for 4G/5G

♦1*PCIE3.0 x16 ; 1*PCIE3.0 x1 ; 3*PCIE3.0 x4 ; 2*PCI slot ; 1*LPT ; 2*PS2

♦1*Mini-pcie (Wifi/TPM-4COM) ; 1* ATX 24PIN / 1*ATX 8pin input

Read More Make an inquiry

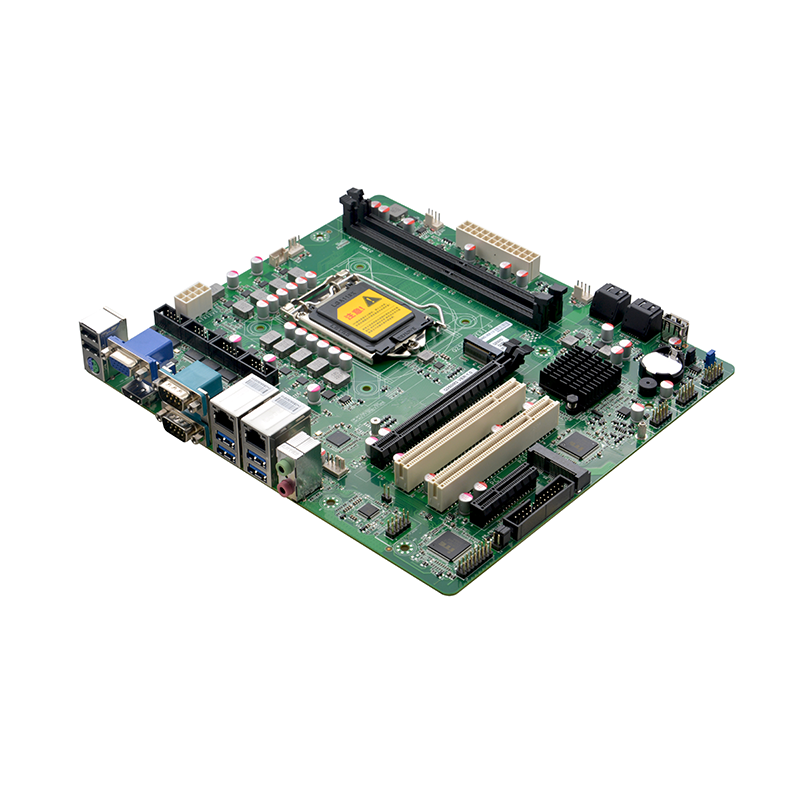

2 Lan LGA1151 Industrial ATX Motherboard

♦Model No.:Q250M3 VER:1.0(LGA1151)

♦Adopt Intel Q250 Express chipset

♦Support LGA1151 6th~9th Gen Celeron/Pentium/Core i3/i5/i7 processor

♦Integrated Intel HD Graphics ; HDMI + VGA for display

♦2*DDR4 2133/2400/2666MHz DIMM socket, up to 64GB

♦2*RJ45 Gigabit Ethernet / 11*USB / 6*COM(RS232/485/422) / 1*TPM

♦4*SATA3.0 / 1*mSATA / 1*M.2 (NVMe PCIE x4)

♦1*PCIE x16 ; 1*PCIE x4 ; 2*PCI slot ; 1*LPT ; 2*PS2 ; 1*WDT ; 1*GPIO

♦1* ATX 24PIN input ; 1*ATX 8pin input

Read More Make an inquiry

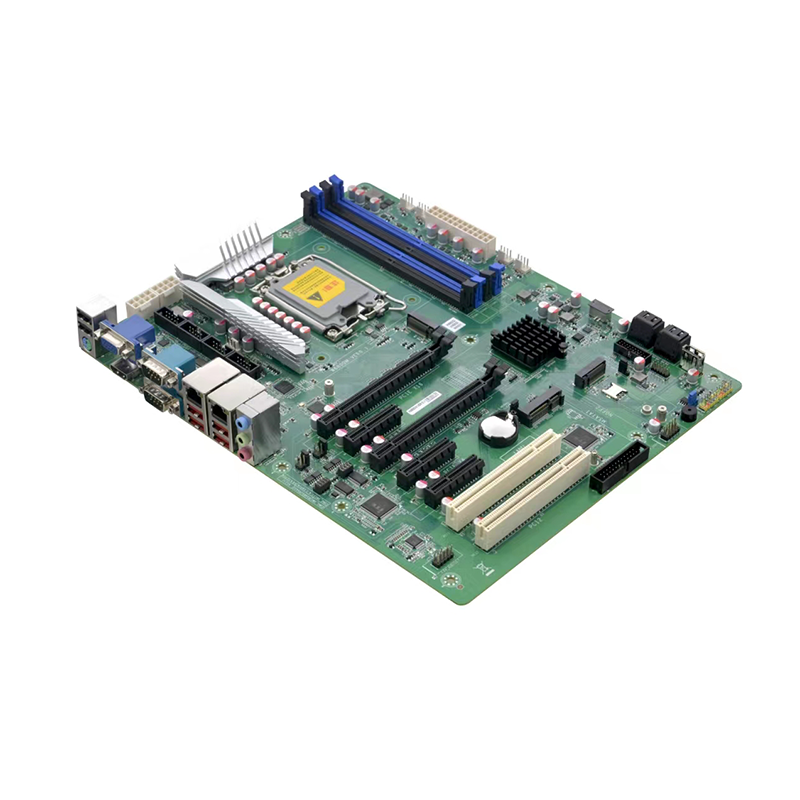

2 Lan LGA1700 Industrial ATX Motherboard

♦Model No.:W680DM VER:0.1(LGA1700)

♦Adopt Intel W680 Express chipset

♦Support LGA1700 12nd/13rd Gen Celeron/Pentium/Core i3/i5/i7/i9/Xeon processors ( TDP up to: 125W )

♦Integrated Intel HD Graphics; 2*HDMI + VGA for display

♦4*DDR4 3200MHz DIMM slot, up to 128GB (support ECC memory)

♦2*I210AT GbE / 9*USB / 1* DB9 COM(RS232) / 6*COM

♦4*SATA3.0 / 1* MSATA SSD / 2*M.2 (SSD/4G/5G) / 2* PCIE4.0 X16 / 3*PCIE X4 / 2* PCI

♦1*PS2 / 1*TPM / 1*SIM / 1*LPT / WDT

♦Provide: 1* ATX 24PIN Input ; 2*ATX 8pin input

Read More Make an inquiry

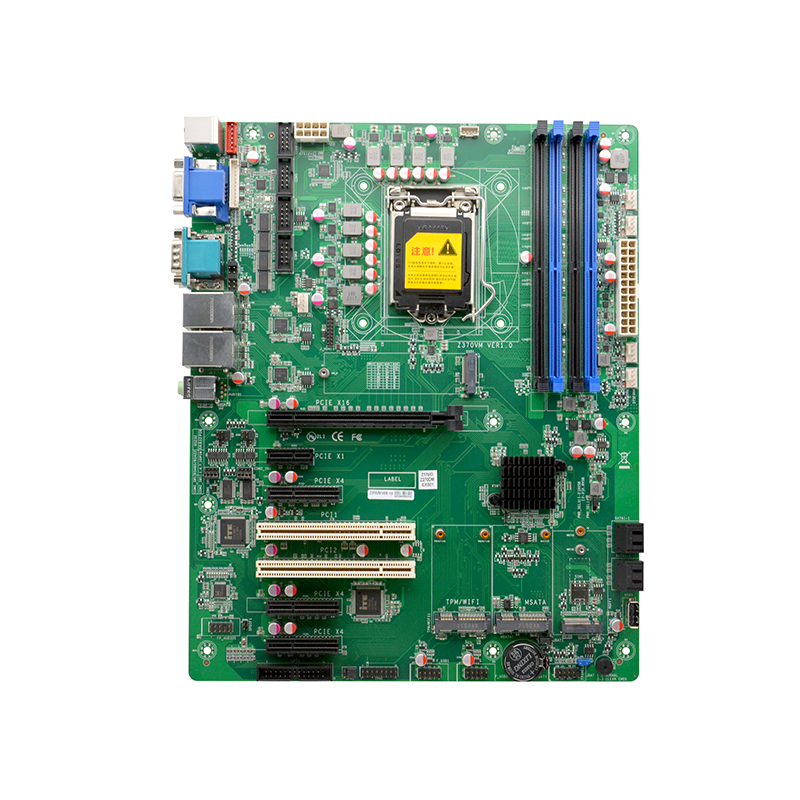

2 Lan 2 HDMI LGA1151 industrial ATX motherboard

♦Model No.: Z370VM VER:1.0

♦Adopt Intel Z370 Express chipset

♦Support LGA1151 6th~9th Gen Pentium/Core i3/i5/i7 processors

♦Integrated Intel HD Graphics ; 2*HDMI + VGA for display

♦4*DDR4 2133/2400/2666MHz DIMM socket, up to 64GB

♦2*RJ45 Gigabit Eth / 11*USB / 6~10*COM(RS232/485/422) / 2*PS2

♦4*SATA3.0 / 1*mSATA / 1*M.2 (NVMe PCIE x4) / 1*M.2 for 4G/5G

♦1*PCIE3.0 x16 ; 1*PCIE3.0 x1 ; 3*PCIE3.0 x4 ; 2*PCI ; 1*LPT ; 1*TPM

♦1*Mini-pcie (Wifi/TPM-4COM) ; 1* ATX 24PIN / 1*ATX 8pin input

Read More Make an inquiry
2 Lan 2 HDMI LGA1150 industrial ATX motherboard

♦Model No.: Q86M3 VER:1.0

♦Adopt Intel Q86 Express chipset

♦Support LGA1150 socket 4th Gen Intel Pentium/Core i3/i5/i7 processors

♦Integrated Intel HD Graphics ; 2*HDMI + VGA for display

♦2*DDR3 DIMM 1600/1333MHz Socket, up to 16GB memory

♦2*RJ45 Gigabit Ethernet / 11*USB / 6~10*COM(RS232/485/422)

♦2*SATA3.0 / 1*mSATA / 1*mini-pcie for (Wifi/TPM-4COM)

♦1*PCIE2.0 x16 ; 1*PCIE2.0 x4 ; 2*PCI slot ; 1*LPT ; 2* PS2 ; 1*WDT

♦Provide: 1* ATX 24PIN Input ; 1*ATX 8pin input

Read More Make an inquiry

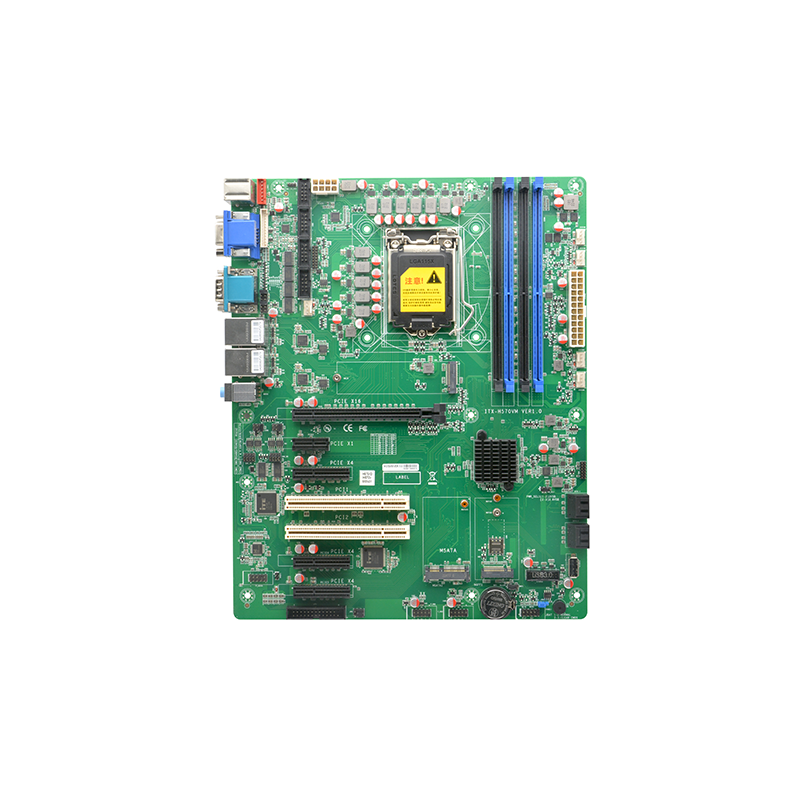

2 Lan 2 HDMI LGA1200 industrial ATX motherboard

♦Model No.: H570VM VER:1.0

♦Adopt Intel H570 Express chipset

♦Support LGA1200 10th/11st Gen Pentium/Core i3/i5/i7/i9 processors

♦Integrated Intel HD Graphics ; 2*HDMI + VGA for display

♦4*DDR4 3200MHz DIMM socket, up to 128GB

♦2*RJ45 Gigabit Ethernet / 12*USB / 6*COM(RS232/485/422) / 2* PS2

♦4*SATA3.0 / 1*mSATA / 1*M.2 (NVMe PCIE x4) / 1*M.2 Wifi/4G/5G

♦1*PCIE3.0 x16 ; 1*PCIE3.0 x1 ; 3*PCIE3.0 x4 ; 2*PCI ; 1*LPT ; 1*TPM

♦Provide: 1* ATX 24PIN Input ; 1*ATX 8pin input

Read More Make an inquiry

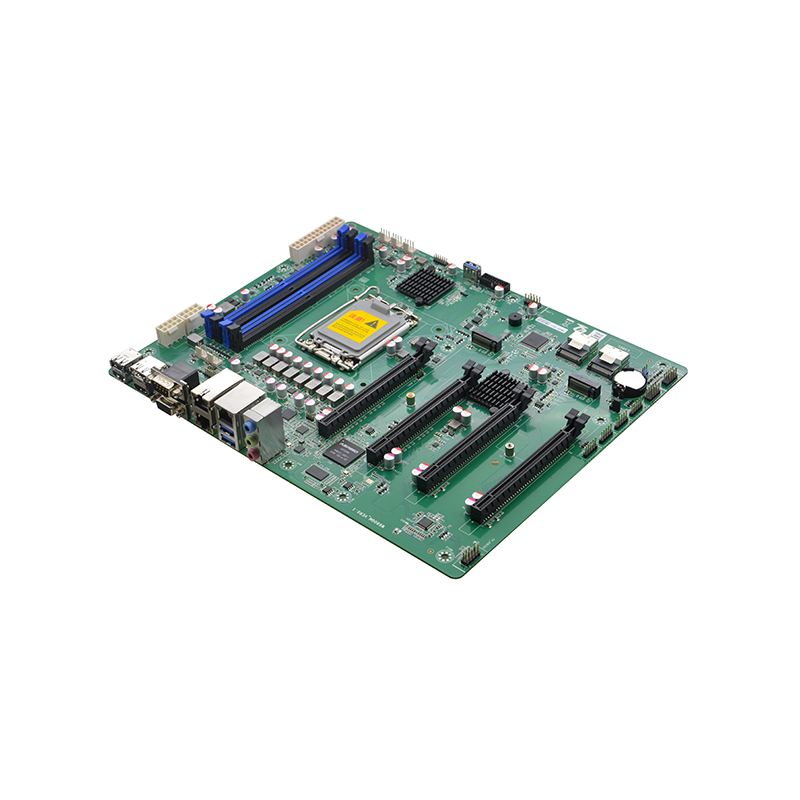

3 Lan LGA1700 industrial ATX motherboard

♦Product No.: W680GM VER:0.1

♦Adopt Intel W680 Express chipset

♦Support LGA1700 12nd/13rd Gen Celeron/Pentium/Core i3/i5/i7/i9/Xeon processors ( TDP up to: 125W )

♦Integrated Intel HD Graphics; DP + HDMI + VGA(IPMI) for display

♦4*DDR4 3200MHz DIMM slot, up to 128GB (support ECC memory)

♦3*RJ45 GbE(support IPMI) / 9*USB / 1* DB9 COM(RS232)

♦2*MSAS(support 8*SATA3.0) / 2*M.2 NVMe PCIE X4 SSD

♦4*PCIE3.0 x16 (x8 signal) / 1*TPM

♦Provide: 1* ATX 24PIN Input ; 2*ATX 8pin input

Read More Make an inquiry

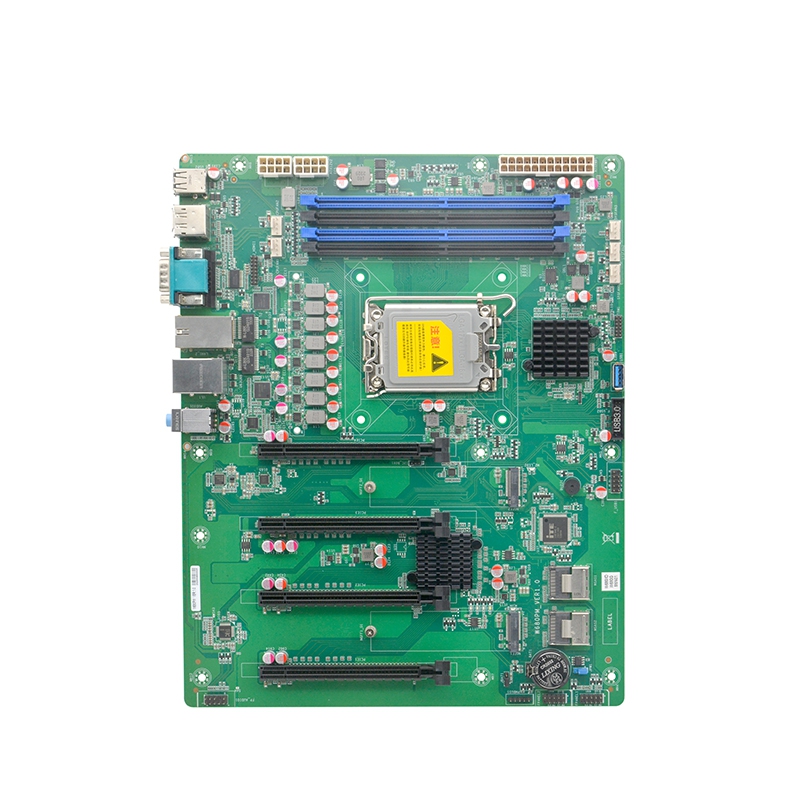

3 Lan LGA1700 industrial ATX motherboard

♦Product No.: W680PM VER:1.0

♦Adopt Intel W680 Express chipset

♦Support LGA1700 12nd/13rd Gen Celeron/Pentium/Core i3/i5/i7/i9/Xeon processors ( TDP up to: 125W )

♦Integrated Intel HD Graphics; (DP + HDMI + VGA) for display

♦4*DDR4 3200MHz DIMM slot, up to 128GB (support ECC memory)

♦3*RJ45 GbE(support Vpro) / 9*USB / 1* DB9 COM(RS232)

♦2*MSAS(support 8*SATA3.0) / 2*M.2 NVMe PCIE X4 SSD

♦4*PCIE3.0 x16 (x8 signal) / 1*TPM

♦Provide: 1* ATX 24PIN Input ; 2*ATX 8pin input

Read More Make an inquiry

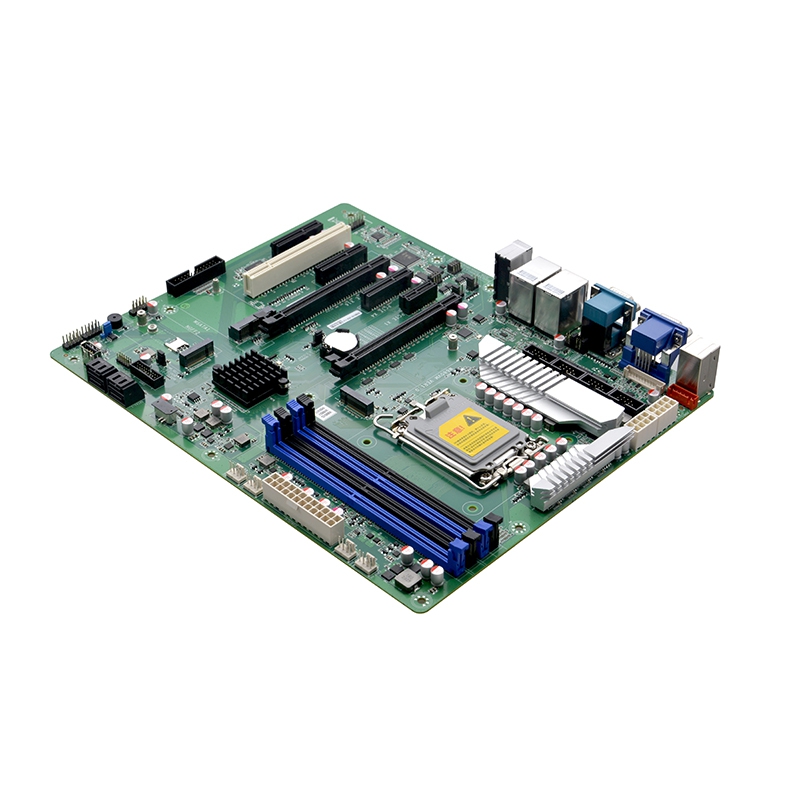

2 Lan 2 HDMI LGA1700 industrial ATX motherboard

♦Product No.: W680VM VER:1.0

♦Adopt Intel W680 Express chipset

♦Support LGA1700 12nd/13rd Gen Celeron/Pentium/Core i3/i5/i7/i9/Xeon processors ( TDP up to: 125W )

♦Integrated Intel HD Graphics; 2*HDMI + VGA for display

♦4*DDR4 3200MHz DIMM slot, up to 128GB (support ECC memory)

♦2*RJ45 GbE / 4*USB3.2 + 3*USB3.0 (1*type-E) +5*USB2.0

♦4*SATA3.0 / 1*M.2 NVMe SSD / 1*mSATA /1*M.2 (4G/5G)

♦2*PCIE3.0 x16 / 1*PCIE3.0 x1 / 3*PCIE3.0 x4 / 1*PCI / 1*TPM

♦2*PS2 / 1*LPT / 1*SIM slot / 6*COM(RS232/485/422)

Read More Make an inquiry

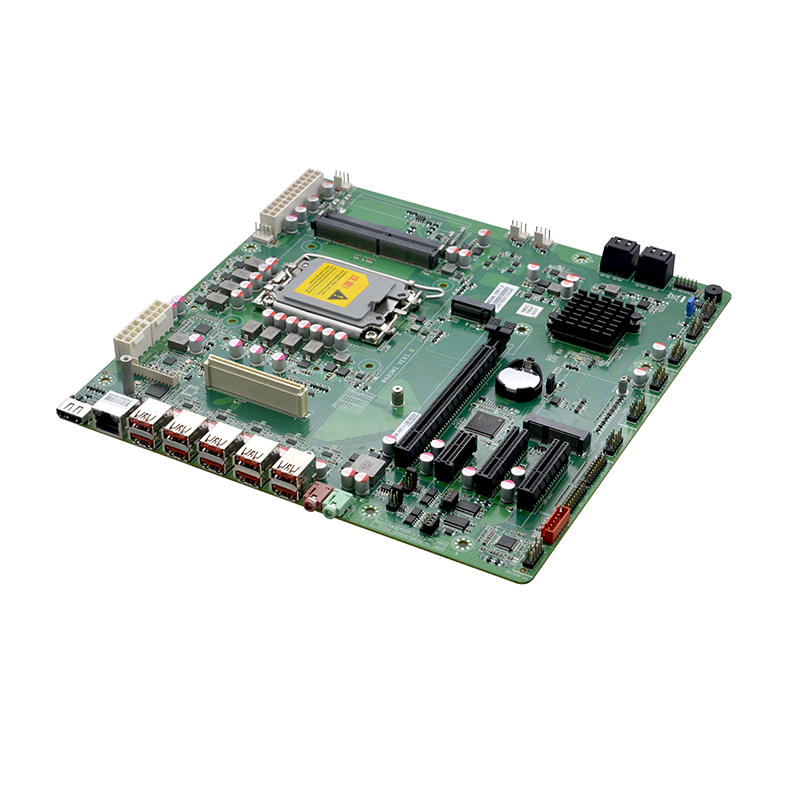

2 HDMI 10 USB LGA1700 industrial ATX motherboard

♦Product No.: W680MS VER:1.0

♦Adopt Intel W680 Express chipset

♦Support LGA1700 12nd/13rd Gen Celeron/Pentium/Core i3/i5/i7/i9/Xeon processors ( TDP up to: 125W )

♦Integrated Intel HD Graphics; 2*HDMI + VGA for display

♦2*DDR4 3200MHz SO-DIMM, up to 64GB (support ECC memory)

♦1*RJ45 GbE / 10*USB3.2 + 4*USB2.0 / 2*COM(RS232/485/422)

♦4*SATA3.0(support RAID 0,1,5,10) / 1*M.2 NVMe SSD / 1*mSATA

♦1*PCIE5.0 x16 / 1*PCIE3.0 x1 / 2*PCIE3.0 x4 / 1*TPM / 1*PS2

♦1*120PIN expansion slot for (6*POE LAN / VGA / GPIO)

Read More Make an inquiry
